Frigidaire FEF336WH Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336WHSC FEF336WH white\white USA

Publication No.

5995343281

000912

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF336WH

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - #316002707

OWNER’S GUIDE - # 316000290

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

01/01 2

Publication No. FEF336WHSC

5995343281

BACKGUARD

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FEF336WHSC Publication No.

5995343281

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316081600 Shield-backguard,galv steel ,rear wall

2 316015905 Shield-backguard,inner

11 316083721 Trim-wrapper,textured ,white ,w/switch hole

12 # 316032405 Thermostat,oven ,non self-clean

13 # 316032500 Switch-selector

14 316022503 Light/Lamp, indicator , surface ,250 V

15 316023108 Support-backguard,RH

15A 316023109 Support-backguard,LH

19 316100546 Panel-control,backguard ,white

20 # 316120500 Clock-timer

20* 316098008 Overlay-clock,white

23 316033204 Bracket-timer

24 # 316118101 Switch-oven light,rocker ,white

31 316109603 Knob-selector,white

32 316109601 Knob-thermostat,white

36 316025106 Knob-control,infinite sw ,white

40 316025808 Panel-manifold,white

46 316040201 Lens-light/lamp,indicator ,red

54 # 316021500 Switch,infinite , 6" element

54A# 316021501 Switch,infinite , 8" element

69 5303292005 Screw,8-32 x 5/32 ,switch/handle

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrme,hinge,ind light,manifold panel

* 316021110 Screw,8-18 x 0.500 ,black

01/01 4

Publication No. FEF336WHSC

5995343281

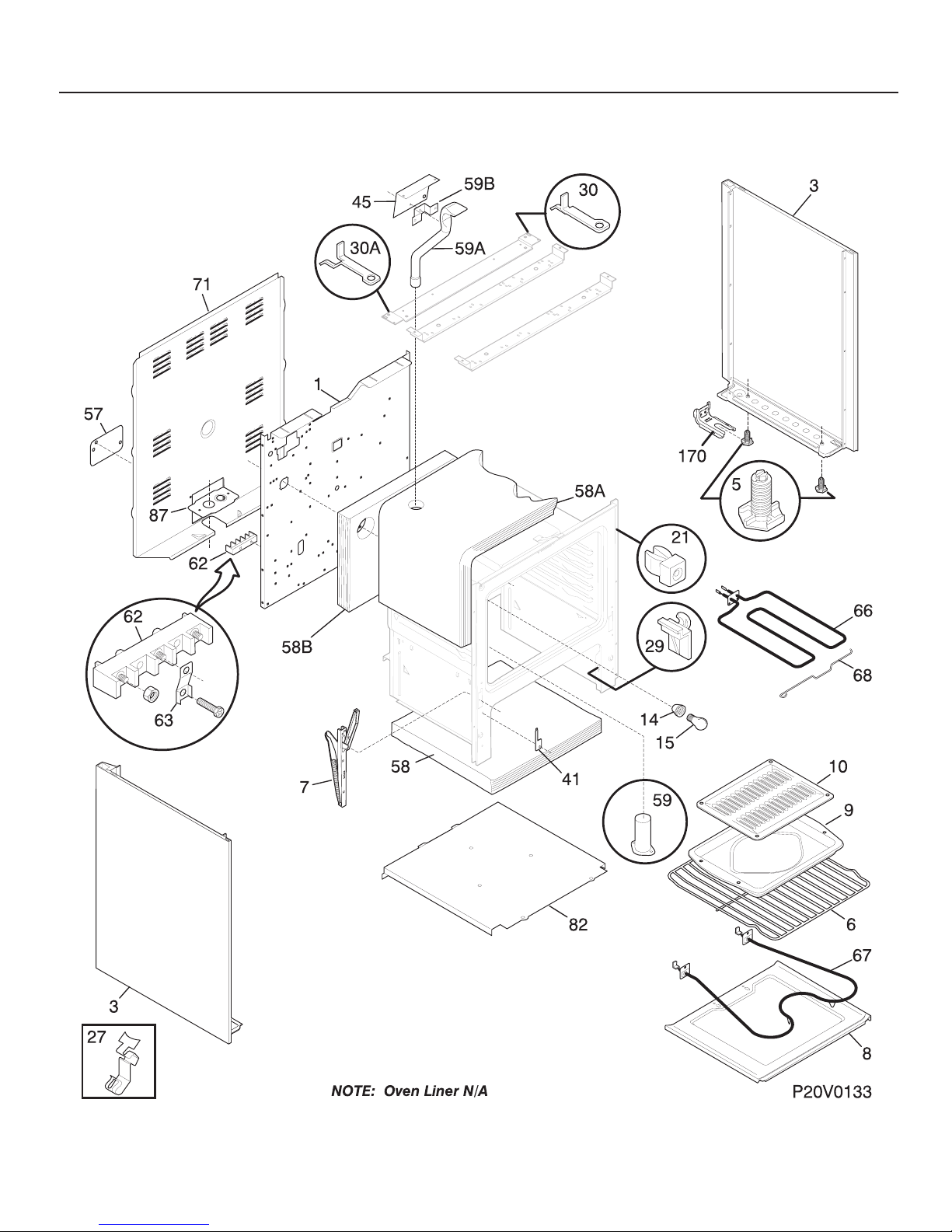

BODY

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FEF336WHSC Publication No.

5995343281

BODY

POS. NO PART NO DESCRIPTION

1 316080803 Panel-main back,galv steel ,short

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

3 316081034 Panel-bodyside,white ,RH

3 316081035 Panel-bodyside,white ,LH

5 316129200 Screw-leveling,plastic ,with stop

6 316067902 Rack-oven

7 316007003 Hinge-oven door,assembly

8 3203540 Panel-oven bottom

* 3203550 Plug-button,oven bottom

9 316081900 Pan-broiler

10 316082000 Insert-broiler pan

14 316116400 Socket-light/lamp,oven

15 5303013071 Light Bulb/Lamp

21 3014099 Spacer-bodyside, (8)

27 5303284616 Clip-thermo bulb

29 3051162 Glide-drawer,front

30 5303283574 Bracket-hinge,main top RH

30A 5303283575 Bracket-hinge,main top LH

41 3131570 Cover-hinge cutout

45 316066100 Shield-wire,s/t vent

57 316081100 Cover-access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation, 1" ,oven wrapper

58B 316054202 Insulation, 1" ,oven back

59 316073603 Tube-oven vent

59A 316023600 Tube-oven vent,upper

59B 316040100 Bracket-mounting,vent tube

62 # 5303935061 Terminal Block Kit

63 5301145190 Plate-ground strap

66 # 5303051140 Element-broil,2950 W

67 # 316075103 Element-bake,67

68 316075300 Support-element, broil

71 316015804 Shield-rear wall,galv steel

82 5303289913 Shield-insulation

87 316081200 Bracket-cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 • Bracket,anti-tip

170* 316116000 • Screw,concrete tpg ,1.75 inch ,anti-tip brkt

170* 316112500 • Template, Anti-tip bracket

* 316045000 Clip-wiring harness,retainer ,green ,main top

* 5303308427 Nut,hex ,10-32

01/01 6

Publication No. FEF336WHSC

5995343281

TOP/DRAWER

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FEF336WHSC Publication No.

5995343281

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011501 Drawer-utility

* 316089600 Spacer-drawer,(2)

2 5303288582 Shield-drawer,liner ,galv steel ,front panel

4 316084405 Panel-drawer front,white

7 3051163 Glide-drawer,rear

15 # 318178100 Element-surface,radiant ,small/6 inch ,1200 W

15A# 318178101 Element-surface,radiant ,large/8 inch ,2100 W

16 316098105 Panel-main top,white ,smooth top assy

18 5303273062 Hinge-main top,RH

18A 5303273063 Hinge-main top,LH

26 316099100 Channel-support,element ,galv steel ,(2)

26A 316099200 Bracket-support,chassis ,galv steel

48 316100200 Shield-wire,main top

51 # 316105100 Light/Lamp,hot surface ind ,assy

52 316099400 Clip-spring, element mtg,(8)

53 316099300 Bracket-indicator light,hot surface ,4 hole

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrme,hinge,ind light,manifold panel

88 316099500 Pin-guide, (2)

* 316045000 Clip-wiring harness,retainer ,green ,main top

* 316112101 Cleaner-cooktop

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021110 Screw,8-18 x 0.500 ,black

* 316021112 Screw,8-18 x 0.500 ,white

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5308014215 Screw,6-20 x 0.312

01/01 8

Publication No. FEF336WHSC

5995343281

DOOR

# = Fast-moving Parts 9 01/01

* = Non-Illustrated Parts

FEF336WHSC Publication No.

5995343281

DOOR

POS. NO PART NO DESCRIPTION

5 316050300 Glass-oven door, white , outer

6 316088403 Shield-wool

7 316076401 Insulation,oven door

8 316088600 Glass-oven door,inner

9 316066610 Liner-oven door

10 5303280308 Screw-handle mtg,wafer hd sq dr ,10-24T x 2.00

10* 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 5303202011 Seal-oven door,non self-clean

13 3017081 Panel-oven door,white

20 316133601 Spacer-handle,white ,(2)

22 5303272476 Retainer-glass,angle ,(2)

39 316091115 Handle-door,white ,oven

* 5303292005 Screw,8-32 x 5/32 ,switch/handle

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 08068008 Washer,black

* 316021110 Screw,8-18 x 0.500 ,black

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner box

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

01/01 10

Publication No. FEF336WHSC

5995343281

WIRING DIAGRAM
