Frigidaire FEF336XE Manuale utente

Product No. FEF366XESA

Series 30" f/s elec

Color white

Market North America

Wiring Diagram 316255311

Owner's Guide 316257123

Installation Instructions 316289206

Service Data Sheet 316218513

FEF366A.eps L20G0009.eps L20V1113.eps T20T0040.eps L20D0024.eps

316255311d.eps 316255311s.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995439923

05/06/23

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF336XE

Publication No: 5995439923 FEF366XESA

06/05 2

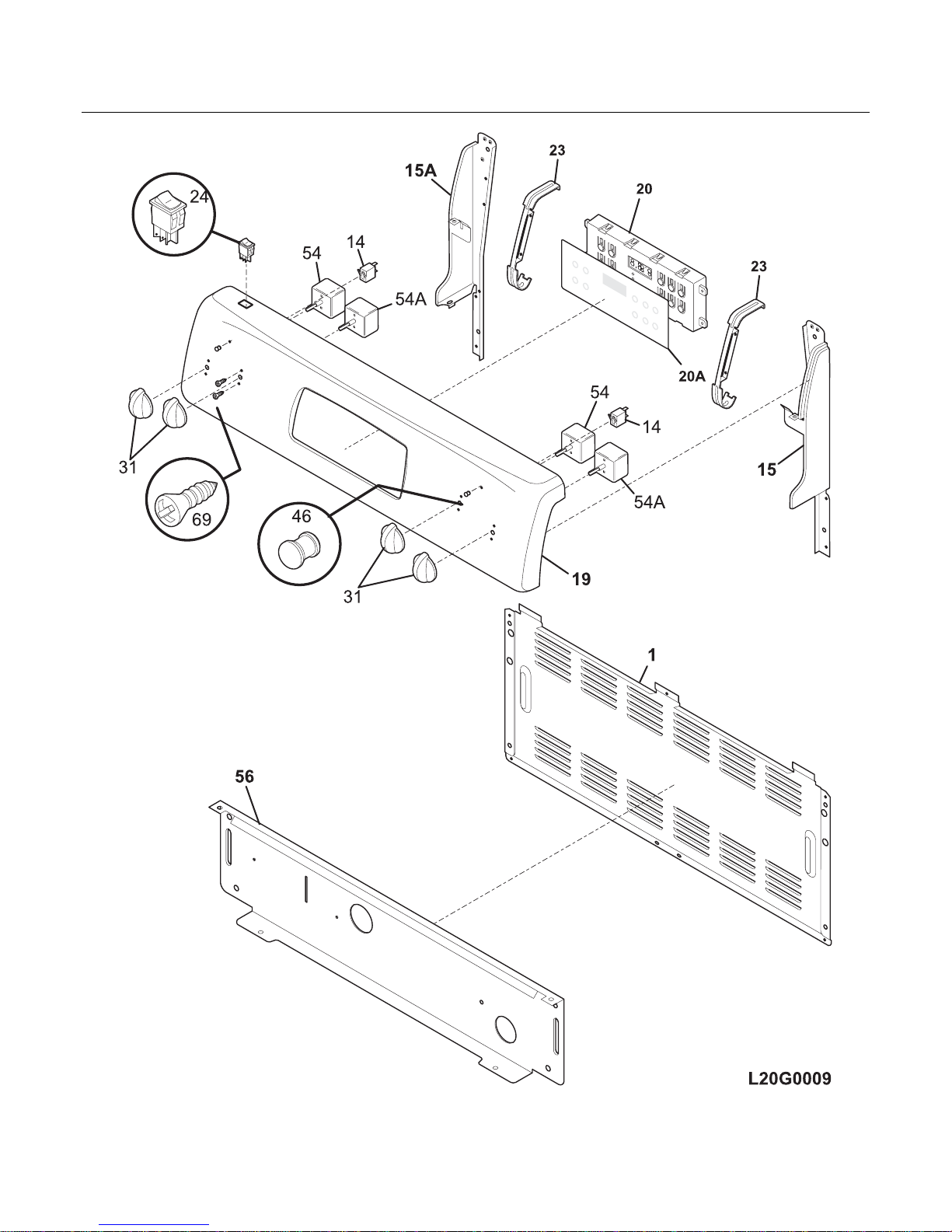

BACKGUARD

FEF366XESA Publication No: 5995439923

# Functional Parts 3 06/05

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316239900 Shield, backguard, rear wall

14 316022500 Light/Lamp, indicator, 125 V

15 316220214 Support, backguard, white, RH

15A 316220215 Support, backguard, white, LH

19 316232629 Panel, backguard, white

20 # 316207511 Clock/Timer, electronic, ES300

20A 316220804 Overlay, clock, white, ES300

23 316220900 Bracket, clock mtg

24 316246000 Switch, rocker, white, oven light

31 316223000 Knob, control, white

46 316040201 Lens, indicator light, red

54 # 316021500 Switch, infinite, small element

54A# 316021501 Switch, infinite, large element

56 316234012 Shield, backguard, white, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995439923 FEF366XESA

06/05 4

BODY

FEF366XESA Publication No: 5995439923

# Functional Parts 5 06/05

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316201300 Back, main

3 316400102 Panel, bodyside, white, RH

3 316400103 Panel, bodyside, white, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407200 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 Rack, oven

6A 316262900 Rack, oven sump

7 316216500 Hinge, oven door, RH

7A 316216505 Hinge, oven door, LH

8 316201501 Panel, sump, oven bottom

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

12 # 316209901 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316213900 Latch, oven door

21 316408000 Clip, bodyside

25 5303289914 Shield-heat lower

26 316206300 Support, chassis, (2)

29 3051162 Glide, drawer, front

37 # 316233900 Probe, oven temp

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

42 316206200 Shield, wool, lower

44 316246500 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316422400 Cover, access

58 316240300 Insulation, oven bottom

58A 316047708 Insulation, 2", oven wrapper

58B 316240100 Insulation, oven back

58C 316240400 Insulation, oven sump

59 316208201 Tube, oven vent, lower

59A 316208304 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316203200 Element, broil

67 # 316225000 Element, bake

68 316203400 Support, broil element

71 316422300 Shield, rear wall

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* 316269502 Harness, wiring, main

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995439923 FEF366XESA

06/05 6

TOP/DRAWER

FEF366XESA Publication No: 5995439923

# Functional Parts 7 06/05

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316011503 Drawer

2 316231500 Liner, drawer

4 316231305 Panel, drawer, white

7 3051163 Glide, drawer, rear

15 # 316010205 Element, surface, 6", 1200 W, radiant

15A# 316224200 Element, surface, 9", 2500W, radiant

16 316251987 Main Top Assy, glass/steel, white

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

52 316278300 Clip, element mtg

* # 316416852 Harness, wiring, surface

* 316264000 Cleaner, cooktop

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995439923 FEF366XESA

06/05 8

DOOR

FEF366XESA Publication No: 5995439923

# Functional Parts 9 06/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3 5303935192 Trim kit-door, 3 sided, white, w/tape and foil

4 5303935214 Glass, door kit, white, outer, w/foil tape

5 316237000 Glass, oven door, air wash

6 316222707 Shield, wool, oven door

7 316236700 Insulation, oven door

8 316237100 Glass, oven door, clear, heat barrier

9 316230617 Liner, oven door

10 316278700 Screw, wafer head, 10-14 x 1 3/8, handle mtg

10B 316008401 Washer, 3/4 OD x 1/4 ID, steel

12 316230901 Seal, oven door

14 316102207 Foil, 1.5" x 29", aluminum, clear

14A 316102202 Foil, 4" x 5.5", aluminum, clear, (2)

15 316237201 Bracket, glass support, (2)

16 316117501 Glass, oven door, inner

17 316117701 Spacer, door glass, (2)

39 316270201 Handle, door, white

52 316201003 Cap, door trim, white

60B 316021110 Screw, 8-18 x 0.5, black

* 316433600 Label, anti-tip

* 316021109 Screw, 8-18 x 0.5, chrome

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995439923 FEF366XESA

06/05 10

WIRING SCHEMATIC
