Frigidaire FEF353BF Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF353BFDC FEF353BF almond USA

FEF353BFWC FEF353BF white USA

Publication No.

5995309183

980623

-EN/SERVICE /CML

369

ELECTRIC - RANGE

Model No.

FEF353BF

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # - 316002622

OWNER’S MANUAL # - 316000263

INSTALLATION INSTR. # - 316003018

104 Warren Road

Augusta, Georgia 30907-3755

BACKGUARD

Publication No. FEF353BFWC,FEF353BFDC

5995309183

006/98 2

A = FEF353BF (FEF353BFWC)

B = FEF353BF (FEF353BFDC)

POS. NO PART NO DESCRIPTION

* 316003018 A B Instructions,installation

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

1 316081601 A B Shield-backguard,rear wall

2 316015907 A B Shield-backguard,inner

11 316083719 A B Trim-wrapper,textured ,black

14 316022503 A B Light/Lamp,indicator ,yellow ,250 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316024494 A B Panel-control,metal

20 # 316101103 A B Clock/Timer,trimline,dial 3

20* 316101505 A B Overlay-clock

23 316100300 A B Bracket-clock mtg

24 # 316005602 A B Switch-rocker,oven light ,black

32 316101400 A B Knob-thermostat

36 316025100 A B Knob-control,infinite sw

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-6" element,(2)

54A# 316021501 A B Switch-8" element,(2)

69 5303292005 A B Screw-switch mtg,8-32 x 5/32

BACKGUARD

FEF353BFWC,FEF353BFDC Publication No.

5995309183

# = Functional Part 3 06/98

* = Non-Illustrated Part

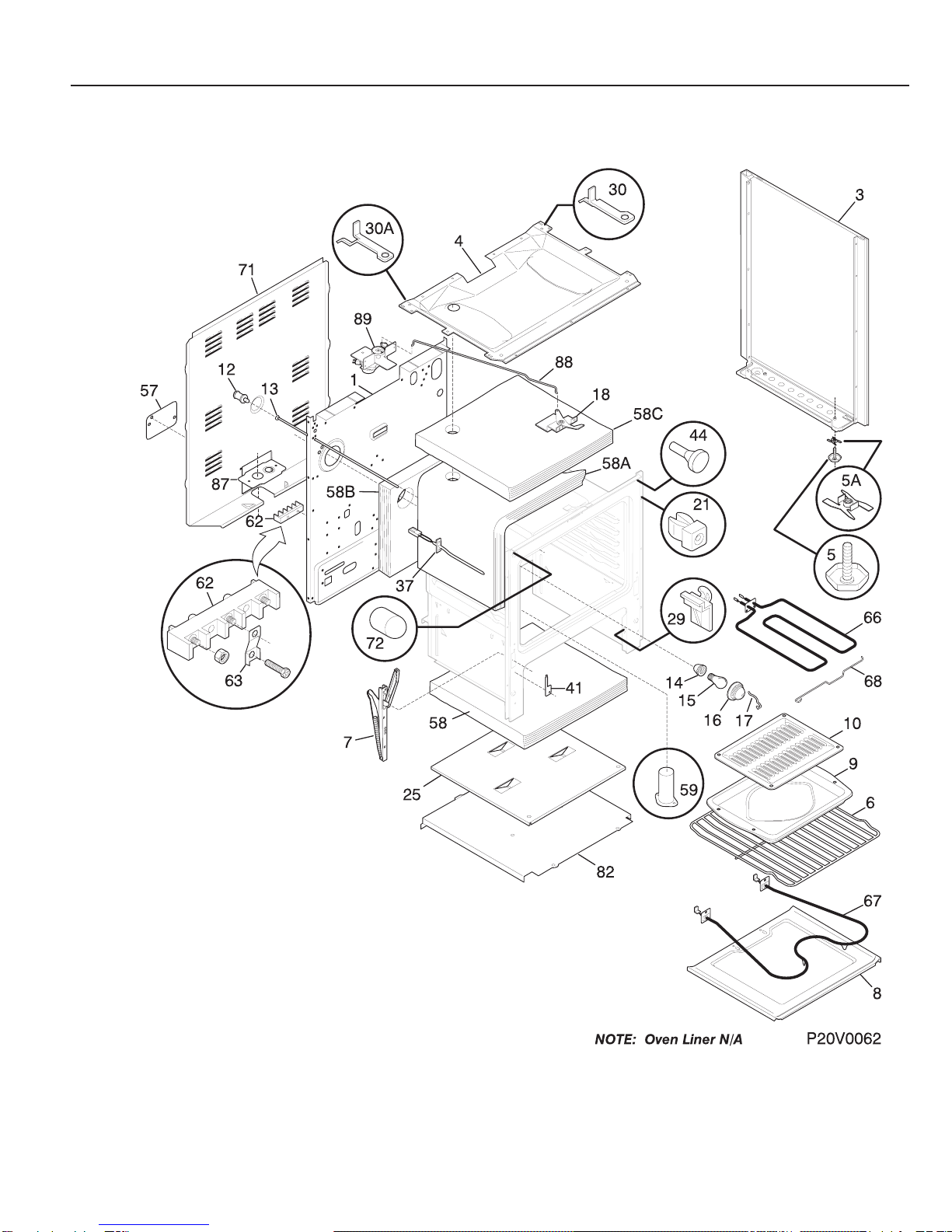

BODY

Publication No. FEF353BFWC,FEF353BFDC

5995309183

006/98 4

A = FEF353BF (FEF353BFWC)

B = FEF353BF (FEF353BFDC)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081028 A - Panel-bodyside,white ,RH

3 316081030 - B Panel-bodyside,almond ,RH

3* 316081029 A - Panel-bodyside,white ,LH

3* 316081031 - B Panel-bodyside,almond ,LH

4 5303271756 A B Burner Box

5 5303203397 A B Screw-leveling

5* 3934058 A B Anti-tip Kit

5* 316078600 A B Screw,anti-tip ,(4)

5A 5303288460 A B Nut,T-type ,leveling screw

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside,(8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

37 # 316111200 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer,rubber

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047708 A B Insulation,oven wrapper

58B 316054200 A B Insulation,oven back

58C 3131304 A B Insulation,oven top

59 316073600 A B Tube-oven vent

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element

71 316015805 A B Shield-rear wall

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

89 # 316028101 A B Motor-latch/lock

BODY

FEF353BFWC,FEF353BFDC Publication No.

5995309183

# = Functional Part 5 06/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FEF353BFWC,FEF353BFDC

5995309183

006/98 6

A = FEF353BF (FEF353BFWC)

B = FEF353BF (FEF353BFDC)

POS. NO PART NO DESCRIPTION

* 3203618 A B Rivet-pop,warning-plate

* 316001725 A B Harness-wiring,surface element

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316058600 A B Clip-surface element,(4)

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5308014215 A B Screw,#6-20 x 5/16 ,(4)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 08067785 - B Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

15 # 5303012223 A B Element-surface,large-8"

15A# 08067762 A B Element-surface,small-6"

16 316020907 A - Main Top,white

16 316020908 - B Main Top,almond

17 316057601 A B Rod-maintop support

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

19 5303935054 A B Pan-surface element,large/8 inch

19A 5303935057 A B Pan-surface element,small/6 inch

27 # 5301167733 A B Terminal Block Kit,surface element

28 5303017715 A B Medallion,1 1/2"dia ,black ,

surface element

TOP/DRAWER

FEF353BFWC,FEF353BFDC Publication No.

5995309183

# = Functional Part 7 06/98

* = Non-Illustrated Part

DOOR

Publication No. FEF353BFWC,FEF353BFDC

5995309183

006/98 8

A = FEF353BF (FEF353BFWC)

B = FEF353BF (FEF353BFDC)

POS. NO PART NO DESCRIPTION

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316065301 A B Plate warning/caution

* 5303212762 - B Screw,8-18 X 1/2

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303285179 A B Screw-oven door,wafer head ,8-32T x 1/2

3 316067802 A B Trim-oven door,black

4 316089000 A B Glass-oven door,black ,outer

5 316088700 A B Glass-oven door,inner

6 316088401 A B Shield-wool

7 316076403 A B Insulation-door

8 316088600 A B Glass-oven door,airwash

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 # 5303131601 A B Seal-oven door

14 5303208656 A B Reflector,aluminum foil

14A 5303208655 A B Reflector,aluminum foil ,(2)

15 316081403 A B Bracket-glass mtg

16 316085701 A B Glass-oven door,heat barrier

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel ,(2)

52 316081303 A B Shield-oven door,black ,top

DOOR

FEF353BFWC,FEF353BFDC Publication No.

5995309183

# = Functional Part 9 06/98

* = Non-Illustrated Part

WIRING DIAGRAM

Publication No. FEF353BFWC,FEF353BFDC

5995309183

006/98 10
