Frigidaire FEF358BFDD Manuale utente

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF358BFWD FEF358BF WHITE USA

FEF358BFDD FEF358BF ALMOND/ALMOND USA

Publication No.

5995320008

980731

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002651

OWNER’S GUIDE # - 316000268

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF358BFWD

FEF358BFDD

03/99 2

Publication number

5995320008 FEF358BFWD, FEF358BFDD

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF358BFWD, FEF358BFDD 5995320008

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF358BF (FEF358BFWD)

B = FEF358BF (FEF358BFDD)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

* 316085600 A B Insulator-shield thermostt

* 316112500 A B Template, Anti-tip bracket

1 316081601 A B Shield-backguard,rear wall

2 316015905 A B Shield-backguard,inner

11 316083719 A B Trim-wrapper,textured ,black

13A# 316095500 A B Switch-warmer,infinite ,drawer/zone

14 316022504 A B Light-indicator,250v

14A 316022500 A B Light/Lamp, warmer,, indicator ,

drawer/zone,125 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100503 A B Panel-control,metal ,black

20 # 316101001 A B Clock/Timer,electronic

20* 316101503 A B Overlay-clock

23 316100300 A B Bracket-clock mtg

24 # 316005602 A B Switch-rocker,oven light ,black

24B# 316083100 A B Switch-rocker,dual element ,black ,LH ,

(2)

31A 316095603 A B Knob-warmer,black

36 316025100 A B Knob-control,infinite sw

39* 5303292005 A B Screw-switch/handle,8-32 x 5/32

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54B# 316049800 A B Switch, infinite , dual element

60 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

03/99 4

Publication number

5995320008 FEF358BFWD, FEF358BFDD

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 03/99

Publication number

FEF358BFWD, FEF358BFDD 5995320008

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF358BF (FEF358BFWD)

B = FEF358BF (FEF358BFDD)

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B Clip-wire,harness ,main top

* 316101600 A B Shield-vent,smoothtop

* 5303051099 A B Nut,hex ,#10-32

1 316080804 A B Back-main, short,dipped ,black

3 316081034 A - Panel-bodyside,white ,RH

3 316081035 A - Panel-bodyside,white ,LH

3 316081036 - B Panel-bodyside,almond ,RH

3 316081037 - B Panel-bodyside,almond ,LH

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside,(8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

37 # 316111200 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer,rubber

45 316066100 A B Shield-wire, s/t vent

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047708 A B Insulation, 2" ,oven wrapper

58B 316054200 A B Insulation, 2" ,oven back

59 316073602 A B Tube-oven vent

59A 316023601 A B Tube-oven vent,upper

59B 316040100 A B Bracket-mounting,vent tube

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

89 # 316028101 A B Motor-latch/lock

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

03/99 6

Publication number

5995320008 FEF358BFWD, FEF358BFDD

CAUTION: Use the part number on all orders, not the position number.

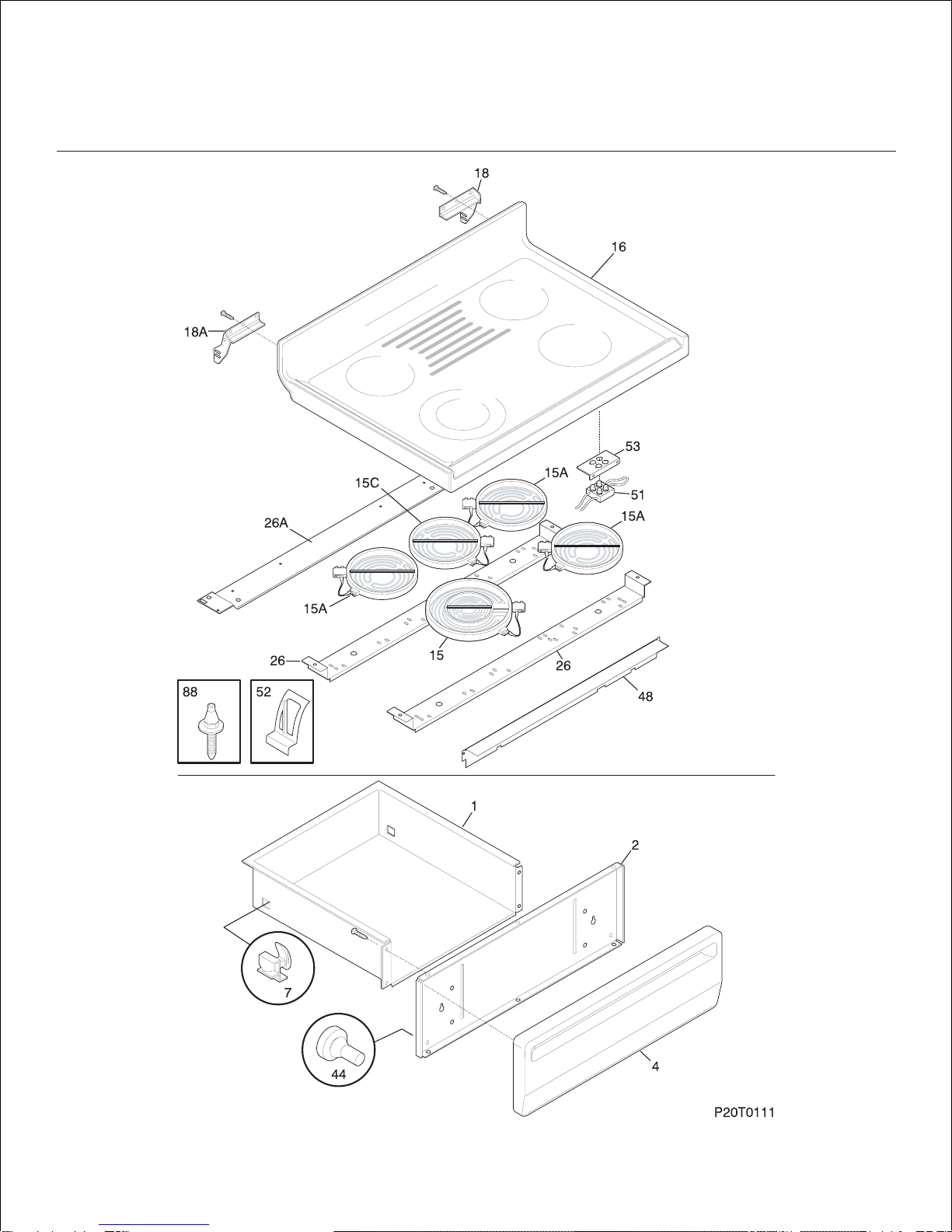

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 03/99

Publication number

FEF358BFWD, FEF358BFDD 5995320008

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF358BF (FEF358BFWD)

B = FEF358BF (FEF358BFDD)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B Clip-wire,harness ,main top

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5309951550 A B Cleaner-cooktop

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 08067785 - B Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

15A# 316010203 A B Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

15B# 316049703 A B Element-surface,radiant ,dual ,

2100W/1000W,limit sw incl

15C# 316098200 A B Element-warmer,120V/100W

16 316098127 A - Main Top,glass ,white

16 316098128 - B Main Top,glass ,almond

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

26 316099101 A B Channel-support,element ,(2)

26A 316099201 A B Bracket-support, chassis

44 3131903 A B Bumper-door/drawer,rubber

48 316100200 A B Shield-wire,main top

52 316099400 A B Clip-spring, element mtg,(8)

53 316099300 A B Bracket-indicator light,hot surface ,

4 hole

88 316099500 A B Pin-guide,(2)

03/99 8

Publication number

5995320008 FEF358BFWD, FEF358BFDD

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 03/99

Publication number

FEF358BFWD, FEF358BFDD 5995320008

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF358BF (FEF358BFWD)

B = FEF358BF (FEF358BFDD)

POS. NO PART NO DESCRIPTION

* 3203618 A B Rivet-pop,warning-plate

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316065301 A B Plate warning/caution

* 5303212762 - B Screw,8-18 X 1/2

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

3 316067802 A B Trim-oven door,black

4 316089000 A B Glass-oven door,black ,outer

5 316088700 A B Glass-oven door,airwash

6 316088401 A B Shield-wool

7 316076403 A B Insulation-door

8 316088600 A B Glass-oven door,inner

9 316066610 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 # 5303131601 A B Seal-oven door

14 5303208656 A B Reflector,aluminum foil

14A 5303208655 A B Reflector,aluminum foil

15 316081403 A B Bracket-glass mtg

16 316085701 A B Glass-oven door,heat barrier

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

39* 5303292005 A B Screw-switch/handle,8-32 x 5/32

52 316081303 A B Shield-oven door,black ,top

03/99 10

Publication number

5995320008 FEF358BFWD, FEF358BFDD

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
