Frigidaire FEF362MXA Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF362MXAWA FEF362MXA black/white North America

Publication No.

5995381422

021113

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF362MXA

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

SERVICE DATA SHEET - # 316259186

WIRING DIAGRAM - #316255137

OWNER’S GUIDE - # 316257105

INSTALLATION INSTRUCTIONS -# 316259200

11/02 2

Publication No. FEF362MXAWA

5995381422

BACKGUARD

# = Fast-moving Parts 3 11/02

* = Non-Illustrated Parts

FEF362MXAWA Publication No.

5995381422

POS. NO PART NO DESCRIPTION

1 316239900 Shield,backguard ,rear wall

11 316241000 Shield,end cap ,RH

11A 316241001 Shield,end cap ,LH

14 316022500 Light/Lamp,indicator ,125 V

15 316220216 Support,backguard ,black ,RH

15A 316220217 Support,backguard ,black ,LH

18 316240904 End Cap,black ,RH

18A 316240905 End Cap,black ,LH

19 316244496 Panel,backguard ,black

20 # 316207505 Clock/Timer,electronic

20A 316220801 Overlay,clock ,black

23 316245900 Bracket,clock mtg

24 # 316246001 Switch,rocker ,black ,oven light

31 316223002 Knob,black

46 316040201 Lens,indicator light ,red

54 # 316021500 Switch,infinite ,small element

54A# 316021501 Switch,infinite ,large element

56 316234003 Shield,backguard ,black ,inner

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

11/02 4

Publication No. FEF362MXAWA

5995381422

BODY

# = Fast-moving Parts 5 11/02

* = Non-Illustrated Parts

FEF362MXAWA Publication No.

5995381422

POS. NO PART NO DESCRIPTION

1 316201300 Back,main

3 316230114 Panel,bodyside ,white ,RH

3 316230115 Panel,bodyside ,white ,LH

3* 316021131 Screw,bodyside ,8-18 X 11/16 ,white

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316212906 Hinge,oven door ,RH

7A 316212907 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316027701 Switch,oven light

13 316238800 Rod,light switch

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 08011086 Lens,oven light ,glass

17 316087500 Retainer,lens

18 # 316213900 Latch,oven door

21 3014099 Spacer,bodyside

25 3200848 Shield,heat ,lower

26 316206300 Support,chassis ,(2)

29 3051162 Glide,drawer ,front

30 316217700 Bracket,hinge ,RH ,main top

30A 316217701 Bracket,hinge ,LH ,main top

37 # 316233900 Probe,oven temp

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 316206200 Shield,wool ,lower

44 316246500 Spacer,oven door

45 316234100 Shield,wire ,vent tube

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047708 Insulation,2" ,oven wrapper

58B 316240100 Insulation,oven back

59 316208200 Tube,oven vent ,lower

59A 316208302 Tube,oven vent ,upper

59B 316247300 Catalyst,oven vent ,ceramic

62 # 5303935061 Terminal Block Kit

62* 316085600 Insulator

62* 316205500 Nut,hex flange ,3/8 10-32

63 316208500 Plate,grounding strap

66 # 316203200 Element,broil

67 316075103 Element,bake

68 316203400 Support,broil element

71 316015810 Shield,rear wall ,galv steel

72 316234500 Cover,rod end ,light switch

87 316081200 Bracket,cable mtg

88 316203500 Rod,auto latch

89 # 316137500 Motor,latch

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete ,1.75" ,anti-tip brkt

* # 316253232 Wiring Harness,main

* 5303305324 Paint,touch-up ,white

* 5303305345 Paint,touch-up ,black

* 3203550 Plug,button ,oven bottom

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

BODY

11/02 6

Publication No. FEF362MXAWA

5995381422

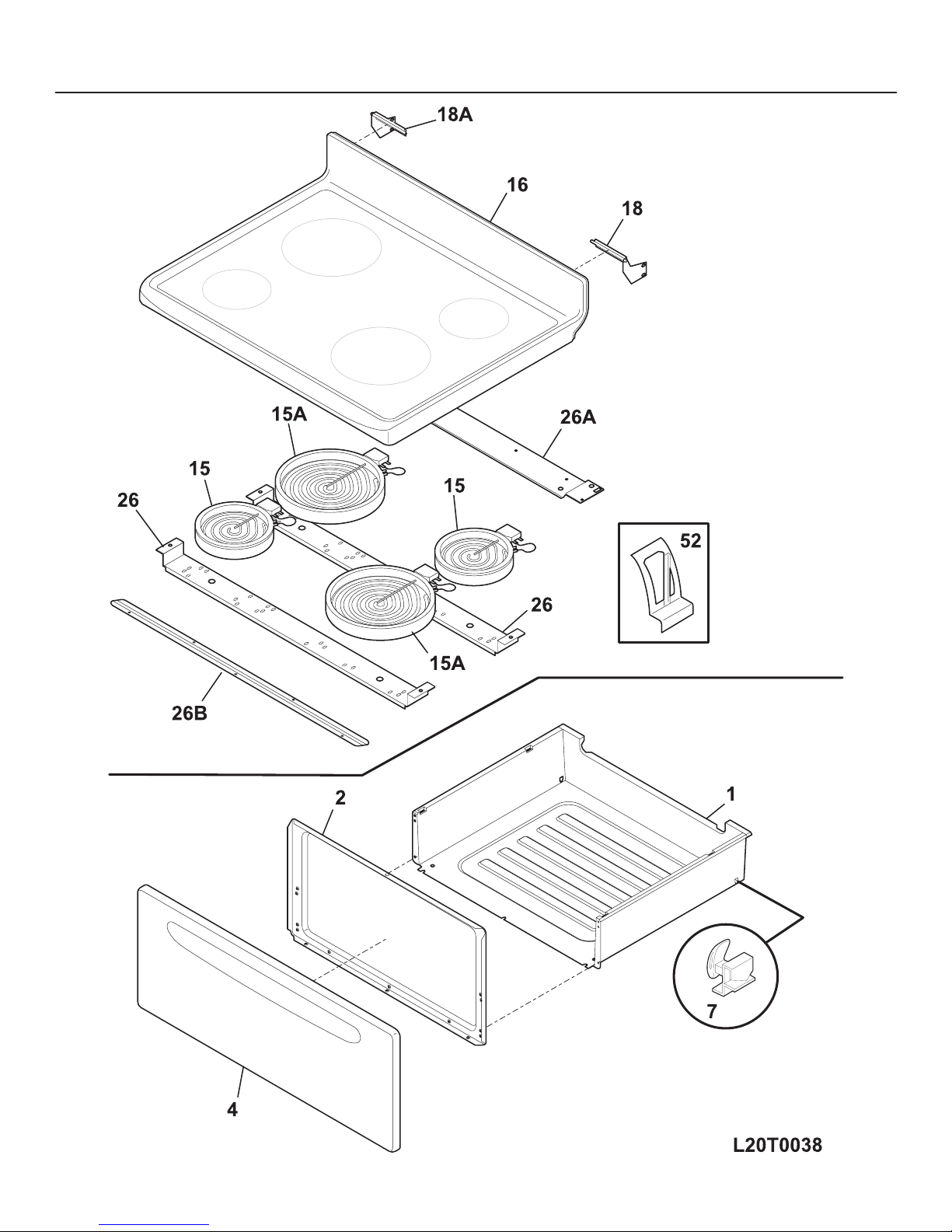

TOP/DRAWER

# = Fast-moving Parts 7 11/02

* = Non-Illustrated Parts

FEF362MXAWA Publication No.

5995381422

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231500 Liner,drawer

4 316231305 Panel,drawer ,white

7 3051163 Glide,drawer ,rear

15 # 316010206 Element,surface ,8" ,2200 W ,radiant

15A# 316010205 Element,surface ,6" ,1200 W ,radiant

16 316251920 Main Top Assy,glass/steel ,white

18 316235900 Hinge,main top ,RH

18A 316235901 Hinge,main top ,LH

26 316230200 Channel,element support ,(2)

26A 316099200 Bracket,chassis support ,rear

26B 316214200 Bracket,chassis support ,front

52 316099400 Clip,element mtg

* # 316253518 Wiring Harness,surface element

* 316264000 Cleaner,cooktop

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

TOP/DRAWER

11/02 8

Publication No. FEF362MXAWA

5995381422

DOOR

# = Fast-moving Parts 9 11/02

* = Non-Illustrated Parts

FEF362MXAWA Publication No.

5995381422

POS. NO PART NO DESCRIPTION

3 5303935191 Trim kit-door,3 sided ,black ,w/tape and foil

4 5303935203 Glass,door kit ,black ,outer ,w/foil tape

5 316088700 Glass,oven door ,airwash

6 316222706 Shield,wool ,oven door

7 316236800 Insulation,oven door

8 316088600 Glass,oven door ,inner

9 316230604 Liner,oven door

10 316001014 Screw,waf hd sq ,10-24 x 1.6 ,handle ,(2)

10B 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316230901 Seal,oven door

14 316102208 Foil,1.5" x 29" ,aluminum ,black

14A 5303208655 Reflector,aluminum foil ,black door

15 316081403 Bracket,glass mtg

16 316085701 Glass,oven door ,heat barrier

20 316248400 Spacer,handle ,black ,(2)

39 316248300 Handle,oven door ,black

52 316201005 Cap,door trim ,black

60B 316021110 Screw,8-18 x 0.5 ,black

* 316065306 Plate,warning/caution

* 316209000 Rivet,pop

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

DOOR

11/02 10

Publication No. FEF362MXAWA

5995381422

WIRING DIAGRAM
