Frigidaire FEF365MXF Manuale utente

FEF375FC.eps T20G5642.eps T20V0038.eps T20T1848.eps T20D0047.eps

316255102d.eps 316255102s.eps

Product No. FEF365MXFCA

Series 30" f/s elec

Color stainless

Market North America

Owner's Guide 316417003

Installation Instructions 316454901

Service Data Sheet 316441437

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995475034

06/09/26

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF365MXF

Publication No: 5995475034 FEF365MXFCA

09/06 2

BACKGUARD

8.8.

54A

54A 14

T20G5642

15A

20A

FEF365MXFCA Publication No: 5995475034

# Functional Parts 3 09/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

14 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316445209 Panel-backguard, black

20 # 316418200 Clock/Timer, electronic, ES300

20A 316419103 Overlay, clock, black, ES300

23 316441600 Bracket-clock mtg, black

24 # 316448700 Switch, rocker, black, oven light

31 316223002 Knob, control, black

46 316040201 Lens, indicator light, red

54 # 316436000 Switch, infinite, small element

54A# 316436001 Switch, infinite, large element

56 316234013 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021110 Screw, 8-18 x 0.5, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

Publication No: 5995475034 FEF365MXFCA

09/06 4

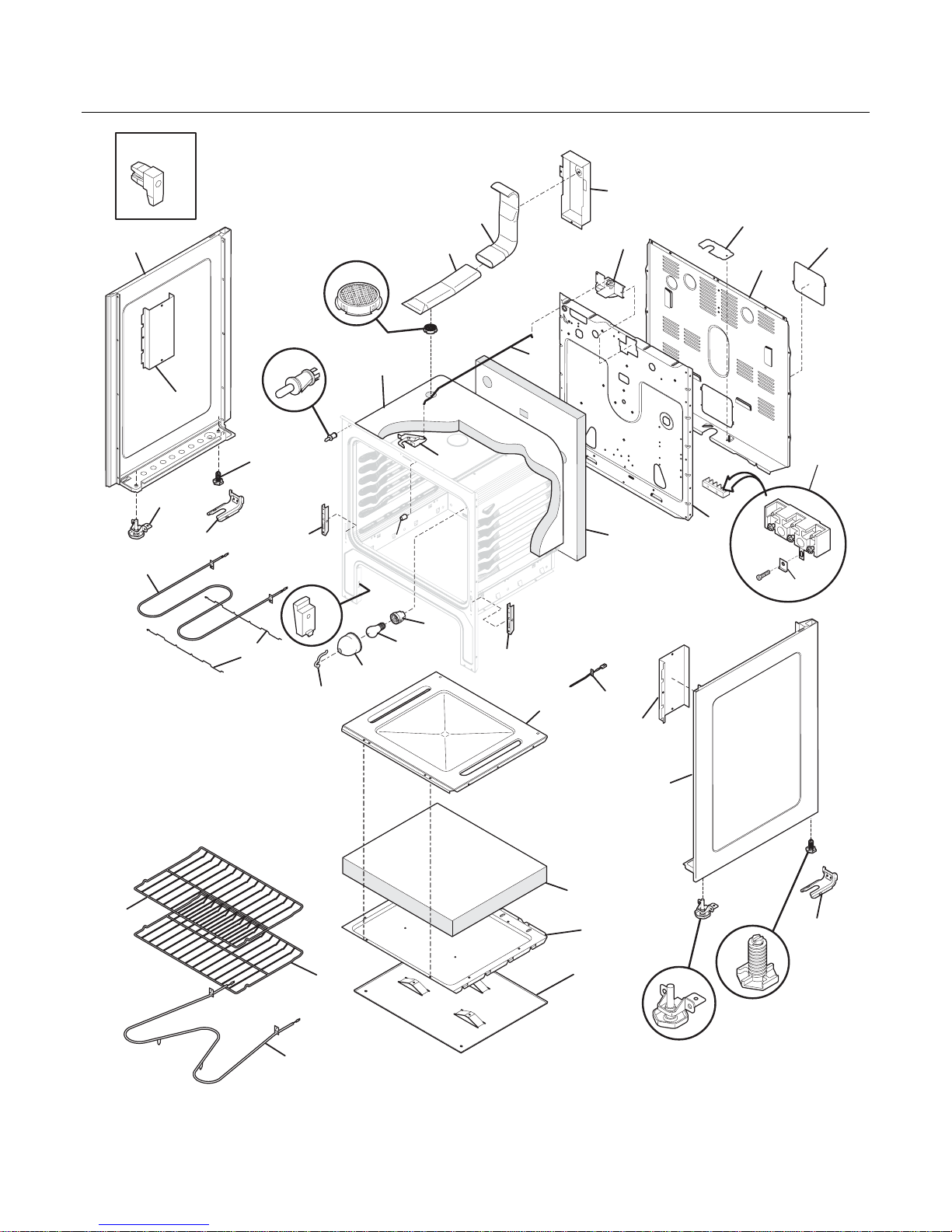

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEF365MXFCA Publication No: 5995475034

# Functional Parts 5 09/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401800 Panel, main back

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

8 316400601 Panel, oven bottom

12 316445501 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316217001 Probe, oven temp

42 316407700 Shield, wool, lower

44 316246501 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316457800 Cover, access

58 316403800 Insulation, oven bottom

58A 316406600 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208201 Tube, oven vent, lower

59A 316208304 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5304409888 Terminal Block Kit

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316203200 Element, broil

67 316075103 Element, bake

68 316404000 Support, element, broil

71 316422304 Shield, rear wall

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

151 316404600 Shield, bodyside

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316416455 Harness, wiring, main

* 3203550 Plug, button, oven bottom

* 5303321321 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995475034 FEF365MXFCA

09/06 6

TOP/DRAWER

26B

26A

15A

T20T1848

FEF365MXFCA Publication No: 5995475034

# Functional Parts 7 09/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408701 Drawer, utility

2 316403300 Liner, drawer

3 316446200 Overlay, drawer, stainless, outer

4 316403506 Panel, drawer front, black

7 316407400 Glide, drawer, rear

15 # 318178110 Element, surface, 6", 1200, (2), radiant

15A# 316224201 Element, surface, 9", 2500W, radiant

16 316456238 Main Top, smooth top, black

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

39 316079500 Handle door/drawer, stainless

39* 316437500 Screw, handle mtg., 10 14 x .4 trus, (2)

52 316461700 Clip, element mtg

* # 316466710 Harness-wiring, surface

* 316279700 Cleaner, stainless steel

* 316468100 Cleaner, smoothtop, w/sponge

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995475034 FEF365MXFCA

09/06 8

DOOR

T20D0047

60B

FEF365MXFCA Publication No: 5995475034

# Functional Parts 9 09/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3 5303935245 Trim kit-door, 3 sided, black, w/tape

4 316453002 Glass Assembly, oven door, outer, w/ss overlay

5 316446400 Glass, oven door, airwash

6 316406307 Shield, wool

7 316405600 Insulation, oven door

8 316117500 Glass, oven door, heat barrier

9 316423701 Liner, oven door

10 316433300 Screw, 10-14 x 2.125", handle mtg.

12 316405000 Seal, oven door

17 316402403 Spacer, door glass, (2)

23 316456308 Hinge, oven door, gray, (2)

23* 316418900 Screw, sims lp, #8-32 x 5/16", black

39 316079500 Handle door/drawer, stainless

40 316446301 Bracket, glass, airwash, (2)

52 316468401 Cap, door trim, black

60B 316021110 Screw, 8-18 x 0.5, black

* 316433603 Label, anti-tip

* 316279700 Cleaner, stainless steel

* 316021109 Screw, 8-18 x 0.5, chrome

* 5303285179 Screw, wafer head, 8-32T x 0.500, black
