Frigidaire FEFL64F Manuale utente

FEFL75A.eps L20G0042.eps T20V0038.eps T20T1821.eps T20D0024.eps

316255102d.eps 316255102s.eps

Product No. FEFL64FSA

Series 30" f/s elec

Color white

Market North America

Owner's Guide 316417022

Installation Instructions 316454901

Service Data Sheet 316441455

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995461000

06/02/15

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEFL64F

Publication No: 5995461000 FEFL64FSA

02/06 2

BACKGUARD

FEFL64FSA Publication No: 5995461000

# Functional Parts 3 02/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

13A 316095502 Switch, infinite, warmer

14 316022500 Light/Lamp, indicator, 125 V

15 316411403 Support, backguard, white, RH

15A 316411402 Support, backguard, white, LH

19 316445216 Panel-backguard, white

20 # 316418200 Clock/Timer, electronic, ES300

20A 316419104 Overlay, clock, white, ES300

23 316441600 Bracket-clock mtg, black

24# 316448701 Switch, rocker, white, oven light

31 316223000 Knob, control, white

46 316040201 Lens, indicator light, red

54 # 316436000 Switch, infinite, small element

54A# 316436001 Switch, infinite, large element

54B# 316238200 Switch, infinite, dual element

56 316234012 Shield, backguard, white, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995461000 FEFL64FSA

02/06 4

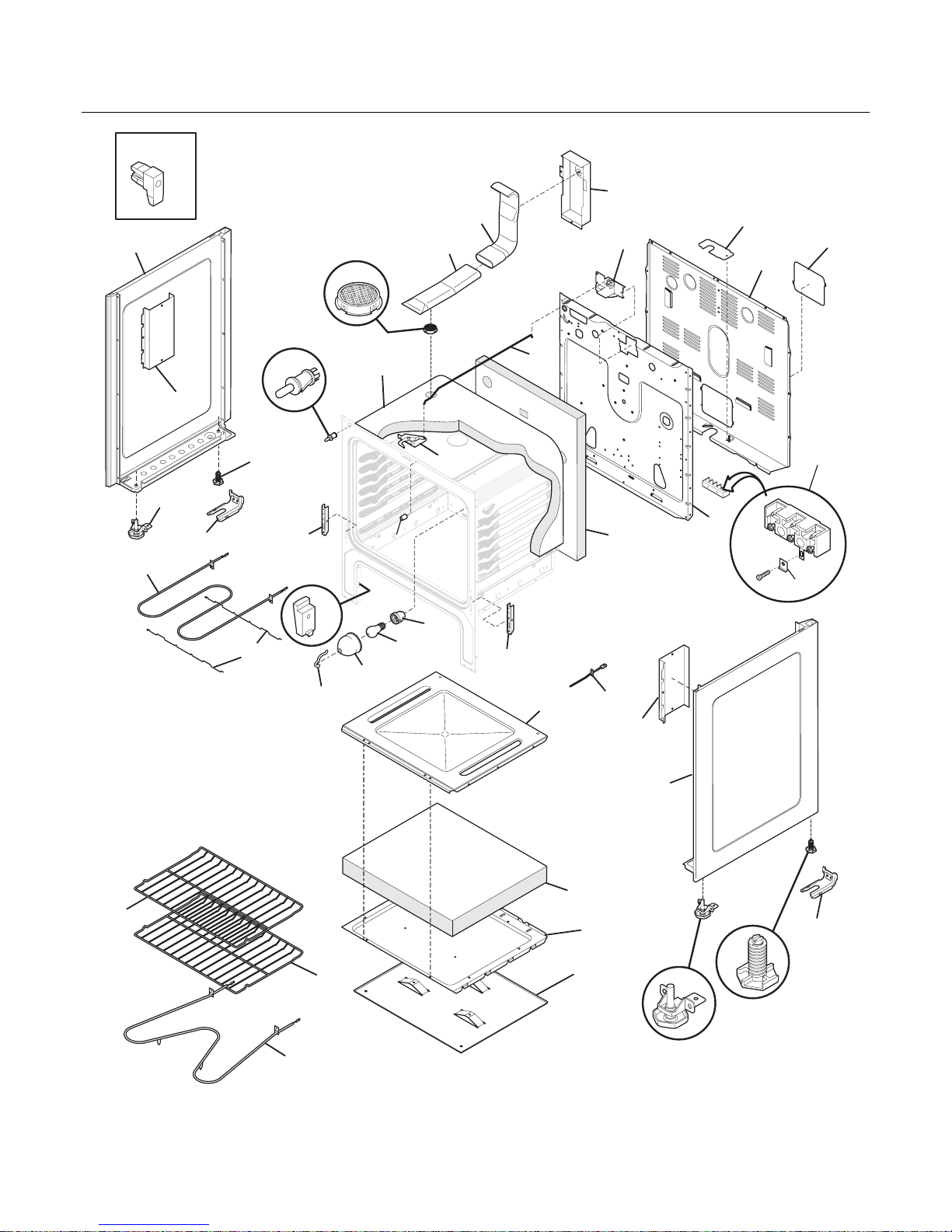

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEFL64FSA Publication No: 5995461000

# Functional Parts 5 02/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401800 Panel, main back

3 316400116 Panel, bodyside, white, RH

3 316400117 Panel, bodyside, white, LH

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

8 316400601 Panel, oven bottom

12 316445501 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

37 # 316217001 Probe, oven temp

42 316407700 Shield, wool, lower

44 316246501 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316457800 Cover, access

58 316403800 Insulation, oven bottom

58A 316406600 Insulation, oven wrapper

58B 316406500 Insulation, oven back

59 316208201 Tube, oven vent, lower

59A 316208304 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316203200 Element, broil

67 316075103 Element, bake

68 316404000 Support, element, broil

71 316422304 Shield, rear wall

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316415400 Motor, latch/lock

151 316404600 Shield, bodyside

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* 3203550 Plug, button, oven bottom

* 5303321319 Paint, touch-up, white

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995461000 FEFL64FSA

02/06 6

TOP/DRAWER

26B

26A

15A

15B

15D

T20T 2118

FEFL64FSA Publication No: 5995461000

# Functional Parts 7 02/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408701 Drawer, utility

2 316403300 Liner, drawer

4 316403501 Panel, drawer front, white

7 316407400 Glide, drawer, rear

15 # 318178100 Element, surface, small/6 inch, 1200 W, radiant

15A# 316418400 Element, dual, 9"/6", surface, 1200W/1300W, radiant

15B# 316010206 Element, surface, 8", 2200 W, radiant

15D# 318198825 Element, surface, warmer, 100 W

16 316251944 Main Top Assy, glass/steel, white

18 316436600 Hinge Bracket, maintop, (2)

26 316427600 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

52 316278300 Clip, element mtg

* # 316416876 Harness, wiring, surface

* 316264000 Cleaner, cooktop

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995461000 FEFL64FSA

02/06 8

DOOR

60B

T20D0024

FEFL64FSA Publication No: 5995461000

# Functional Parts 9 02/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3 5303935243 Trim kit-door, 3 sided, white, w/tape

4 316406400 Glass, oven door, white, outer

6 316406307 Shield, wool

7 316405600 Insulation, oven door

8 316117500 Glass, oven door, heat barrier

9 316423701 Liner, oven door

10 316433300 Screw, 10-14 x 2.125", handle mtg.

12 316405000 Seal, oven door

17 316402403 Spacer, door glass, (2)

23 316437703 Hinge, oven door

23* 316418900 Screw, sims lp, #8-32 x 5/16", black

39 316270201 Handle, door, white

52 316405100 Cap, door trim, white

60B 316021110 Screw, 8-18 x 0.5, black

* 316433603 Label, anti-tip

* 316021109 Screw, 8-18 x 0.5, chrome

* 5303285179 Screw, wafer head, 8-32T x 0.500, black
