Drop-In Cooktop

FPEC3085K S

30" Electric30" Electric

Signature Features

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Extra-Large Window

Our extra-large oven window lets

you easily see what’s inside.

Hi /Lo Broil Option

Offers two-position broiling and

variable temperature control for

more control.

Smoothtop Cooking Surface

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy

to see what’s inside.

Manual Clean Oven

Available in:

White

(W)

Silver Mist

(M)

Black

(B)

Freestanding Ranges

FFEF3013L M / W / B

Elements

Right Front

Right Rear

Left Front

Left Rear

Watts

2,500

1,200

2,500

1,200

Size

6" / 9"

Expandable

Store-More™

Storage Drawer

Our convenient drawer gives you

extra storage space in your kitchen.

Even Baking Technology

Our latest technology ensures

even baking every time.

SpaceWise®

Expandable Element

Flexible element expands to your

cooking needs.

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake

Broil

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Auto Oven Shuto

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Center Element (Watts)

Hot Surface Indicator Light

Coil Cooktop / Drip Bowls

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Even Baking System

Broiling System

Bake Element / Broil Element (Watts)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Ready-Select® Controls

Black Ceramic Glass

Extra-Large

Silver Mist (M),

Color-Coordinated (W / B)

Black ( M ),

Color-Coordinated (W / B)

Black ( M ),

Color-Coordinated (W / B)

Manual Clean

Storage

Yes

Low and High

Yes

SpaceWise® Expandable

6"/ 9" – 2,500

6" – 1,200

9" – 2,500

6" – 1,200

4.8

2 Standard

Vari-Broil™ Hi / Lo

2,600 / 3,000

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60Hz

11.5 / 8.5

138 Lbs.

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FFEF3013L M / W/ B 30" Electric

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

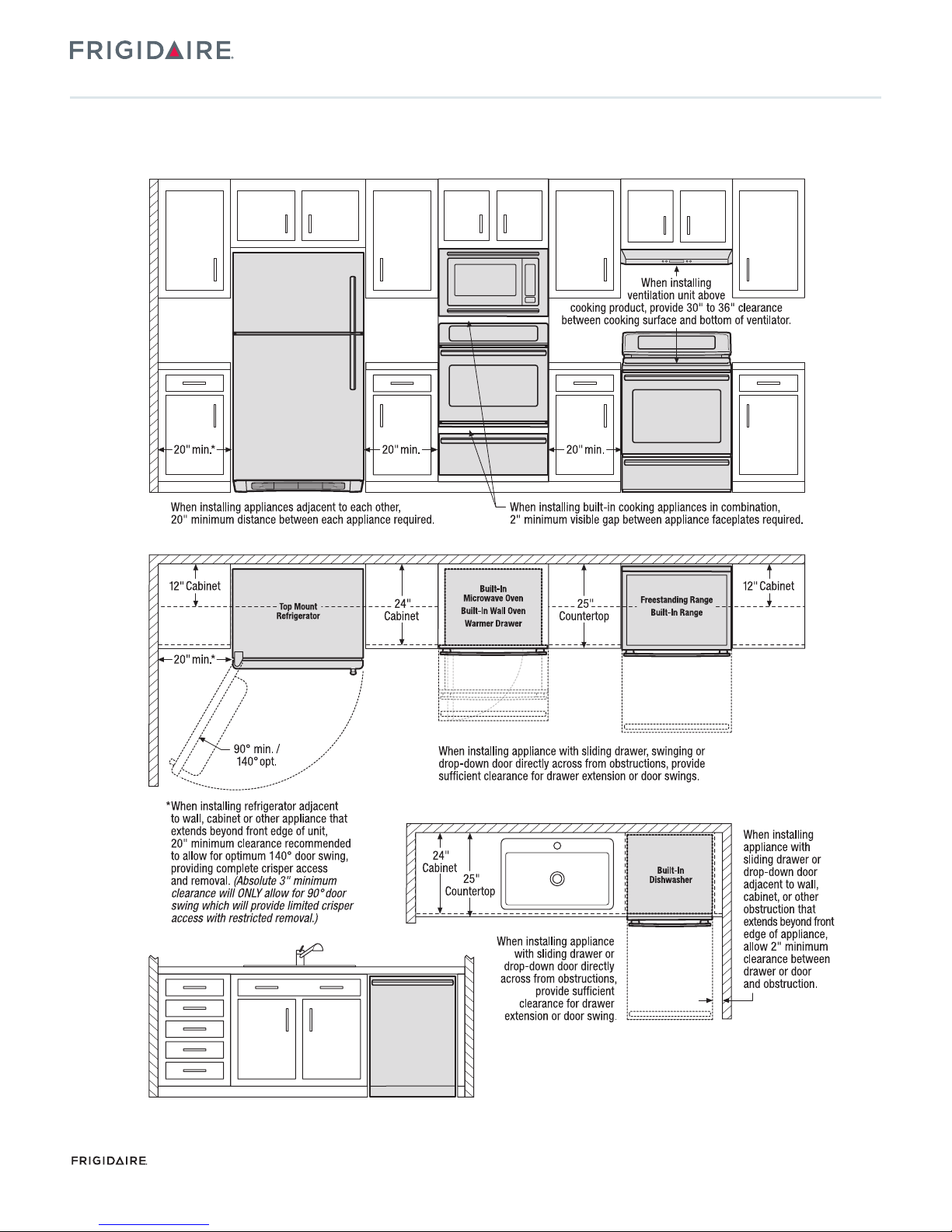

General Installation Guidelines

with Top Mount Refrigerator
