Frigidaire FGF316A Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF316AQA FGF316A bisque North America

FGF316ASA FGF316A white North America

Publication No.

5995356853

010731

-EN/SERVICE /ECL

369

GAS

RANGE

Model No.

FGF316A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - #316002153

OWNER’S GUIDE - # 316257501

INSTALLATION INSTRUCTIONS -# 316259300

08/01 2

Publication No. FGF316A

5995356853

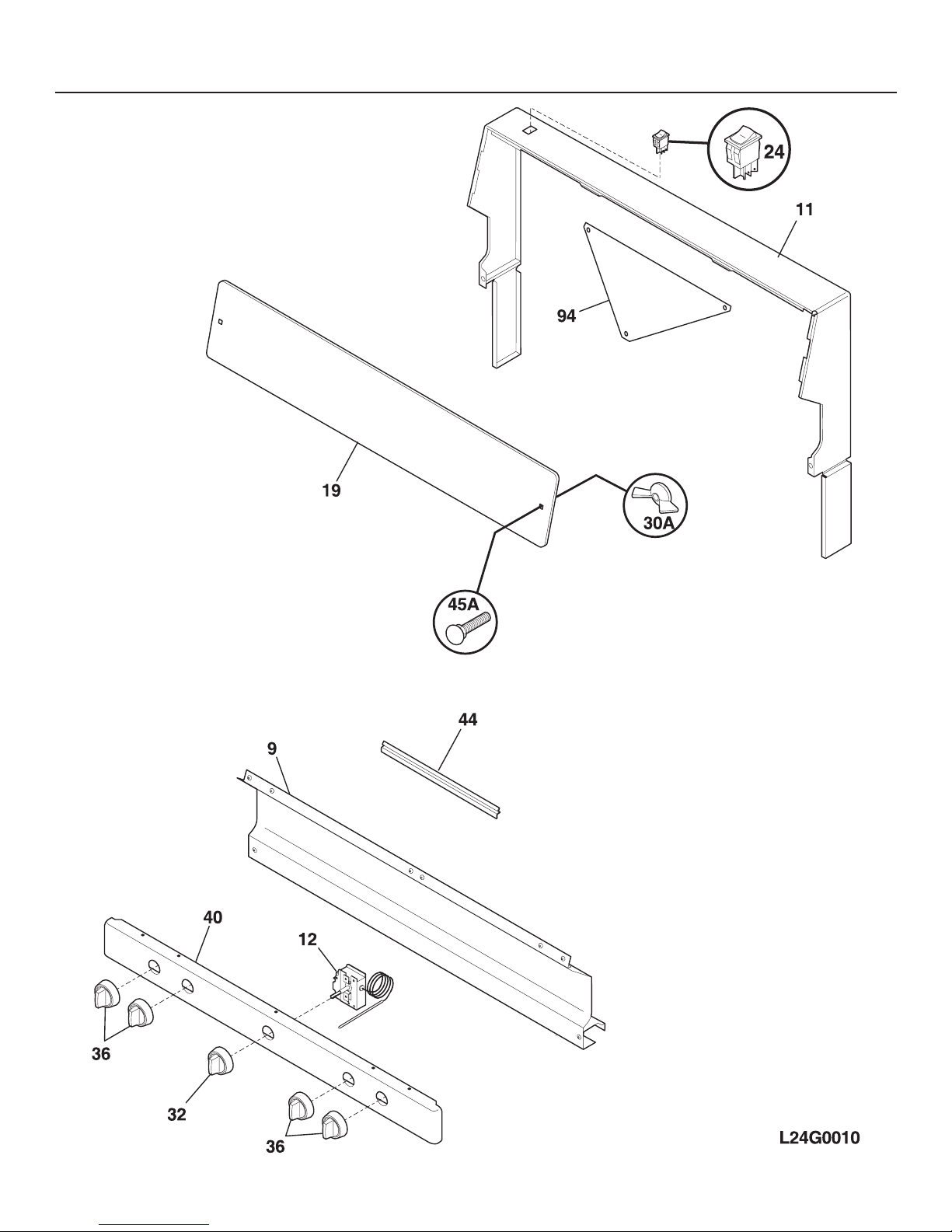

BACKGUARD

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FGF316A Publication No.

5995356853

A = FGF316A (FGF316ASA)

B = FGF316A (FGF316AQA)

POS. NO PART NO DESCRIPTION

9 316133501 A - Trim,splasher ,white ,lower

9 316133509 - B Trim,splasher ,bisque ,lower

11 316057003 A - Trim,wrapper ,white

11 316057009 - B Trim,wrapper ,bisque

12 # 316032404 A B Thermostat

12* 316097602 A B Insulator

19 316034156 A - Panel,backguard ,white

19 316034157 - B Panel,backguard ,bisque

24 # 316118101 A - Switch,oven light ,white ,rocker

24 # 316118104 - B Switch,oven light ,bisque ,rocker

30A 316064300 A B Nut,nylon

32 316102303 A - Knob,thermostat ,white

32 316102329 - B Knob,thermostat ,bisque

36 316009009 A - Knob,top valve ,white ,(4)

36 316102323 - B Knob,top valve ,bisque ,(4)

40 316201812 A - Panel,manifold ,white

40 316201813 - B Panel,manifold ,bisque

44 3131468 A B Bracket,backguard

45A 316056903 A - Bolt,fastener ,nylon ,white ,(2)

45A 316056905 - B Bolt,fastener ,nylon ,bisque ,(2)

94 316111300 A B Stiffener,backguard

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 A B Screw,8-18 x 0.5 ,chrome

* 316021110 A B Screw,8-18 x 0.5 ,black

BACKGUARD

08/01 4

Publication No. FGF316A

5995356853

BURNER

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FGF316A Publication No.

5995356853

A = FGF316A (FGF316ASA)

B = FGF316A (FGF316AQA)

POS. NO PART NO DESCRIPTION

1 # 316134400 A B Pipe,manifold

2 # 5303935189 A B Valve,top burner ,2 position ,w/ mtg screw

* 316134300 A B • Screw,10-24 ,valve mounting

3 # 316219002 A B Wiring Harness,w/igntr switch

8 # 316135700 A B Module,spark

10 # 316103800 A B Burner,top ,front ,venturi ring

10A# 316103801 A B Burner,top ,rear ,venturi ring

11A# 316081705 A B Ignitor,top burner ,50"

12 3016993 A B Retainer,ignitor

14 # 316091705 A B Regulator,pressure

14* 316021104 A B Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

17 # 3203459 A B Valve,safety

18 # 316114300 A B Burner,oven

19 # 5303935066 A B Ignitor,oven kit ,w/nut & instr

20 3203265 A B Baffle,oven burner

21 5303013272 A B Nut,hex head sems

36 316065004 A B Tubing,3/8 ,alum

48 3018603 A B Bracket,support ,oven burner

49 3131438 A B Bracket,safety valve

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5

BURNER

08/01 6

Publication No. FGF316A

5995356853

BODY

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FGF316A Publication No.

5995356853

A = FGF316A (FGF316ASA)

B = FGF316A (FGF316AQA)

POS. NO PART NO DESCRIPTION

1 316029416 A B Panel,main back

3 316230102 A - Panel,bodyside ,white ,RH

3 316230103 A - Panel,bodyside ,white ,LH

3 316230108 - B Panel,bodyside ,bisque ,RH

3 316230109 - B Panel,bodyside ,bisque ,LH

4 316067206 A B Burner Box

5 316129200 A B Screw,leveling ,plastic ,with stop

6 316067902 A B Rack,oven

7 316205008 A B Hinge,oven door ,RH

7A 316205009 A B Hinge,oven door ,LH

8 5303300701 A B Panel,oven bottom

8* 316064600 A B Support,oven bottom

14 316116400 A B Receptacle,oven light

15 5303013071 A B Bulb/Lamp,oven light

21 3014099 A B Spacer,bodyside

27 5303284616 A B Clip,thermo bulb mtg

32 316107501 A B Channel,burner support

32* 5303289684 A B Fastener,tanden wire ,(2)

33 316055601 A B Shield,spark module

34 3018607 A B Plate,cover

35 316116600 A B Gasket,flue

36 316103901 A B Flue,black

39 3202006 A B Cord,electric power

41 316233400 A B Cover,hinge cutout ,RH

41A 316233500 A B Cover,hinge cutout ,LH

43 3131732 A B Screw,8-18 x 1.438 ,oven bottom

54 5303271606 A B Housing,oven light

58A 3017142 A B Insulation,oven wrapper

58B 3203541 A B Insulation,oven back

73 316109902 A B Base,low broil

93 316110000 A B Shield,ignitor ,metal

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template,anti-tip

170* 316116000 A B Screw,concrete tpg ,1.75 inch ,anti-tip brkt

185 316112900 A B Shield,thermo bulb

* 316246400 A B Plug,button ,oven probe

* 316249200 A B Plate,weight

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5

BODY

08/01 8

Publication No. FEF326ASA

5995356804

TOP/DRAWER

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FEF326ASA Publication No.

5995356804

A = FGF316A (FGF316ASA)

B = FGF316A (FGF316AQA)

POS. NO PART NO DESCRIPTION

1 316110201 A B Carriage,low broil

2 316236401 A B Liner,low broil

2A 316110800 A B Shield,broiler

2B 316237600 A B Shield,low broil ,top

4 316231211 A - Panel,drawer ,white

4 316231214 - B Panel,drawer ,bisque

5 316129100 A B Fastener,push-in nut ,nylon ,spacer

9 316081900 A B Pan,broiler

10 316082000 A B Insert,broiler pan

13 316111502 A B Glide,low broil ,chassis

13A 316111600 A B Glide,low broil ,inner

13B 316111501 A B Glide,low broil ,outer

16 316104401 A - Main Top,white

16 316104412 - B Main Top,bisque

17 316066900 A B Rod,maintop support

18 08067747 A B Bracket,hinge ,main top RH

18A 08067746 A B Bracket,hinge ,main top LH

20 # 316088900 A B Grate,black ,(4)

25 316104500 A B Cover,vent ,chrome

39 316019511 A - Handle,drawer ,white

39 316019513 - B Handle,drawer ,bisque

85 316115600 A B Rack,low broil

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 A B Screw,8-18 x 0.5 ,black

* 316021120 A B Screw,shoulder head ,8-18 x 5/8 ,(2) ,square drive

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

TOP/DRAWER

08/01 10

Publication No. FEF326AUA & FEF326AWA

5995356804

DOOR
