Frigidaire FGF337AWA Guida rapida

MEDIUM

MOYEN--®

FRONT /DEVANT

SMALL

O_r.,_ PETIT-'_0

MEDIUMMOYEN

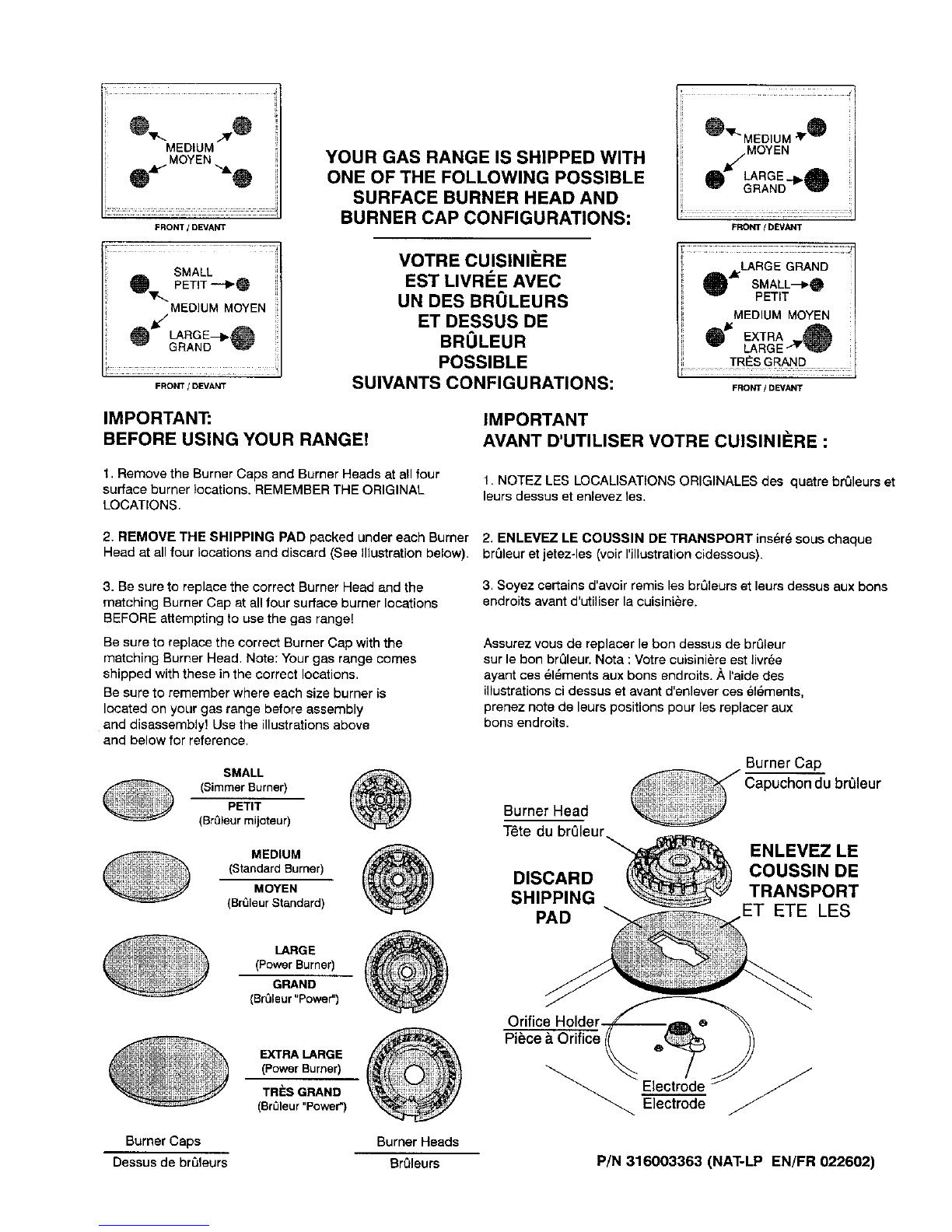

YOUR GAS RANGE IS SHIPPED WITH

ONE OF THE FOLLOWING POSSIBLE

SURFACE BURNER HEAD AND

BURNER CAP CONFIGURATIONS:

VOTRE CUISINIF:RE

EST LIVRI_E AVEC

UN DES BROLEURS

ET DESSUS DE

BRULEUR

POSSIBLE

SUIVANTS CONFIGURATIONS:

FRONT [D EVANT

LARGEGRAND

t" SMAL, e

"q_ PETIT

MEDIUM MOYEN

TRE_SGRAND :

FRONT /DEVANT FRONT /DEVANT

IMPORTANT:

BEFORE USING YOUR RANGE! IMPORTANT

AVANT D'UTILISER VOTRE CUISINIERE :

I. Remove the Burner Caps and Burner Heads at a!lfour

surface burner locations. REMEMBER THE ORIGINAL

LOCATIONS.

1. NOTEZ LES LOCALISATIONS ORIGINALES des quatre brQleurs et

leurs dessus et enlevez les.

2. REMOVE THE SHIPPING PAD packed under each Burner 2. ENLEVEZ LE COUSSIN DE TRANSPORT ins_r_ souachaque

Head at all four locationsand discard (See Illustrationbelow), brt31euret jetez-les (voir I'iltustrationcidessous).

3. Be sure to replace the correct Burner Head and the

matching Burner Cap at all four surface burner locations

BEFORE attempting to use the gas range[

Be sure to replace the correct Burner Cap with the

matching Burner Head. Note: Your gas range comes

shipped with these in the correct locations.

Be sure to remember where each size burner is

located on your gas range before assembly

and disassembly! Use the illustrations above

and below for reference.

SMALL

(Simmer Burner)

PETIT

(Br_leur mijoteur)

MEDIUM

(Standard Burner)

MOYEN

(Brt_leur Standard)

3, Soyez certainsd'avoir remis les br_leurs et leurs dessus aux boris

endroits avant d'utiliser la cuisini_re.

Assurez vous de replacer le bon dessus de brQleur

sur le bon br=31eur.Nota : Votre cuisini_re est livr6e

ayant ces _l_ments aux bons endroits. Ik I'aide des

illustrations ci dessus at avant d'enlever ces _l_ments,

prenez note de leurs positions pour les replacer aux

bons endroits.

Burner Head _u brQleur

LARGE

(Power Burner)

GRAND

(Br_leur"Power")

EXTRA LARGE

(Power Burner)

TRI_S GRAND

(BrQleur"Power')

Burner Caps Burner Heads

Dessus de br,',leurs BrQleurs P/N 316003363 (NAT-LP EN/FR 022602)
