Frigidaire FEF377WJ Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR MARKET

FEF377WJCA FEF377WJ Frigidaire stainless/blk North America

Publication No.

5995345591

001024

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF377WJ

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - #316002702

OWNER’S GUIDE - # 316135907

SERVICE DATA SHEET - #316097821

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

01/01 2

Publication No. FEF377WJCA

5995345591

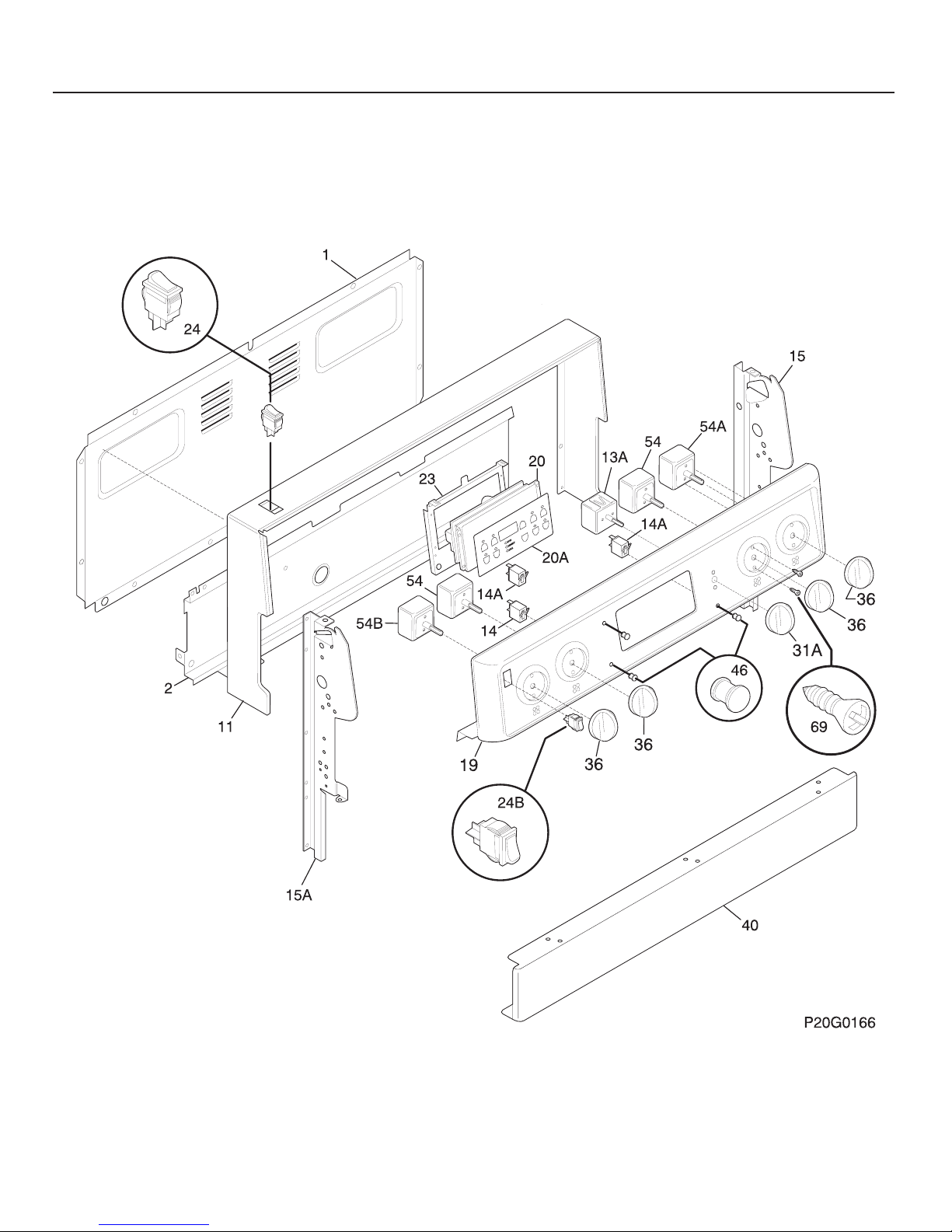

BACKGUARD

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FEF377WJCA Publication No.

5995345591

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316081600 Shield-backguard,galv steel ,rear wall

2 316015905 Shield-backguard,inner

11 316083719 Trim-wrapper,textured ,black

13A# 316095500 Switch-warmer, infinite , drawer/zone

14 316022503 Light/Lamp, indicator , surface ,250 V

14A 316022500 Light/Lamp, warmer, indicator , drawer/zone, 125 V

15 316023108 Support-backguard,RH

15A 316023109 Support-backguard,LH

19 316100580 Panel-control,assy ,glass ,stainless ,black

20 # 316080021 Clock/Timer,EOC

20A 316089307 Overlay-clock

23 316033204 Bracket-timer

24 # 316118100 Switch-oven light,rocker ,black

24B# 316086900 Switch-rocker,dual element ,gray

31A 316095600 Knob-warmer,black

36 316109606 Knob-control,black ,36

40 316062216 Panel-manifold

46 316040201 Lens-light/lamp,indicator ,red

54 # 316021500 Switch,infinite , 6" element

54A# 316021501 Switch,infinite , 8" element

54B# 316049800 Switch, infinite , dual element

69 5303292005 Screw,8-32 x 5/32 ,switch/handle

* 218490900 Cleaner,stainless steel

* 316085600 Insulator

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrm,hinge,ind light,manifold panel

* 316021110 Screw,8-18 x 0.500 ,black

01/01 4

Publication No. FEF377WJCA

5995345591

BODY

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FEF377WJCA Publication No.

5995345591

BODY

POS. NO PART NO DESCRIPTION

1 316080803 Panel-main back,galv steel ,short

3 316081038 Panel-bodyside, black, RH,textured

3 316081039 Panel-bodyside, black, LH, textured

5 316129200 Screw-leveling,plastic ,with stop

6 316083800 Rack-oven

7 316007005 Hinge-oven door, (2)

8 3203540 Panel-oven bottom

9 316081900 Pan-broiler

10 316082000 Insert-broiler pan

12 # 316027701 Switch-oven light

13 316026800 Rod-light switch /door

14 316116400 Socket-light/lamp,oven

15 5303013071 Light Bulb/Lamp

16 08011086 Lens-light/lamp, glass , oven

17 316087500 Retainer-lens

18 # 316036300 Latch-door

21 3014099 Spacer-bodyside, (8)

25 3200848 Shield-heat,lower

29 3051162 Glide-drawer,front

37 # 316111202 Probe-oven temp

41 3131570 Cover-hinge cutout

44 3131903 Bumper-door/drawer, rubber

45 316066100 Shield-wire,s/t vent

57 316081100 Cover-access

58 3200847 Insulation,oven bottom

58A 316047708 Insulation, 2" ,oven wrapper

58B 316054200 Insulation, 2" ,oven back

59 316073602 Tube-oven vent

59A 316023600 Tube-oven vent,upper

59B 316040100 Bracket-mounting,vent tube

62 # 5303935061 Terminal Block Kit

62* 316085600 Insulator

62* 5303308427 Nut,hex ,10-32

63 5301145190 Plate-ground strap

66 # 5303051140 Element-broil,2950 W

67 # 316075103 Element-bake,67

68 316075300 Support-element, broil

71 316015804 Shield-rear wall,galv steel

72 5303285692 Cover-rod end,lt switch rod

82 5303289913 Shield-insulation

87 316081200 Bracket-cable mtg

88 316026400 Rod-latch,auto

89 # 316028101 Motor-latch/lock

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template, Anti-tip bracket

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316001579 Wiring Harness,main

* 3203550 Plug-button,oven bottom

* 316045000 Clip-wiring harness,retainer ,green ,main top

* 5303051099 Nut,hex ,#10-32

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrm,hinge,ind light,manifold panel

* 5308014215 Screw,6-20 x 0.312

01/01 6

Publication No. FEF377WJCA

5995345591

TOP/DRAWER

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FEF377WJCA Publication No.

5995345591

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011501 Drawer-utility

2 5303288582 Shield-drawer,liner ,galv steel ,front panel

4 316079401 Panel-drawer,stainless

7 3051163 Glide-drawer,rear

15 # 316010206 Element-surface,radiant , large/8 inch ,2100 W

15A# 316010205 Element-surface,radiant , small/6 inch ,1200 W

15B# 316049705 Element-surface,dual ,9" ,15 ,2100W/1000W

15C# 316098201 Element-warmer,100 W ,120 V

16 316098180 Main Top Assy,glass/steel ,enamel ,black

18 5303273062 Hinge-main top,RH

18A 5303273063 Hinge-main top,LH

20 316133600 Spacer-handle,black ,20 ,(2)

26 316099100 Channel-support,element ,galv steel ,(2)

26A 316099200 Bracket-support,chassis ,galv steel

39 316091117 Handle-door,black ,oven

44 3131903 Bumper-door/drawer, rubber

48 316100200 Shield-wire,main top

51 # 316001759 Wiring Harness,surface element

52 316099400 Clip-spring, element mtg,(8)

53 316099300 Bracket-indicator light,hot surface ,4 hole

88 316099500 Pin-guide, (2)

* 218490900 Cleaner,stainless steel

* 316112101 Cleaner-cooktop

* 316045000 Clip-wiring harness,retainer ,green ,main top

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrm,hinge,ind light,manifold panel

* 316021110 Screw,8-18 x 0.500 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5308014215 Screw,6-20 x 0.312

01/01 8

Publication No. FEF377WJCA

5995345591

DOOR

# = Fast-moving Parts 9 01/01

* = Non-Illustrated Parts

FEF377WJCA Publication No.

5995345591

DOOR

POS. NO PART NO DESCRIPTION

4 316079300 Panel-oven door,stainless ,outer

4A 316083900 Glass-oven door,outer

5 316088601 Glass-oven door,inner

6 316088405 Shield-wool

7 316076400 Insulation,oven door

8 316088701 Glass-oven door,airwash

9 316066610 Liner-oven door

10 316001006 Screw-handle mtg,#10-32

10* 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 # 5303131601 Seal-oven door

14 3131361 Reflector,aluminum foil

14A 3131360 Reflector,aluminum foil ,(2)

15 316081403 Bracket-glass mtg

16 316085701 Glass-oven door,heat barrier

20 316133600 Spacer-handle,black ,20 ,(2)

39 316091117 Handle-door,black ,oven

* 5303292005 Screw,8-32 x 5/32 ,switch/handle

* 218490900 Cleaner,stainless steel

* 316065306 Plate-warning/caution

* 3203618 Rivet-pop,warning-plate

* 316085500 Bracket-window

* 316021110 Screw,8-18 x 0.500 ,black

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner box

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

01/01 10

Publication No. FEF377WJCA

5995345591

WIRING DIAGRAM
