Frigidaire FEF305SH Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF305SHDC FEF305SH black/almond North America

FEF305SHWC FEF305SH black/white North America

Publication No.

5995362349

011213

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF305SH

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 316002675

OWNER’S GUIDE - # 316135916

INSTALLATION INSTRUCTIONS - # 316003025

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

12/01 2

Publication No. FEF305SH

5995362349

BACKGUARD

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FEF305SH Publication No.

5995362349

BACKGUARD

A = FEF305SH (FEF305SHWC)

B = FEF305SH (FEF305SHDC)

POS. NO PART NO DESCRIPTION

1 5303289640 A B Shield,backguard ,rear wall

9 316133501 A - Trim,splasher ,white ,lower

9 316133502 - B Trim,splasher ,almond ,lower

11 316057002 A B Trim,wrapper ,black

12 # 316032408 A B Thermostat,oven

14 3201726 A B Light/Lamp,indicator ,blue ,250 V

16 316042602 A B Plate,instrument mtg

19 316034120 A B Panel,control ,black

30A 316064300 A B Nut,nylon

32 316123307 A B Knob,thermostat ,black

36 316123303 A B Knob,infinite switch ,black

40 316064009 A B Panel,manifold ,black

44 3131468 A B Bracket,backguard

45A 316056902 A B Bolt,fastener ,nylon ,black

46 316065801 A B Lens,indicator light ,red

50 316096900 A B Bezel,nameplate ,black

51 316095420 A B Nameplate,Frigidaire ,black

54 # 5303285142 A B Switch,element ,6"

54A# 5303285143 A B Switch,element ,8"

* 5303272555 A B Clip,backguard

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 A B Screw,8-18 x 0.5 ,chrome

* 316021110 A B Screw,8-18 x 0.5 ,black

12/01 4

Publication No. FEF305SH

5995362349

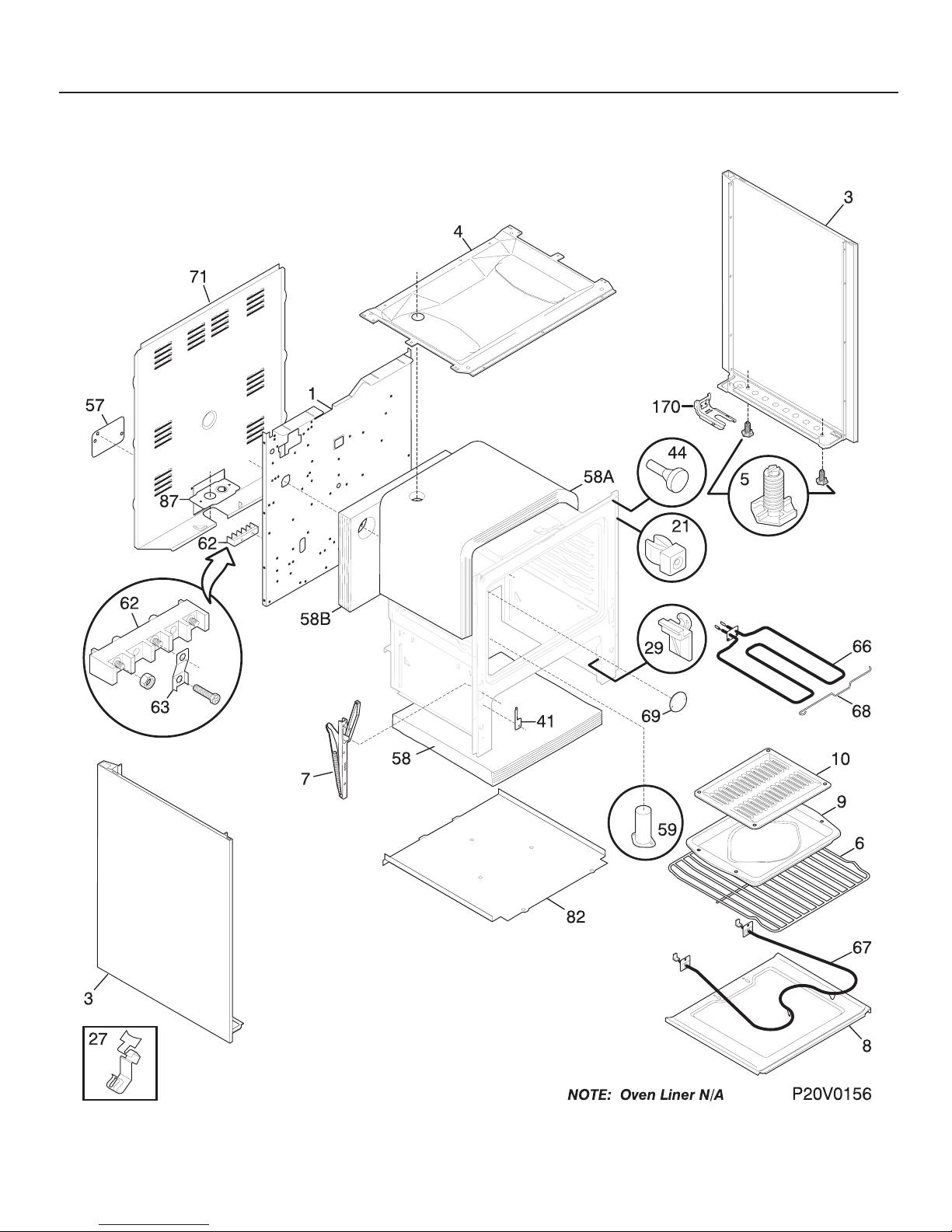

BODY

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FEF305SH Publication No.

5995362349

BODY

A = FEF305SH (FEF305SHWC)

B = FEF305SH (FEF305SHDC)

POS. NO PART NO DESCRIPTION

1 316080805 A B Panel,main back ,dipped ,black ,short

3 316081034 A - Panel,bodyside ,white ,RH

3 316081035 A - Panel,bodyside ,white ,LH

3 316081036 - B Panel,bodyside ,almond ,RH

3 316081037 - B Panel,bodyside ,almond ,LH

4 5303271756 A B Burner Box

5 316129200 A B Screw,leveling ,plastic ,with stop

6 316067902 A B Rack,oven

7 316007007 A B Hinge,oven door ,(2)

8 3203540 A B Panel,oven bottom

9 316081900 A B Pan,broiler

10 316082000 A B Insert,broiler pan

21 3014099 A B Spacer,bodyside

27 5303284616 A B Clip,thermo bulb mtg

29 3051162 A B Glide,drawer ,front

41 3131570 A B Cover,hinge cut-out

57 316081100 A B Cover,access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation,1" ,oven wrapper

58B 316054202 A B Insulation,1" ,oven back

59 316073601 A B Tube,oven vent

62 # 5303935061 A B Terminal Block Kit

62* 5303308427 A B Nut,hex ,10-32

63 5301145190 A B Plate,grounding strap

66 # 5303051140 A B Element,broil ,2950 W

67 # 316075103 A B Element,bake

68 316075300 A B Support,element ,broil

69 3051218 A B Plate,oven light

71 316015810 A B Shield,rear wall ,galv steel

82 5303289913 A B Shield,insulation

87 316081200 A B Bracket,cable mtg

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template,anti-tip

170* 316116000 A B Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316001559 A B Harness,main

* 3051367 A B Clip,wire

* 5303305324 A - Paint,touch-up ,white

* 5303305325 - B Paint,touch-up ,almond

* 5303305345 A B Paint,touch-up ,black

* 3203550 A B Plug,button ,oven bottom

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 A B Screw,wafer head ,8-32T x 0.500 ,black

12/01 6

Publication No. FEF305SH

5995362349

TOP/DRAWER

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FEF305SH Publication No.

5995362349

TOP/DRAWER

A = FEF305SH (FEF305SHWC)

B = FEF305SH (FEF305SHDC)

POS. NO PART NO DESCRIPTION

1 316011503 A B Drawer

2 5303288582 A B Liner,drawer ,galv steel ,front panel

4 316084405 A - Panel,drawer ,white

4 316084406 - B Panel,drawer ,almond

7 3051163 A B Glide,drawer ,rear

15 # 3051450 A B Element,surface ,8" large

15A# 3051449 A B Element,surface ,6" small

16 316245402 A - Main Top,white

16 316245403 - B Main Top,almond

17 316066900 A B Rod,maintop support

18 08067747 A B Bracket,hinge ,main top RH

18A 08067746 A B Bracket,hinge ,main top LH

19 # 318067056 A B Pan,surface element ,large ,chrome

19A# 318067046 A B Pan,surface element ,small ,chrome

27 # 5303912666 A B Terminal Block Kit,surface element

28 5303017715 A B Medallion,1 1/2"dia ,black ,surface element

* # 316001731 A B Wiring Harness,surface element

* 316089600 A B Spacer,drawer ,(2)

* 316021108 A B Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 A B Screw,8-18 x 0.5 ,black

* 316021112 A - Screw,8-18 x 0.500 ,white

* 316021113 - B Screw,8-18 x 0.500 ,almond

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 A B Screw,6-20 x 0.312

12/01 8

Publication No. FEF305SH

5995362349

DOOR

# = Fast-moving Parts 9 12/01

* = Non-Illustrated Parts

FEF305SH Publication No.

5995362349

DOOR

A = FEF305SH (FEF305SHWC)

B = FEF305SH (FEF305SHDC)

POS. NO PART NO DESCRIPTION

3 316067802 A B Trim,oven door ,black

4 316089001 A B Glass,oven door ,black

9 316066611 A B Liner,oven door

10 5303281378 A B Screw,wafer head ,10-24F x 3 ,handle mtg

10* 316008401 A B Washer,3/4 OD x 1/4 ID ,steel

12 5303202011 A B Seal,oven door ,non self clean

39 316020204 A B Handle,door ,black ,oven

49 316137003 A B End Cap,handle ,black ,(2)

52 316081303 A B Shield,oven door ,black ,top

* 316132100 A B Spacer,sponge pad

* 316021110 A B Screw,8-18 x 0.5 ,black

* 316021112 A - Screw,8-18 x 0.500 ,white

* 316021113 - B Screw,8-18 x 0.500 ,almond

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 A B Screw,wafer hd sq dr ,10-32 x 0.312

12/01 10

Publication No. FEF305SH

5995362349

WIRING DIAGRAM
