Frigidaire FGFS36F Manuale utente

FGF326A.eps T24G0024.eps L24B0007.eps T24V0048.eps L24T0010.eps L24D0037.eps

316255201D.eps 316255201S.eps

Product No. FGFS36FWA

Series 30" f/s gas

Color black/white

Market North America

Wiring Diagram 316255201

Owner's Guide 316417114

Installation Instructions 316259336

Service Data Sheet 316218502

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995468369

06/06/15

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGFS36F

Publication No: 5995468369 FGFS36FWA

06/06 2

BACKGUARD

FGFS36FWA Publication No: 5995468369

# Functional Parts 3 06/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316445218 Panel, backguard, black

20 # 316222802 Clock/Timer, electronic, ES100

20A 316220701 Overlay, clock, black

23 316441600 Bracket-clock mtg, black

24 # 316448700 Switch, rocker, black, oven light

36 316220002 Knob, top valve, black, 4

40 316204988 Panel, manifold, black

42 316270600 Trim, extrusion, black

56 316230701 Shield, backguard, inner

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

Publication No: 5995468369 FGFS36FWA

06/06 4

BURNER

FGFS36FWA Publication No: 5995468369

# Functional Parts 5 06/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316446800 Manifold Pipe

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

3 # 316219004 Wiring Harness, w/igntr switch

8 # 316135701 Module, spark

10C# 316212400 Burner, sealed, 9.5K

11B# 316237701 Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11C# 316237800 Ignitor/orifice assy., top burner, front

13 316447100 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 316065006 Tube, valve to regul, 3/8

17 # 3203459 Valve, safety

18 # 316114300 Burner, oven

19 # 5303935066 Ignitor, oven kit, w/nut & instr

19*# 316119301 Ignitor-oven

20 3203265 Baffle, oven burner

21 5303013272 Nut, hex head sems

37 316240600 Screw, assy mtg, ignitor/orifice

44C 316237902 Orifice, top burner, 9.5K

47 GRLP2 LP Conversion Kit, w/instructions

47* 316248105 Instructions, LP kit

48 3018603 Bracket, support, oven burner

49 3131438 Bracket, safety valve

* 316215600 Screw, valve mtg., 1/4 - 20

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* # 316253700 Wiring Harness, ignitor module

Publication No: 5995468369 FGFS36FWA

06/06 6

BODY

FGFS36FWA Publication No: 5995468369

# Functional Parts 7 06/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316029415 Panel, main back

3 316400116 Panel, bodyside, white, RH

3 316400117 Panel, bodyside, white, LH

4 316447000 Bracket, chassis support, rear

4A 316446900 Bracket, chassis, front, (2)

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 Rack, oven

7 316216510 Hinge, oven door, RH

7A 316216511 Hinge, oven door, LH

8 5303300701 Panel, oven bottom

8* 316064600 Support, oven bottom

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316055600 Shield, spark module, galv steel

34 3018607 Plate, cover

35 316116600 Gasket, flue

36 316208902 Flue, black

37 # 316233900 Probe, oven temp

39 3202006 Cord, electric power

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

43 3131732 Screw, 8-18 x 1.438, oven bottom

49 316234200 Clip, maintop mtg, (2)

54 5303271606 Housing, oven light

55 5303289358 Shield, flue

58A 3017142 Insulation, oven wrapper

58B 316054202 Insulation, 1", oven back

73 316109902 Base, low broil

93 316110000 Shield, ignitor, metal

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316253308 Harness, main

* 316435800 Plate, weight, (3)

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995468369 FGFS36FWA

06/06 8

TOP/DRAWER

FGFS36FWA Publication No: 5995468369

# Functional Parts 9 06/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316110201 Carriage, low broil

2 316236401 Liner, low broil

2A 316110800 Shield, broiler

2B 316237600 Shield, low broil, top

4 316231211 Panel, drawer, white

5 316129100 Fastener, push-in nut, nylon, spacer

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

13 316111502 Glide, low broil, chassis

13A 316111600 Glide, low broil, inner

13B 316111501 Glide, low broil, outer

16 316202317 Main Top, white

20 316213800 Grate, black

22C 316213500 Cap, 9.5K burner, black

39 316019511 Handle, drawer, white

85 316115600 Rack, low broil

88 316099500 Pin, guide, (2)

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021120 Screw, shoulder head, 8-18 x 5/8, (2), square drive

Publication No: 5995468369 FGFS36FWA

06/06 10

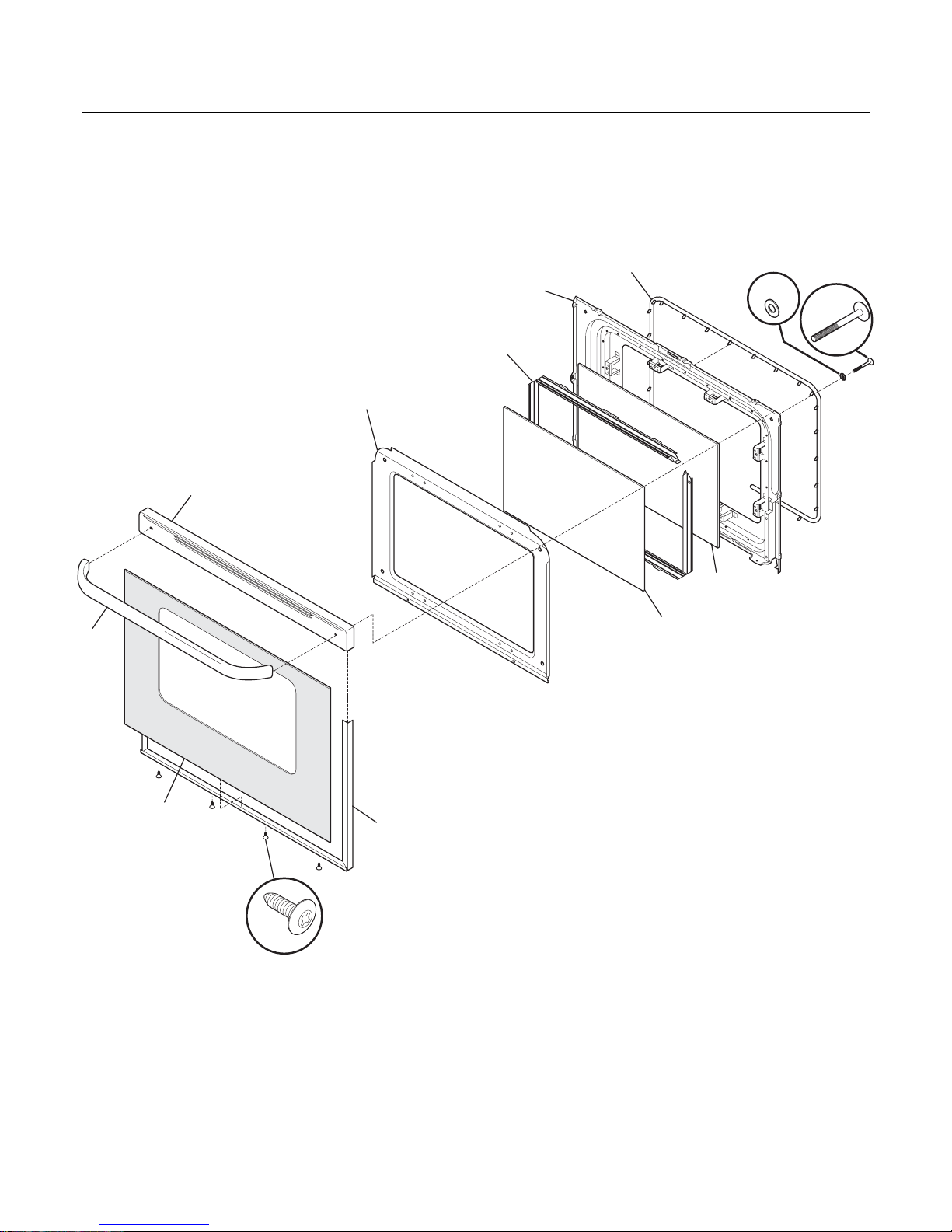

DOOR
