Frigidaire FGFS56F Manuale utente

FGF366A.eps L24G0007.eps T24B0001.eps T24V0025.eps T24T0001.eps T24D0017.eps

316417800d.eps 316417800s.eps

Product No. FGFS56FSA

Series 30" f/s gas

Color white

Market North America

Wiring Diagram 316417800

Owner's Guide 316417104

Installation Instructions 316259336

Service Data Sheet 316417605

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459202

06/01/20

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGFS56F

Publication No: 5995459202 FGFS56FSA

01/06 2

BACKGUARD

FGFS56FSA Publication No: 5995459202

# Functional Parts 3 01/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

2 316051600 Shield, backguard, inner

2A 316235100 Shield, top, inner

15 316411403 Support, backguard, white, RH

15A 316411402 Support, backguard, white, LH

19 316445222 Panel-backguard, white

20 # 316418205 Clock/Timer, electronic, ES200

20A 316419101 Overlay, clock, white, ES200

23 316441600 Bracket-clock mtg, black

24 # 316448701 Switch, rocker, white, oven light

36 316220000 Knob, top valve, white, (4)

40 316204987 Panel, manifold, white

42 316416201 Trim, extrusion, gray

56 316230701 Shield, backguard, inner

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995459202 FGFS56FSA

01/06 4

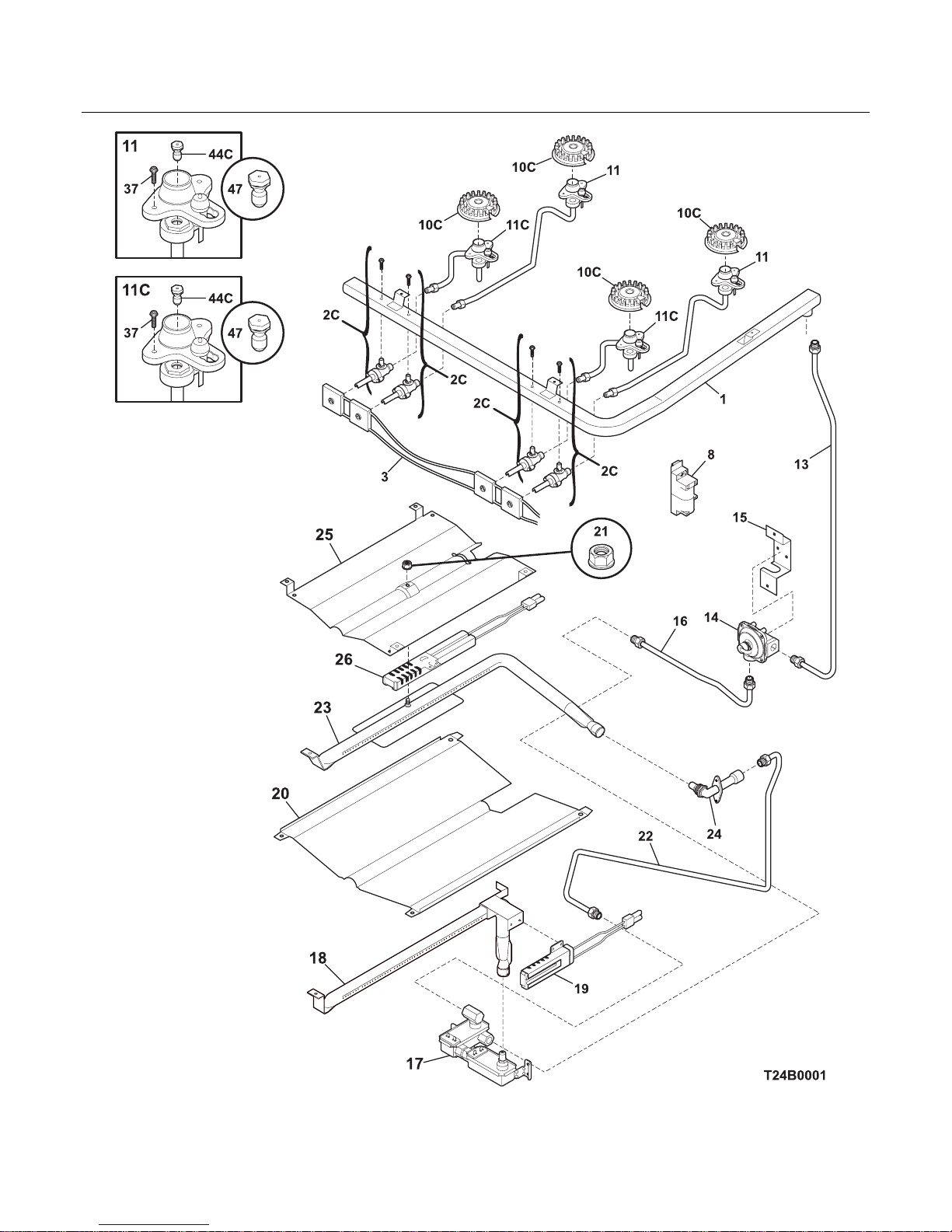

BURNER

FGFS56FSA Publication No: 5995459202

# Functional Parts 5 01/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316219500 Pipe, manifold

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

3 # 316219004 Wiring Harness, w/igntr switch

8 # 316135701 Module, spark

10C# 316212400 Burner, sealed, 9.5K

11 # 316237701 Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11C# 316237800 Ignitor/orifice assy., top burner, front

13 # 316405300 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 # 316405500 Tube, valve to regul., 3/8

17 # 316404900 Valve, safety

17* 08068018 Shield, wire, safety valve

18 # 316404400 Burner, oven

19 # 316428501 Ignitor, oven burner

20 316401401 Baffle, oven burner

21 5303013272 Nut, hex head sems

22 # 316405400 Tube, valve to mixer

23 # 316404300 Burner, broiler

24 # 316409700 Elbow, mixer

25 316401301 Baffle, broil burner

26 # 316428601 Ignitor, burner

26* 316401500 Cover, broil Ignitor

37 316240600 Screw, assy mtg, ignitor/orifice

44C 316237902 Orifice, top burner, 9.5K

47 GRLP2 LP Conversion Kit, w/instructions

47* 316248105 Instructions, LP kit

* # 316253700 Wiring Harness, ignitor module

* 316001003 Screw, ground wire

* 316215600 Screw, valve mtg., 1/4 - 20

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995459202 FGFS56FSA

01/06 6

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

58G

170

T24V0025

151

30A

FGFS56FSA Publication No: 5995459202

# Functional Parts 7 01/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401600 Back, main

2 316402201 Shield, oven top

2* 316437100 Brace, oven top

3 316400116 Panel, bodyside, white, RH

3 316400117 Panel, bodyside, white, LH

4 316201403 Burner Box

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 Rack, oven

8 316400603 Panel, oven bottom

12 316445501 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

25 316406200 Shield, heat, lower

29 316407301 Glide, drawer, front

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316405900 Shield, rear wall

35 316116600 Gasket, flue

36 316208901 Flue

37 # 316217001 Probe, oven temp

39 3202006 Cord, electric power

42 316400703 Shield, wool, lower

43 3131732 Screw, 8-18 x 1.438, oven bottom

44 316246501 Spacer, oven door

49 316234200 Clip, maintop mtg, (2)

54 316404200 Shield, heat

55 316404800 Shield, flue

58A 316403700 Insulation, oven wrapper

58B 316403600 Insulation, oven back

58G 08067973 Insulation, main front

82 316400801 Shield, bake burner

82* 316432800 Clip, wire

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316401200 Bracket, harness

88 316232700 Rod, auto latch

89 # 316415400 Motor, latch/lock

90 316401100 Shield, main front

91 316401000 Shield, front, burner

151 316404600 Shield, bodyside

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* # 316416600 Harness, wiring, main

* 5303321319 Paint, touch-up, white

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995459202 FGFS56FSA

01/06 8

TOP/DRAWER

FGFS56FSA Publication No: 5995459202

# Functional Parts 9 01/06

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316408701 Drawer, utility

2 316403200 Liner, drawer

4 316403401 Panel, drawer, white, front

7 316407400 Glide, drawer, rear

16 316202317 Main Top, white

20 316202400 Grate, black

22C 316213500 Cap, 9.5K burner, black

88 316099500 Pin, guide, (2)

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995459202 FGFS56FSA

01/06 10

DOOR

60B

10B

T24D0017
