Frigidaire FGHC2399K Manuale di istruzioni

N58L00003.eps F58FSDEGB0.eps F58RSDCHA0.eps E58BBAAAE0.eps

F58SDDLEH10.eps F58TEBCAE1.eps N58CACBAA9.eps F58XFAAAA0.eps

N58YDAAAC4.eps N58I115TServo.eps W241912901.eps S241912901.eps

Product No. FPHC2399KF0

Series counter depth

Color stainless

Volts 115

Wiring Diagram 241912901

Owner's Guide 241979200

Market North America

Energy Guide 241935558

Service Data Sheet 240389638

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995536223

09/03/24

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FGHC2399K

Publication No: 5995536223 FPHC2399KF0

03/09 2

FREEZER DOOR

22C

13A

22A

21A

79 80

F58FSDEGB0

FPHC2399KF0 Publication No: 5995536223

# Functional Parts 3 03/09

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241510202 Gasket-frzr door, white, magnetic

4B 241808225 Bin-door, pseudo, frzr

5 241545001 Bin-tilt out, tilt-out

11 241837179 Door-frzr, stainless, complete assy

13A 241942604 Door Stop, black, frzr

18 241972501 Handle-door, stainless

21A 240442706 Screw-#10-32 X 3/4, zinc

22A 241990302 Bearing-hinge(frz), closer

22C 241760401 Bearing, hinge, top

68 241946601 Chute-ice

79 218755401 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* # 241834703 Harness-wiring, door

* 5303918371 Dispenser heater kit, 115

Publication No: 5995536223 FPHC2399KF0

03/09 4

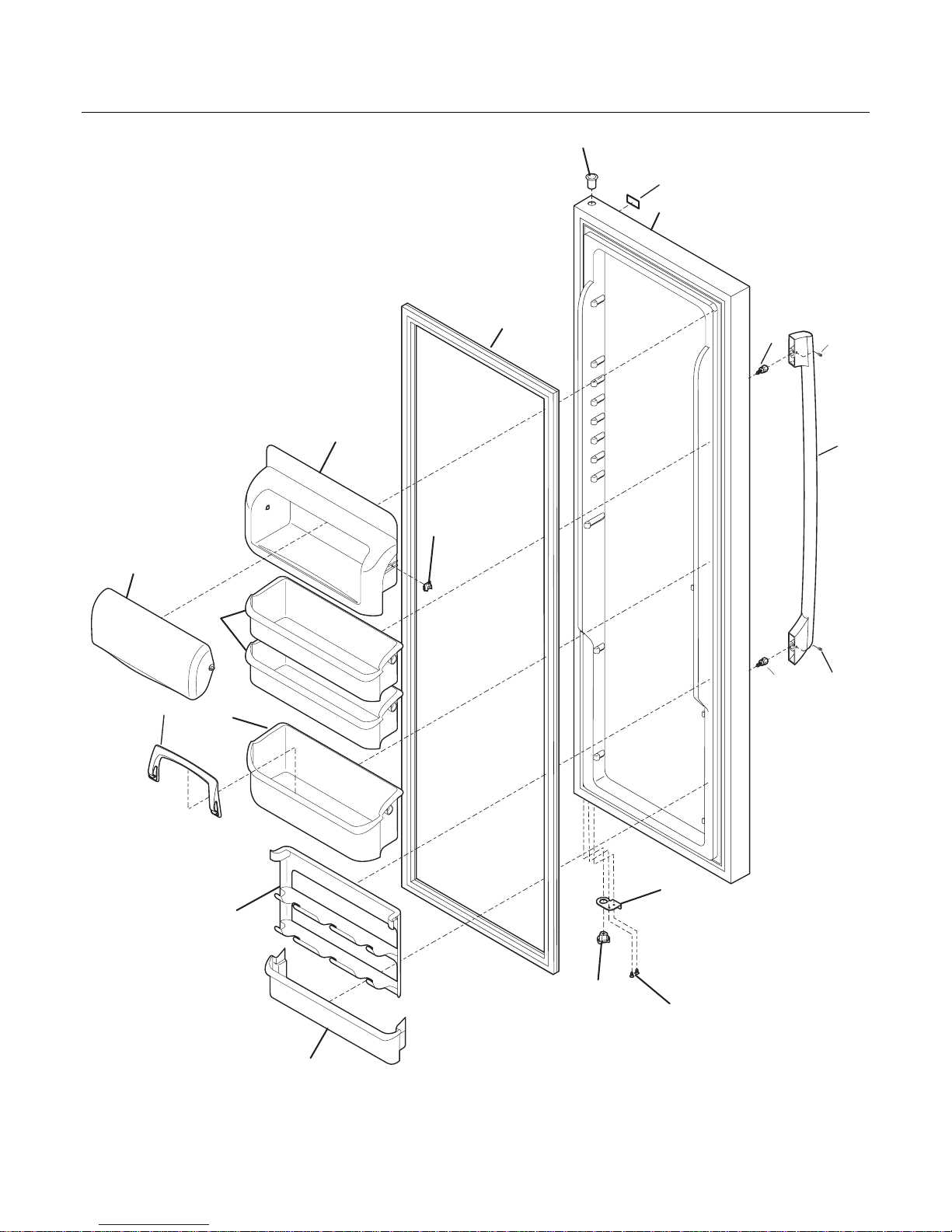

REFRIGERATOR DOOR

F58RSDCHA0

49A

22B

21A

27A

FPHC2399KF0 Publication No: 5995536223

# Functional Parts 5 03/09

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510201 Gasket-refr door, white, magnetic

5 241516102 Rack-can

6 241515901 Lug-dairy compartment

7 241515601 Door-dairy

12 242015101 Label-nameplate

13 241942603 Door Stop, black, ref

15 241837261 Door-refr, stainless, complete assy

18 241972501 Handle-door, stainless

21A 240442706 Screw-#10-32 X 3/4, zinc

22 241990301 Bearing-hinge, gray

22B 241760403 Bearing, hinge, top

27A 241812702 Retainer, tall bottle

48 241808224 Bin-door, ref

49 241808222 Bin-door, 2 liter

49* 241779903 Liner, bin, 2 liter

49A 241808223 Bin-door, gallon, w/trim

49A* 241780003 Liner, bin, gallon

70 241515801 Compartment-dairy, removable

79 218755401 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995536223 FPHC2399KF0

03/09 6

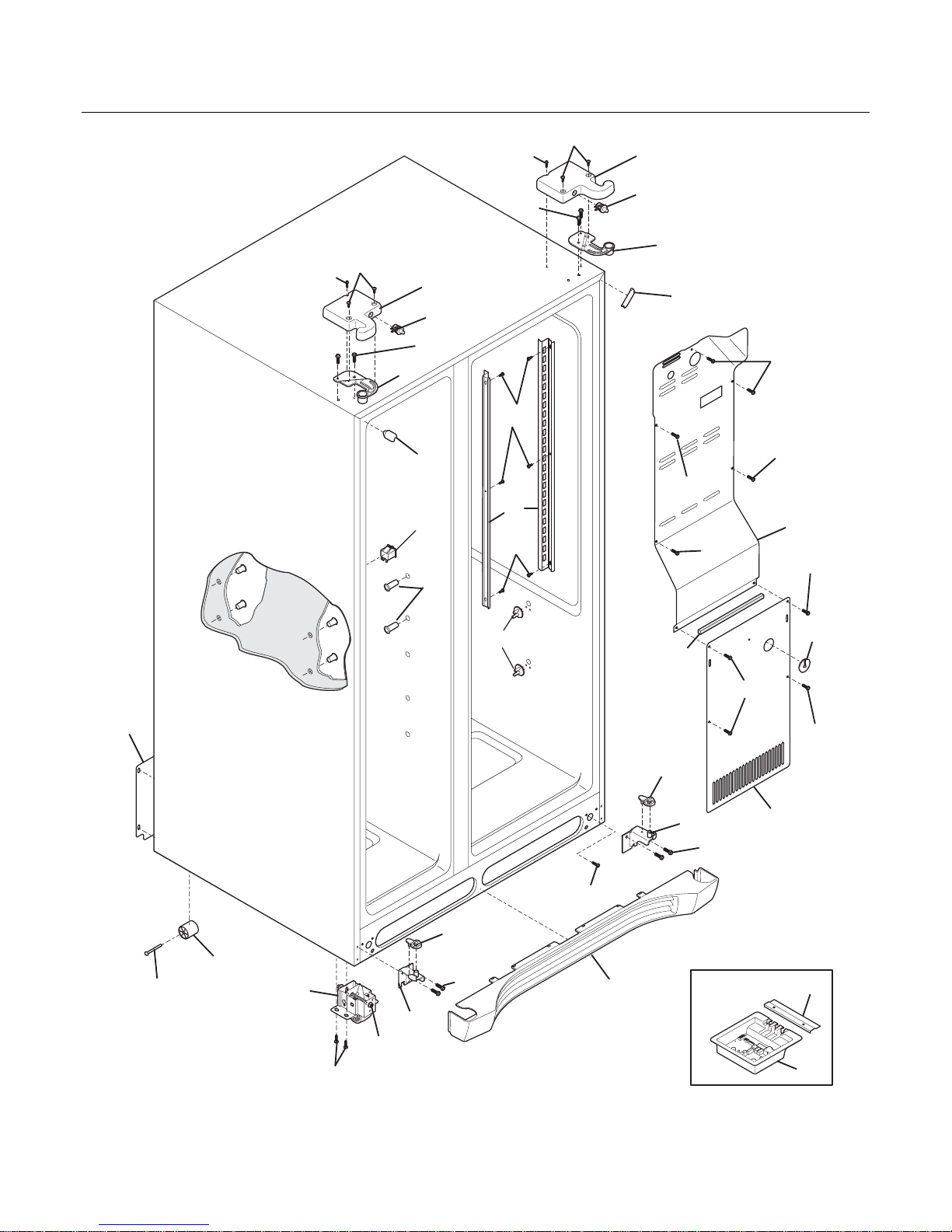

CABINET

72 54

40A

21D

38A

30A

21C

10A

100

E58BBAAAE0

14A

FPHC2399KF0 Publication No: 5995536223

# Functional Parts 7 03/09

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 241509804 Cover-air duct

10A 241719711 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14A# 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

21D 241548003 Screw, 10-32 x 3/8

22 241917801 Plate-door closer

22* 218755402 Screw-set, 10-32 x 0.375

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241917901 Bracket-lower hinge, RH, w/hinge pin

30A 241917902 Bracket-lower hinge, LH, w/hinge pin

37 240337612 Trim-cabinet corner, nickeloid, (2)

38 241761301 Bracket-upper hinge, RH

38A 241761302 Bracket-upper hinge, LH

40 241946707 Cover-upper hinge, RH

40* 241835801 Harness-wiring

40A 241946708 Cover-upper hinge, LH

40A* 241891901 Harness-wiring, freezer

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335006 Roller Assy, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 241513001 Channel-shelf mtg, side, (2)

50 242000412 Board-main power

50* 241867901 Harness-wiring

54 241532401 Channel

58 218781101 Screw, pan head, 8-18 x 0.625

72 241969405 Grille/Kickplate

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733905 Cover-access, w/label

90 218249808 Seal-coil cover

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

93 241911701 Switch, plunger style

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 241781601 Seal-return air

* 241852501 Clip, wiring harness

* 241890601 Deflector-air

Publication No: 5995536223 FPHC2399KF0

03/09 8

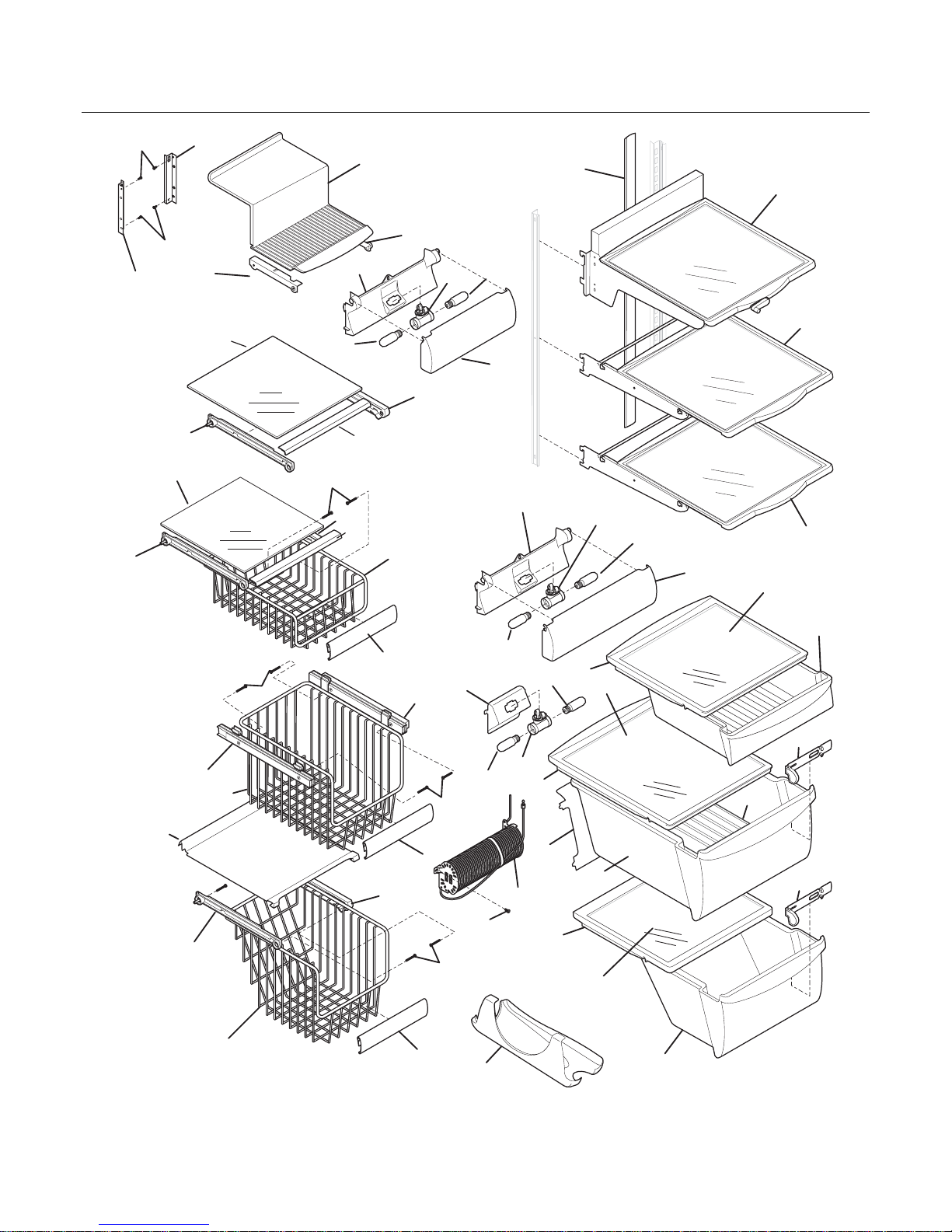

SHELVES

51A

140

136

126

122

121

120

109

108

107B

101

100

52B

52A

51B

49B

49A

47B

47A

27A

26A

143

25B

25A

24B

F58SDDLEH10

11A

108A

107

FPHC2399KF0 Publication No: 5995536223

# Functional Parts 9 03/09

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510608 Trim-basket

11 240443357 Shelf-freezer, glass, lower

11A 240443358 Shelf-freezer, glass, upper

15 241552801 Light Bulb

16 241622802 Socket-light, frz light

16*# 241797601 Harness-wiring

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240350137 Shelf-"Spill-Safe", cantilver, sliding

24B 240424615 Shelf-"Spill-Safe", "Aspect", complete

25 240599302 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

25B 240599802 Frame-meat pan, cantilever

26 240351062 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 241595202 Clip-slide, pan-crisper

26A 241638201 Control-humidity

26A* 241638101 Frame-humidity control

27 240351241 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367603 Trim-shelf, 11.65", front

41 241637601 Baffle-air

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

47B 240443391 Insert-pan cover, glass

49 241515001 Basket-sliding

49A 241528001 Basket-sliding, upper, half

49B 241514901 Basket-sliding, upper, full

51 241514501 Hanger-basket, RH

51A 241514701 Hanger-shelf glass, RH

51B 240579803 Hanger-basket, RH

52 241514601 Hanger-basket, LH

52A 241514801 Hanger-shelf glass, LH

52B 240579804 Hanger-basket, LH

60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 241974602 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 241532007 Water Tank

100 240326304 Cover-water tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

107 241753601 Shield-light, upper

107B 241513402 Shield-light, meat pan

108 241513301 Cover-wiring, meat pan light

108A 241753701 Housing-light, upper, fresh food

109 241513202 Base-crisper light socket

120 241691701 Shelf-ice cream

121 241504701 Rail-ice cream shelf, LH

122 241504702 Rail-ice cream shelf, RH

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

136 241657701 Dispenser-can, white

140 241812501 Channel, wtr tube cover

143 240423301 Divider-crisper pan

* 241781601 Seal-return air

* 241935558 Energy Guide

Publication No: 5995536223 FPHC2399KF0

03/09 10

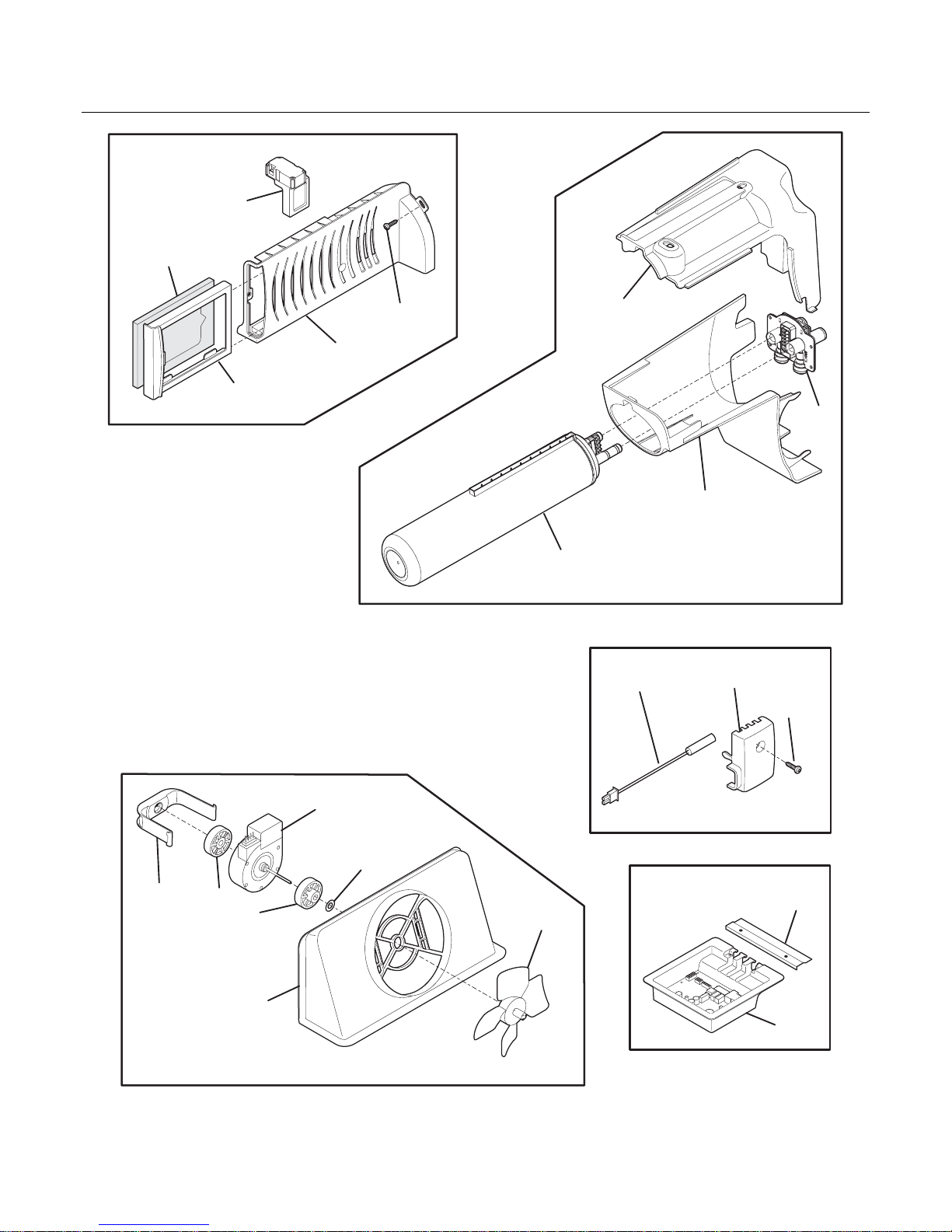

CONTROLS

208

137

139

210

210A

209

115

149

F58TEBCAE1
