Frigidaire FGTC2349K S Manuale utente
E23CS75DSS0.eps N58FKGBGA0.eps N58RKGCHB0.eps N58BABAAD4.eps
N58SDDLEH12.eps N58TBBAAB5.eps N58CACBAA3.eps N58XEBAAA2.eps
N58YDAAAC4.eps N58I115TServo.eps W241638600.eps S241638600.eps
Product No. FGTC2349KS1
Series counter depth
Color stainless
Volts 115
Wiring Diagram 241638600
Owner's Guide 241857500
Market North America
Energy Guide 241935573
Service Data Sheet 241639000
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995536389
09/03/25
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FGTC2349K
Copyright ©All rights reserved.
Publication No: 5995536389 FGTC2349KS1
03/09 2

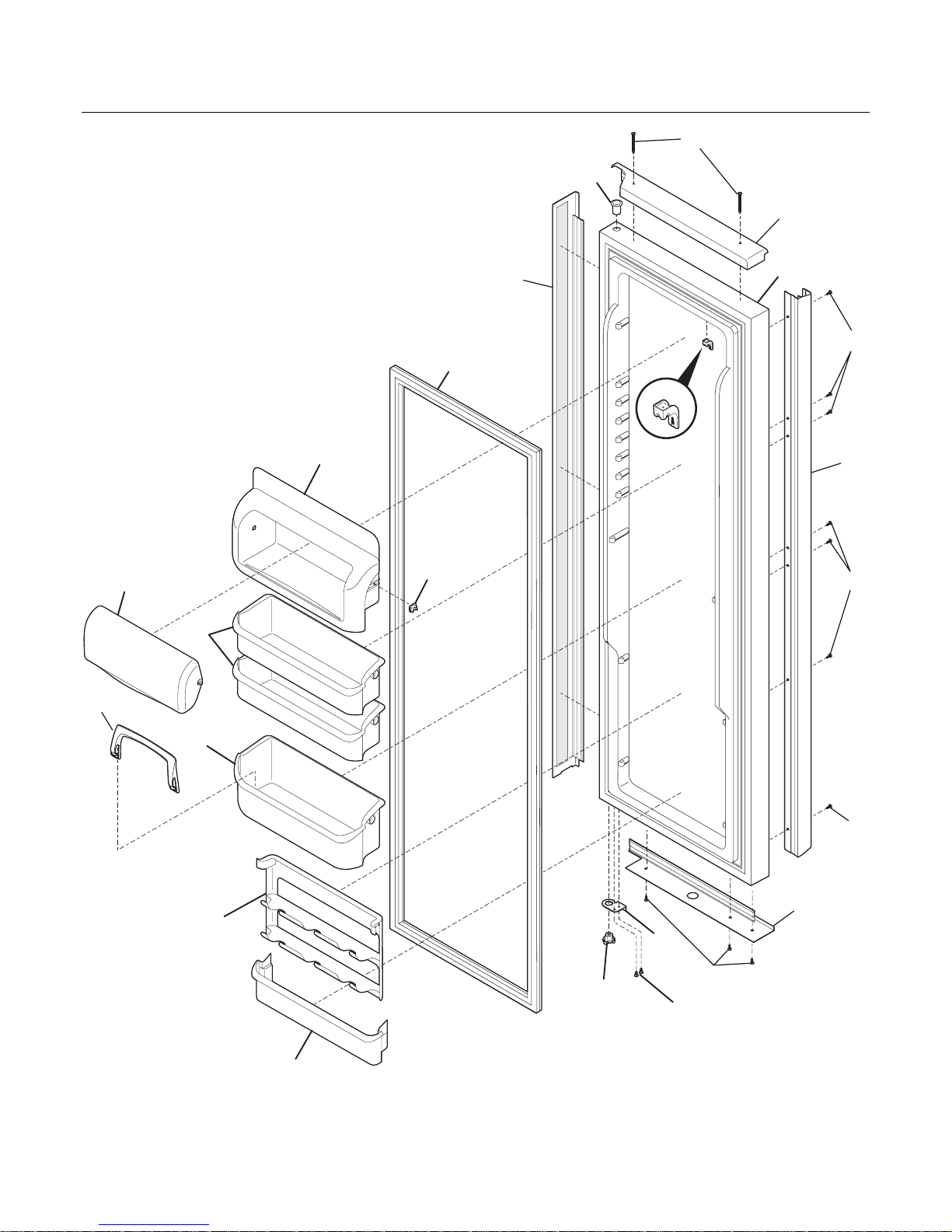

FREEZER DOOR
5
5
21
21
21
21
21B
37
18
37A
37B
22C
11
1
4B
68
4B
13A
22A
21A
N58FKGBGA0
FGTC2349KS1 Publication No: 5995536389
# Functional Parts 3 03/09
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 241510204 Gasket-frzr door, black, magnetic
4B 241808225 Bin-door, pseudo, frzr
5 241545001 Bin-tilt out, tilt-out
11 241615189 Door-frzr, black, complete assy
13A 240581906 Door Stop, black, frzr
18 241533607 Handle-frzr door, aluminum
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21B 241543202 Screw, #10-16 x 2
22A 240328202 Bearing-hinge(frz), closer
22C 240328404 Bearing-hinge, black, upper
37 241533707 Trim-door, brushed aluminu, side
37A 241534207 Trim-door, aluminum, top
37B 241533807 Trim-door, aluminum, bottom
68 241525101 Chute-ice
* 240411502 Clip-dispenser cover
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552102 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit
Publication No: 5995536389 FGTC2349KS1
03/09 4

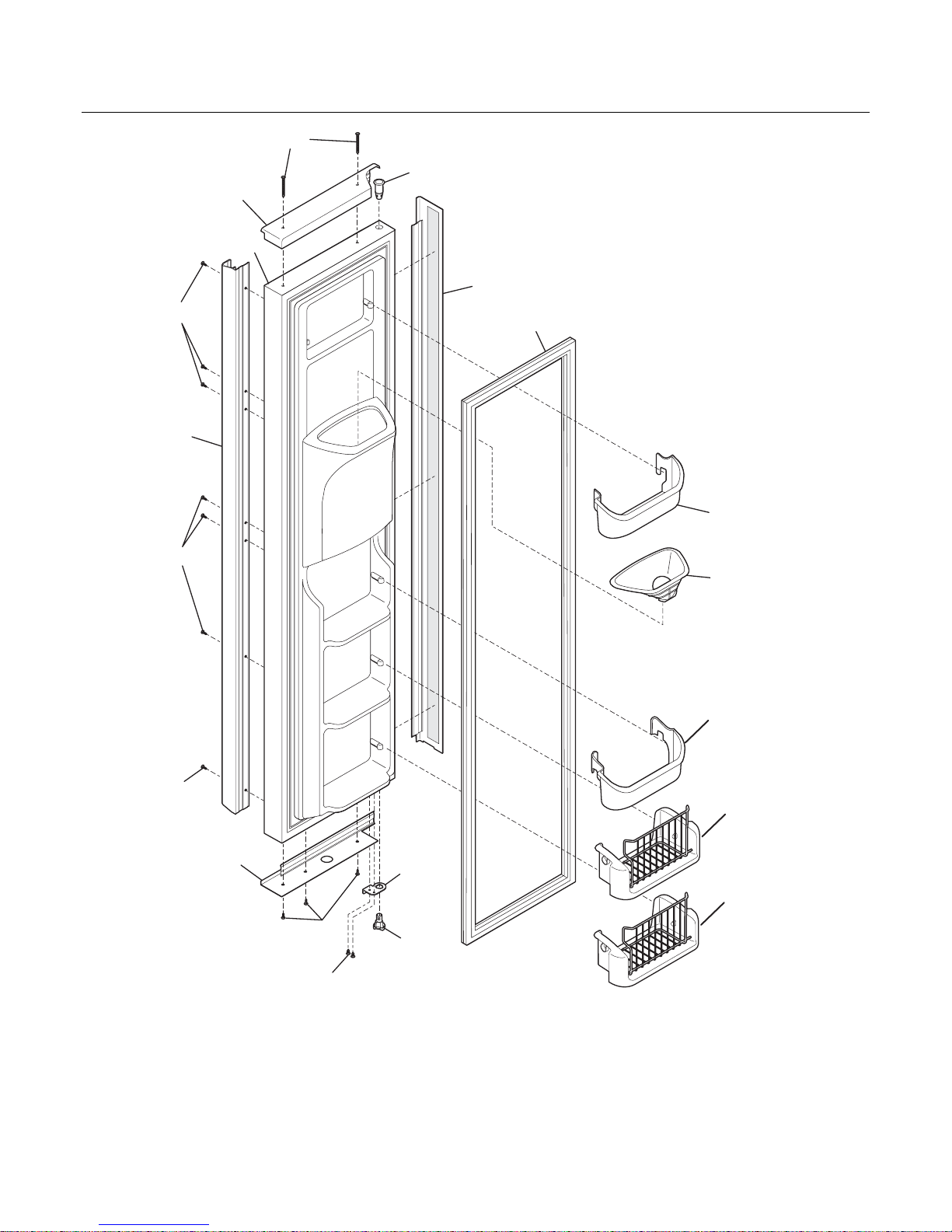

REFRIGERATOR DOOR
N58RKGCHB0
70
50
49A
49
48
22B
22
21A
15
13
76
5
2
21
21
21
18
21
37B
37
21B
37A
27A
FGTC2349KS1 Publication No: 5995536389
# Functional Parts 5 03/09
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510203 Gasket-refr door, black, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
13 240581905 Door Stop, black, ref
15 241534515 Door-refr, black, complete assy
18 241533608 Handle-refr door, aluminum
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21B 241543202 Screw, #10-16 x 2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 241812702 Retainer, tall bottle
37 241533708 Trim-door, aluminum, side
37A 241534208 Trim-door, aluminum, top
37B 241533808 Trim-door, aluminum, bottom
48 241808224 Bin-door, ref
49 241808222 Bin-door, 2 liter
49* 241779903 Liner, bin, 2 liter
49A 241808223 Bin-door, gallon, w/trim
49A* 241780003 Liner, bin, gallon
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable
Publication No: 5995536389 FGTC2349KS1
03/09 6

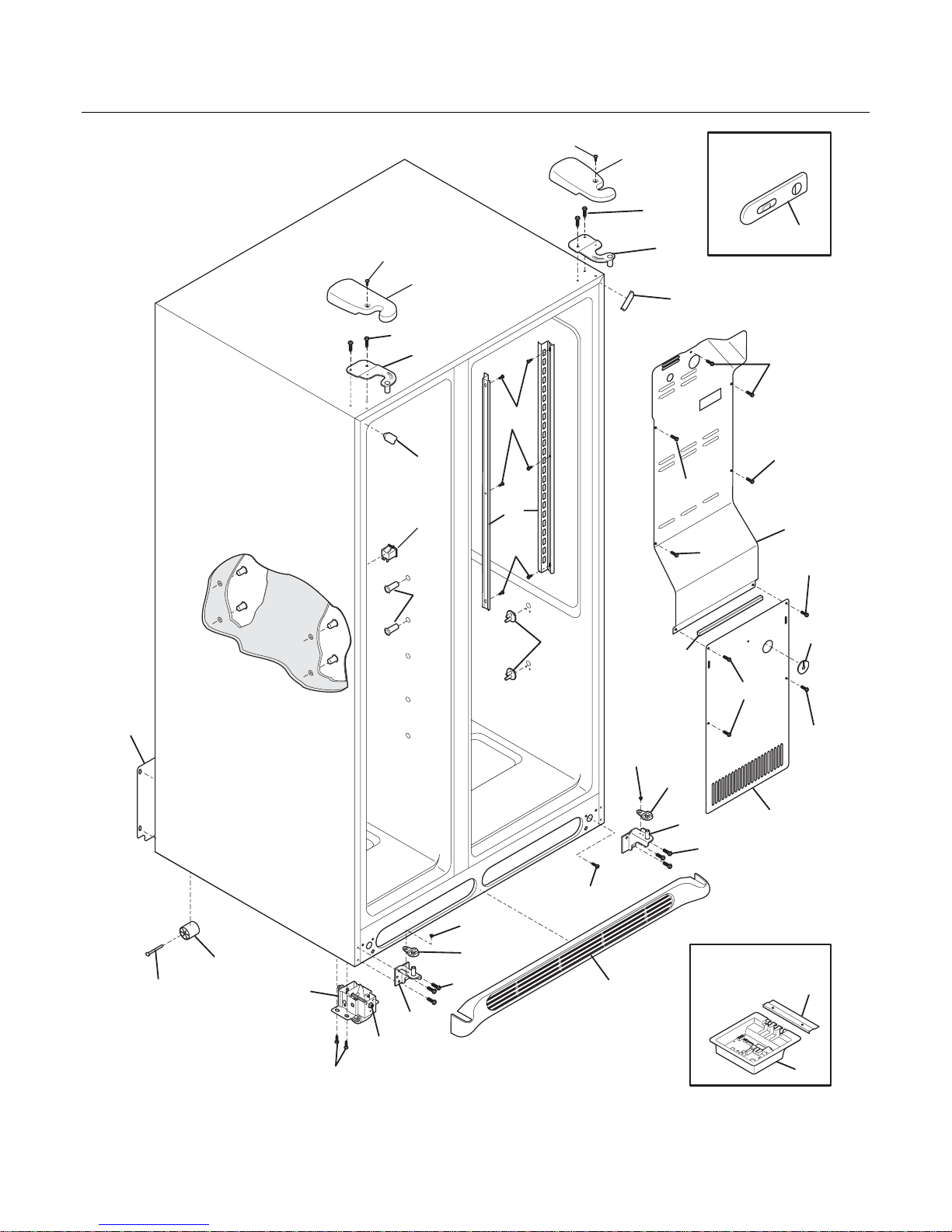

CABINET
100
92
92
90
89
83
82
81
81
72
66
54
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38A
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD4
14A
21C
21C
40
40A
FGTC2349KS1 Publication No: 5995536389
# Functional Parts 7 03/09
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337610 Trim-cabinet corner, black, (2)
38 241617905 Bracket-upper hinge
38A 241617906 Bracket-upper hinge
40 241519208 Cover-upper hinge, silver metallic
40A 241519207 Cover-upper hinge, silver metallic
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 240335006 Roller Assy, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511112 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
66 241513601 Damper Assy
72 240324414 Grille/Kickplate, metallic gray
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 5303321321 Paint, touch-up, black
* 241591701 Louver
Publication No: 5995536389 FGTC2349KS1
03/09 8

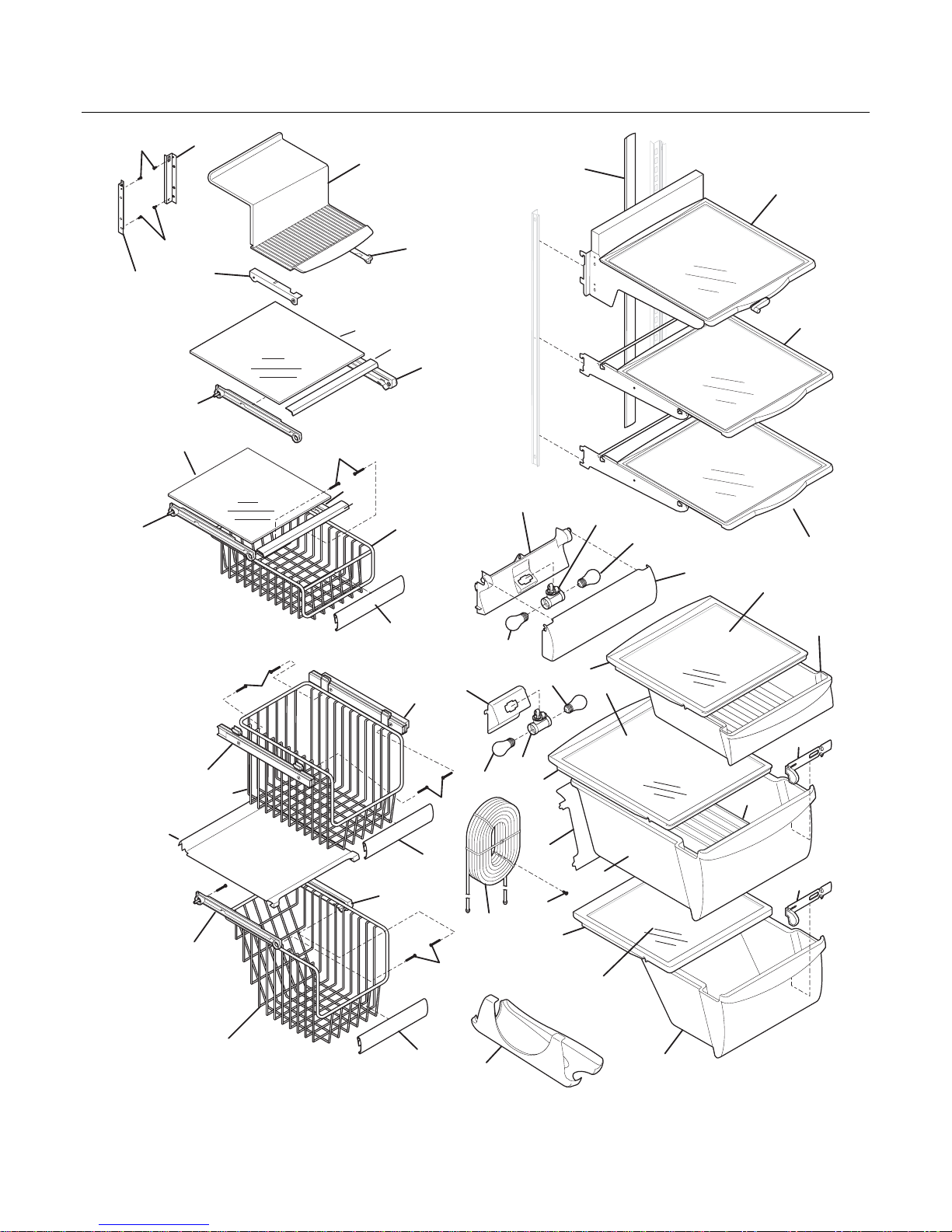

SHELVES
51A
140
136
126
126
122
121
120
109
108
107
101
101
100
97
81
81
62
60
52B
52A
52
81
52
51B
51
51
49B
49A
49
47B
47A
47
27A
27
26A
143
26
25B
25A
25
24C
24
24
21
16
16
15
15
15
15
2
2
2
N58SDDLEH12
11A
39
41
11
39
FGTC2349KS1 Publication No: 5995536389
# Functional Parts 9 03/09
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510608 Trim-basket
11 240443357 Shelf-freezer, glass, lower
11A 240443358 Shelf-freezer, glass, upper
15 241552801 Light Bulb
16 241622802 Socket-light, frz light
16* 241513101 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240350137 Shelf-"Spill-Safe", cantilver, sliding
24C 240424615 Shelf-"Spill-Safe", "Aspect", complete
25 240599302 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
25B 240599801 Cover-meat pan
26 240351062 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26* 241595202 Clip-slide, pan-crisper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351241 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367603 Trim-shelf, 11.65", front
41 241637601 Baffle-air
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443356 Insert-pan cover, glass
49 241515001 Basket-sliding
49A 241528001 Basket-sliding, upper, half
49B 241514901 Basket-sliding, upper, full
51 241514501 Hanger-basket, RH
51A 241514701 Hanger-shelf glass, RH
51B 240579803 Hanger-basket, RH
52 241514601 Hanger-basket, LH
52A 241514801 Hanger-shelf glass, LH
52B 240579804 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599718 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532005 Water Tank
100 240326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241513402 Shield-light, meat pan
108 241513301 Cover-wiring, meat pan light
109 241513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
136 241657701 Dispenser-can, white
140 240430505 Channel, wtr tube cover
143 240423301 Divider-crisper pan
* 241935573 Energy Guide
Publication No: 5995536389 FGTC2349KS1
03/09 10

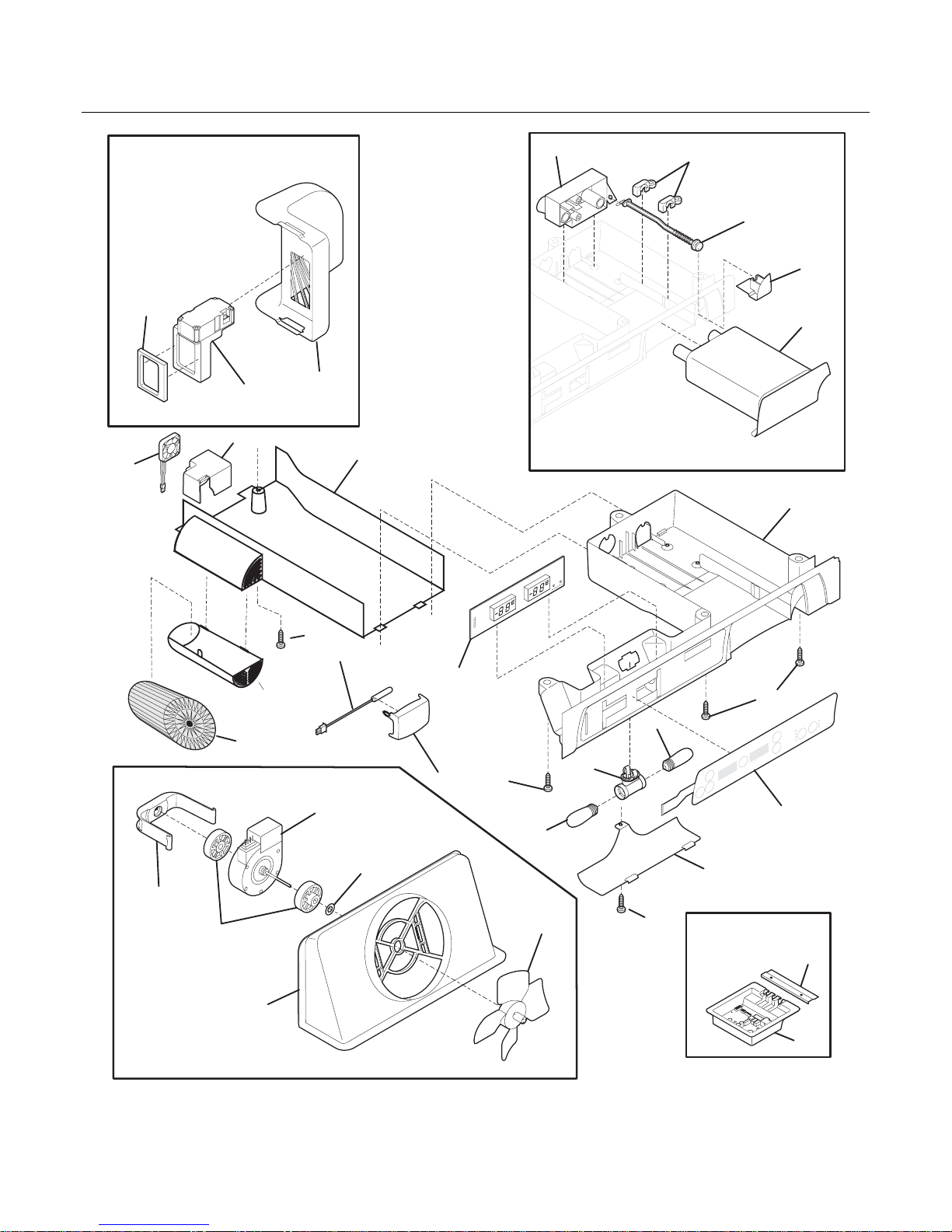

CONTROLS
201
199
198
151
155
154
206
149
139
138
137
116
115
81
81
81
75
60
23
22
205
21
17
16
15
15
14
13
9
8
5
N58TBBAAB5
54
50
75A
