Frigidaire FRS23H5DS Manuale utente

Product No. FRS23H5DSB1 FRS23H5DSB2 FRS23H5DSB3

Series R134a R134a R134a

Color stain/blk stain/blk stain/blk

Volts 115 115 115

Wiring Diagram 241526901 241526901 241526901

Owner's Guide 241572800 241572800 241572800

Market North America North America North America

Energy Guide 241538735 241538735 241538735

Service Data Sheet 240389618 240389618 240389618

N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAB1.eps

N58SBBKBD1.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps

N58YDAAACO.eps n58I115T.eps W241526901A.eps S241526901A.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995415709

04/08/26

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS23H5DS

Publication No: 5995415709 FRS23H5DS

08/04 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS23H5DS Publication No: 5995415709

# Functional Parts 3 08/04

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS23H5DS (FRS23H5DSB1)

BFRS23H5DS (FRS23H5DSB2)

CFRS23H5DS (FRS23H5DSB3)

POS. NO PART NO. DESCRIPTION

1 # 240390608 A B C Gasket-frzr door, black, magnetic

4A 240367301 A B C Bin-door, frzr-upper

4B 240359001 A B C Bin-door

11 240554231 A B C Door-frzr, stainless steel, complete assy

13A 240581906 A B C Door Stop, black, frzr

18 240359108 A B C Handle-door, black, LH

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22A 240328204 A B C Bearing-hinge, closer

22C 240328404 A B C Bearing-hinge, black, upper

37 240359203 A B C Trim-handle, 30.13", black, lower

68 241525101 A B C Chute-ice

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 218490901 A B C Cleaner, stainless steel

* 240352102 A B C Connector-water, straight

* 240552101 A B C Harness-wiring, door

* 5303918256 A B C Dispenser heater kit

Publication No: 5995415709 FRS23H5DS

08/04 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB5

FRS23H5DS Publication No: 5995415709

# Functional Parts 5 08/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS23H5DS (FRS23H5DSB1)

BFRS23H5DS (FRS23H5DSB2)

CFRS23H5DS (FRS23H5DSB3)

POS. NO PART NO. DESCRIPTION

2 # 240390607 A B C Gasket-refr door, black, magnetic

4 240363701 A B C Bin-door, 2-liter

7 240338303 A B C Door, dairy, clear

13 240581905 A B C Door Stop, black, ref

15 240451985 A B C Door-refr, stainless steel, complete assy

18 240359103 A B C Handle-door, black, RH

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22 240328203 A B C Bearing-hinge, closer

22B 240328404 A B C Bearing-hinge, black, upper

37 240359203 A B C Trim-handle, 30.13", black, lower

49 240324501 A B C Bin-door, gallon

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 218490901 A B C Cleaner, stainless steel

Publication No: 5995415709 FRS23H5DS

08/04 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS23H5DS Publication No: 5995415709

# Functional Parts 7 08/04

* Non-Illustrated Parts

CABINET

Model Index: AFRS23H5DS (FRS23H5DSB1)

BFRS23H5DS (FRS23H5DSB2)

CFRS23H5DS (FRS23H5DSB3)

POS. NO PART NO. DESCRIPTION

10 240435907 A B C Cover-air duct

10A 240475906 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14 # 240505801 A B C Switch, light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 A B C Bracket-lower hinge, ref

30A 240419102 A B C Bracket-lower hinge

37 240337603 A B C Trim-cabinet corner, black, (2)

38 240327201 A B C Bracket-upper hinge

40 240327007 A B C Cover-upper hinge, black

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, front, (2)

45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B C Channel-shelf mtg, side, (2)

58 218781100 A B C Screw, pan head, 8-18 x 0.625

66 5304424968 A B C Damper Cover Assy

66* 240518802 A B C Pin-push, push-in, plastic

72 240324405 A B C Grille/Kickplate, black

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A - - Cover, access, system compt, with label

89 241574601 - B C Cover access

90 218249807 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

150 240368701 A B C Guide-control bulb

* 240396801 A B C Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C Plug, button, cab liner holes, (2)

* 240481601 A B C Shim-lower hinge

* 5303305345 A B C Paint, touch-up, black

Publication No: 5995415709 FRS23H5DS

08/04 8

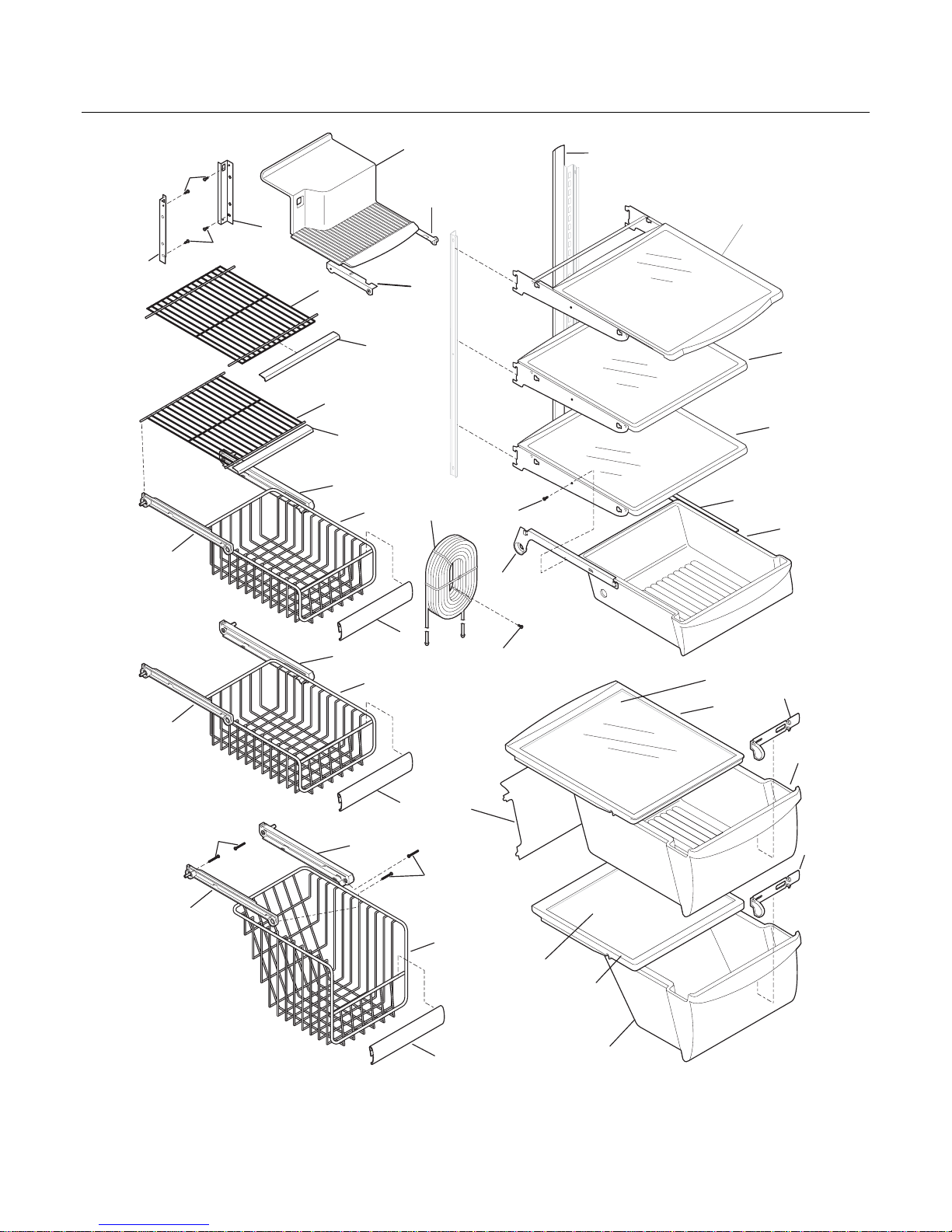

SHELVES

11A

126

39A

49B

101

N58SBBKBD1

100

25A

47A

101

26A

42A

123

26A

24A

24B

140

120

122

121

FRS23H5DS Publication No: 5995415709

# Functional Parts 9 08/04

* Non-Illustrated Parts

SHELVES

Model Index: AFRS23H5DS (FRS23H5DSB1)

BFRS23H5DS (FRS23H5DSB2)

CFRS23H5DS (FRS23H5DSB3)

POS. NO PART NO. DESCRIPTION

2 241510603 A B C Trim-basket

11 240338801 A B C Shelf-freezer, flip-up

11A 240338703 A B C Shelf-freezer, fixed wire

24 240355211 A B C Shelf-"Spill-Safe", fixed

24A 240355209 A B C Shelf-"Spill-Safe", fixed

24B 240350107 A B C Shelf-"Spill-Safe", cantilever, sliding

25 240354502 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240354602 A B C Cover-crisper pan, lower

26 240354705 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240351101 A B C Control-humidity

27 240354805 A B C Pan-crisper, lower

39 240430705 A B C Trim-shelf, front

39A 240430701 A B C Trim-shelf, front

42 240356501 A B C Track, meat pan hanger, RH

42A 240349701 A B C Hanger-meat pan, LH

42A* 240349901 A B C Block-meat pan rail, LH

42A* 240350001 A B C Spring-meat pan rail

47 240350635 A B C Insert-pan cover, glass

47A 240350614 A B C Insert-pan cover, glass

49 240530401 A B C Basket-sliding

49B 240530501 A B C Basket-sliding, upper, half

51 240343002 A B C Hanger-basket, RH

52 240343102 A B C Hanger-basket, LH

62 240355505 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy, coiled tubing, front filter

100 240326301 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

120 241558901 A B C Shelf-ice cream

121 241561001 A B C Rail-ice cream shelf, LH

122 241561101 A B C Rail-ice cream shelf, RH

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 A B C Channel, auger mtg, LH

126 218867406 A B C Channel, auger mtg, RH

140 240430501 A B C Channel, wtr tube cover

Publication No: 5995415709 FRS23H5DS

08/04 10

CONTROLS
