Frigidaire FRS23W3A Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23W3AQ6 FRS23W3A R134a bisque 115

FRS23W3AW6 FRS23W3A R134a white 115

MARKET

North America

Publication No.

5995376349

020805

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23W3A

WIRING DIAGRAM - 240389607

OWNER’S GUIDE - 240389307

SERVICE DATA SHEET - 240389607

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/02 2

Publication No. FRS23W3A

5995376349

FREEZER DOOR

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FRS23W3A Publication No.

5995376349

FREEZER DOOR

A = FRS23W3A (FRS23W3AQ6)

B = FRS23W3A (FRS23W3AW6)

POS. NO PART NO DESCRIPTION

1 240390604 A B Gasket-frzr door,white

4A 240367301 A B Bin-door,frzr-upper

4B 240359001 A B Bin-door

11 240451822 A - Door-frzr,bisque ,complete assy

11 240451818 - B Door-frzr,white ,complete assy

13A 240537104 A - Door Stop,bisque ,frzr

13A 240537102 - B Door Stop,white ,frzr

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22A 240328202 A B Bearing-hinge,closer

22C 240328402 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37A 215870629 - B Trim-handle, 2.47", white,w/satin AL band

37A* 218676004 A B Band-decorative, satin aluminum, handle trim

68 240465801 A B Chute-ice

96 240345505 A B Plug,door foam hole ,white

* 240323201 A B Wiring Harness

* 240352101 A B Connector-water,straight

* 240552101 A B Harness-wiring,door

* 5303918256 A B Dispenser heater kit

08/02 4

Publication No. FRS23W3A

5995376349

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FRS23W3A Publication No.

5995376349

A = FRS23W3A (FRS23W3AQ6)

B = FRS23W3A (FRS23W3AW6)

POS. NO PART NO DESCRIPTION

2 # 240390603 A B Gasket-refr door,white ,magnetic

4 240363701 A B Bin-door,2-liter

7 240338303 A B Door,dairy ,clear

13 240537103 A - Door Stop,bisque ,ref

13 240537101 - B Door Stop,white ,ref

15 240451915 A - Door-refr,bisque ,complete assy

15 240451911 - B Door-refr,white ,complete assy

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22 240328201 A B Bearing-hinge,closer

22B 240328401 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 A B Band-decorative, satin aluminum, handle trim

49 240324501 A B Bin-door,gallon

96 240345505 A B Plug,door foam hole ,white

REFRIGERATOR DOOR

08/02 6

Publication No. FRS23W3A

5995376349

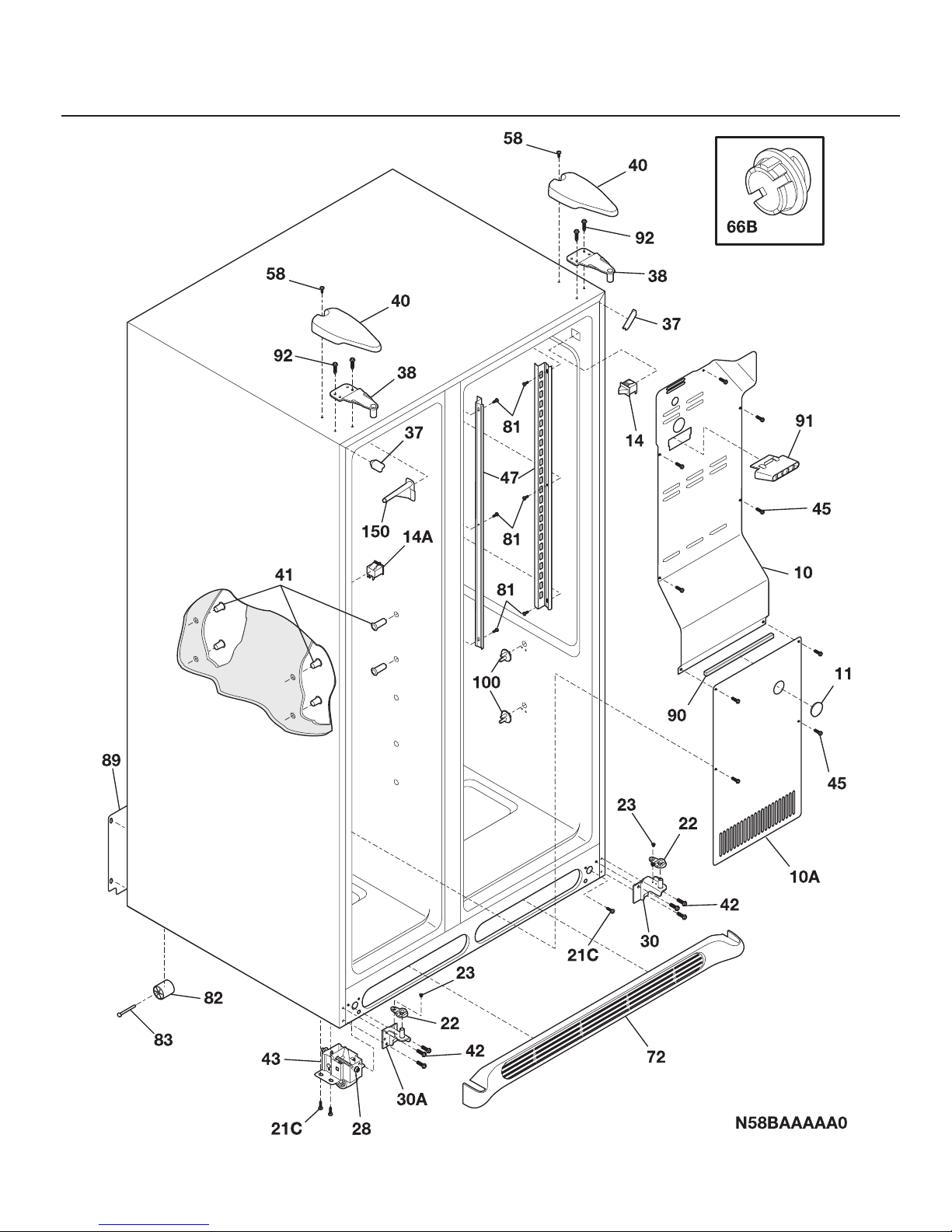

CABINET

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FRS23W3A Publication No.

5995376349

A = FRS23W3A (FRS23W3AQ6)

B = FRS23W3A (FRS23W3AW6)

POS. NO PART NO DESCRIPTION

10 240435901 A B Cover-air duct

10A 240475901 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 240505801 A B Switch,light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex washer head, 1/4-20 x 4.020, (2)

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240327202 A B Bracket-upper hinge

40 240327006 A - Cover-upper hinge,bisque

40 240327005 - B Cover-upper hinge,white

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

45 241500301 A B Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B Channel-shelf mtg,side ,(2)

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push,push-in ,plastic

72 240324403 A - Grille/Kickplate,bisque

72 240324401 - B Grille/Kickplate,white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A B Cover,access ,system compt ,with label

90 218249807 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B Support,crisper cover ,front ,(4)

100* 240350802 A B Support,crisper cover ,rear ,(4)

150 240368701 A B Guide-control bulb

* 218515401 A B Clip

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* 240479601 A B Plug,button ,cab liner holes

* 240481601 A B Shim-lower hinge

* 5304414035 A - Paint,touch-up ,bisque

* 5303305324 - B Paint,touch-up ,white

CABINET

08/02 8

Publication No. FRS23W3A

5995376349

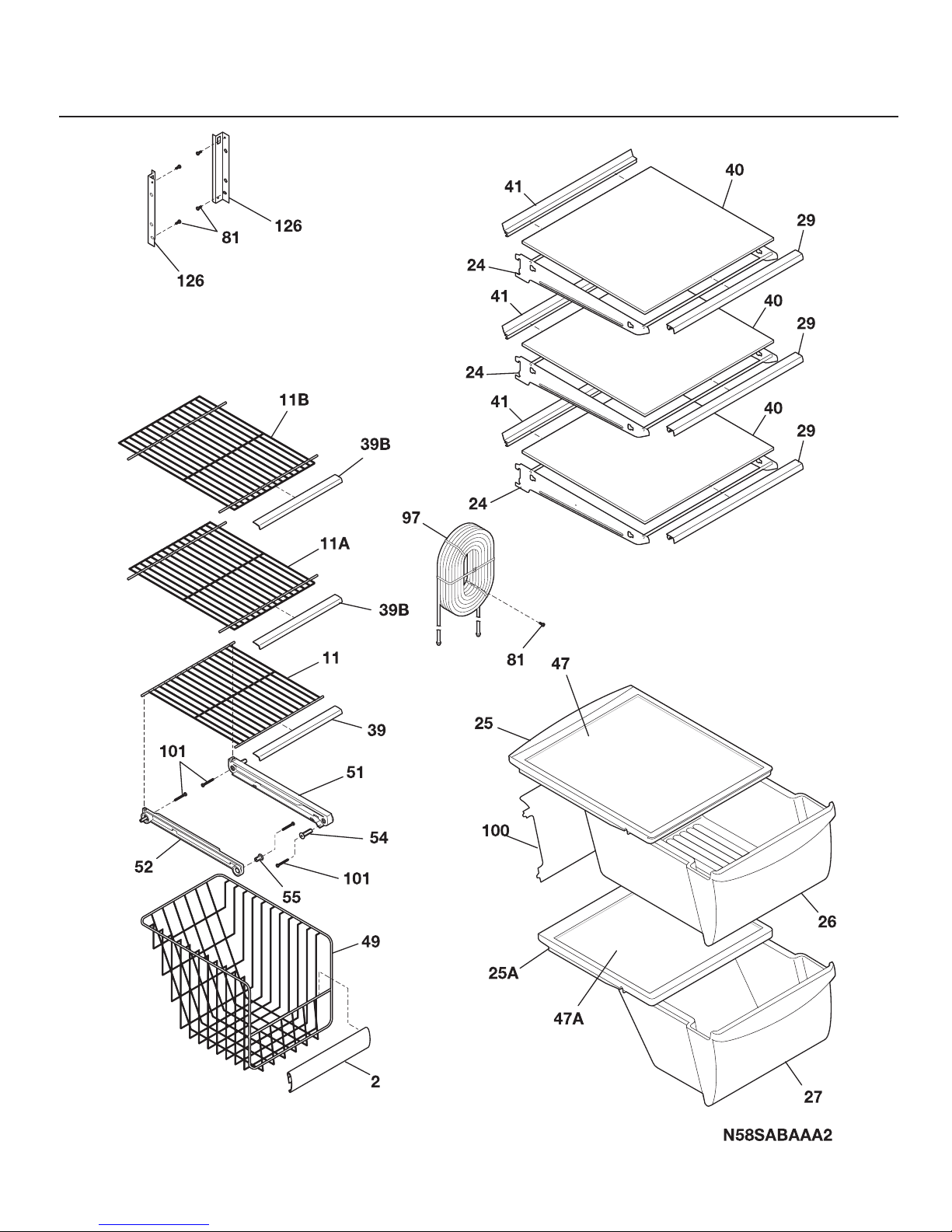

SHELVES

# = Fast-moving Parts 9 08/02

* = Non-Illustrated Parts

FRS23W3A Publication No.

5995376349

A = FRS23W3A (FRS23W3AQ6)

B = FRS23W3A (FRS23W3AW6)

POS. NO PART NO DESCRIPTION

2 240434603 A B Trim-basket

11 240338801 A B Shelf-freezer,flip-up

11A 240338701 A B Shelf-freezer,fixed wire

11B 240338703 A B Shelf-freezer,fixed wire

24 240373107 A B Frame-refr shelf,cantilever

25 240354502 A B Cover-crisper pan,upper

25A 240354602 A B Cover-crisper pan,lower

26 240354706 A B Pan-crisper,upper

27 240354806 A B Pan-crisper,lower

29 240357705 A B Trim-shelf,front

39 240430705 A B Trim-shelf,front

39B 240430701 A B Trim-shelf,front

40 240350622 A B Glass-shelf,refr shelf ,(3)

41 240357805 A B Trim-shelf,rear

47 240350631 A B Insert-pan cover,glass

47A 240350614 A B Insert-pan cover,glass

49 240530401 A B Basket-sliding

51 240343002 A B Hanger-basket,RH

52 240343102 A B Hanger-basket,LH

54 240351901 A B Plug-hanger,right hand

55 240352001 A B Plug-hanger,left hand

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile

97 240453001 A B Water Tank Assy,coiled tubing, no filter

100 240326301 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

126 218867401 A B Channel,auger mtg ,LH

126 218867402 A B Channel,auger mtg ,RH

* 215328300 A B Clip,cantlvr shelf

SHELVES

08/02 10

Publication No. FRS23W3A

5995376349

CONTROLS
