Frigidaire FRS23X3A Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23X3AQ0 FRS23X3A R134a bisque 115

FRS23X3AW0 FRS23X3A R134a white 115

MARKET

North America

Publication No.

5995351300

010319

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23X3A

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 2404261013

OWNER’S GUIDE - # 240389300

SERVICE DATA SHEET - # 240389600

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

03/01 2

Publication No. FRS23X3A

5995351300

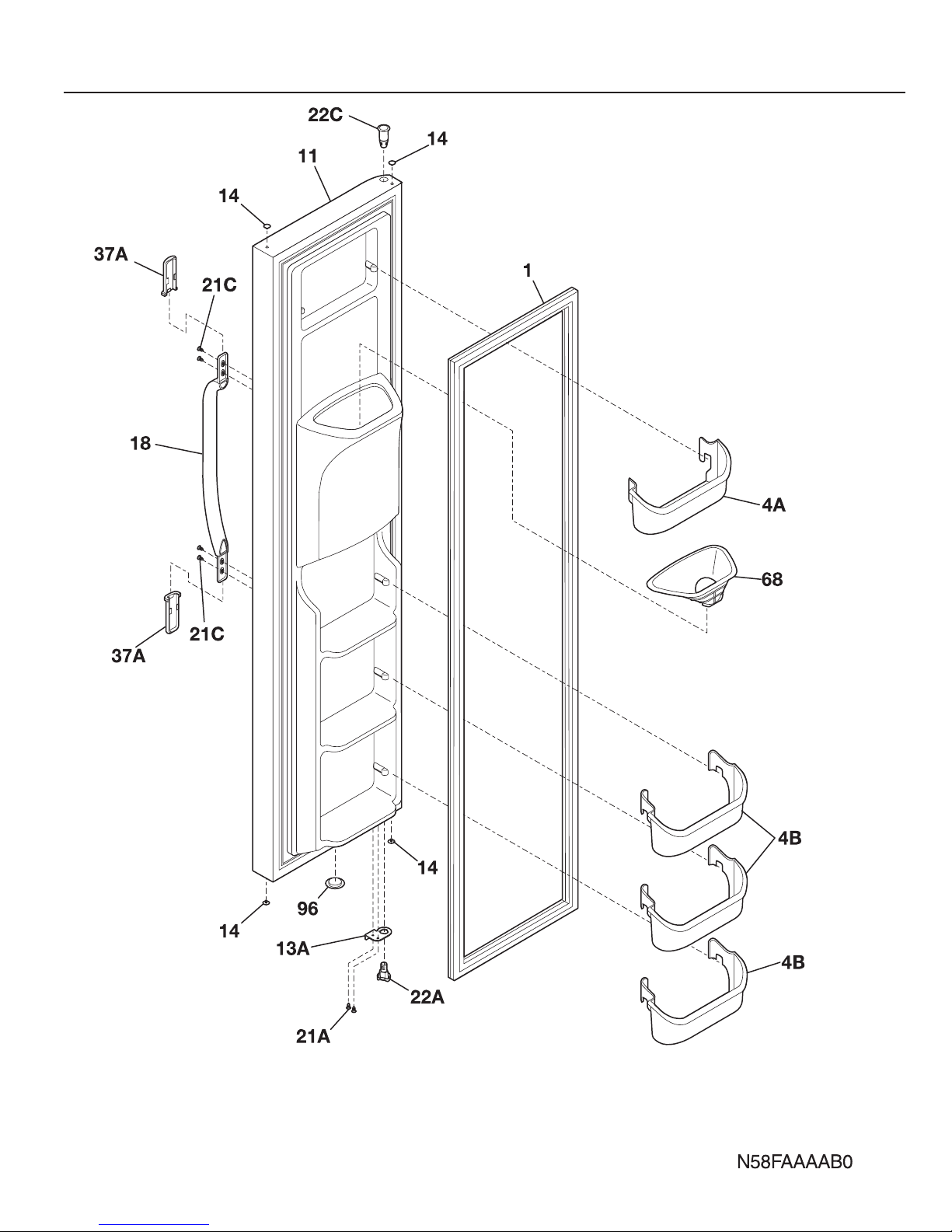

FREEZER DOOR

# = Fast-moving Parts 3 03/01

* = Non-Illustrated Parts

FRS23X3A Publication No.

5995351300

FREEZER DOOR

A = FRS23X3A (FRS23X3AQ0)

B = FRS23X3A (FRS23X3AW0)

POS. NO PART NO DESCRIPTION

1 240390604 A B Gasket-door,white

4A 240367301 A B Bin-door,frzr-upper

4B 240359001 A B Bin-door

11 240451822 A - Panel-frzr door,bisque ,complete assy.

11 240451818 - B Panel-frzr door,white ,complete assy.

13A 240326002 A B Door Stop,white ,frzr

14 218915704 A - Plug-button,bisque

14 218915701 - B Plug-button,white

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22A 240328202 A B Bearing-hinge,closer

22C 240328402 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47", bisque, w/band

37A 215870629 - B Trim-handle,2.47", white, w/satin AL band

68 240321902 A B Chute-ice

96 240345501 A B Plug-foam hole,white

* 240352101 A B Connector-water,straight

* 240323201 A B Wiring Harness

03/01 4

Publication No. FRS23X3A

5995351300

REFRIGERATOR DOOR

# = Fast-moving Parts 5 03/01

* = Non-Illustrated Parts

FRS23X3A Publication No.

5995351300

A = FRS23X3A (FRS23X3AQ0)

B = FRS23X3A (FRS23X3AW0)

POS. NO PART NO DESCRIPTION

2 # 240390603 A B Gasket-refr door,white ,magnetic

4 240363701 A B Bin-door,2-liter

7 240338303 A B Door-dairy

13 240326001 A B Door Stop,white ,ref

14 218915704 A - Plug-button,bisque

14 218915701 - B Plug-button,white

15 240451915 A - Panel-refr door,bisque ,complete assy.

15 240451911 - B Panel-refr door,white ,complete assy.

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22 240328201 A B Bearing-hinge,closer

22B 240328401 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47" ,bisque ,w/band

37A 215870629 - B Trim-handle,2.47", white, w/satin AL band

49 240324501 A B Bin-door,gallon

96 240345501 A B Plug-foam hole,white

REFRIGERATOR DOOR

03/01 6

Publication No. FRS23X3A

5995351300

CABINET

# = Fast-moving Parts 7 03/01

* = Non-Illustrated Parts

FRS23X3A Publication No.

5995351300

A = FRS23X3A (FRS23X3AQ0)

B = FRS23X3A (FRS23X3AW0)

POS. NO PART NO DESCRIPTION

10 240317001 A B Cover-air duct

10A 240316401 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240413601 A B Switch-light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240407801 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2), special

30 240419101 A B Bracket-lower hinge, ref

30A 240419102 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240327201 A B Bracket-upper hinge

40 240327002 A - Cover-upper hinge,bisque

40 240327001 - B Cover-hinge

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

45 5303001343 A B Screw,hex washer head ,8-15A x 0.500

47 218659500 A B Channel-shelf mtg,side ,(2)

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B Diffuser-air

72 240324403 A - Grille/Kickplate,bisque

72 240324401 - B Grille/Kickplate,white

81 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller-rear,comp base ,(2)

83 215164200 A B Pin-roller,(2)

89 240326103 A B Cover-access,w/label

89* 240345702 A B Screw-compr plate mtg, truss hd, #10-16 x .500

90 218249804 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B Support-crspr cover,(4)

100* 240350802 A B Support-crspr cover,(4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp-tube

* 5304414035 A - Paint,touch-up ,bisque

* 5303305324 - B Paint,touch-up ,white

CABINET

03/01 8

Publication No. FRS23X3A

5995351300

SHELVES

# = Fast-moving Parts 9 03/01

* = Non-Illustrated Parts

FRS23X3A Publication No.

5995351300

A = FRS23X3A (FRS23X3AQ0)

B = FRS23X3A (FRS23X3AW0)

POS. NO PART NO DESCRIPTION

2 240434601 A B Trim-basket

11 240338801 A B Shelf-freezer,flip-up

11A 240338701 A B Shelf-freezer,fixed wire

11B 240338703 A B Shelf-freezer,fixed wire

24 240373107 A B Frame-refr shelf,cantilever

25 240354501 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240354601 A B Cover-crisper pan,lower

26 240354706 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

27 240354806 A B Pan-crisper,lower

29 240357705 A B Trim-shelf,front

39 240367701 A B Trim-shelf,front

40 240350622 A B Glass-shelf,refr shelf ,(3)

41 240357805 A B Trim-shelf,rear

47 240350631 A B Insert-pan cover,glass

47A 240350614 A B Insert-pan cover,glass

49 240338401 A B Basket-sliding

51 240343001 A B Hanger-basket,RH

52 240343101 A B Hanger-basket,LH

54 240351901 A B Plug-hanger,right hand

55 240352001 A B Plug-hanger,left hand

81 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

97 240322002 A B Water Tank Assy,with tubes

100 240326301 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

126 218867401 A B Channel,auger mtg ,LH

126 218867402 A B Channel,auger mtg ,RH

SHELVES

03/01 10

Publication No. FRS23X3A

5995351300

CONTROLS
