Frigidaire FRS26BH5C Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23BH5CB0 FRS23BH5C R134a black 115

FRS23BH5CQ0 FRS23BH5C R134a bisque 115

FRS23BH5CW0 FRS23BH5C R134a white 115

MARKET

North America

Publication No.

5995389300

030422

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26BH5C

ENERGY GUIDE - 240465081

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389610

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

04/03 2

Publication No. FRS23BH5C

5995389300

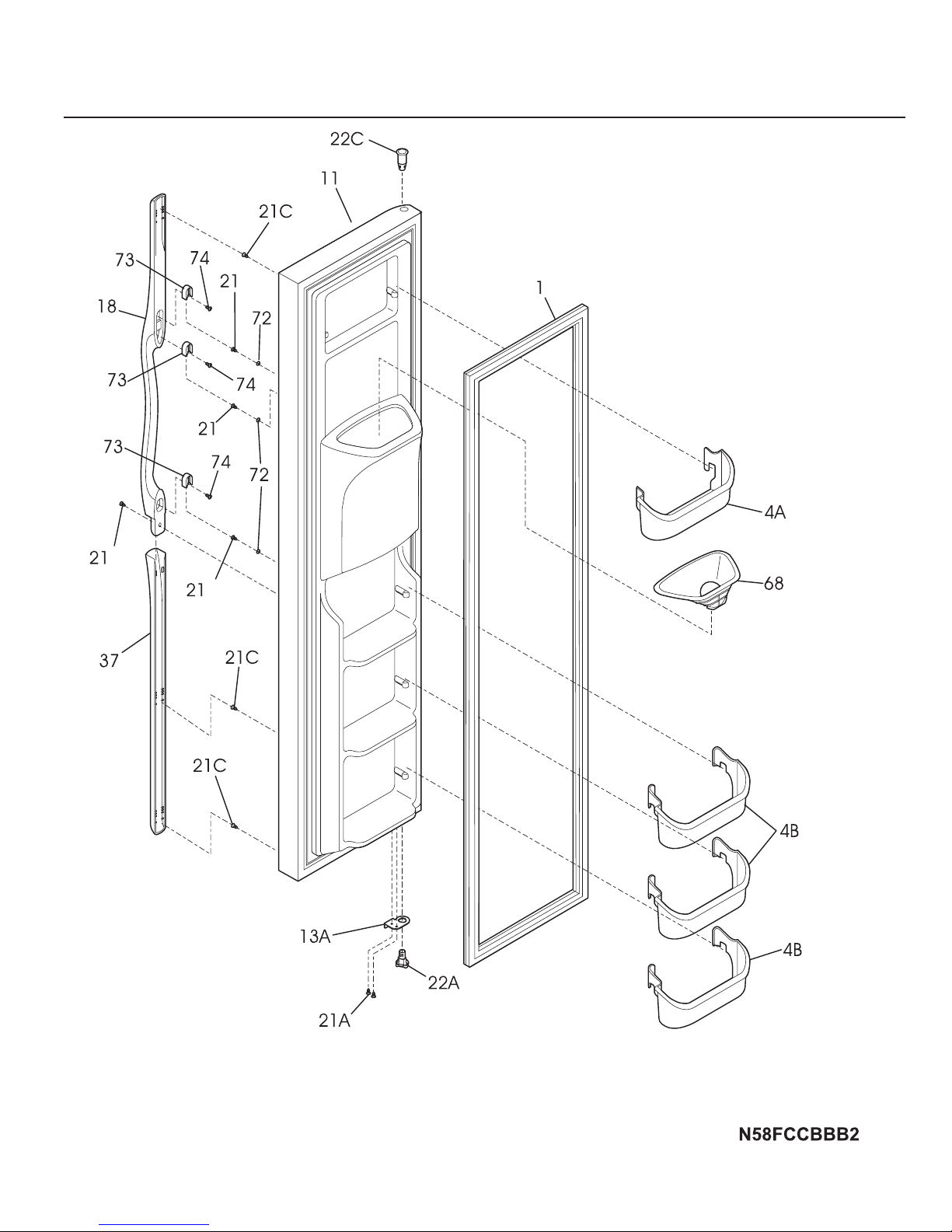

FREEZER DOOR

# = Fast-moving Parts 3 04/03

* = Non-Illustrated Parts

FRS23BH5C Publication No.

5995389300

FREEZER DOOR

A = FRS23BH5C (FRS23BH5CB0)

B = FRS23BH5C (FRS23BH5CQ0)

C = FRS23BH5C (FRS23BH5CW0)

POS. NO PART NO DESCRIPTION

1 # 240390608 A - - Gasket-frzr door,black ,magnetic

1 240390604 - B C Gasket-frzr door,white

4A 240367301 A B C Bin-door,frzr-upper

4B 240359001 A B C Bin-door

11 240451828 A - - Door-frzr,black ,complete assy

11 240451826 - B - Door-frz,bisque ,complete assy

11 240451820 - - C Door-frzr,white ,complete assy

13A 240537106 A - - Door Stop,black ,frzr

13A 240537104 - B - Door Stop,bisque ,frzr

13A 240537102 - - C Door Stop,white ,frzr

18 240359108 A - - Handle-door,black ,LH

18 240359109 - B - Handle-door,bisque

18 240359106 - - C Handle-door,white

21 218781100 A B C Screw,pan head ,8-18 x 0.625

21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625,low profile

21C 240521302 A B C Screw,#8-18 x 3/4

22A 240561602 A B C Bearing-hinge,closer

22C 240328404 A - - Bearing-hinge,black ,upper

22C 240328402 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

68 240465801 A B C Chute-ice

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

* 240545101 A B C Connector-water,straight

* 240552102 A B C Harness-wiring,door

* 5303918256 A B C Dispenser heater kit

04/03 4

Publication No. FRS23BH5C

5995389300

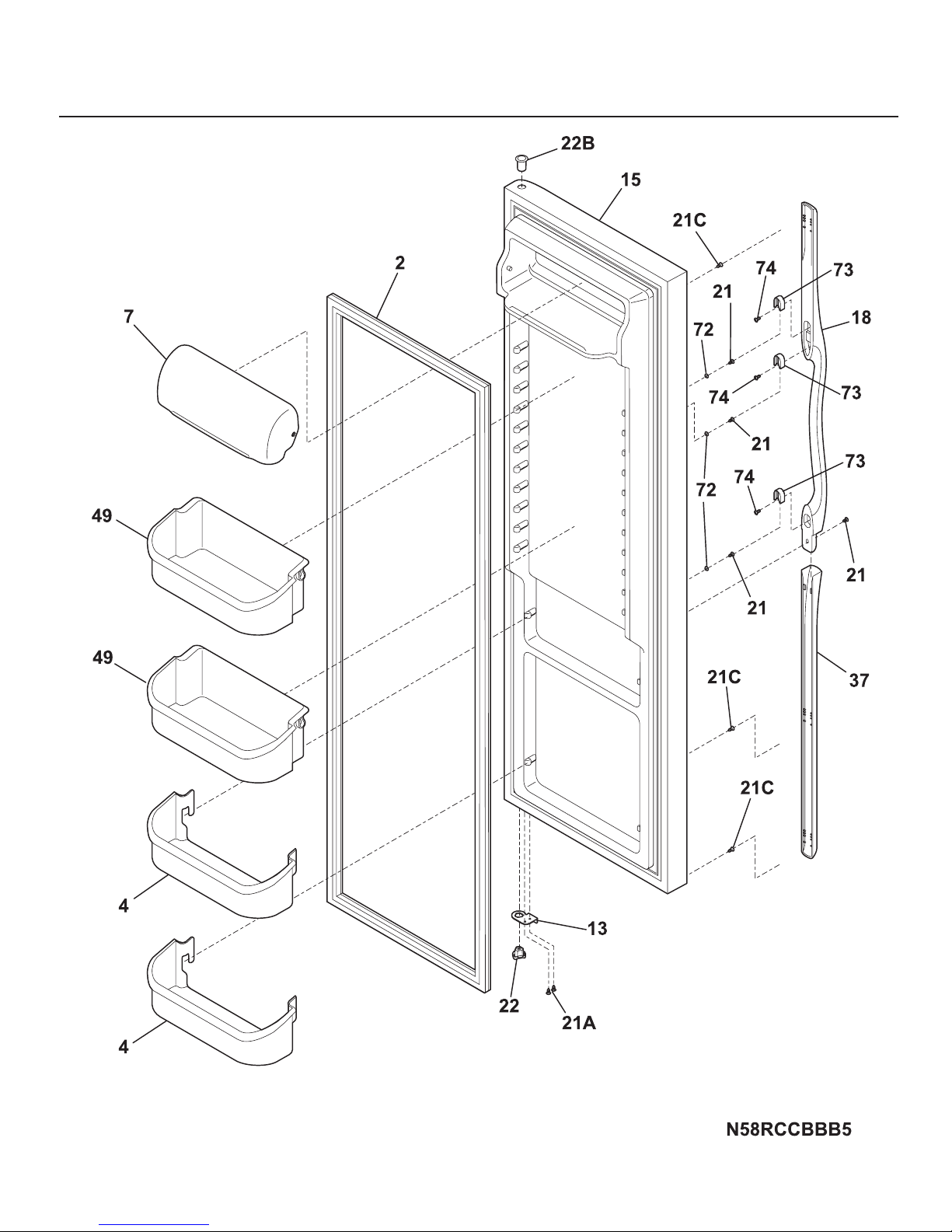

REFRIGERATOR DOOR

# = Fast-moving Parts 5 04/03

* = Non-Illustrated Parts

FRS23BH5C Publication No.

5995389300

A = FRS23BH5C (FRS23BH5CB0)

B = FRS23BH5C (FRS23BH5CQ0)

C = FRS23BH5C (FRS23BH5CW0)

POS. NO PART NO DESCRIPTION

2 # 240390607 A - - Gasket-refr door,black ,magnetic

2 # 240390603 - B C Gasket-refr door,white ,magnetic

4 240363701 A B C Bin-door,2-liter

7 240338303 A B C Door,dairy ,clear

13 240537105 A - - Door Stop,black ,ref

13 240537103 - B - Door Stop,bisque ,ref

13 240537101 - - C Door Stop,white ,ref

15 240451919 A - - Door-refr,black ,complete assy

15 240451917 - B - Door-refr,bisque ,complete assy

15 240451913 - - C Door-refr,white ,complete assy

18 240359103 A - - Handle-door,black ,RH

18 240359104 - B - Handle-door,bisque

18 240359101 - - C Handle-door,white

21 218781100 A B C Screw,pan head ,8-18 x 0.625

21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 A B C Screw,#8-18 x 3/4

22 240561601 A B C Bearing-hinge,closer

22B 240328403 A - - Bearing-hinge,upper

22B 240328401 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

49 240324501 A B C Bin-door,gallon

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

REFRIGERATOR DOOR

04/03 6

Publication No. FRS23BH5C

5995389300

CABINET

# = Fast-moving Parts 7 04/03

* = Non-Illustrated Parts

FRS23BH5C Publication No.

5995389300

A = FRS23BH5C (FRS23BH5CB0)

B = FRS23BH5C (FRS23BH5CQ0)

C = FRS23BH5C (FRS23BH5CW0)

POS. NO PART NO DESCRIPTION

10 240435901 A B C Cover-air duct

10A 240475901 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240505801 A B C Switch,light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj,hex wshr hd,1/4-20 x 4.020, (2)

30 240419103 A B C Bracket-lower hinge, ref

30A 240419104 A B C Bracket-lower hinge

37 240337603 A - - Trim-cabinet corner,black ,(2)

37 240337604 - B - Trim-cabinet corner,bisque ,(2)

37 240337601 - - C Trim-cabinet corner,white ,(2)

38 240327202 A B C Bracket-upper hinge

40 240327007 A - - Cover-upper hinge,black

40 240327006 - B - Cover-upper hinge,bisque

40 240327005 - - C Cover-upper hinge,white

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240578901 A B C Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B C Roller Assy,front ,(2)

45 241500301 A B C Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B C Diffuser-air

66B* 240518802 A B C Pin-push,push-in ,plastic

72 240324405 A - - Grille/Kickplate,black

72 240324403 - B - Grille/Kickplate,bisque

72 240324401 - - C Grille/Kickplate,white

81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A B C Cover,access ,system compt ,with label

90 218249807 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support,crisper cover ,front ,(4)

100* 240350802 A B C Support,crisper cover ,rear ,(4)

150 240368701 A B C Guide-control bulb

* 218515401 A B C Clip

* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural

* 240481601 A B C Shim-lower hinge

* 5303305345 A - - Paint,touch-up ,black

* 5304414035 - B - Paint,touch-up ,bisque

* 5303305324 - - C Paint,touch-up ,white

CABINET

04/03 8

Publication No. FRS23BH5C

5995389300

SHELVES

# = Fast-moving Parts 9 04/03

* = Non-Illustrated Parts

FRS23BH5C Publication No.

5995389300

A = FRS23BH5C (FRS23BH5CB0)

B = FRS23BH5C (FRS23BH5CQ0)

C = FRS23BH5C (FRS23BH5CW0)

POS. NO PART NO DESCRIPTION

2 240434603 A B C Trim-basket

11 240338801 A B C Shelf-freezer,flip-up

11B 240338703 A B C Shelf-freezer,fixed wire

24 240355211 A B C Shelf-"Spill-Safe",fixed

24A 240350107 A B C Shelf-"Spill-Safe",cantilever ,sliding

25 240354502 A B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240354602 A B C Cover-crisper pan,lower

26 240354705 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

26A 240351101 A B C Control-humidity

27 240354805 A B C Pan-crisper,lower

39 240430705 A B C Trim-shelf,front

39A 240430701 A B C Trim-shelf,front

42 240356501 A B C Track,meat pan hanger ,RH

42 240365401 A B C Track,meat pan hanger ,LH

47 240350635 A B C Insert-pan cover,glass

47A 240350614 A B C Insert-pan cover,glass

49 240564301 A B C Basket-sliding

49B 240530503 A B C Basket-sliding,upper ,full

51 240343002 A B C Hanger-basket,RH

52 240343102 A B C Hanger-basket,LH

62 240355506 A B C Pan-meat

81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy,coiled tubing, front filter

100 240326301 A B C Cover-water tank

101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4

120 240342901 A B C Shelf-ice cream

123 215005100 A B C Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 A B C Channel,auger mtg ,LH

126 218867406 A B C Channel,auger mtg ,RH

136 240424501 A B C Dispenser-can,white

140 240430501 A B C Channel,wtr tube cover

SHELVES

04/03 10

Publication No. FRS23BH5C

5995389300

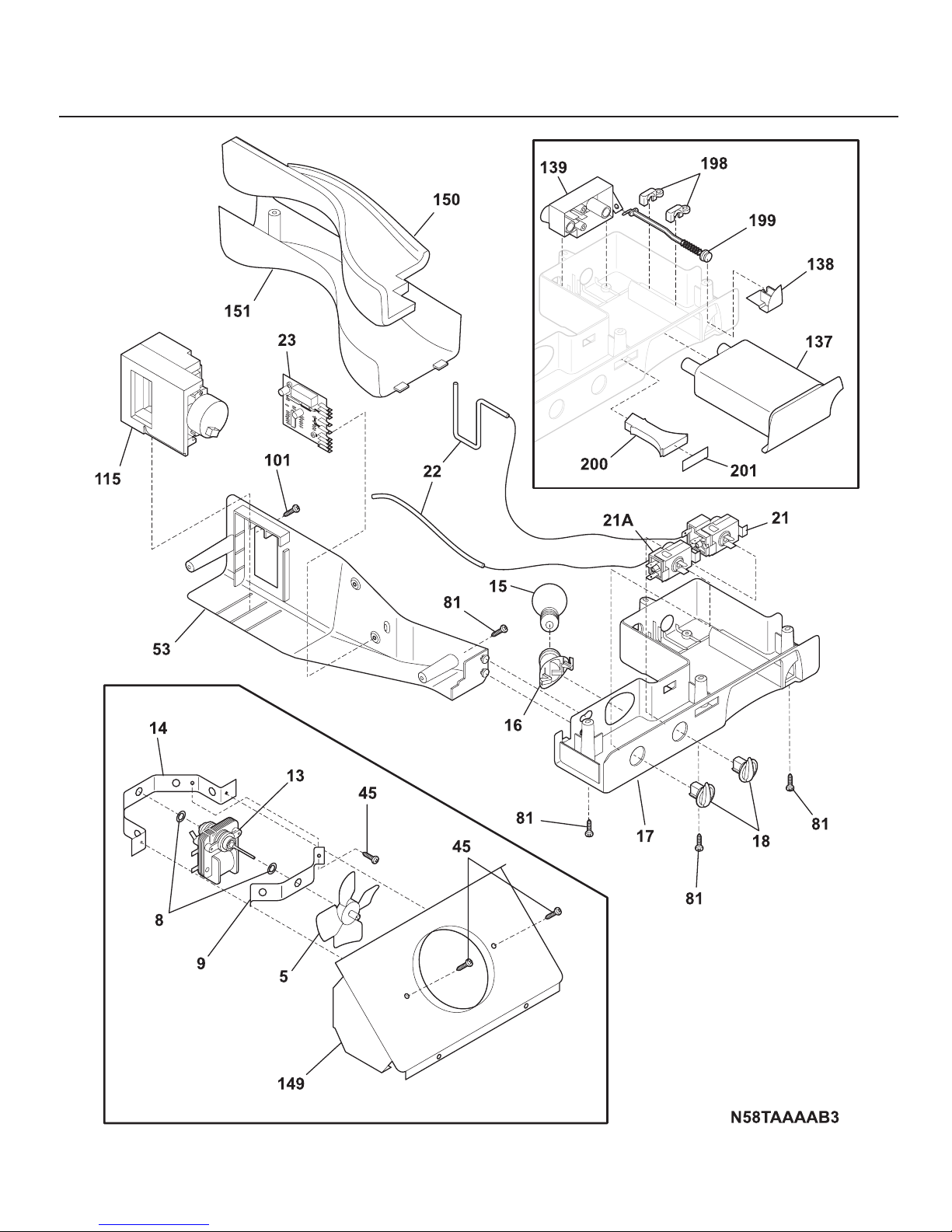

CONTROLS
