Frigidaire FRS26H5AS Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26H5ASB5 FRS26H5AS R134a stain/black 115

MARKET

North America

Publication No.

5995384327

030120

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26H5AS

WIRING DIAGRAM - 240389607

OWNER’S GUIDE - 240389306

SERVICE DATA SHEET - 240389607

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

01/03 2

Publication No. FRS26H5ASB5

5995384327

FREEZER DOOR

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FRS26H5ASB5 Publication No.

5995384327

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390606 Gasket-frzr door,black ,magnetic

4A 240334201 Bin-door,frzr-upper

4B 240351601 Bin-door

11 240451874 Door-frzr, stainless steel, complete assy

13A 240537106 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 Screw,#8-18 x 3/4

22A 240561602 Bearing-hinge,closer

22C 240328404 Bearing-hinge,black ,upper

37 240359203 Trim-handle,30.13" ,black ,lower

68 240467701 Chute-ice

72 240421701 Button-handle mtg,dovetail

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

* 218490900 Cleaner,stainless steel

* 240545101 Connector-water,straight

* 240552101 Harness-wiring,door

* 5303918256 Dispenser heater kit

01/03 4

Publication No. FRS26H5ASB5

5995384327

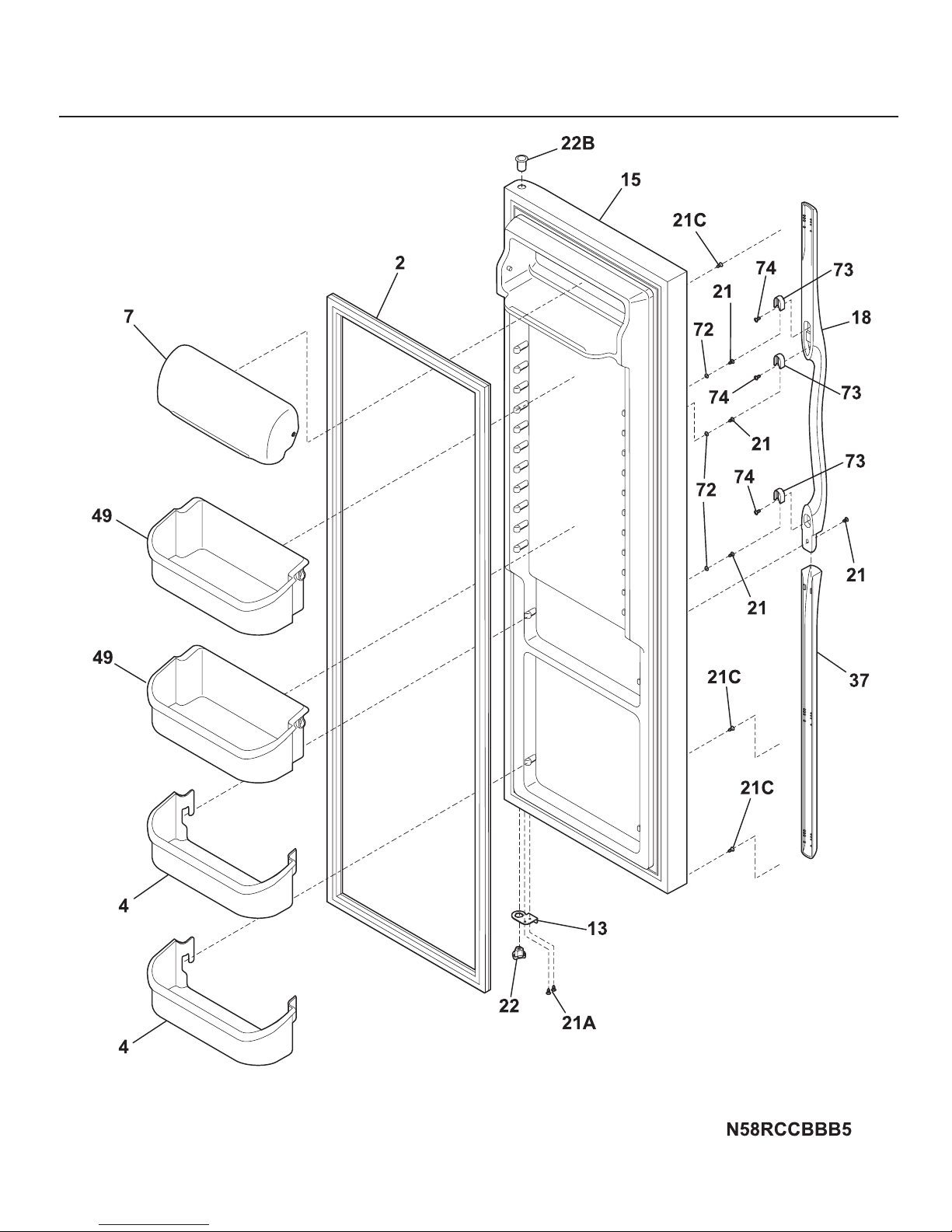

REFRIGERATOR DOOR

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FRS26H5ASB5 Publication No.

5995384327

POS. NO PART NO DESCRIPTION

2 240390605 Gasket-refr door,black ,magnetic

4 240323001 Bin-door,pseudo ,bottom

7 240326203 Door-dairy

13 240537105 Door Stop,black ,ref

15 240451942 Door-refr, stainless steel, complete assy

18 240359103 Handle-door,black ,RH

21 218781100 Screw,pan head ,8-18 x 0.625

21A 5308016566 Screw,hex wshr hd, 8-15A x 0.625, low profile

21C 240521302 Screw,#8-18 x 3/4

22 240561601 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

37 240359203 Trim-handle,30.13" ,black ,lower

49 240356401 Bin-door,gallon

72 240421701 Button-handle mtg,dovetail

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

01/03 6

Publication No. FRS26H5ASB5

5995384327

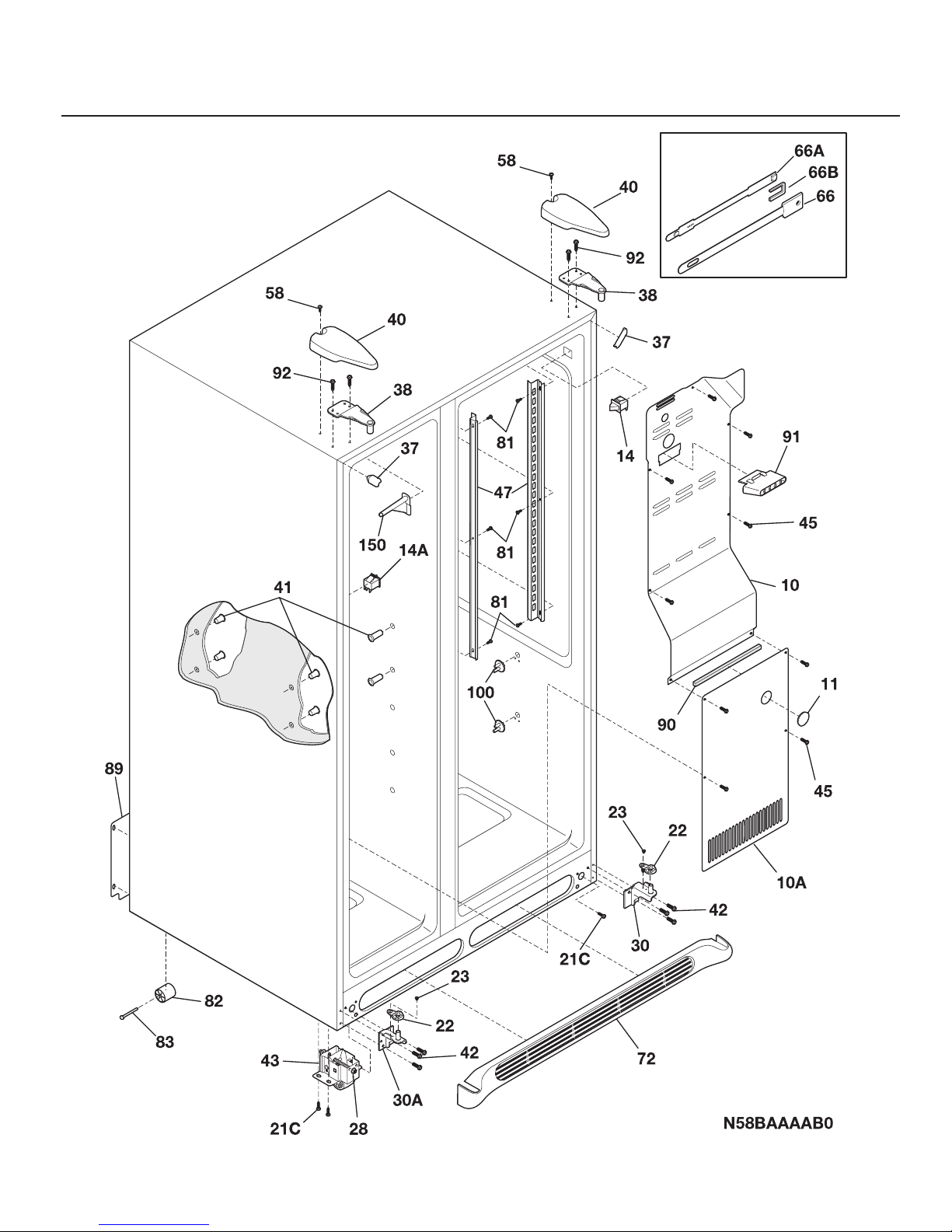

CABINET

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FRS26H5ASB5 Publication No.

5995384327

POS. NO PART NO DESCRIPTION

10 240435902 Cover-air duct

10A 240475902 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 240349401 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66 240504901 Cover-damper

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

66B* 240518802 Pin-push,push-in ,plastic

72 240324406 Grille/Kickplate,black

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover,access ,system compt ,with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

01/03 8

Publication No. FRS26H5ASB5

5995384327

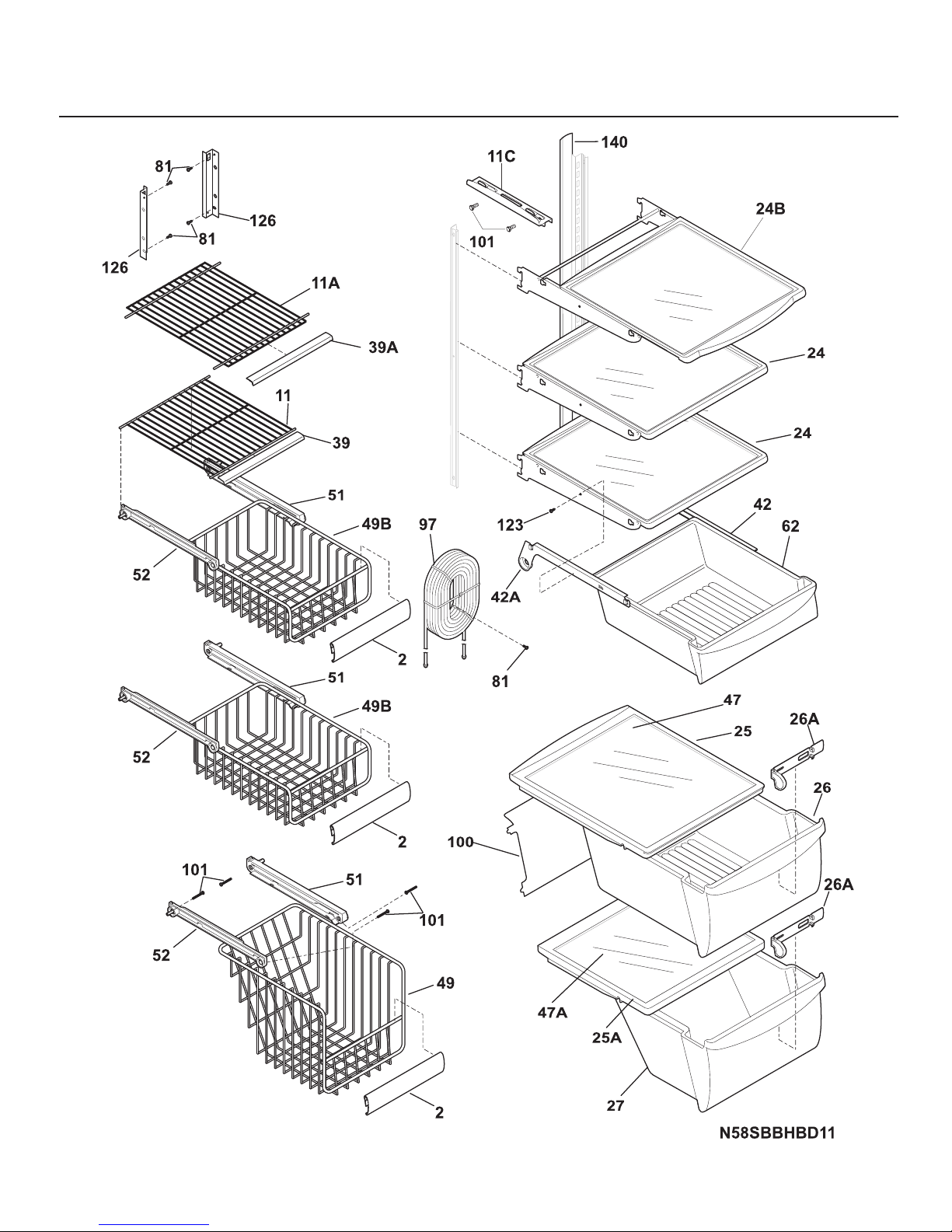

SHELVES

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FRS26H5ASB5 Publication No.

5995384327

POS. NO PART NO DESCRIPTION

2 240434604 Trim-basket

11 240338802 Shelf-freezer,flip-up

11A 240338704 Shelf-freezer,fixed wire

11C 240324101 Shelf-pizza

24 240355207 Shelf-"Spill-Safe",cantilever, half width,fixed

24B 240350108 Shelf-"Spill-Safe",cantilever ,sliding

25 240350702 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240350902 Cover-crisper pan,lower

26 240351005 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

26A 240362201 Control-humidity

27 240351205 Pan-crisper,lower

39 240430706 Trim-shelf,11.21" ,front

39A 240430702 Trim-shelf,12.39" ,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

42A* 240356702 Seal-meat pan

47 240350633 Insert-pan cover,glass

47A 240350603 Insert-pan cover,glass

49 240530402 Basket-sliding

49B 240530502 Basket-sliding,upper ,half

51 240343002 Hanger-basket,RH

52 240343102 Hanger-basket,LH

62 240342805 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy,coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

101* 215005000 Screw,hex wshr hd ,8-18AB x 0.750, gusset/hanger

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

140 240430501 Channel,wtr tube cover

SHELVES

01/03 10

Publication No. FRS26H5ASB5

5995384327

CONTROLS
