Frigidaire FRS26LH5D Manuale utente

N58L00001.eps N58FACBBB4.eps N58RACBBA1.eps N58BAAAAA0.eps

N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAC0.eps N58XDAAAA1.eps

N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26LH5DSP FRS26LH5DSR

Series R134a R134a

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241526901 241526901

Owner's Guide 241661500 241661500

Market North America North America

Energy Guide 241538737 241538737

Service Data Sheet 240389616 240389616

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995444378

05/08/10

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26LH5D

Publication No: 5995444378 FRS26LH5D

08/05 2

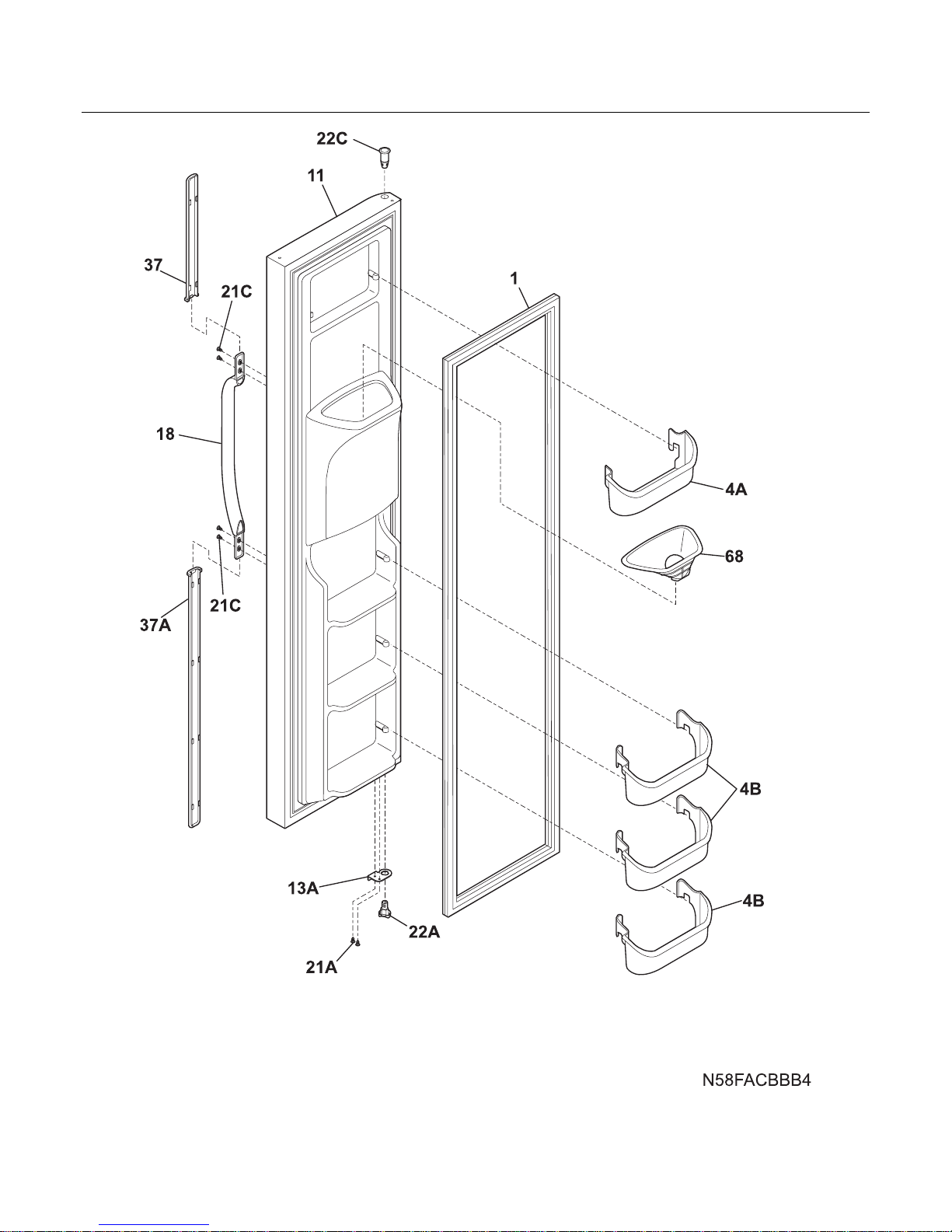

FREEZER DOOR

FRS26LH5D Publication No: 5995444378

# Functional Parts 3 08/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS26LH5D (FRS26LH5DSP)

BFRS26LH5D (FRS26LH5DSR)

POS. NO PART NO. DESCRIPTION

1 # 241569806 A B Gasket-frzr door, black, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 241615102 A - Door-frzr, stainless, complete assy

11 241668180 - B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 218762703 A B Handle-door, black

21A 240598401 A B Screw, 10-32 x 1/2

21C 218781100 A B Screw, pan head, 8-18 x 0.625

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

37 218811620 A B Trim-handle, black, upper

37* 218676004 A B Band-decorative, satin aluminum, handle trim

37A 218811617 A B Trim-handle, black, lower

37A* 215782300 A B Lock-handle trim, snap-in

68 241525101 A B Chute-ice

* 218490901 A B Cleaner, stainless steel

* 240352102 A B Connector-water, straight

* 5303918256 A B Dispenser heater kit

* 240552101 A B Harness-wiring, door

Publication No: 5995444378 FRS26LH5D

08/05 4

REFRIGERATOR DOOR

21A

22B

21C

21C 37A

N58RACBBA1

FRS26LH5D Publication No: 5995444378

# Functional Parts 5 08/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS26LH5D (FRS26LH5DSP)

BFRS26LH5D (FRS26LH5DSR)

POS. NO PART NO. DESCRIPTION

2 # 241569805 A B Gasket-refr door, black, magnetic

4 240323001 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240572601 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 241534531 A B Door-refr, stainless, complete assy

18 218762703 A B Handle-door, black

21A 240598401 A B Screw, 10-32 x 1/2

21C 218781100 A B Screw, pan head, 8-18 x 0.625

22 240328201 A B Bearing-hinge(ref), closer

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

37 218811620 A B Trim-handle, black, upper

37* 218676004 A B Band-decorative, satin aluminum, handle trim

37A 218811617 A B Trim-handle, black, lower

37A* 215782300 A B Lock-handle trim, snap-in

49 240356402 A B Bin-door, gallon

* 218490901 A B Cleaner, stainless steel

Publication No: 5995444378 FRS26LH5D

08/05 6

CABINET

FRS26LH5D Publication No: 5995444378

# Functional Parts 7 08/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS26LH5D (FRS26LH5DSP)

BFRS26LH5D (FRS26LH5DSR)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 240481601 A B Shim-lower hinge

* 5303305345 A B Paint, touch-up, black

Publication No: 5995444378 FRS26LH5D

08/05 8

SHELVES

N58SJCAAB12

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS26LH5D Publication No: 5995444378

# Functional Parts 9 08/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRS26LH5D (FRS26LH5DSP)

BFRS26LH5D (FRS26LH5DSR)

POS. NO PART NO. DESCRIPTION

11 240338802 A - Shelf-freezer, flip-up

11 241657602 - B Shelf, flip up, wire

11A 240338702 A - Shelf-freezer, fixed wire

11A 241657502 - B Shelf, fixed, freezer

11B 240338704 A - Shelf-freezer, fixed wire

11B 241657504 - B Shelf, fixed, freezer

24 240355208 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351206 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39B 240430702 A B Trim-shelf, 12.39", front

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240342806 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 A B Water Tank Assy, coiled tubing, rear filter

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

Publication No: 5995444378 FRS26LH5D

08/05 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
