Frigidaire FRS26R2A Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26R2AQ6 FRS26R2A R134a bisque 115

FRS26R2AW6 FRS26R2A R134a white 115

MARKET

North America

Publication No.

5995396578

030925

-EN/SERVICE /DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26R2A

WIRING DIAGRAM - 240389613

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389613

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

09/03 2

Publication No. FRS26R2A

5995396578

FREEZER DOOR

# = Fast-moving Parts 3 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

FREEZER DOOR

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

1 # 240390602 A B Gasket-frzr door,white ,magnetic

4A 240334201 A B Bin-door,frzr-upper

4B 240351601 A B Bin-door

11 240451808 A - Door-frzr,bisque ,complete assy

11 240451802 - B Door-frzr,white ,complete assy

13A 240537104 A - Door Stop,bisque ,frzr

13A 240537102 - B Door Stop,white ,frzr

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22A 240328202 A B Bearing-hinge,closer

22C 240328402 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47" ,bisque ,w/satin AL band

37A 215870629 - B Trim-handle,2.47" ,white ,w/satin AL band

68 240467701 A B Chute-ice

* 240545101 A B Connector-water,straight

* 240552101 A B Harness-wiring,door

* 5303918256 A B Dispenser heater kit

09/03 4

Publication No. FRS26R2A

5995396578

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

2 # 240390601 A B Gasket-refr door,white ,magnetic

4 240323001 A B Bin-door,pseudo ,bottom

7 240326203 A B Door-dairy

13 240537103 A - Door Stop,bisque ,ref

13 240537101 - B Door Stop,white ,ref

15 240451906 A - Door-refr,bisque ,complete assy

15 240451902 - B Door-refr,white ,complete assy

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22 240328201 A B Bearing-hinge,closer

22B 240328401 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47" ,bisque ,w/satin AL band

37A 215870629 - B Trim-handle,2.47" ,white ,w/satin AL band

49 240356401 A B Bin-door,gallon

REFRIGERATOR DOOR

09/03 6

Publication No. FRS26R2A

5995396578

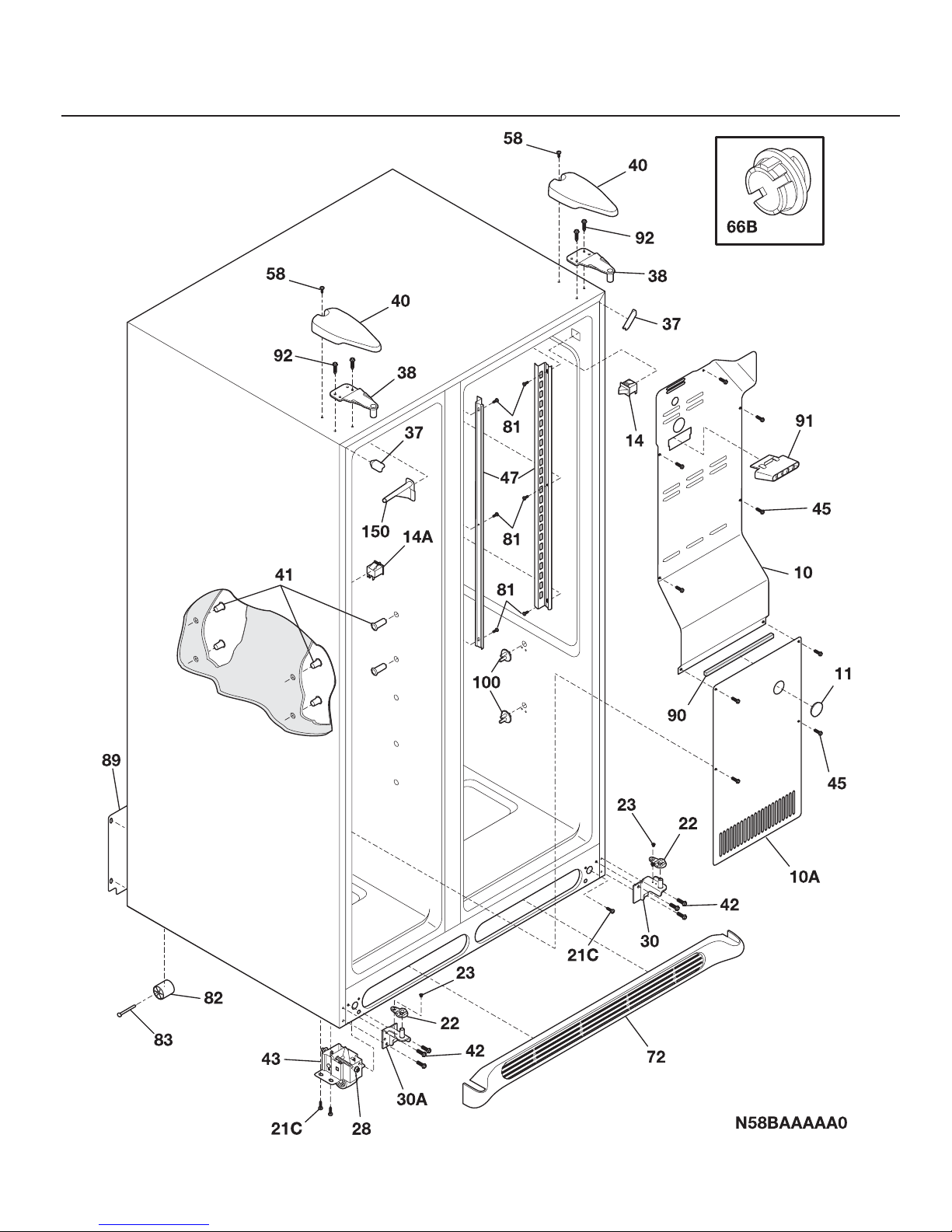

CABINET

# = Fast-moving Parts 7 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

10 240435904 A B Cover-air duct

10A 240475904 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240505801 A B Switch,light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd,1/4-20x4.020,(2) ,special

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240327202 A B Bracket-upper hinge

40 240327006 A - Cover-upper hinge,bisque

40 240327005 - B Cover-upper hinge,white

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240578901 A B Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B Roller Assy,front ,(2)

45 241500301 A B Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B Channel-shelf mtg,side ,(2)

58 218781100 A B Screw,pan head ,8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push,push-in ,plastic

72 240324404 A - Grille/Kickplate,bisque

72 240324402 - B Grille/Kickplate,white

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326104 A B Cover,access ,system compt ,with label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

100 240423701 A B Support,crisper cover ,front ,(4)

100* 240350802 A B Support,crisper cover ,rear ,(4)

150 240368701 A B Guide-control bulb

* 218515401 A B Clip

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* 240479601 A B Plug,button ,cab liner holes ,(2)

* 240481601 A B Shim-lower hinge

* 5304414035 A - Paint,touch-up ,bisque

* 5303305324 - B Paint,touch-up ,white

CABINET

09/03 8

Publication No. FRS26R2A

5995396578

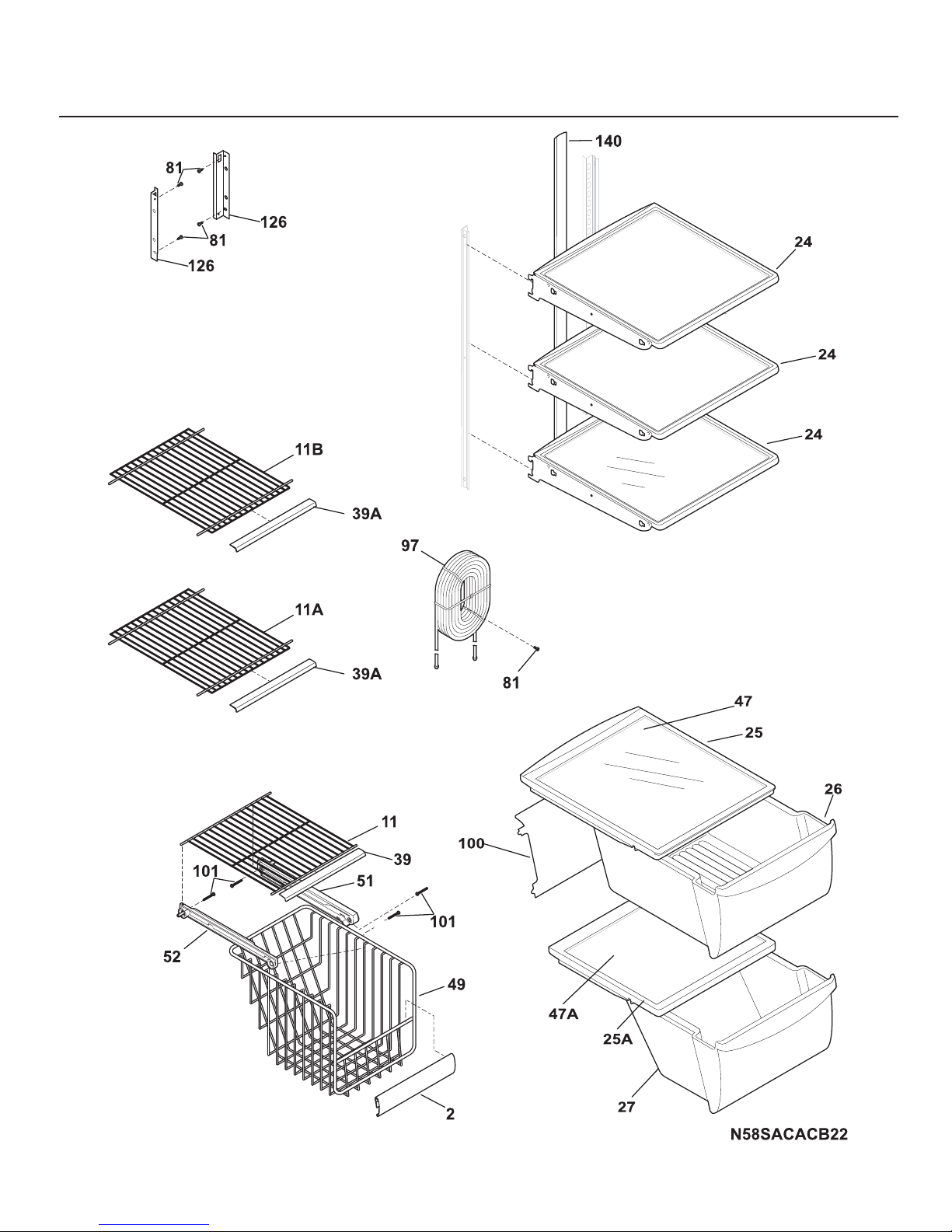

SHELVES

# = Fast-moving Parts 9 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

2 240434604 A B Trim-basket

11 240338802 A B Shelf-freezer,flip-up

11A 240338702 A B Shelf-freezer,fixed wire

11B 240338704 A B Shelf-freezer,fixed wire

24 240355208 A B Shelf-"Spill-Safe",fixed

25 240350702 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240350902 A B Cover-crisper pan,lower

26 240351007 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

27 240351207 A B Pan-crisper,lower

39 240430706 A B Trim-shelf,11.21" ,front

39A 240430702 A B Trim-shelf,12.39" ,front

47 240350633 A B Insert-pan cover,glass

47A 240350603 A B Insert-pan cover,glass

49 240530402 A B Basket-sliding

51 240343002 A B Hanger-basket,RH

52 240343102 A B Hanger-basket,LH

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

97 240545302 A B Water Tank Assy,coiled tubing ,rear filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

126 218867405 A B Channel,auger mtg ,LH

126 218867406 A B Channel,auger mtg ,RH

140 240430501 A B Channel,wtr tube cover

SHELVES

09/03 10

Publication No. FRS26R2A

5995396578

CONTROLS
