Frigidaire FRS26W2BS Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26W2BSB3 FRS26W2BS R134a stain/blk 115

MARKET

North America

Publication No.

5995384657

030127

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26W2BS

ENERGY GUIDE - 218791402

OWNER’S GUIDE - 240389310

SERVICE DATA SHEET - 240389608

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

01/03 2

Publication No. FRS26W2BSB3

5995384657

FREEZER DOOR

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FRS26W2BSB3 Publication No.

5995384657

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390606 Gasket-frzr door,black ,magnetic

4A 240334201 Bin-door,frzr-upper

4B 240351601 Bin-door

11 240451896 Door-frzr,stainless steel, complete assy

13A 240537106 Door Stop,black ,frzr

18 218762703 Handle-door,black

21A 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw,pan head ,8-18 x 0.625

22A 240561602 Bearing-hinge,closer

22C 240328404 Bearing-hinge, black, upper

37 218811620 Trim-handle, black, upper

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim, snap-in

37A* 218676004 Band-decorative, satin aluminum, handle trim

68 240467701 Chute-ice

* 218490900 Cleaner,stainless steel

* 240545101 Connector-water,straight

* 240552101 Harness-wiring,door

* 5303918256 Dispenser heater kit

01/03 4

Publication No. FRS26W2BSB3

5995384657

REFRIGERATOR DOOR

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FRS26W2BSB3 Publication No.

5995384657

POS. NO PART NO DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240537105 Door Stop, black, ref

15 240451960 Door-refr, stainless steel, complete assy

18 218762703 Handle-door,black

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw,pan head ,8-18 x 0.625

22 240561601 Bearing-hinge, closer

22B 240328403 Bearing-hinge, upper

37 218811620 Trim-handle, black, upper

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim,snap-in

37A* 218676004 Band-decorative, satin aluminum, handle trim

49 240356401 Bin-door, gallon

* 218490900 Cleaner, stainless steel

REFRIGERATOR DOOR

01/03 6

Publication No. FRS26W2BSB3

5995384657

CABINET

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FRS26W2BSB3 Publication No.

5995384657

POS. NO PART NO DESCRIPTION

10 240435902 Cover-air duct

10A 240475902 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex wshr hd,1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 218659500 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66B 240374301 Diffuser-air

66B* 240518802 Pin-push,push-in ,plastic

72 240324406 Grille/Kickplate,black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover,access ,system compt ,with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

CABINET

01/03 8

Publication No. FRS26W2BSB3

5995384657

SHELVES

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FRS26W2BSB3 Publication No.

5995384657

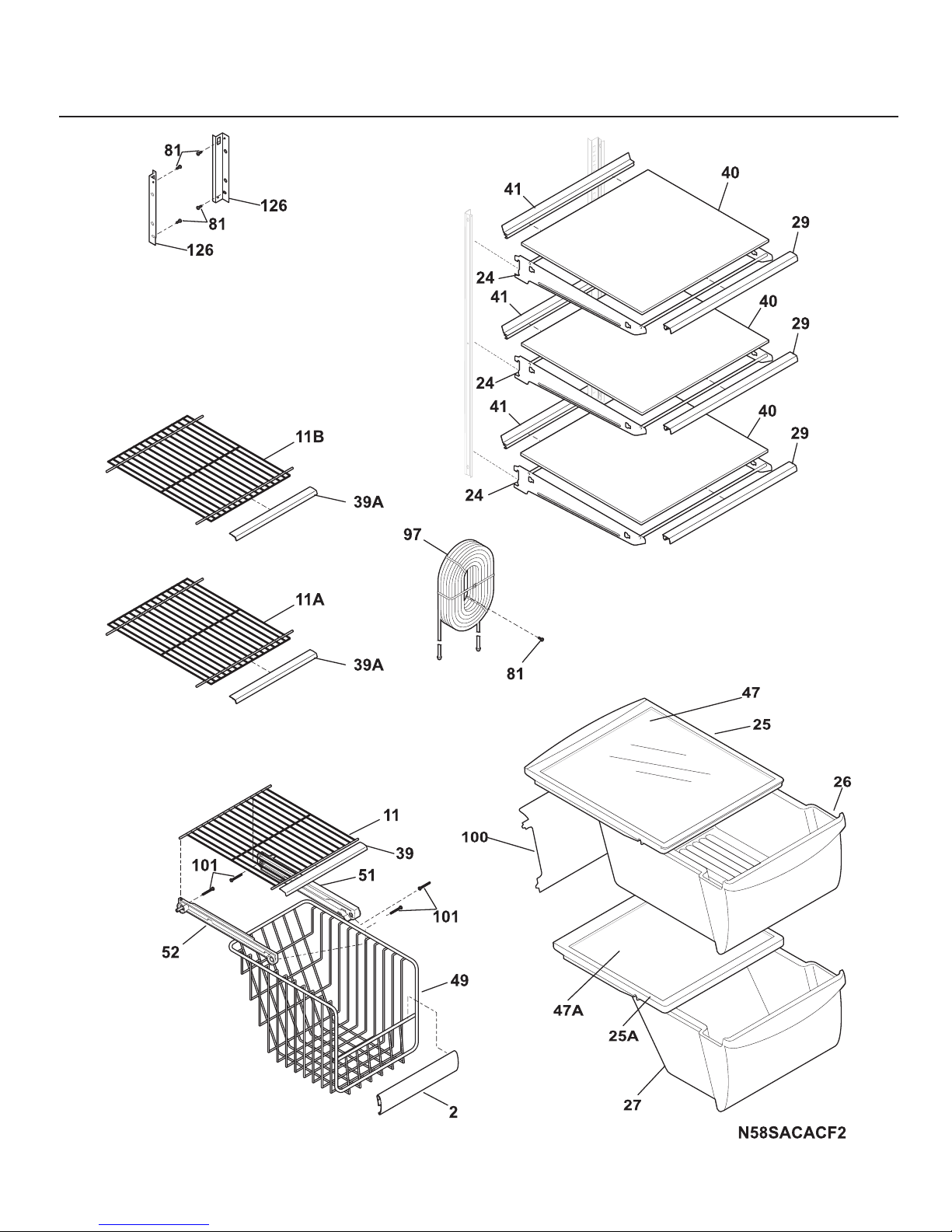

POS. NO PART NO DESCRIPTION

2 240434604 Trim-basket

11 240338802 Shelf-freezer,flip-up

11A 240338702 Shelf-freezer,fixed wire

11B 240338704 Shelf-freezer,fixed wire

24 240373108 Frame-shelf,cantilever

25 240350702 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240350902 Cover-crisper pan,lower

26 240351007 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

27 240351207 Pan-crisper,lower

29 240357706 Trim-shelf,front

39 240430706 Trim-shelf,11.21" ,front

39A 240430702 Trim-shelf,12.39" ,front

40 240350623 Glass-shelf,16.76" x 17.60"

41 240357806 Trim-shelf,rear

47 240350649 Insert-pan cover,glass

47A 240350603 Insert-pan cover,glass

49 240530402 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545301 Water Tank Assy, coiled tubing, no filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

126 218867401 Channel, auger mtg, LH

126 218867402 Channel, auger mtg, RH

* 218791402 Label, energy guide

SHELVES

01/03 10

Publication No. FRS26W2BSB3

5995384657

CONTROLS
