Frigidaire FRS3R3E Manuale utente

N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SJCACA21.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA6.eps N58I1151.eps W241708401.eps S241708401.eps

Product No. FRS3R3EW9

Series R134a

Color white

Volts 115

Wiring Diagram 241708401

Owner's Guide 241856000

Market North America

Energy Guide 241615410

Service Data Sheet 240389629

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995501722

07/10/08

(EN/SERVICE/RLF)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS3R3E

Publication No: 5995501722 FRS3R3EW9

10/07 2

FREEZER DOOR

FRS3R3EW9 Publication No: 5995501722

# Functional Parts 3 10/07

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241786004 Gasket-frzr door, white, magnetic

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 241668103 Door-frzr, white, complete assy

13A 240581902 Door Stop, white, frzr

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22A 240328202 Bearing-hinge(frz), closer

22C 240328402 Bearing-hinge, natural, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

68 241525101 Chute-ice

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552101 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995501722 FRS3R3EW9

10/07 4

REFRIGERATOR DOOR

FRS3R3EW9 Publication No: 5995501722

# Functional Parts 5 10/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 241786003 Gasket-refr door, white, magnetic

4 240363701 Bin-door, 2-liter

7 240338303 Door, dairy, clear

13 240581901 Door Stop, white, refr

15 240451911 Door-refr, white, complete assy

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22 240328201 Bearing-hinge(ref), closer

22B 240328402 Bearing-hinge, natural, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

49 240324501 Bin-door, gallon

Publication No: 5995501722 FRS3R3EW9

10/07 6

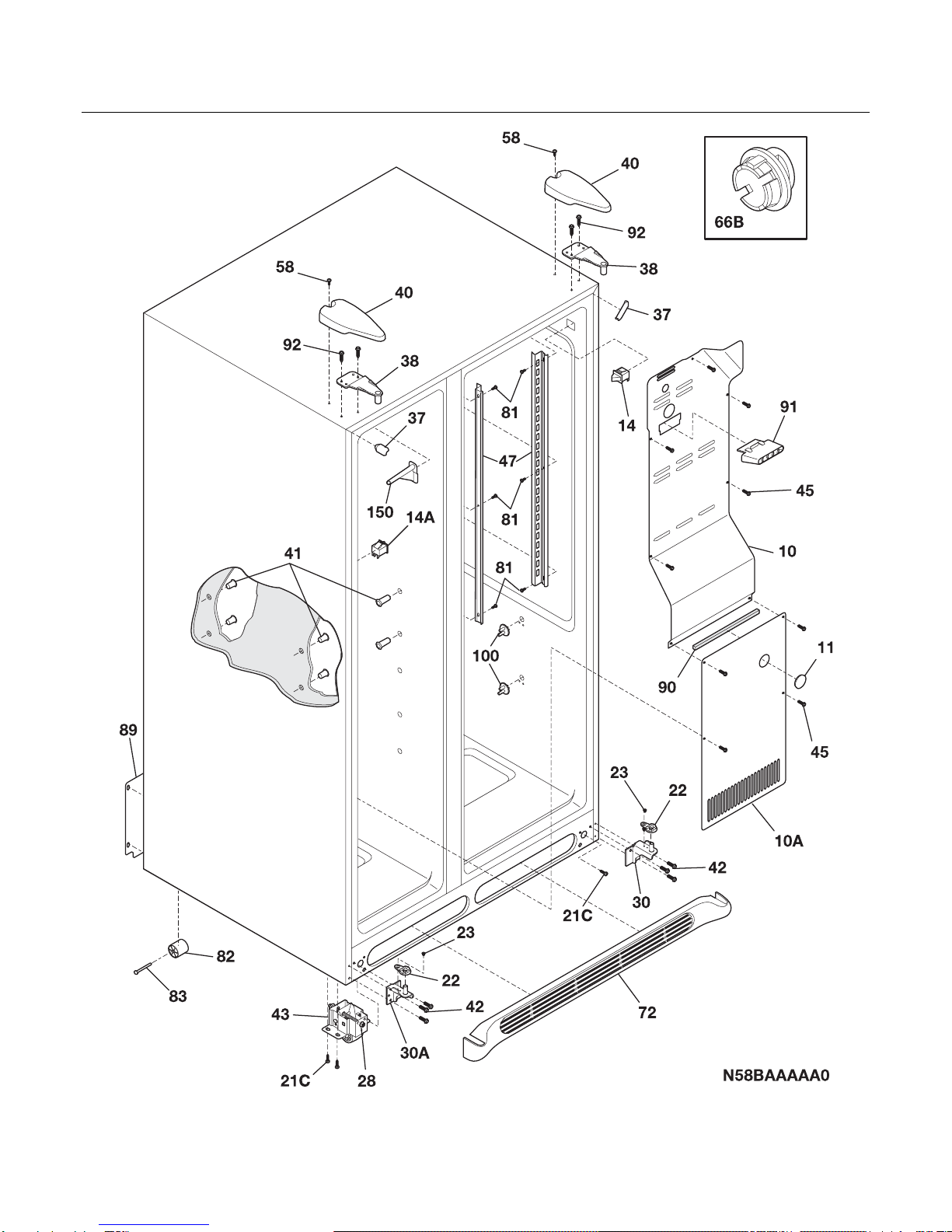

CABINET

FRS3R3EW9 Publication No: 5995501722

# Functional Parts 7 10/07

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435911 Cover-air duct

10A 240475910 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337608 Trim-cabinet corner, white, (2)

38 240327207 Bracket-upper hinge

40 240327005 Cover-upper hinge, white

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324401 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733901 Cover-access, w/label

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240479601 Plug, button, cab liner holes

* 240481601 Shim-lower hinge

* 5303321319 Paint, touch-up, white

Publication No: 5995501722 FRS3R3EW9

10/07 8

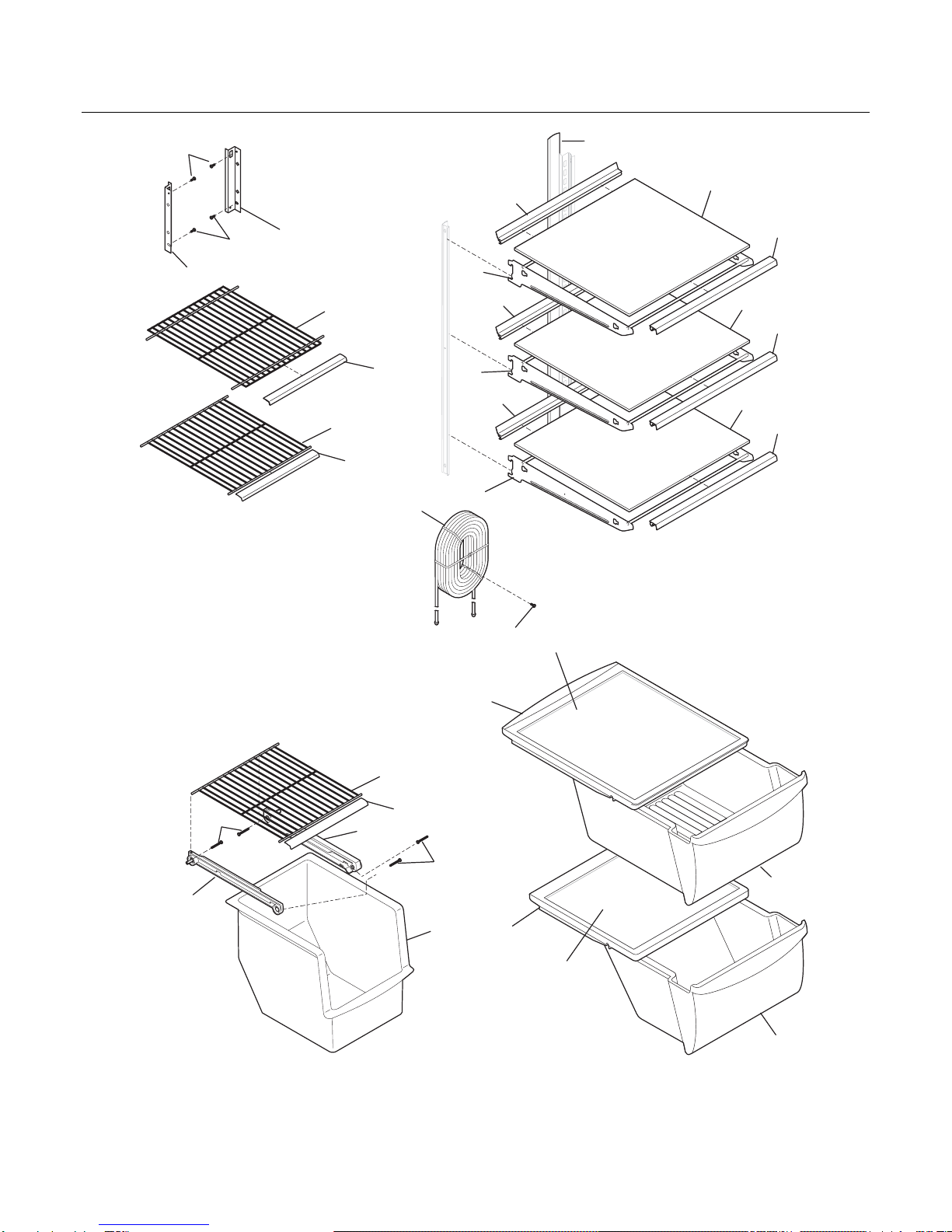

SHELVES

126

25A

47A

N58SJCACA21

11B

39B

11A

39B

140

101

FRS3R3EW9 Publication No: 5995501722

# Functional Parts 9 10/07

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657601 Shelf, flip up, wire

11A 241657501 Shelf, fixed, freezer

11B 241657503 Shelf, fixed upper, freezer

24 240373107 Frame-refr shelf, cantilever

25 240354502 Cover-crisper pan, upper

25A 240354602 Cover-crisper pan, lower

26 240354706 Pan-crisper, upper

27 240354806 Pan-crisper, lower

29 240357705 Trim-shelf, front

39 240430705 Trim-shelf, front

39B 240430701 Trim-shelf, front

40 240350622 Glass-shelf, refr shelf, (3)

41 240357805 Trim-shelf, rear

47 240350631 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 Water Tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241615410 Energy Guide

Publication No: 5995501722 FRS3R3EW9

10/07 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
