Frigidaire FRS3R4E Manuale utente

N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAA0.eps

N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS3R4EQ0

Series R134a

Color bisque

Volts 115

Wiring Diagram 241526901

Owner's Guide 240581300

Market North America

Energy Guide 241585997

Service Data Sheet 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995432829

05/03/30

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS3R4E

Publication No: 5995432829 FRS3R4EQ0

03/05 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS3R4EQ0 Publication No: 5995432829

# Functional Parts 3 03/05

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 240390604 Gasket-frzr door, white

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 240451826 Door-frzr, bisque, complete assy

13A 240537104 Door Stop, bisque, frzr

18 240359109 Handle-door, bisque

21 218781100 Screw, pan head, 8-18 x 0.625

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 Screw, #8-18 x 3/4

22A 240328202 Bearing-hinge(frz), closer

22C 240328402 Bearing-hinge, natural, upper

37 240359204 Trim-handle, 30.13", bisque, lower

68 241525101 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995432829 FRS3R4EQ0

03/05 4

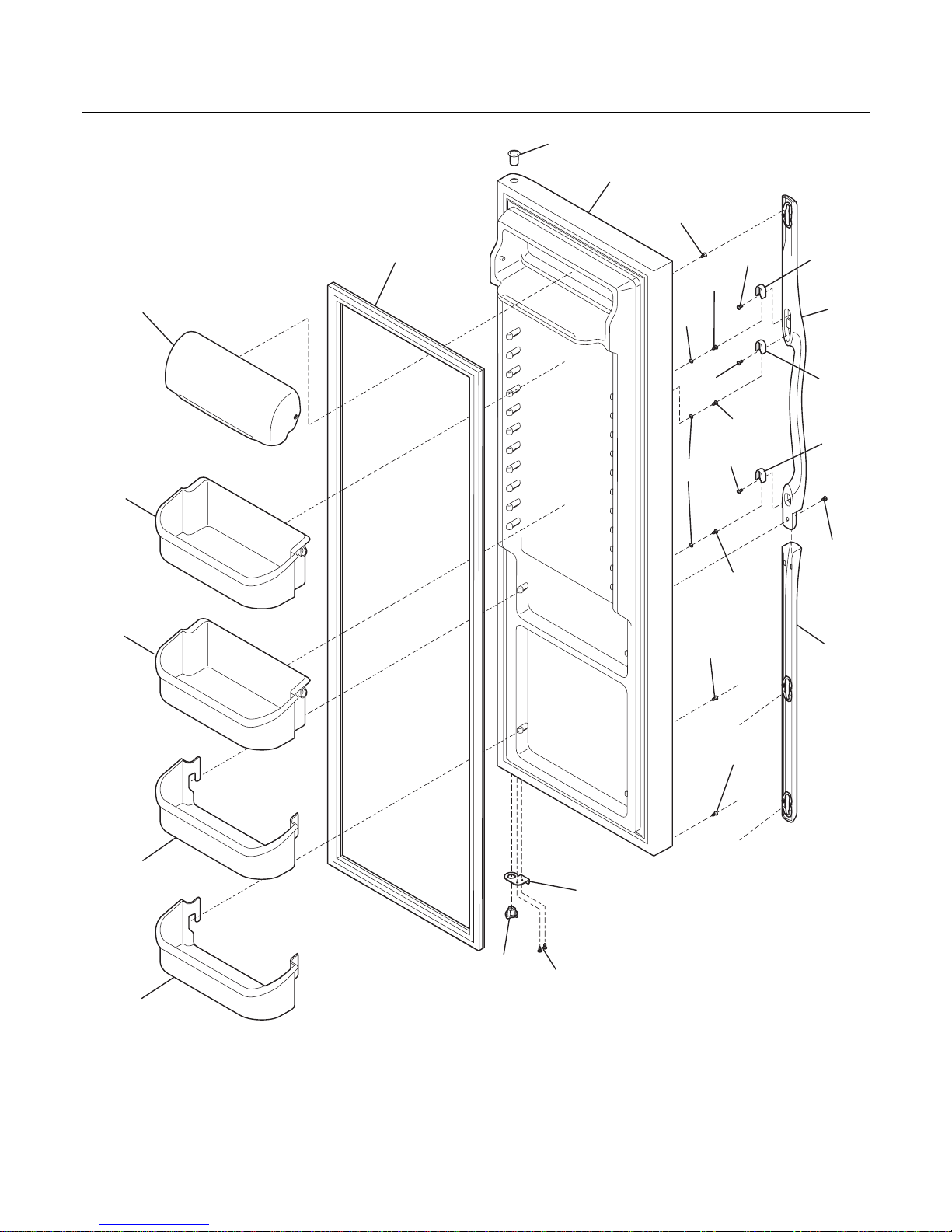

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB5

FRS3R4EQ0 Publication No: 5995432829

# Functional Parts 5 03/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 240390603 Gasket-refr door, white, magnetic

4 240363701 Bin-door, 2-liter

7 240338303 Door, dairy, clear

13 240537103 Door Stop, bisque, ref

15 240451917 Door-refr, bisque, complete assy

18 240359104 Handle-door, bisque

21 218781100 Screw, pan head, 8-18 x 0.625

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 Screw, #8-18 x 3/4

22 240328201 Bearing-hinge(ref), closer

22B 240328401 Bearing-hinge(ref), natural, upper

37 240359204 Trim-handle, 30.13", bisque, lower

49 240324501 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995432829 FRS3R4EQ0

03/05 6

CABINET

FRS3R4EQ0 Publication No: 5995432829

# Functional Parts 7 03/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435905 Cover-air duct

10A 240475906 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337604 Trim-cabinet corner, bisque, (2)

38 240327201 Bracket-upper hinge

40 240327006 Cover-upper hinge, bisque

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324403 Grille/Kickplate, bisque

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574601 Cover access

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5304414035 Paint, touch-up, bisque

Publication No: 5995432829 FRS3R4EQ0

03/05 8

SHELVES

N58SJCAAB12

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS3R4EQ0 Publication No: 5995432829

# Functional Parts 9 03/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240338801 Shelf-freezer, flip-up

11A 240338701 Shelf-freezer, fixed wire

11B 240338703 Shelf-freezer, fixed wire

24 240355211 Shelf-"Spill-Safe", fixed

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354705 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354807 Pan-crisper, lower

39 240430705 Trim-shelf, front

39B 240430701 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350635 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240355506 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 Water Tank Assy, coiled tubing, rear filter

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 Channel, auger mtg, LH

126 241630702 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995432829 FRS3R4EQ0

03/05 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
