Frigidaire FRS6K5HP Manuale di istruzioni

N58L00002.eps N58FFDBBB1.eps N58RFCBBC11.eps N58BAAAAA2.eps

N58SJCAAB15.eps N58TCAAAA1.eps N58CAAAAA10.eps N58XDAAAA1.eps

N58YBAAAA5.eps N58I1151.eps W241725001.eps S241725001.eps

Product No. FRS6KA5HPB0 FRS6KA5HPW0

Series R134a R134a

Color black white

Volts 115 115

Wiring Diagram 241725001 241725001

Owner's Guide 241856000 241856000

Market North America North America

Energy Guide 241768186 241768186

Service Data Sheet 240389633 240389633

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995494779

07/07/09

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6K5HP

Publication No: 5995494779 FRS6K5HP

07/07 2

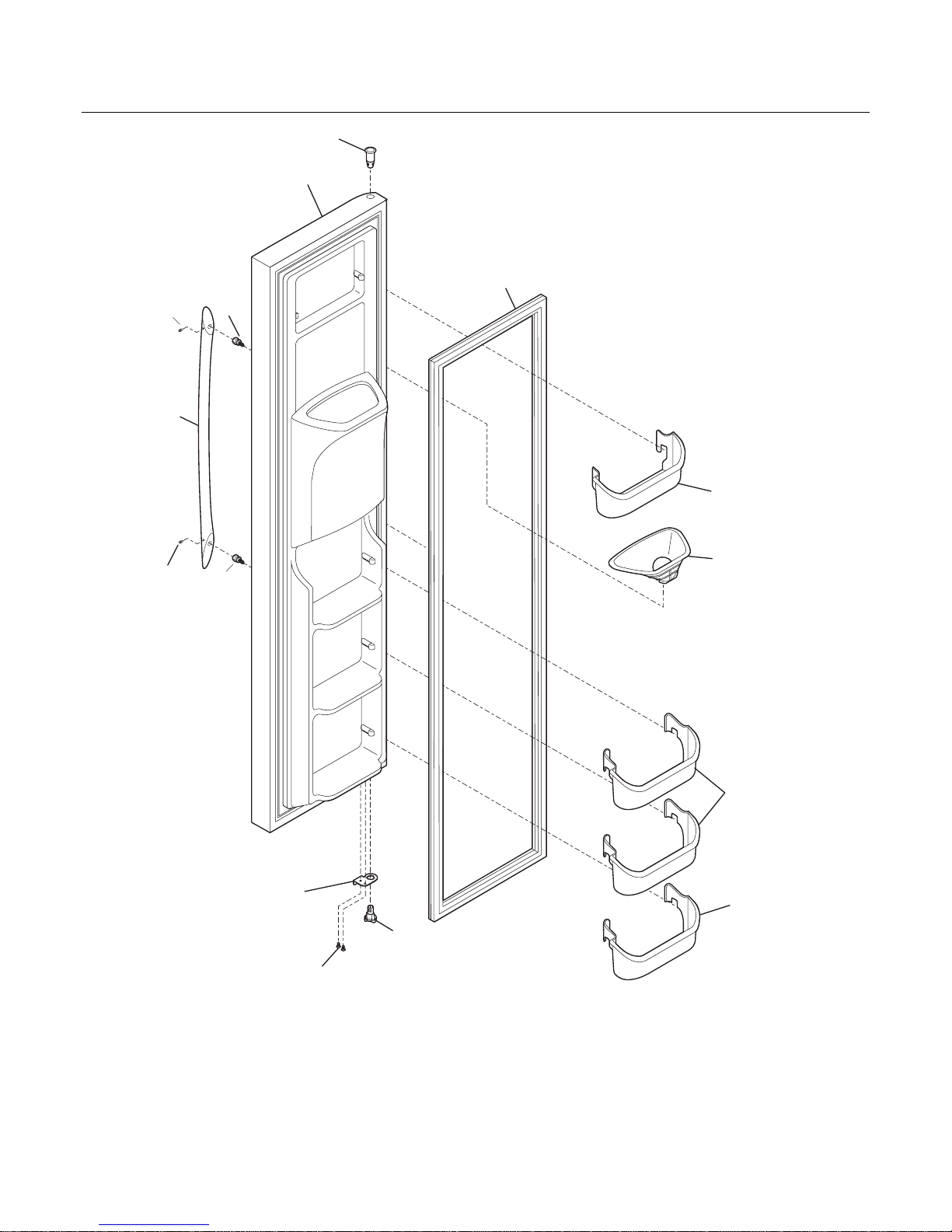

FREEZER DOOR

22C

13A

22A

21A

N58FFDBBB1

79 80

FRS6K5HP Publication No: 5995494779

# Functional Parts 3 07/07

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6KA5HP (FRS6KA5HPB0)

BFRS6KA5HP (FRS6KA5HPW0)

POS. NO PART NO. DESCRIPTION

1 # 241786006 A - Gasket-frzr door, black, magnetic

1 # 241786002 - B Gasket-frzr door, white, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 241837117 A - Door-frzr, smooth, black, complete assy

11 241837116 - B Door-frzr, smooth, white, complete assy

13A 240581906 A - Door Stop, black, frzr

13A 240581902 - B Door Stop, white, frzr

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598402 A B Screw, 10-32 x 1/2

22A 240328204 A - Bearing-hinge(frz), black, closer

22A 240328202 - B Bearing-hinge(frz), closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

* 240552101 A B Harness-wiring, door

* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 241806601 A B Connector-water, straight

* 5303918256 A B Dispenser heater kit

Publication No: 5995494779 FRS6K5HP

07/07 4

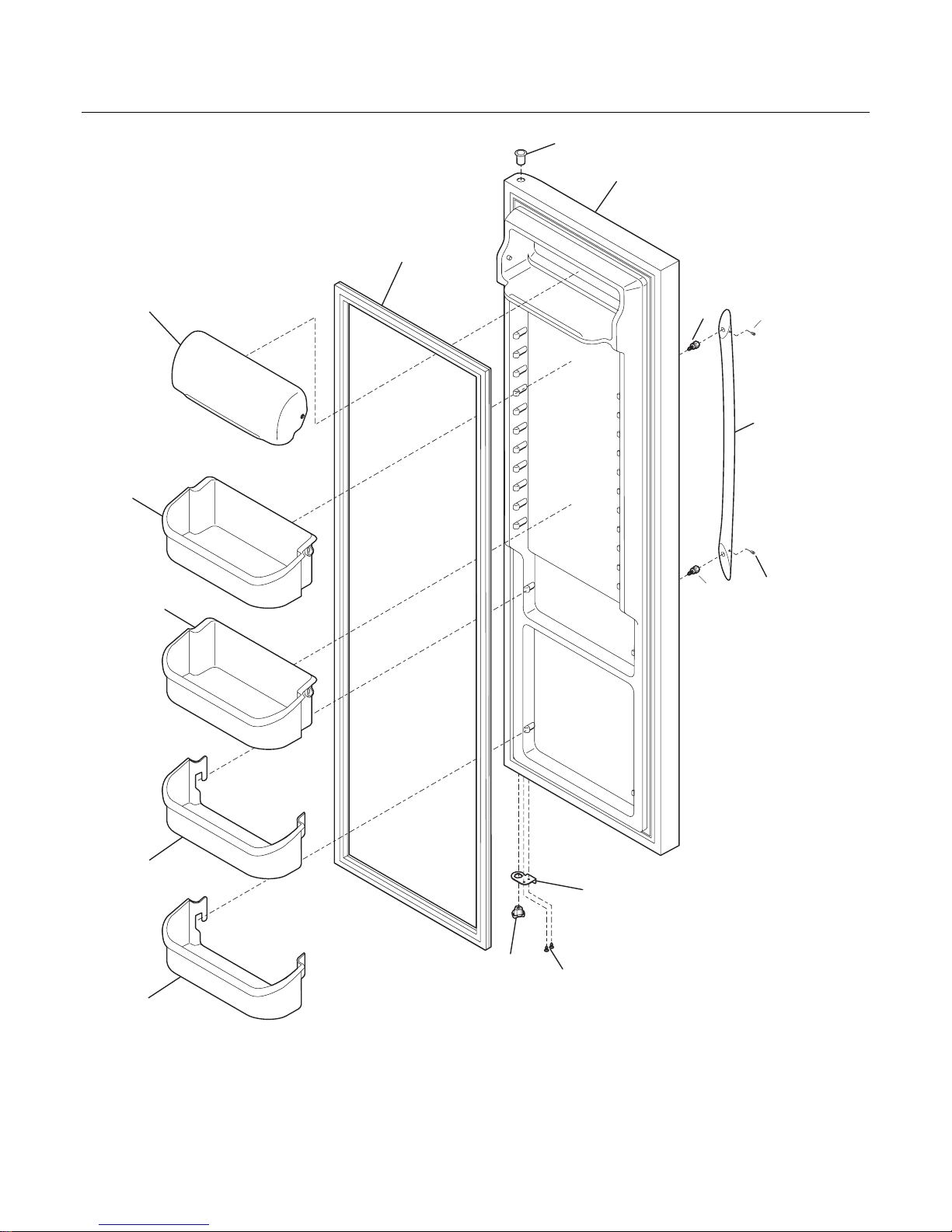

REFRIGERATOR DOOR

21A

22B

N58RFCBBC11

FRS6K5HP Publication No: 5995494779

# Functional Parts 5 07/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6KA5HP (FRS6KA5HPB0)

BFRS6KA5HP (FRS6KA5HPW0)

POS. NO PART NO. DESCRIPTION

2 241786005 A - Gasket-refr door, black, magnetic

2 241786001 - B Gasket-refr door, white, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240581905 A - Door Stop, black, ref

13 240581901 - B Door Stop, white, refr

15 241534574 A - Door-refr, black, complete assy

15 241534573 - B Door-refr, white, complete assy

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598402 A B Screw, 10-32 x 1/2

22 240328203 A - Bearing-hinge, black, closer

22 240328201 - B Bearing-hinge(ref), closer

22B 240328404 A - Bearing-hinge, black, upper

22B 240328402 - B Bearing-hinge, natural, upper

49 240356402 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995494779 FRS6K5HP

07/07 6

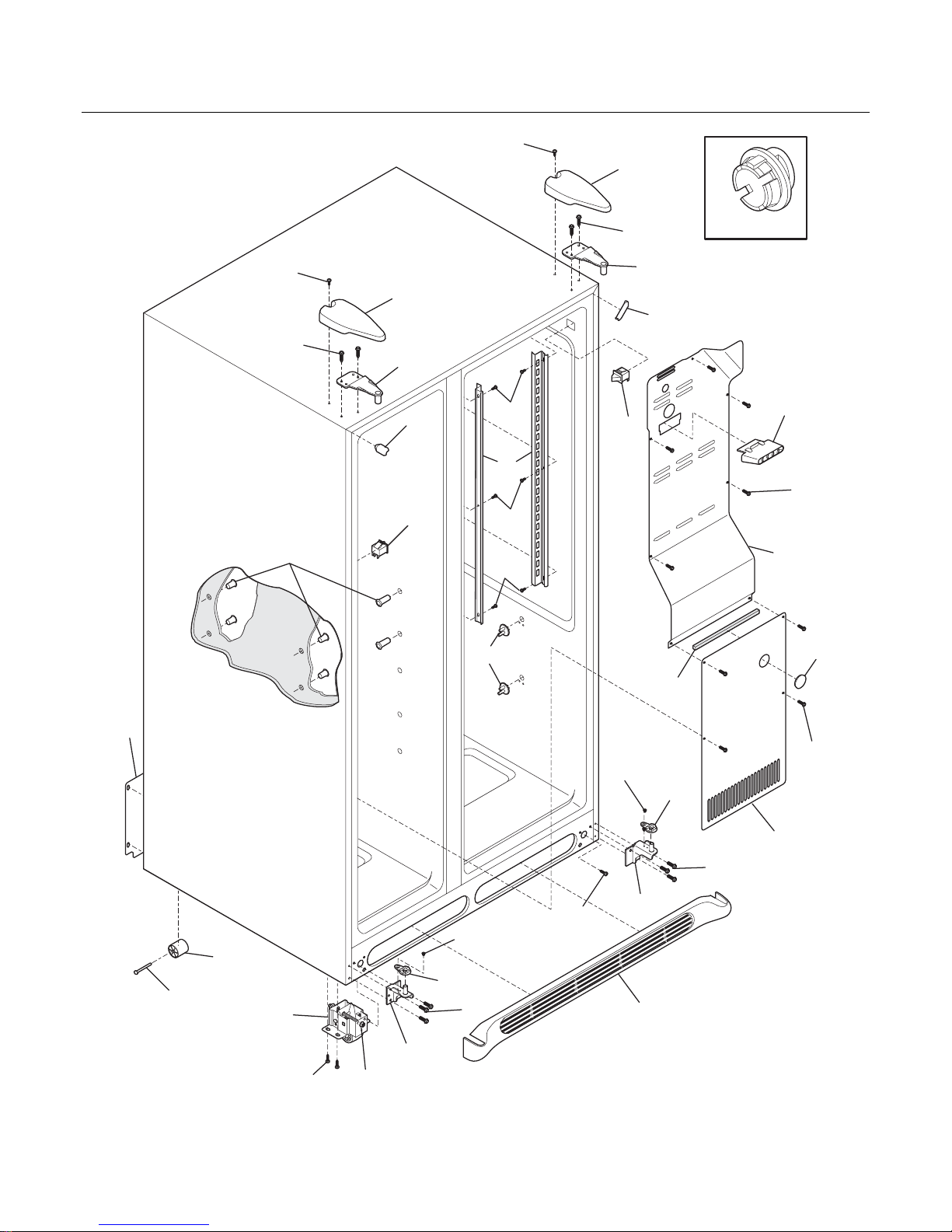

CABINET

14A

100

21C

30A

10A

N58BAAAAA2

66B

FRS6K5HP Publication No: 5995494779

# Functional Parts 7 07/07

* Non-Illustrated Parts

CABINET

Model Index: AFRS6KA5HP (FRS6KA5HPB0)

BFRS6KA5HP (FRS6KA5HPW0)

POS. NO PART NO. DESCRIPTION

10 240435912 A B Cover-air duct

10A 240475911 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - Plate-door closer

22 240457701 - B Plate-door closer

23 240402702 A B Screw-#10-32 x 1/4 flat hd

28 241708801 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B Bracket-lower hinge, ref

30A 241603704 A B Bracket-lower hinge

37 240337610 A - Trim-cabinet corner, black, (2)

37 240337608 - B Trim-cabinet corner, white, (2)

38 240327207 A B Bracket-upper hinge

40 240327007 A - Cover-upper hinge, black

40 240327005 - B Cover-upper hinge, white

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 A B Roller Assy, adjustable, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781101 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324411 A - Grille/Kickplate, black

72 240324409 - B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B Cover-access, w/label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes

* 5303321321 A - Paint, touch-up, black

* 5303321319 - B Paint, touch-up, white

Publication No: 5995494779 FRS6K5HP

07/07 8

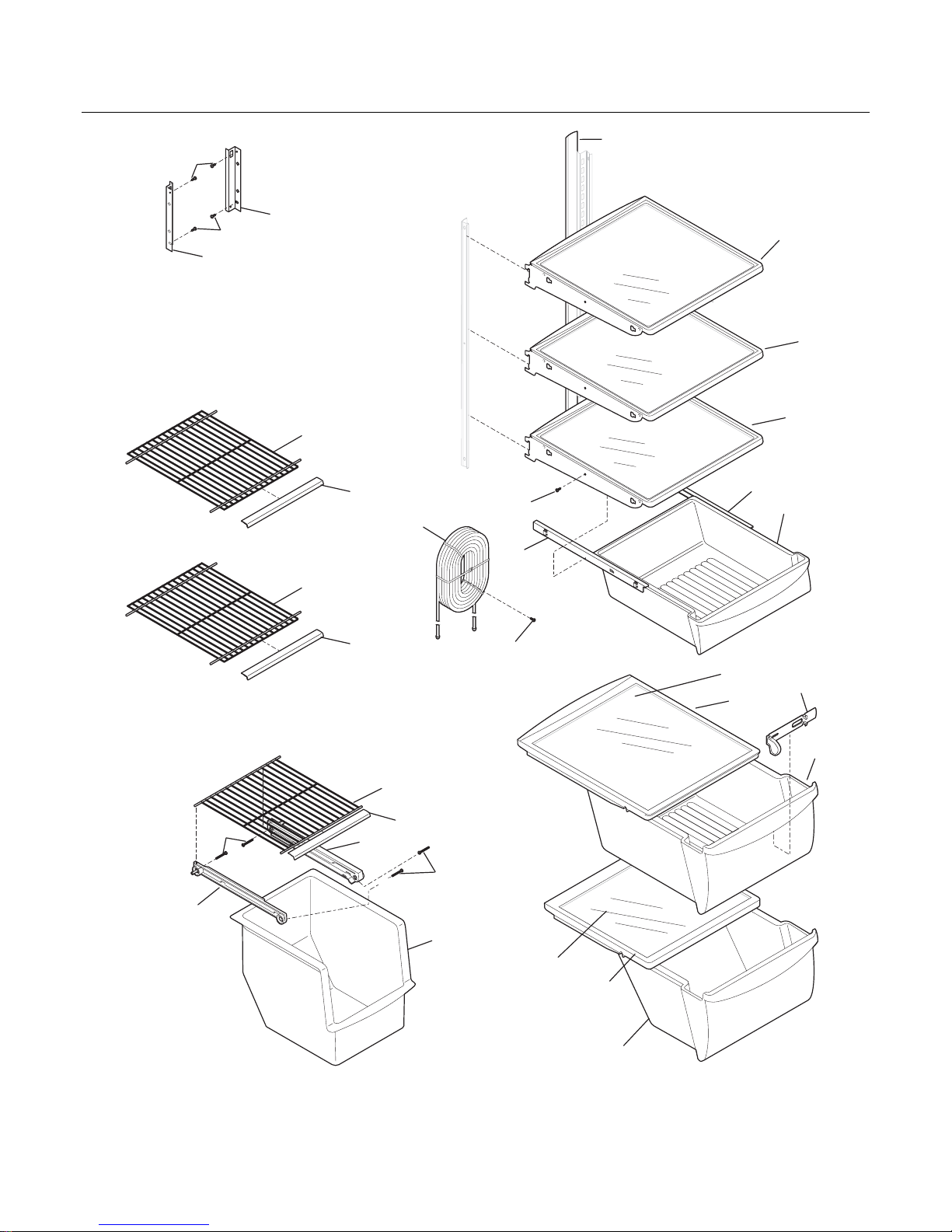

SHELVES

N58SJCAAB15

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS6K5HP Publication No: 5995494779

# Functional Parts 9 07/07

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6KA5HP (FRS6KA5HPB0)

BFRS6KA5HP (FRS6KA5HPW0)

POS. NO PART NO. DESCRIPTION

11 241657602 A B Shelf, flip up, wire

11A 241657502 A B Shelf, fixed, freezer

11B 241657504 A B Shelf, fixed, upper, freezer

21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625

24 240355208 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26* 241595202 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351206 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39B 240430702 A B Trim-shelf, 12.39", front

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240342806 A B Pan-meat

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 A B Water Tank

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

* 241768186 A B Energy Guide

Publication No: 5995494779 FRS6K5HP

07/07 10

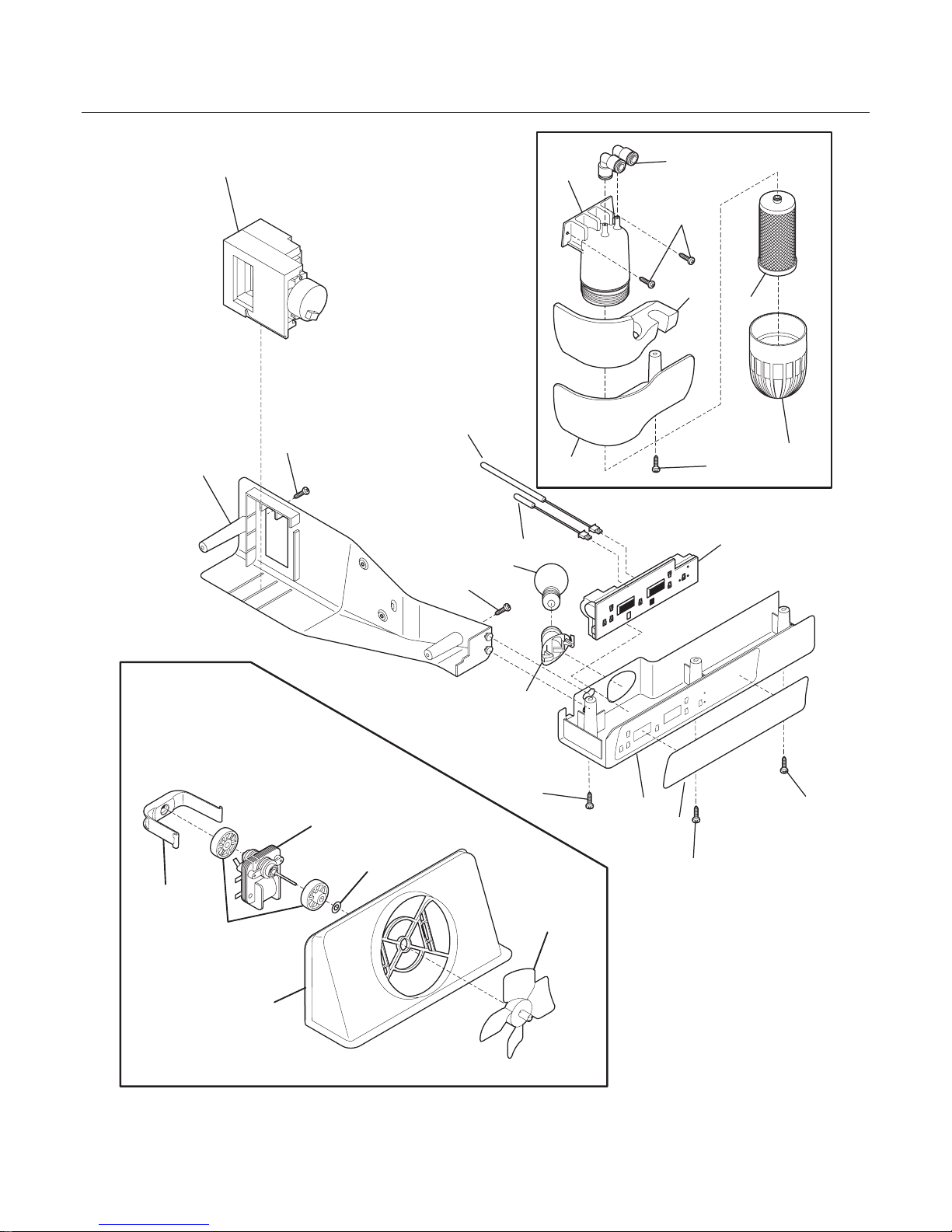

CONTROLS

140

139

138

137

151

150

115

101

N58TCAAAA1

149

21A 23
