Frigidaire FRS6LF7G Manuale di istruzioni

Product No. FRS6LF7GS2

Series 134A

Color stain/blk

Volts 115

Wiring Diagram 241725001

Owner's Guide 241856000

Market North America

Energy Guide 241768172

Service Data Sheet 240389633

N58L00002.eps N58FFDBBB1.eps N58RFDAAB2.eps N58BAAAAB3.eps

N58SKBCBD12.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB1.eps

N58YAAAAA4.eps N58I1151.eps W241725001.eps S241725001.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995495719

07/07/24

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6LF7G

Publication No: 5995495719 FRS6LF7GS2

07/07 2

FREEZER DOOR

22C

13A

22A

21A

N58FFDBBB1

79 80

FRS6LF7GS2 Publication No: 5995495719

# Functional Parts 3 07/07

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 241786006 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241615160 Door, frzr, stainless steel, RH

13A 240581906 Door Stop, black, frzr

18 240536818 Handle-door, stainless steel, with insert, & set screw

18* 241601001 Wrench, allen

21A 240598402 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

* 240552102 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995495719 FRS6LF7GS2

07/07 4

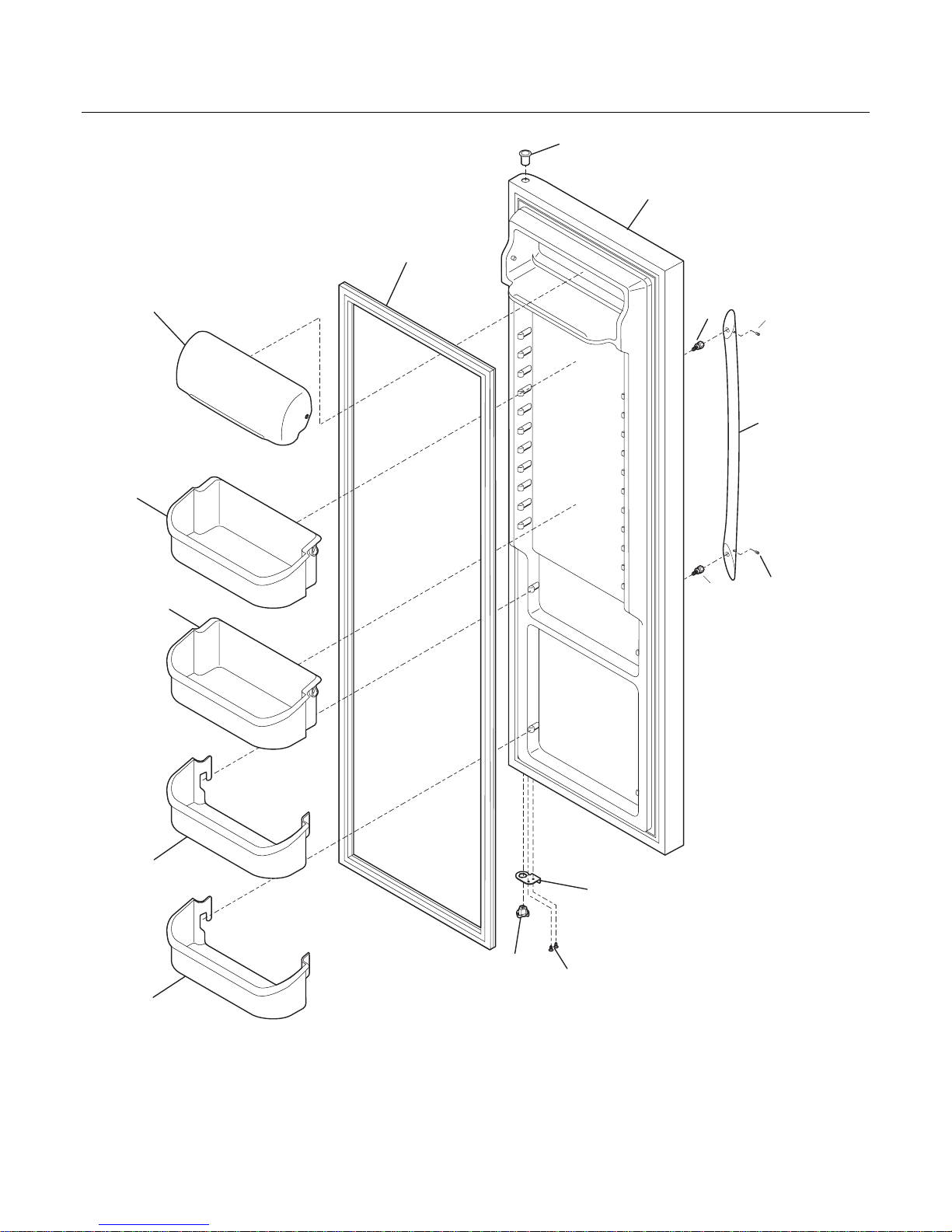

REFRIGERATOR DOOR

21A

22B

N58RFDAAB2

FRS6LF7GS2 Publication No: 5995495719

# Functional Parts 5 07/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 241786005 Gasket-refr door, black, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 241629333 Door-refr, stainless, complete assy

18 240536818 Handle-door, stainless steel, with insert, & set screw

18* 241601001 Wrench, allen

21A 240598402 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

49 240356402 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995495719 FRS6LF7GS2

07/07 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

FRS6LF7GS2 Publication No: 5995495719

# Functional Parts 7 07/07

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 240475911 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337610 Trim-cabinet corner, black, (2)

38 240327207 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 Roller Assy, adjustable, front, (2)

43 241709301 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324411 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995495719 FRS6LF7GS2

07/07 8

SHELVES

24B

126

49B

101

N58SKBCBD12

100

25A

47A

26A

42A

123

24B

140

120

11C

11A

39A

109

16A

15A

FRS6LF7GS2 Publication No: 5995495719

# Functional Parts 9 07/07

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 241657602 Shelf, flip up, wire

11A 241657504 Shelf, fixed, upper, freezer

11C 240324101 Shelf-pizza

15A 241555401 Light Bulb

16A 241513901 Socket-light

16A* 241537603 Harness-wiring

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240355207 Shelf-"Spill-Safe", cantilever, half width, fixed

24B 240350108 Shelf-"Spill-Safe", cantilever, sliding

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 241595202 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351205 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39A 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

42A* 240356702 Seal-meat pan

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

49B 240530504 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342805 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545307 Water Tank

100 240326304 Cover-water tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342901 Shelf-ice cream

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241768172 Energy Guide

Publication No: 5995495719 FRS6LF7GS2

07/07 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
