Frigidaire FRS6R2F Manuale di istruzioni

N58L00001.eps N58FAAAAB4.eps N58RAAABB5.eps N58BAAAAA0.eps

N58SJCACA24.eps N58TAAAAA7.eps N58CAAAAA10.eps N58XCAAAA2.eps

N58YCAAAA3.eps N58I1151.eps W241708401.eps S241708401.eps

Product No. FRS6R2FB2

Series R134a

Color black

Volts 115

Wiring Diagram 241708401

Owner's Guide 241856000

Market North America

Energy Guide 241615437

Service Data Sheet 240389629

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995495669

07/07/23

(EN/SERVICE/RLF)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6R2F

Publication No: 5995495669 FRS6R2FB2

07/07 2

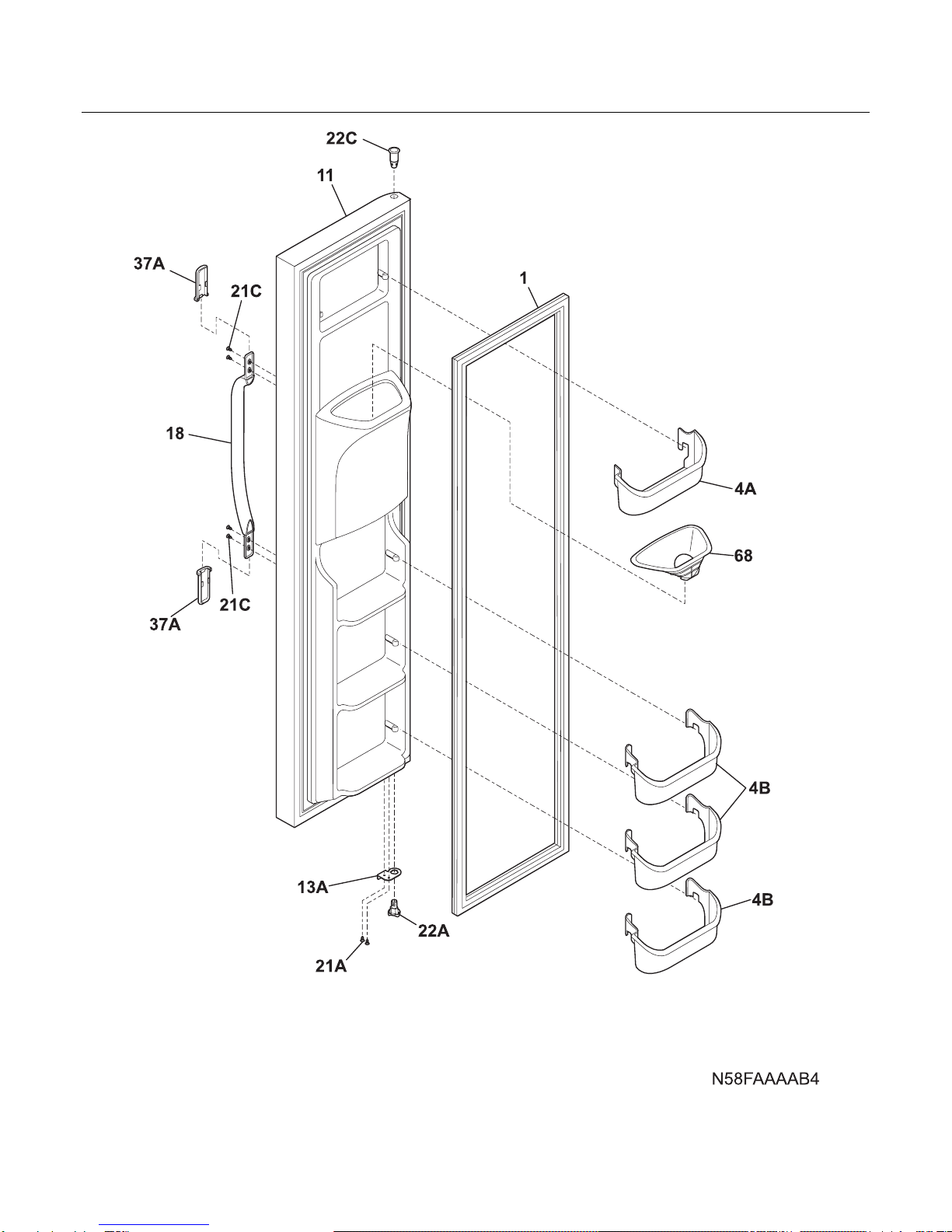

FREEZER DOOR

FRS6R2FB2 Publication No: 5995495669

# Functional Parts 3 07/07

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674806 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241615175 Door-frzr, black, complete assy

13A 240581906 Door Stop, black, frzr

18 218762703 Handle-door, black

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

37A 215870636 Trim-handle, 2.47", black, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

68 241525101 Chute-ice

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552101 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995495669 FRS6R2FB2

07/07 4

REFRIGERATOR DOOR

21A

22B

21C

21C 37A

37A

N58RAAABB5

FRS6R2FB2 Publication No: 5995495669

# Functional Parts 5 07/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674805 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

13 240581905 Door Stop, black, ref

15 241629345 Door-refr, black, complete assy

18 218762703 Handle-door, black

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

37A 215870636 Trim-handle, 2.47", black, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

49 240356401 Bin-door, gallon

Publication No: 5995495669 FRS6R2FB2

07/07 6

CABINET

FRS6R2FB2 Publication No: 5995495669

# Functional Parts 7 07/07

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 240475911 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337610 Trim-cabinet corner, black, (2)

38 240327207 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324411 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

89* 241500303 Screw, hex washer head, 8-18AB x 0.500

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995495669 FRS6R2FB2

07/07 8

SHELVES

126

25A

47A

N58SJCACA24

11B

39B

11A

39B

140

101

FRS6R2FB2 Publication No: 5995495669

# Functional Parts 9 07/07

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240373108 Frame-shelf, cantilever

25 240350702 Cover-crisper pan, upper

25A 240350902 Cover-crisper pan, lower

26 240351003 Pan-crisper, upper

27 240351203 Pan-crisper, lower

29 240357706 Trim-shelf, front

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

40 240350623 Glass-shelf, 16.76" x 17.60"

41 240357806 Trim-shelf, rear

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 Water Tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241615437 Label, ENERGY GUIDE

Publication No: 5995495669 FRS6R2FB2

07/07 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
