Frigidaire FRS6R3E Manuale utente

N58L00002.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SJCACA21.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA2.eps N58I1151.eps W241526901A.eps S241526901A.eps

Product No. FRS6R3EW8

Series R134a

Color white

Volts 115

Wiring Diagram 241526901

Owner's Guide 241695301

Market North America

Energy Guide 241615411

Service Data Sheet 240389616

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995471371

06/08/01

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6R3E

Publication No: 5995471371 FRS6R3EW8

08/06 2

FREEZER DOOR

FRS6R3EW8 Publication No: 5995471371

# Functional Parts 3 08/06

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674802 Gasket-frzr door, white, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241668111 Door-frzr, white, complete assy

13A 240581902 Door Stop, white, frzr

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22A 240328202 Bearing-hinge(frz), closer

22C 240328402 Bearing-hinge, natural, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

68 241525101 Chute-ice

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995471371 FRS6R3EW8

08/06 4

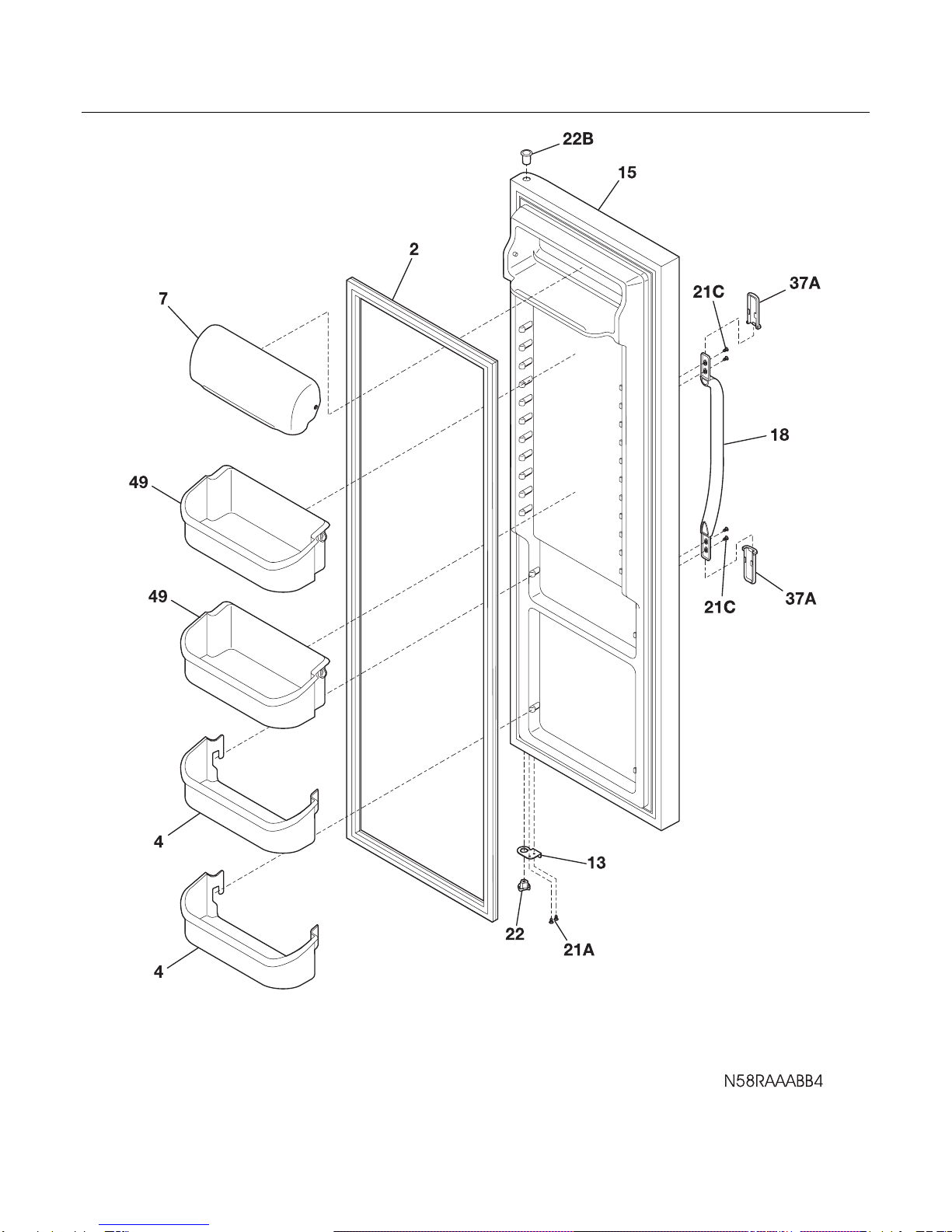

REFRIGERATOR DOOR

FRS6R3EW8 Publication No: 5995471371

# Functional Parts 5 08/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674801 Gasket-refr door, white, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581901 Door Stop, white, refr

15 240451902 Door-refr, white, complete assy

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22 240328201 Bearing-hinge(ref), closer

22B 240328402 Bearing-hinge, natural, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 Band-decorative, satin aluminum, handle trim

49 240356401 Bin-door, gallon

Publication No: 5995471371 FRS6R3EW8

08/06 6

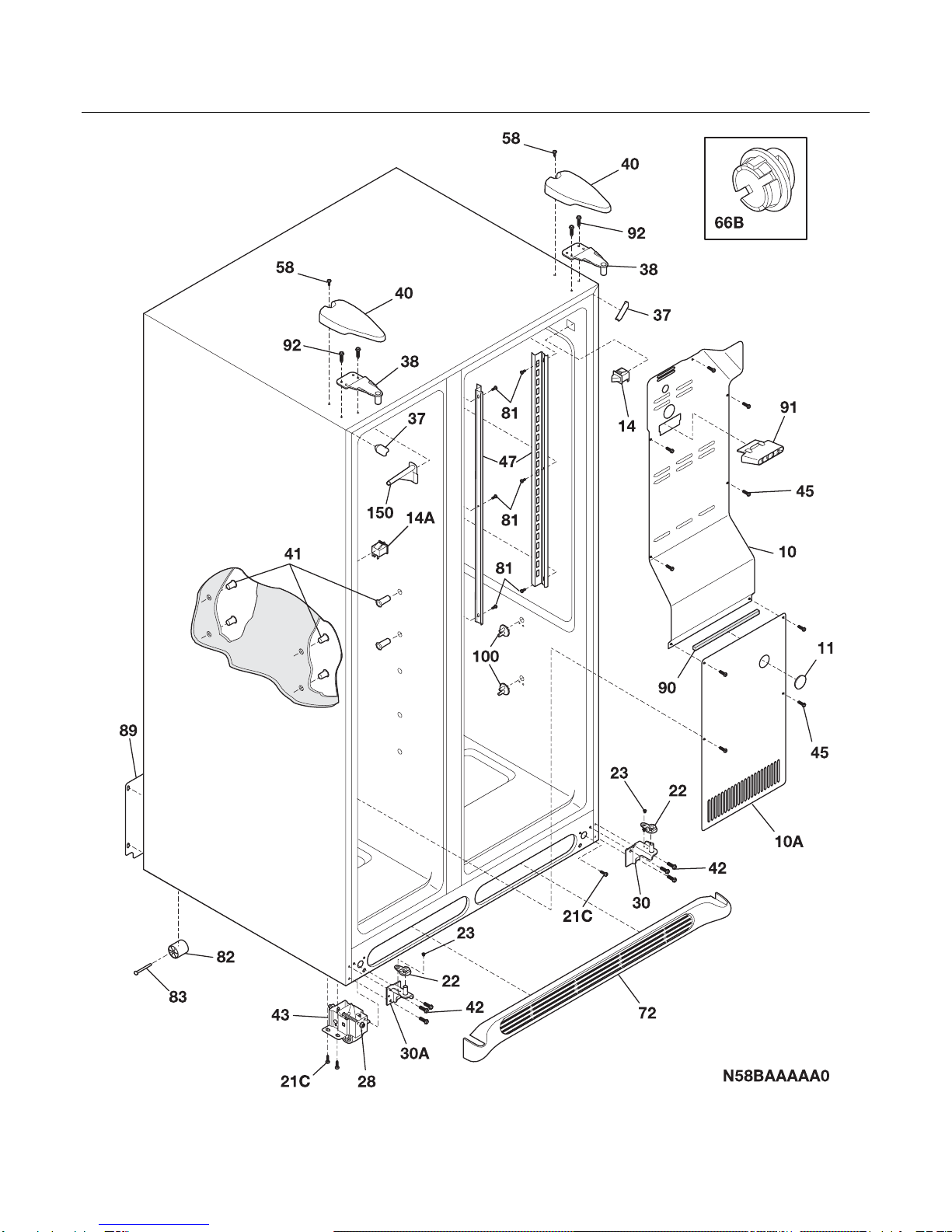

CABINET

FRS6R3EW8 Publication No: 5995471371

# Functional Parts 7 08/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 240475911 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240327207 Bracket-upper hinge

40 240327005 Cover-upper hinge, white

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324402 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995471371 FRS6R3EW8

08/06 8

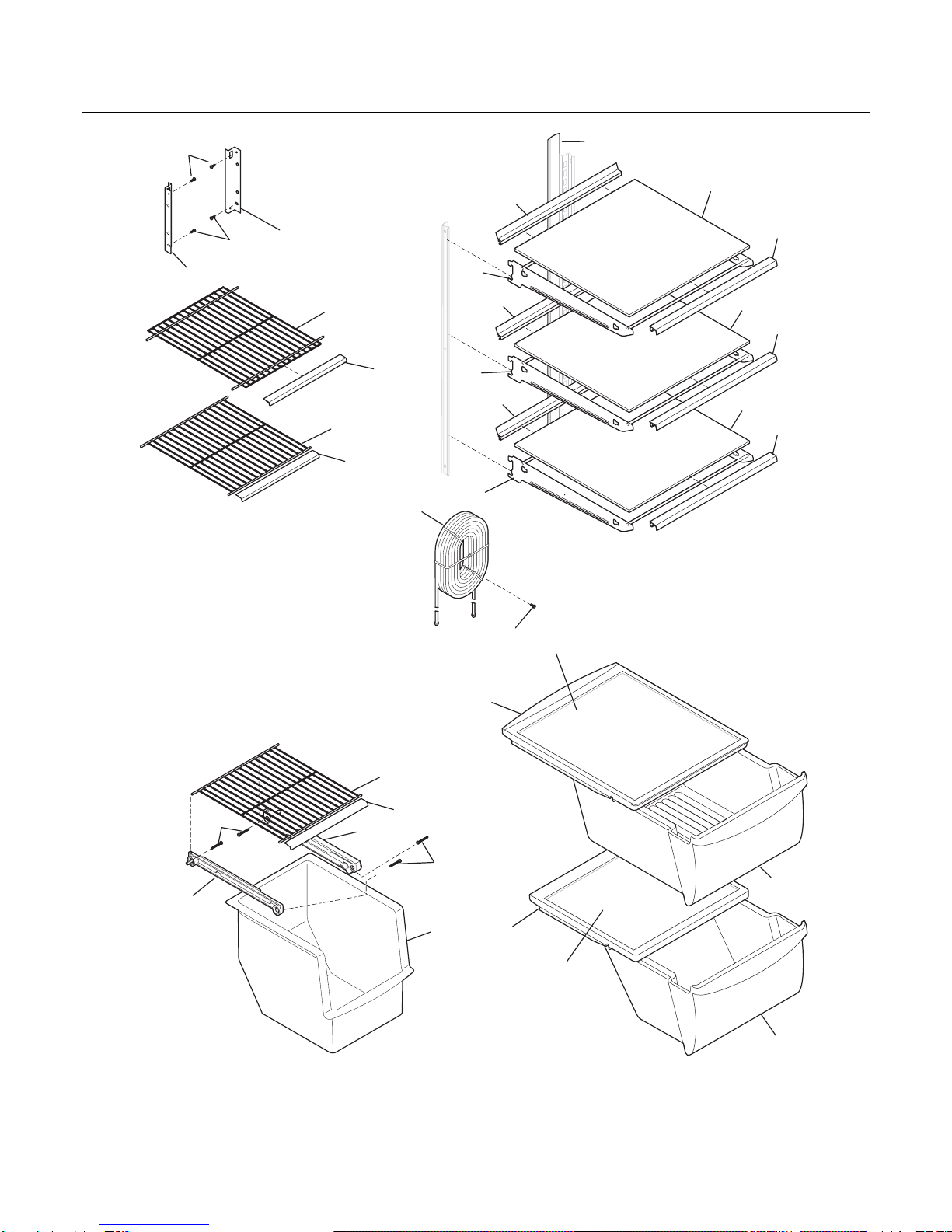

SHELVES

126

25A

47A

N58SJCACA21

11B

39B

11A

39B

140

101

FRS6R3EW8 Publication No: 5995471371

# Functional Parts 9 08/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

24 240373108 Frame-shelf, cantilever

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351007 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

27 240351207 Pan-crisper, lower

29 240357706 Trim-shelf, front

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

40 240350623 Glass-shelf, 16.76" x 17.60"

41 240357806 Trim-shelf, rear

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 Water Tank Assy, coiled tubing, rear filter

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 240389616 Service Data Sheet

Publication No: 5995471371 FRS6R3EW8

08/06 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
