Frigidaire FRT17HB3C Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT17HB3CW1 FRT17HB3C R134a white 115

MARKET

North America

Publication No.

5995394276

030815

-EN/SERVICE/KHB

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT17HB3C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - # 240592273

OWNER’S GUIDE - # 240400109

SERVICE DATA SHEET - # 240379010

08/03 2

Publication No. FRT17HB3CW1

5995394276

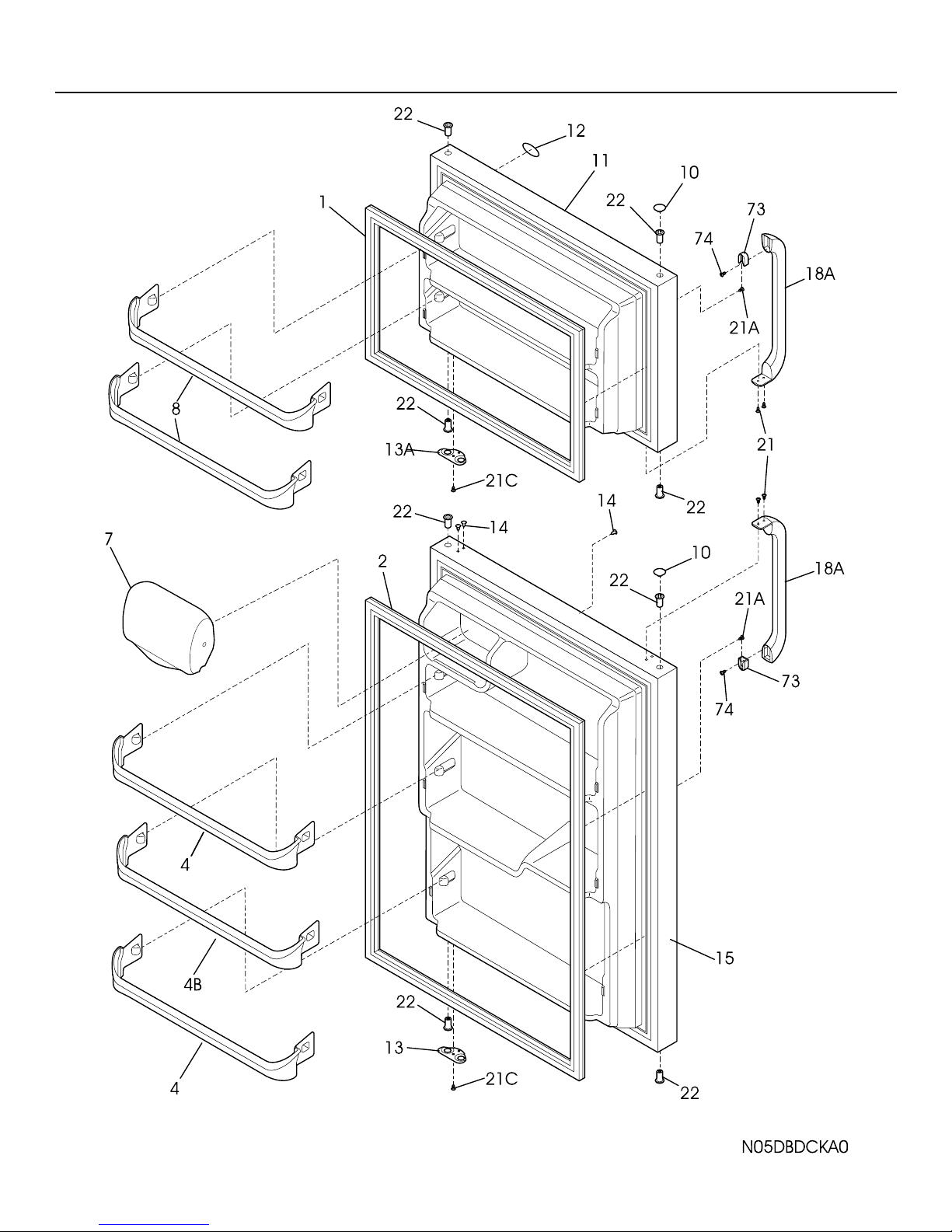

DOOR

# = Fast-moving Parts 3 08/03

* = Non-Illustrated Parts

FRT17HB3CW1 Publication No.

5995394276

POS. NO PART NO DESCRIPTION

1 # 240554101 Gasket-frzr door,white ,magnetic

2 # 240542104 Gasket-refr door,white ,magnetic

4 240535101 Rack-door

4B 240535201 Rack-door

7 240337701 Door-dairy,w/o graphics ,white

8 240535001 Rack-door

10 240381301 Plug-button,white ,hinge brg hole ,(2)

11 240420101 Door,frzr ,white

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 240494001 Plug-button,white

15 240420201 Door,refr ,white

18A 218428101 Handle-door,white ,w/block & screw

21 240383401 Screw,truss hd quad ,#10-16 x .500

21A 240521301 Screw,#10-16 x 1/2

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527101 Bearing-hinge,natural color

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

DOOR

06/03 4

Publication No. FRT17HB3CW1

5995394276

CABINET

# = Fast-moving Parts 5 06/03

* = Non-Illustrated Parts

FRT17HB3CW1 Publication No.

5995394276

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462011 Cover-evap coil

10* 240568601 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

12 240366801 Plug-ice maker harness, rectangular

12* 218843800 Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 Plug-wtr inlet tube, round, 1"

13 # 240369701 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

18 240411901 Support-evap cover, (2)

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special

30 240357102 Bracket,bottom hinge ,white

34 240311301 Washer,hinge, nylon, (2)

35 240357002 Bracket,center hinge, white

35A 240336801 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240356901 Bracket,upper hinge

40 240354401 Cover-upper hinge, white

41 5303001609 Grommet, shelf mtg ,0.69", RH

41* 5308009759 Grommet, shelf mtg ,1.25", LH

42 240423601 Screw-hinge mtg, hex head, 1/4-20 x 0.75

43 240335003 Roller Assy, front ,(2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4,white

72 240368301 Grille/Kickplate, white

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326114 Cover,access ,system compt ,with label

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 240479601 Plug,button ,cab liner holes ,(2)

* 5303305324 Paint,touch-up ,white

CABINET

08/03 6

Publication No. FRT17HB3CW1

5995394276

SHELVES

# = Fast-moving Parts 7 06/03

* = Non-Illustrated Parts

FRT17HB3CW1 Publication No.

5995394276

POS. NO PART NO DESCRIPTION

11 5303282284 Shelf-freezer, "table type"

12 240545001 Diffuser,air, top

13 240362601 Diffuser,air, bottom

14 # 240505801 Switch,light/lamp

15 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature

16 241500701 Socket-light/lamp

17 240368001 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 Shelf, sliding, wire

25 240364706 Cover, crisper pan

26 240364501 Pan, crisper, (2)

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

SHELVES

08/03 8

Publication No. FRT17HB3CW1

5995394276

SYSTEM

# = Fast-moving Parts 9 08/03

* = Non-Illustrated Parts

FRT17HB3CW1 Publication No.

5995394276

POS. NO PART NO DESCRIPTION

1 # 240444401 Condenser,dynamic

4 # 218944001 Drier-filter, R134a System

6 # 240496101 Wiring Harness, machine compt, w/electric cord

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 5303918203 Defrost Heater Kit

15 # 5303918275 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 240434003 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330005 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg,1/4-28 x 1.16, shoulder, typ CF

26 240332605 Pan-defrost drain

29 # 5303918295 Compressor,w/electricals

30 # 218721120 Starter,PTC

32 240553401 Clamp, elec cont mtg, compressor

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 # 218909912 Capacitor-run, 220 VAC, 12 microfarad

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525401 Motor-condenser fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 240553501 Tube-connector, suction

* # 5303918263 Heat Exchanger Kit, suction line

* 5303918222 Hot Tube Repair Kit, Service

SYSTEM

08/03 10

Publication No. FRT17HB3CW1

5995394276

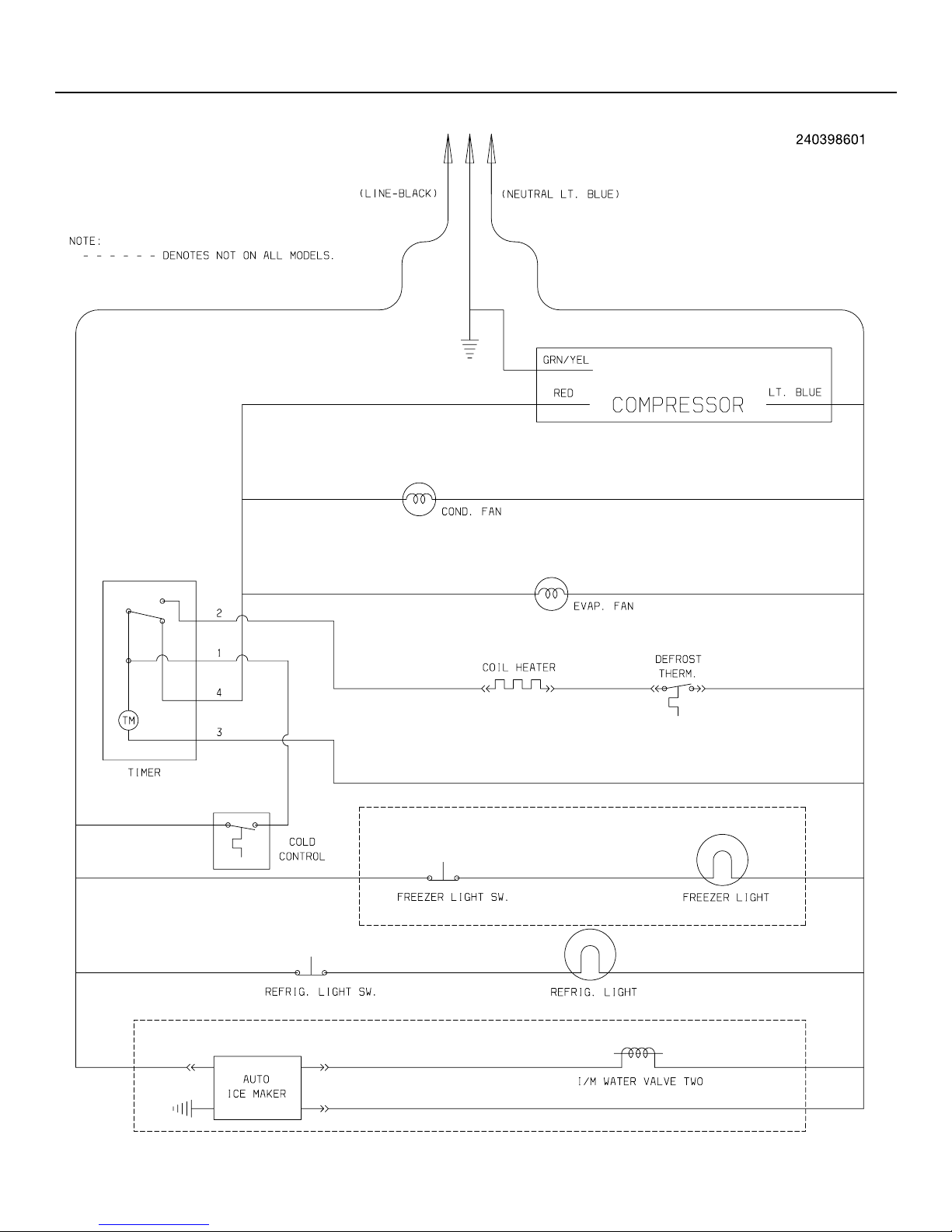

WIRING SCHEMATIC
