Frigidaire FRT18C5A Manuale utente

01/01 2

Publication No. FRT18C5A

5995349031

DOOR

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FRT18C5A Publication No.

5995349031

A = FRT18C5A (FRT18C5AQ0)

B = FRT18C5A (FRT18C5AW0)

POS. NO PART NO DESCRIPTION

1 # 240370905 A B Gasket-frzr door,white ,magnetic

2 # 240370906 A B Gasket-refr door,white ,magnetic

4 240331401 A B Rack-door,20.25"

5 240311502 A B Support-door rack,2 liter ,RH

5A 240331502 A B Support-door rack,gallon ,RH

6 240311501 A B Support-door rack,2 liter ,LH

6A 240331501 A B Support-door rack,gallon ,LH

7 240337703 A B Door-dairy,w/o graphics ,clear

8 240331402 A B Rack-door,17.99"

10 240381302 A - Plug-button,hinge brg hole ,bisque ,(2)

10 240381301 - B Plug-button,hinge brg hole ,white ,(2)

11 240412502 A - Panel-frzr door,bisque ,complete assy.

11 240412501 - B Panel-frzr door,white ,complete assy.

12 218917604 A - Label-nameplate,bisque

12 218917601 - B Label-nameplate,white

13 240312407 A - Door Stop,bisque ,ref

13 240312403 - B Door Stop,white ,ref

13A 240312408 A - Door Stop,bisque ,frzr

13A 240312404 - B Door Stop,white ,frzr

14 218915704 A - Plug-button,bisque

14 218915701 - B Plug-button,white

14A 240428302 A - Plug-button,screw type ,bisque

14A 240428301 - B Plug-button,screw type ,white

15 240412602 A - Panel-refr door,bisque ,complete assy.

15 240412601 - B Panel-refr door,white ,complete assy.

18A 218428119 A - Handle-door,bisque ,w/block & screw

18A 218428101 - B Handle-door,white ,w/block & screw

21 240383401 A B Screw,truss hd quad ,#10-16 x .500

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 A B Bearing-hinge,(8)

72 218397000 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

96 240345501 A B Plug-foam hole,white

DOOR

01/01 4

Publication No. FRT18C5A

5995349031

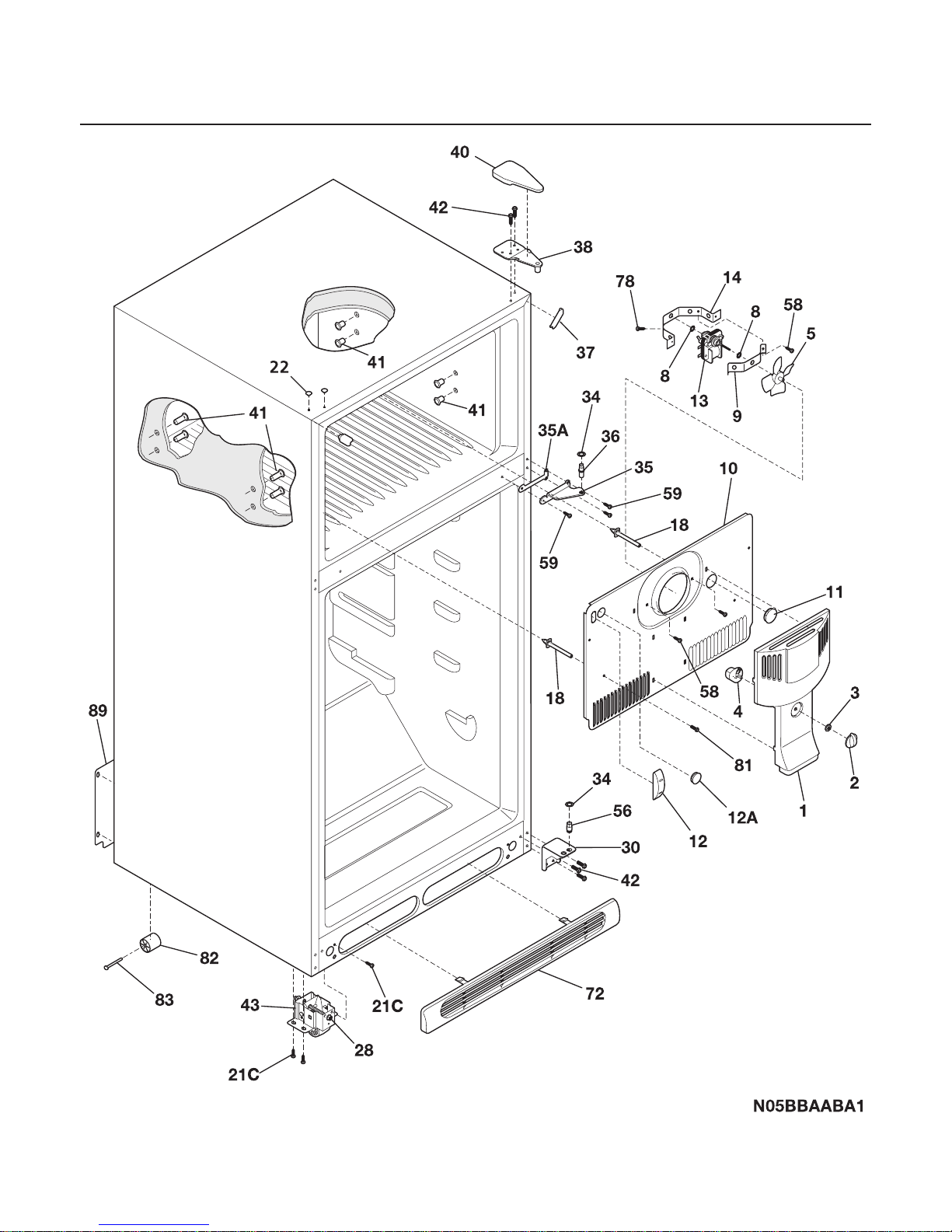

CABINET

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FRT18C5A Publication No.

5995349031

A = FRT18C5A (FRT18C5AQ0)

B = FRT18C5A (FRT18C5AW0)

POS. NO PART NO DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 240367401 A B Damper-fan cover

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240313605 A B Cover-evap coil,w/o light

10* 240371302 A B Seal-coil cover

10*# 240385401 A B Wiring Harness,freezer section

11 5303208309 A B Plug-hole,factory test

12 240366801 A B Plug-ice maker harness,rectangular

12A 240374401 A B Plug-wtr inlet tube,round ,1"

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

18 240345801 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774919 A - Plug-button,bisque ,upr hinge holes

22 215774901 - B Plug-button,white ,upr hinge holes

28 240335501 A B Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020, (2) , special

30 240314001 A B Bracket-lower hinge

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313804 A - Bracket-ctr hinge,bisque

35 240313802 - B Bracket-ctr hinge,white

35A 240336801 A B Spacer-hinge,center

36 240313901 A B Pin-center hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240313701 A B Bracket-upper hinge

40 240354403 A - Cover-upper hinge,bisque

40 240354401 - B Cover-upper hinge,white

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

43 240335003 A B Roller Assy,front ,(2)

56 240314101 A B Pin-lower hinge

58 5303274237 A B Screw-bracket, hex wshr hd, 8-32CA x 0.500

59 218188000 A B Screw, pan hd, 10-32 x 0.625, hinge/mullion, thrd forming

72 240368202 A - Grille/Kickplate,bisque

72 240368201 - B Grille/Kickplate,white

78 5308000039 A B Screw,hex wshr hd,8-32CA x 0.500, (7), serrated hd

81 218843800 A B Screw, hex wshr hd, 8-15A x 0.500, wiring clamps

82 5304418225 A B Roller-rear,comp base ,(2)

83 215164200 A B Pin-roller,(2)

89 240326102 A B Cover-access,w/ label

* 5308016571 A B Plug-button,cab liner holes

CABINET

01/01 6

Publication No. FRT18C5A

5995349031

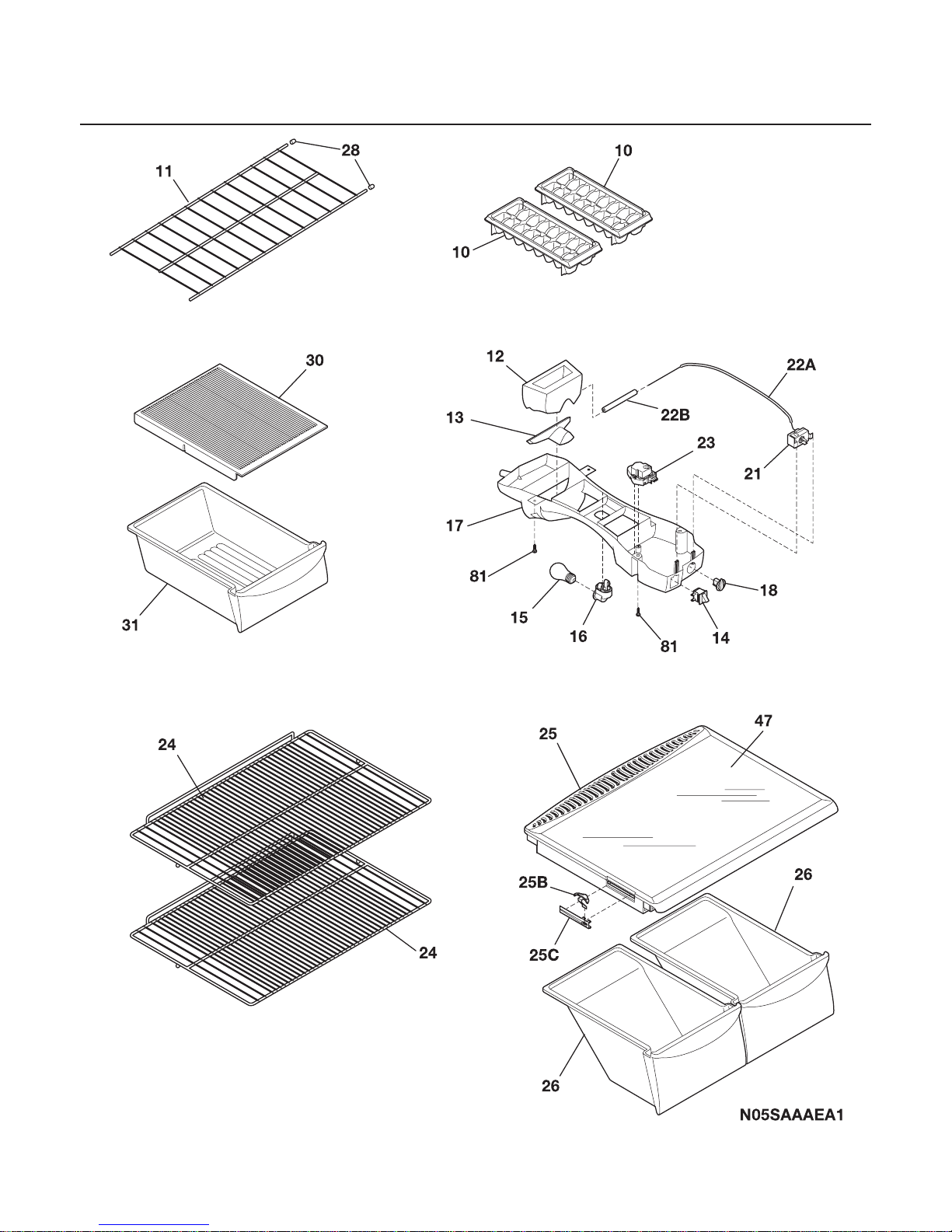

SHELVES

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FRT18C5A Publication No.

5995349031

A = FRT18C5A (FRT18C5AQ0)

B = FRT18C5A (FRT18C5AW0)

POS. NO PART NO DESCRIPTION

10 215667501 A B Tray-ice,plastic

11 240358002 A B Shelf-freezer,full width

11* 5303299664 A B Spacer-shelf

12 240362501 A B Diffuser-air,top

13 240362601 A B Diffuser-air,bottom

13* 240392601 A B Seal-diffuser

14 # 5309918806 A B Switch-light/lamp

15 5303001179 A B Light Bulb/Lamp,40 W

16 5303289050 A B Socket-light/lamp

17 240352701 A B Control Box

17*# 240388701 A B Wiring Harness,control box

18 240360801 A B Knob-temp control

21 # 5304418228 A B Control-temperature

22A 5303916855 A B Tube,sensor sleeve ,plastic ,clear

22B 218731105 A B Tube,PVC ,white ,@ air diffuser, insulator

23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360901 A B Shelf,sliding ,wire

25 240364713 A B Cover-crisper pan,with beam ,humid cont

25B 240361202 A B Control-humidity

25C 240361301 A B Damper-humidity control

26 240337103 A B Pan-crisper,w/o graphics ,clear ,(2)

28 3201150 A B End Cap-shelf,protector ,frzr shelf

30 240361801 A B Hanger-meat pan,drop thru

31 240354203 A B Pan-meat,w/o graphics ,clear

47 240350643 A B Insert-pan cover,glass

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

SHELVES

01/01 8

Publication No. FRT18C5A

5995349031

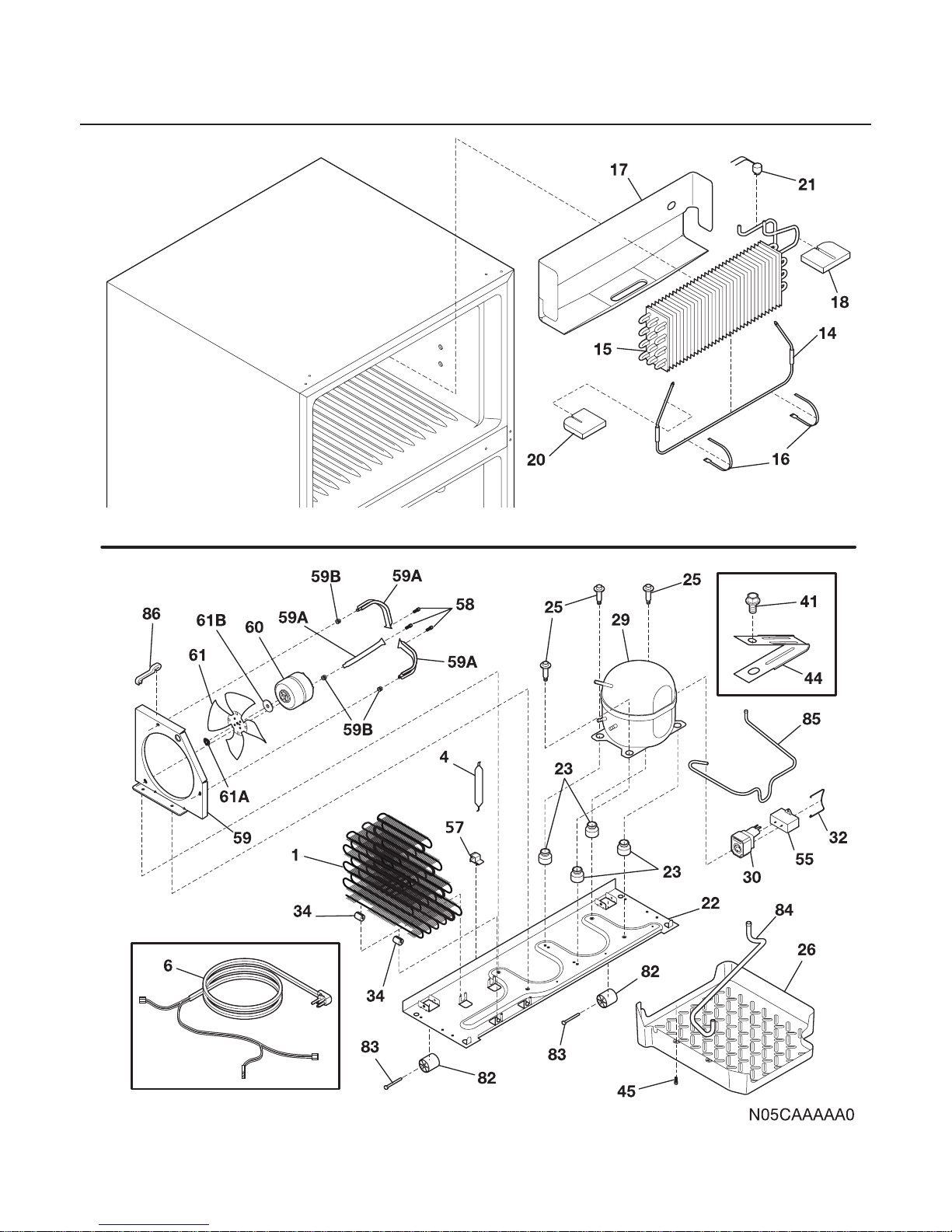

SYSTEM

# = Fast-moving Parts 9 01/01

* = Non-Illustrated Parts

FRT18C5A Publication No.

5995349031

A = FRT18C5A (FRT18C5AQ0)

B = FRT18C5A (FRT18C5AW0)

POS. NO PART NO DESCRIPTION

1 # 240345601 A B Condenser,dynamic

4 # 218944001 A B Drier-filter,R134a System

6 # 240375301 A B Wiring Harness, machine compt, w/ service cord

6* # 240385401 A B Wiring Harness,freezer section

6* # 240388701 A B Wiring Harness,control box

14 # 5303918208 A B Defrost Heater Kit

15 # 5303918205 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240313502 A B Trough-drain

18 240362301 A B Insulation Block,RH

20 240362401 A B Insulation Block,LH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330001 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B Grommet-compr mtg,(4)

25 240420302 A B Screw-compr mtg,hex hd ,1/4-28 shoulder

26 240332601 A B Pan-defrost drain

29 # 5303918206 A B Compressor,w/electricals

30 # 218721112 A B Starter-PTC

32 218740800 A B Clamp,elec cont mtg ,compressor

34 240405201 A B Grommet-cond mtg,(4)

41 218897001 A B Screw,hex washer head ,8-32 x 1/4

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B Clip-wiring harness

58 215004600 A B Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16, (2)

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal,shroud

59* 240359401 A B Screw-fan shroud,(2)

59A 240346501 A B Bracket-support,cond mtr ,(3)

59B 240346601 A B Grommet-bracket,(3)

60 # 240334001 A B Motor-condenser fan

61 # 240315401 A B Fan Blade,galv steel ,condenser fan

61A 215004700 A B Nut,speed

61B 215004800 A B Grommet-silencer

82 5304418225 A B Roller-rear,comp base ,(2)

83 215164200 A B Pin-roller,(2)

84 240359601 A B Tube-drain,lower

85 240346201 A B Tube-connector,suction

86 240409301 A B Spacer-cond tube

* # 5303918207 A B Heat Exchanger Kit,suction line

* # 5303918222 A B Hot Tube Repair Kit,Service

SYSTEM

01/01 10

Publication No. FRT18C5A

5995349031

WIRING SCHEMATIC
