Frigidaire FRT18G5F Manuale utente

N05L00006.eps N05DAACKA1.eps N05BBAABA23.eps N05SAAAEF16.eps

N05CBBBAC4.eps 240398801.eps 240398601.eps

Product No. FRT18G5FB2 FRT18G5FB3

Series R134a R134a

Color black black

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 241694400 241694400

Market North America North America

Energy Guide 241613724 241613724

Service Data Sheet 240379018 240379018

Installation Instructions 240568301 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995460358

06/02/07

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18G5F

Publication No: 5995460358 FRT18G5F

02/06 2

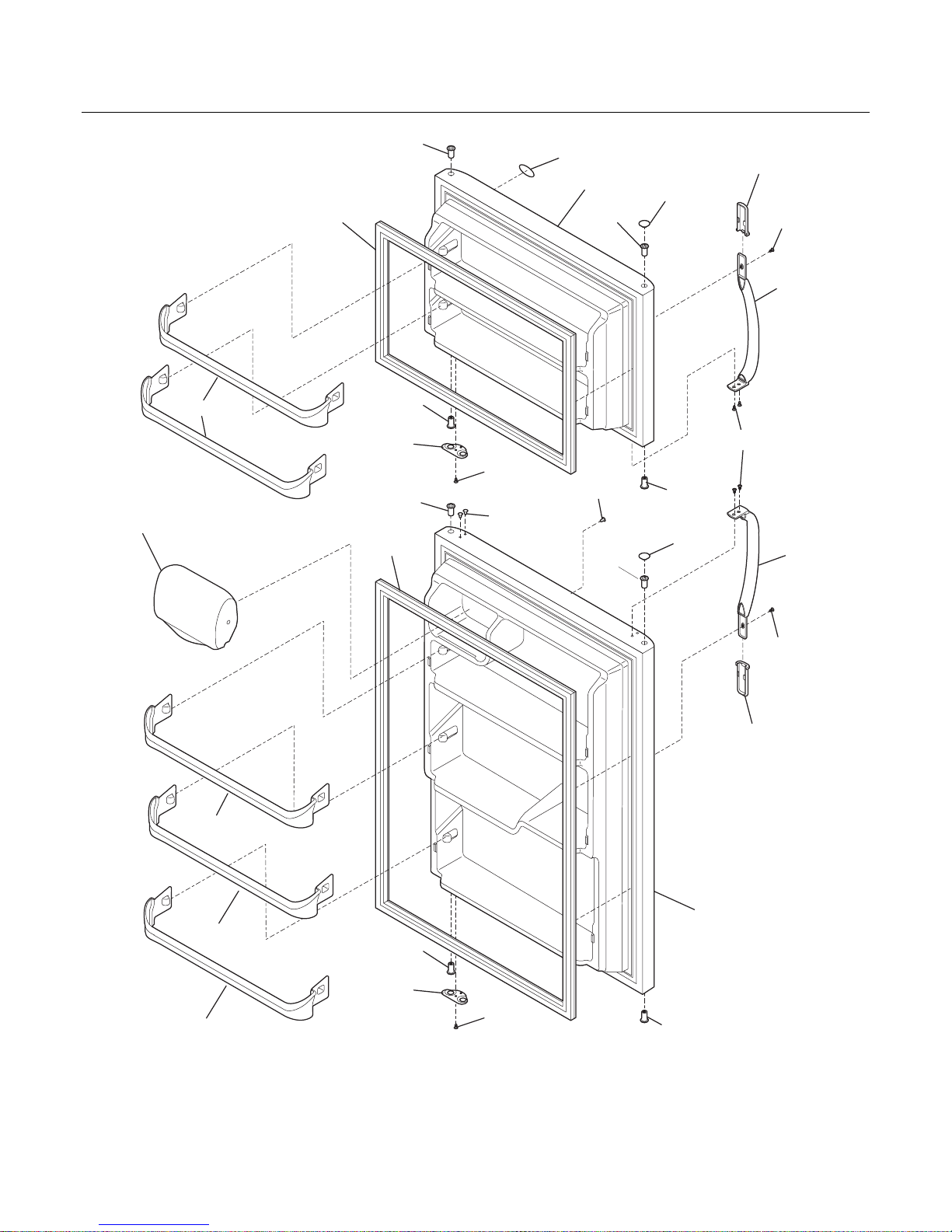

DOOR

13A

21C

N05DAACKA1

FRT18G5F Publication No: 5995460358

# Functional Parts 3 02/06

* Non-Illustrated Parts

DOOR

Model Index: AFRT18G5F (FRT18G5FB2)

BFRT18G5F (FRT18G5FB3)

POS. NO PART NO. DESCRIPTION

1 240542121 A B Gasket-frzr door, black, magnetic

2 240542124 A B Gasket-refr door, black, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337703 A B Door-dairy, w/o graphics, clear

8 240534801 A B Rack-door

10 240381303 A B Plug-button, black, hinge brg hole

11 240410203 A B Door-frzr, black, complete assy

12 240415204 A B Label-nameplate, black

13 240312405 A B Door Stop, black, refr

13A 240312406 A B Door Stop, black, frzr

14 240494003 A B Plug-button, black

15 240410305 A B Door-refr, black, complete assy

18 218668003 A B Handle-door, black

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B Bearing-hinge, black

37 215870636 A B Trim-handle, 2.47", black, w/satin AL band

37* 218676004 A B Band-decorative, satin aluminum, handle trim

Publication No: 5995460358 FRT18G5F

02/06 4

CABINET

12A

35A 36

N05BBAABA23

43 21C

21C

FRT18G5F Publication No: 5995460358

# Functional Parts 5 02/06

* Non-Illustrated Parts

CABINET

Model Index: AFRT18G5F (FRT18G5FB2)

BFRT18G5F (FRT18G5FB3)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652210 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring, freezer

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 # 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433201 A B Screw, hex washer head, 8-18 x 0.375

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A B Plug-button, black, upr hinge holes

30 240314003 A B Bracket-lower hinge, black

34 240311303 A B Washer, hinge, nylon, (2)

35 240313803 A B Bracket-ctr hinge, black

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 241611303 A B Trim-cabinet corner, black, (2)

38 241622603 A B Upper hinge, plastic, black

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559602 A B Roller Assy, fixed, front LH

43* 241559601 A B Roller Assy, fixed, front RH

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw, hex washer head, 8-15A x 0.500

59 240442703 A B Screw-#10-32 X 3/4, black

72 240368207 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241624301 A B Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 218515401 A B Clip

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303321321 A B Paint, touch-up, black

Publication No: 5995460358 FRT18G5F

02/06 6

SHELVES

25 47

N05SAAAEF16

22A

24A

123

25C

FRT18G5F Publication No: 5995460358

# Functional Parts 7 02/06

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18G5F (FRT18G5FB2)

BFRT18G5F (FRT18G5FB3)

POS. NO PART NO. DESCRIPTION

10 215667501 A B Tray, ice cube, plastic

11 240358005 A B Shelf, freezer, full-width, wire

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 241554901 A B Switch-light/lamp

15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 A B Socket-light

17 240352701 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 241621501 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372409 A B Frame, sliding shelf, full width

24A 240372410 A B Frame, sliding shelf, full width, w/hanger tabs

25 240364713 A B Cover-crisper pan, with beam, humid cont

25C 241613502 A B Control-humidity, LH

26 240337107 A B Pan-crisper, clear, (2), no graphics

29 240357704 A B Trim-shelf, front

31 240530810 A B Pan, meat bin

40 240350620 A B Glass-shelf, 23.78" x 16.34"

41 240561502 A B Trim-shelf, rear

42 240530601 A B Track, meat pan hanger, LH

42 240530701 A B Track, meat pan hanger, RH

47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995460358 FRT18G5F

02/06 8

SYSTEM

N05CBBBAC4

30 56

FRT18G5F Publication No: 5995460358

# Functional Parts 9 02/06

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18G5F (FRT18G5FB2)

BFRT18G5F (FRT18G5FB3)

POS. NO PART NO. DESCRIPTION

1 # 241674102 A B Condenser, static

1* 240405201 A B Grommet, rubber, black, cond tube/wire

1* 5303208866 A B Spacer, condenser tube, black

2 241658801 A B Bracket, condenser mtg

4 # 218944001 A B Drier-filter, R134a System

6 # 240581601 A - Harness-wiring, machine compt

6 # 241678801 - B Harness-wiring, machine compt

6* # 240581801 A - Harness-wiring, compressor

6* # 240388701 A B Wiring Harness, control box

6* # 241520701 A B Harness-wiring, freezer

14 # 240356214 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241551801 A B Trough-drain

20 241551901 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665501 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240598501 A B Pan-defrost drain

26* 5303307896 A B Thermal Mastic

29 # 5303918297 A - Compressor, w/electricals

29 # 5303918326 - B Compressor, w/electricals

30 # 5304433579 A - Relay

30A# 241667501 - B Relay Combo

31 # 5304433578 A - Overload Protector

41 240433202 A B Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 A - Cover-terminal

57 240542601 A B Clip-wiring harness

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 A B Tube-drain, lower

85 241544301 A B Tube-connector, suction

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918234 A B Hot Tube Repair Kit, service

* 5303918263 A B Heat Exchanger Kit, suction line

Publication No: 5995460358 FRT18G5F

02/06 10

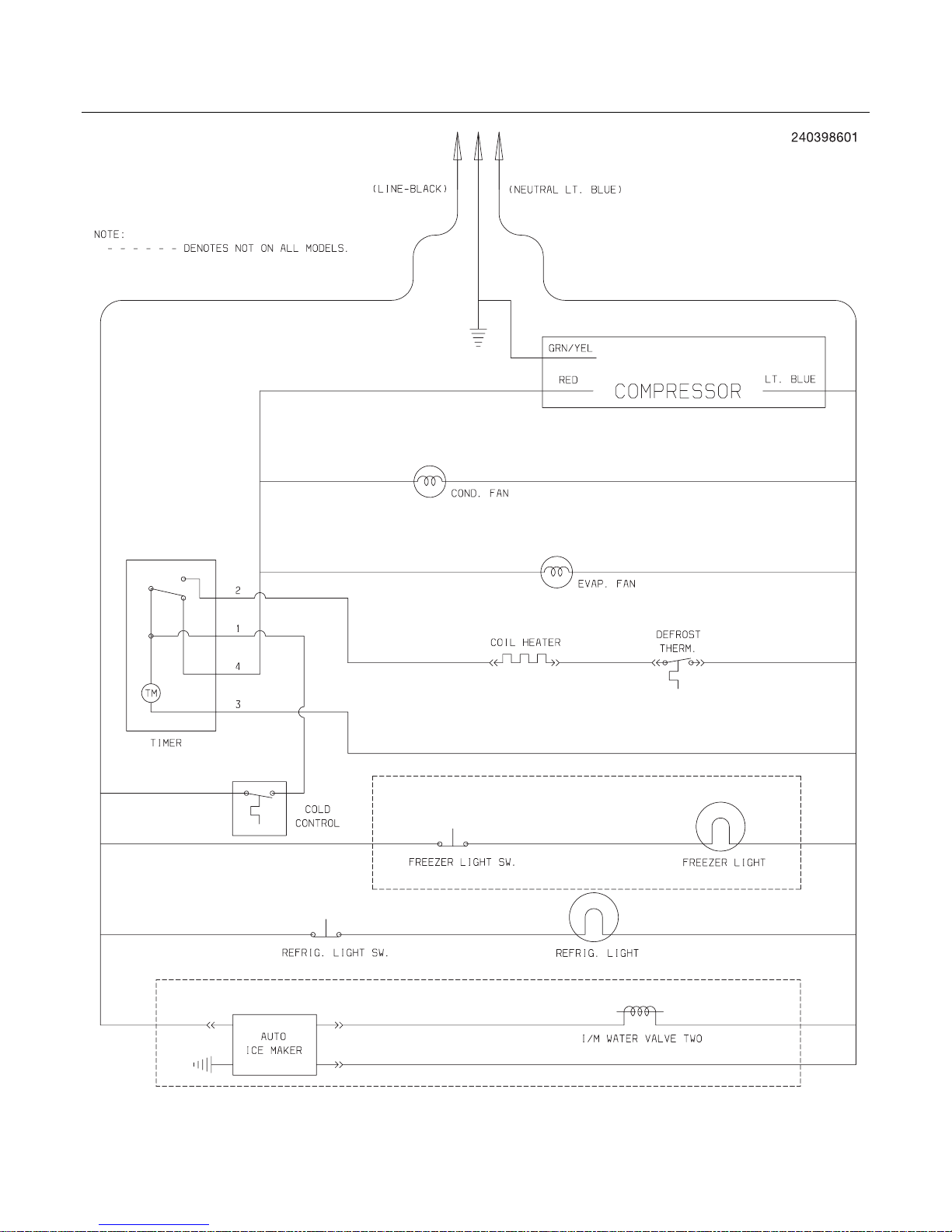

WIRING SCHEMATIC
