Frigidaire FRT18G7C Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18G7CW2 FRT18G7C R134a white 115

MARKET

North America

Publication No.

5995398343

031104

-EN/SERVICE/KHB

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT18G7C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - # 240572191

OWNER’S GUIDE - # 240400110

SERVICE DATA SHEET - # 240379011

11/03 2

Publication No. FRT18G7CW2

5995398343

DOOR

# = Fast-moving Parts 3 11/03

* = Non-Illustrated Parts

FRT18G7CW2 Publication No.

5995398343

POS. NO PART NO DESCRIPTION

1 240542103 Gasket-frzr door,white ,magnetic

2 240542106 Gasket-refr door,white ,magnetic

7 240338303 Door,dairy ,clear

8 240534801 Rack-door

10 240381301 Plug-button,white ,hinge brg hole ,(2)

11 240412501 Door,frzr ,white ,complete assy

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 240494001 Plug-button,white

18 218668001 Handle-door,white

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527101 Bearing-hinge,natural color

37 215870629 Trim-handle, 2.47", white, w/satin AL band

37* 218676004 Band-decorative, satin aluminum, handle trim

48 240338101 Bin-door, pseudo, bottom

48A 240338201 Bin-door, gallon

DOOR

11/03 4

Publication No. FRT18G7CW2

5995398343

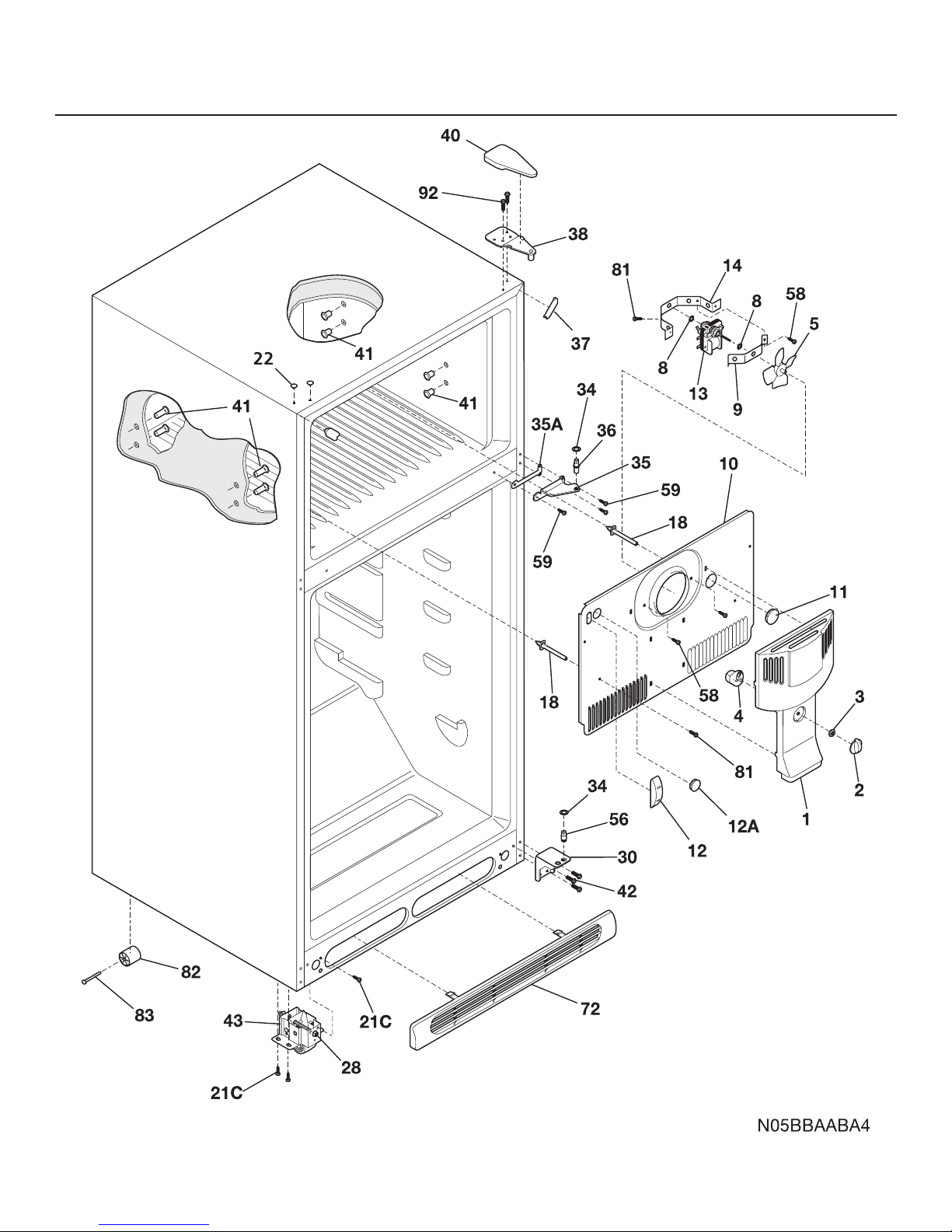

CABINET

# = Fast-moving Parts 5 11/03

* = Non-Illustrated Parts

FRT18G7CW2 Publication No.

5995398343

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240462010 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12* 218843800 Screw,hex wshr hd ,8-15A x 0.500

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft

13* 218931001 Clamp-motor wiring,nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head ,8-18 x 0.375

18 240411901 Support-evap cover, (2)

21C 218252200 Screw,#8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special

30 240314002 Bracket-lower hinge, white

34 240311303 Washer,hinge ,nylon, (2)

35 240313802 Bracket-ctr hinge, white

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5303001609 Grommet, shelf mtg, 0.69" ,RH

41* 5308009759 Grommet, shelf mtg, 1.25" ,LH

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4,white

72 240368205 Grille/Kickplate,white

81 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller,compressor base, rear, (2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4, roller pin

92 5303001479 Screw-hinge mtg,hex hd, 1/4-20 x 0.875

* 240479601 Plug,button ,cab liner holes ,(2)

* 5303305324 Paint,touch-up ,white

CABINET

11/03 6

Publication No. FRT18G7CW2

5995398343

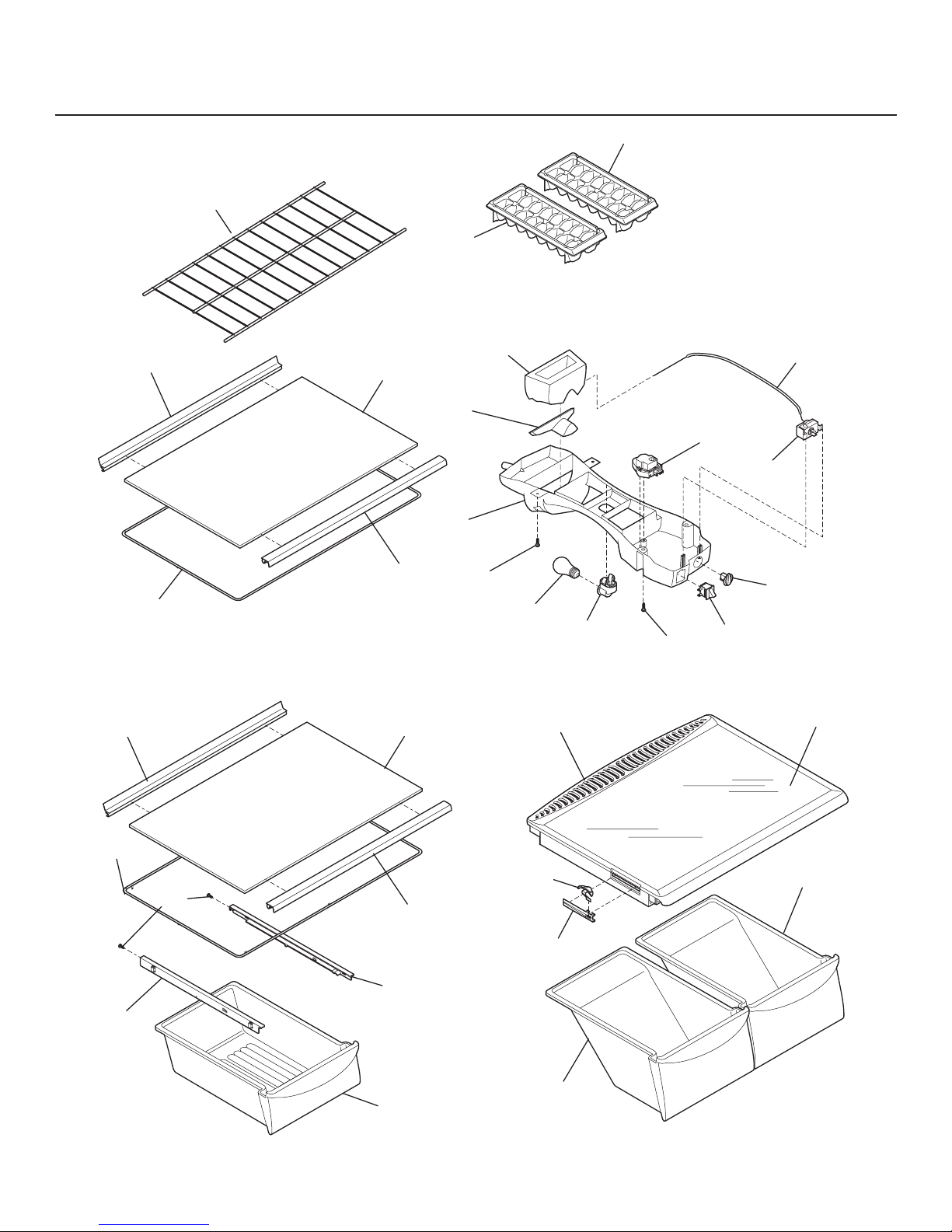

SHELVES

25 47

N05SAAAEF14

22A

24A

123

25B

25C

# = Fast-moving Parts 7 11/03

* = Non-Illustrated Parts

FRT18G7CW2 Publication No.

5995398343

POS. NO PART NO DESCRIPTION

10 215667501 Tray,ice cube ,plastic

11 240358002 Shelf-freezer,full width

12 240545001 Diffuser,air ,top

13 240362601 Diffuser,air ,bottom

14 240505801 Switch,light/lamp

15 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372409 Frame, sliding shelf, full width

24A 240372410 Frame, sliding shelf, full width, w/hanger tabs

25 240364713 Cover-crisper pan, with beam, humid cont

25B 240361202 Control-humidity

25C 240361301 Damper, humidity cont.

26 240337103 Pan-crisper, clear, (2), no graphics

29 240357704 Trim-shelf, front

31 240530803 Pan-meat, w/o graphics ,clear

40 240350620 Glass-shelf, 23.78" x 16.34"

41 240561502 Trim-shelf, rear

42 240530601 Track, meat pan hanger, LH

42 240530701 Track, meat pan hanger, RH

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

SHELVES

11/03 8

Publication No. FRT18G7CW2

5995398343

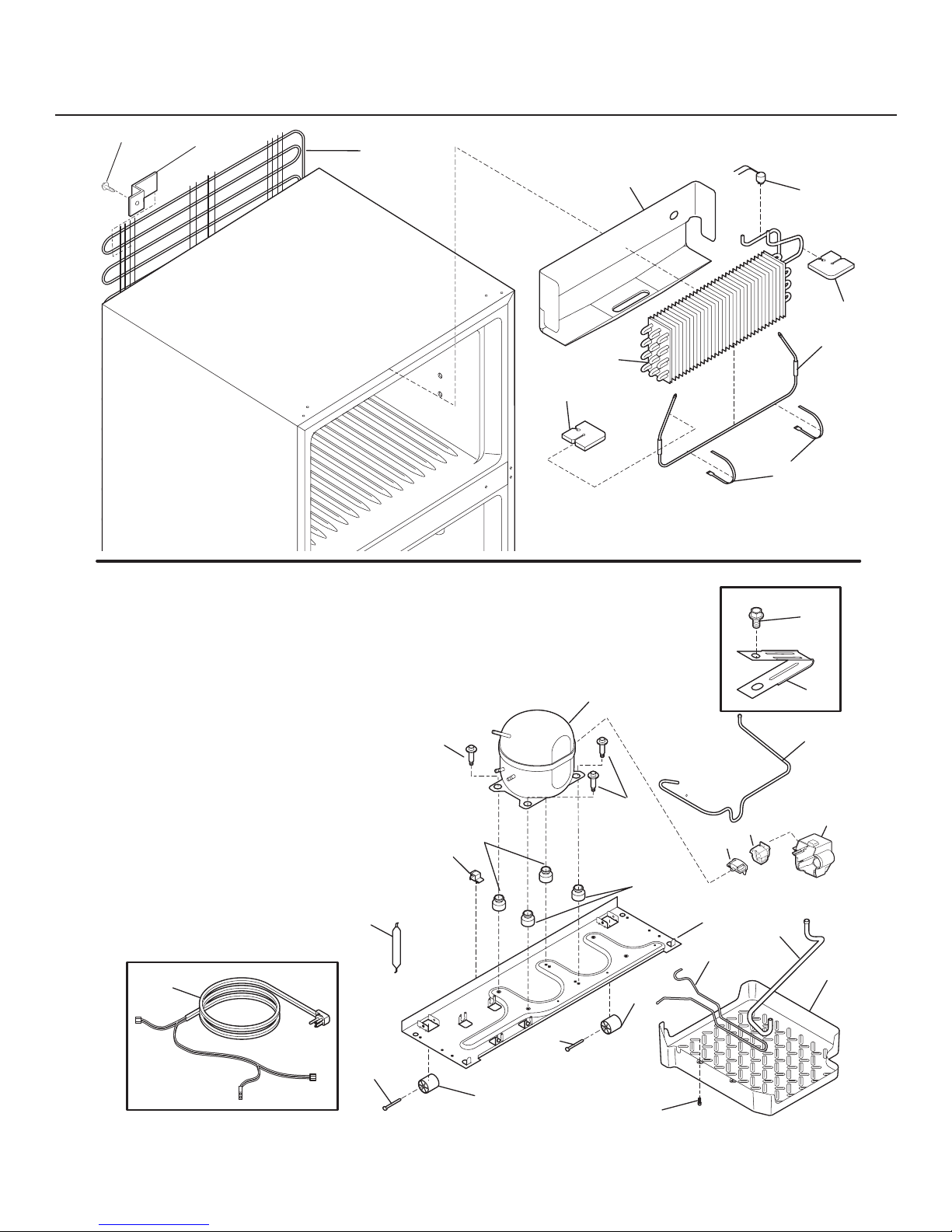

SYSTEM

N05CBBBAB0

30 56

# = Fast-moving Parts 9 11/03

* = Non-Illustrated Parts

FRT18G7CW2 Publication No.

5995398343

POS. NO PART NO DESCRIPTION

1 # 240406406 Condenser, static

1* 5303208866 Spacer, condenser tube, black

2 5308000296 Bracket, condenser mtg, (4)

4 # 218944001 Drier-filter,R134a System

6 # 240581601 Harness-wiring, machine compt

6* # 240581801 Harness-wiring, compressor

6* 241520701 Harness-wiring

6* # 240388701 Wiring Harness, control box

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 240434004 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332605 Pan-defrost drain

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

41 240433202 Screw,hex washer head ,8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 241504201 Tube-connector, suction

87 240533004 Tube-Condensate

* 218843800 Screw, hex wshr hd, 8-15A x 0.500

* 240396801 Clamp, tube/wiring, nylon ,black/natural

* # 5303918263 Heat Exchanger Kit, suction line

* 5303918234 Hot Tube Repair Kit, Service

SYSTEM

11/03 10

Publication No. FRT18G7CW2

5995398343

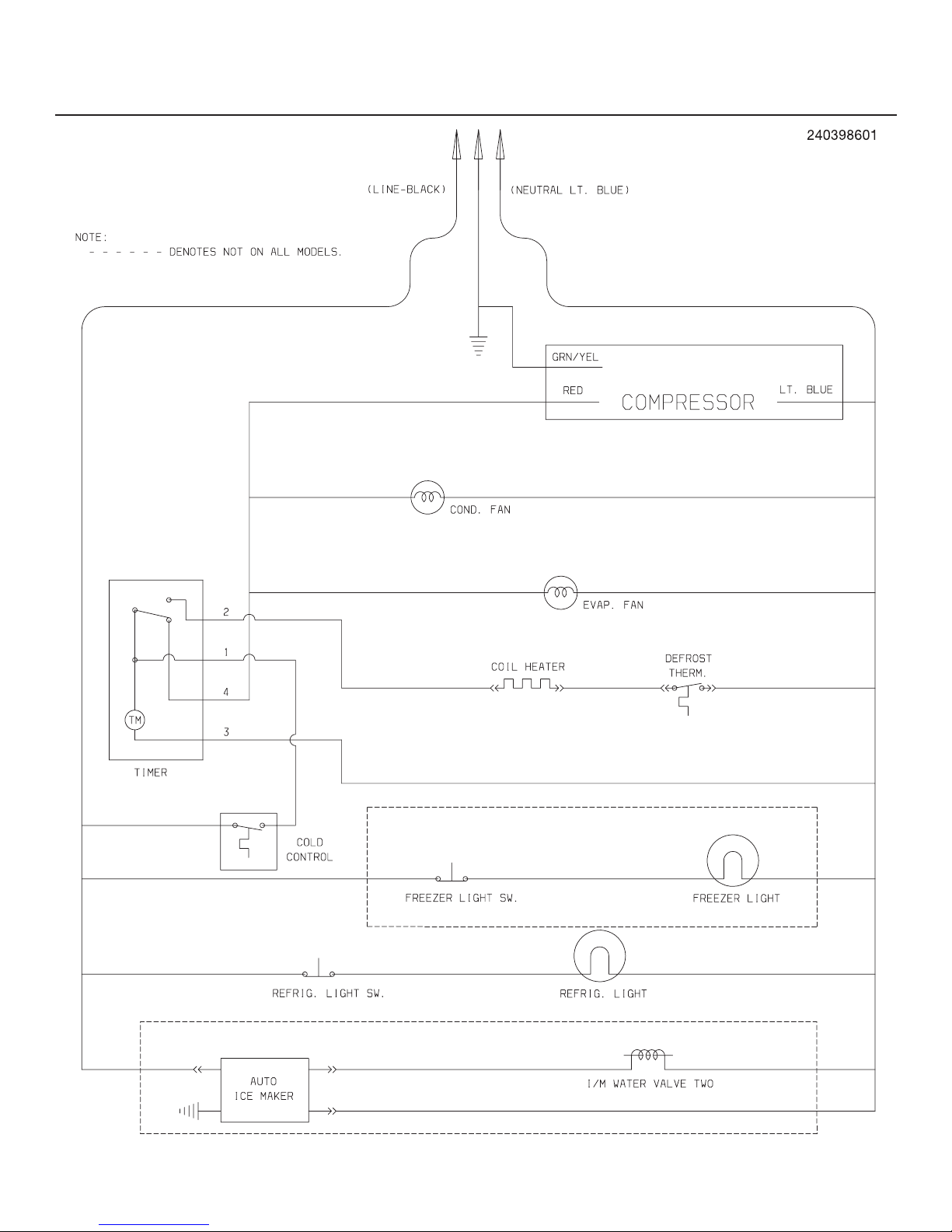

WIRING SCHEMATIC
