Frigidaire FRT18HB5J Manuale di istruzioni

N05L00001.eps N05DAACKA1.eps N05BBAABA17.eps N05SADDDA1.eps

N05CAABAD4.eps W241582401.eps S241582801.eps

Product No. FRT18HB5JW5 FRT18HB5JZ5

Series R134a R134a

Color white (RH) white (LH)

Volts 115 115

Wiring Diagram 241582401 241582401

Owner's Guide 241857201 241857201

Market North America North America

Energy Guide 241868069 241868069

Service Data Sheet 241588203 241588203

Installation Instructions 240568303 240568303

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995530184

08/12/09

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18HB5J

Publication No: 5995530184 FRT18HB5J

12/08 2

DOOR

13A

21C

N05DAACKA1

FRT18HB5J Publication No: 5995530184

# Functional Parts 3 12/08

* Non-Illustrated Parts

DOOR

Model Index: AFRT18HB5J (FRT18HB5JW5)

BFRT18HB5J (FRT18HB5JZ5)

POS. NO PART NO. DESCRIPTION

1 241872503 A B Gasket-frzr door, white, magnetic

2 241872506 A B Gasket-refr door, white, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337701 A B Door-dairy, w/o graphics, white

8 240534801 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240410201 A B Door-frzr, white, complete assy

12 241808601 A B Label-nameplate

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 240410301 A B Door-refr, white, complete assy

18 218668001 A B Handle-door, white

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

37 215870629 A B Trim-handle, 2.47", white, w/satin AL band

37* 218676004 A B Band-decorative, satin aluminum, handle trim

Publication No: 5995530184 FRT18HB5J

12/08 4

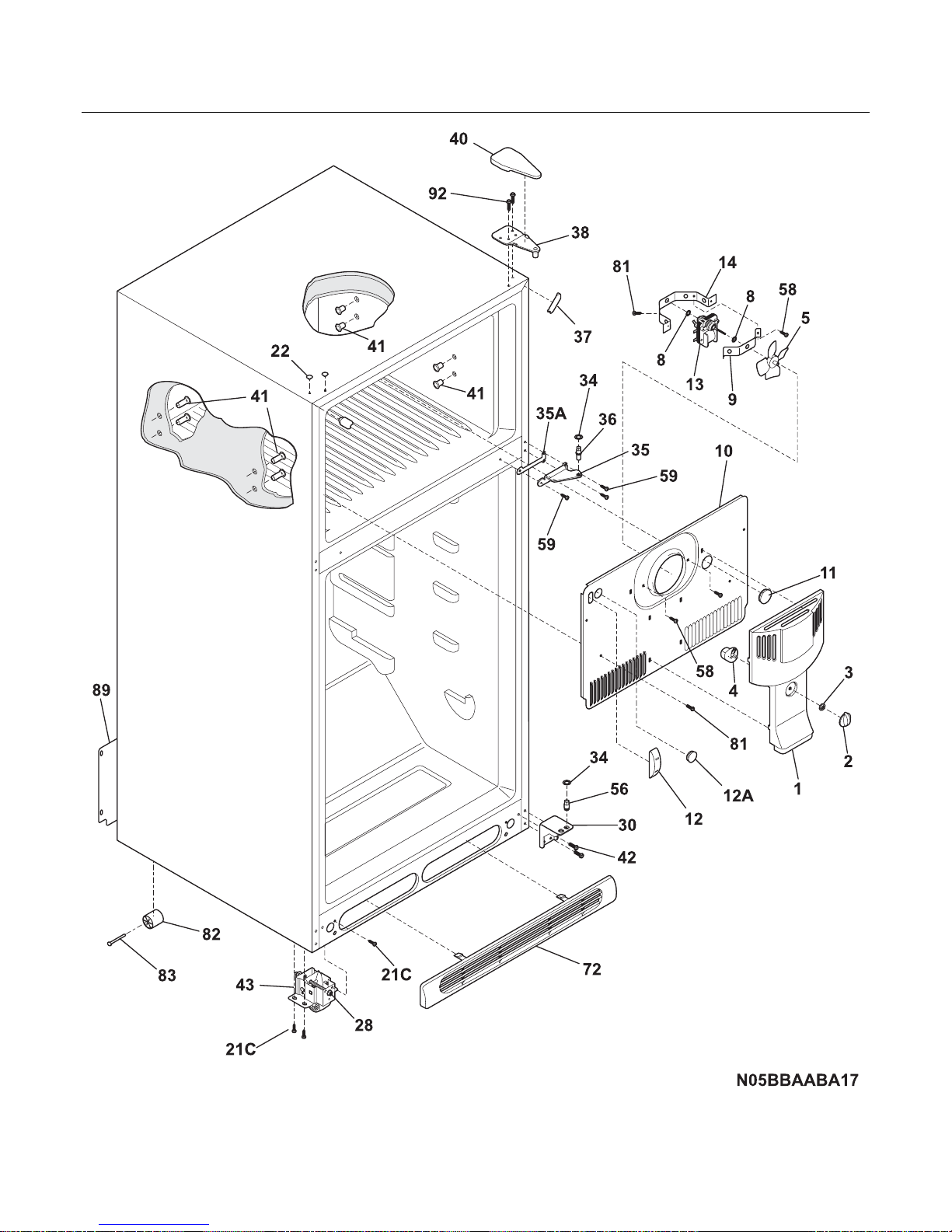

CABINET

FRT18HB5J Publication No: 5995530184

# Functional Parts 5 12/08

* Non-Illustrated Parts

CABINET

Model Index: AFRT18HB5J (FRT18HB5JW5)

BFRT18HB5J (FRT18HB5JZ5)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652214 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 # 241854301 A B Motor-fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314011 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313806 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 241611301 A B Trim-cabinet corner, white, (2)

38 240313701 A B Bracket-upper hinge

40 240354401 A B Cover-upper hinge, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335005 A B Roller Assy, adjustable, front, (2)

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442706 A B Screw-#10-32 X 3/4, zinc

72 241839405 A B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B Cover-access, with label

89* 241500304 A B Screw, hex washer head, 8-18AB x 0.625

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 218515401 A B Clip

* 240479601 A B Plug, button, cab liner holes

* 5303321319 A B Paint, touch-up, white

Publication No: 5995530184 FRT18HB5J

12/08 6

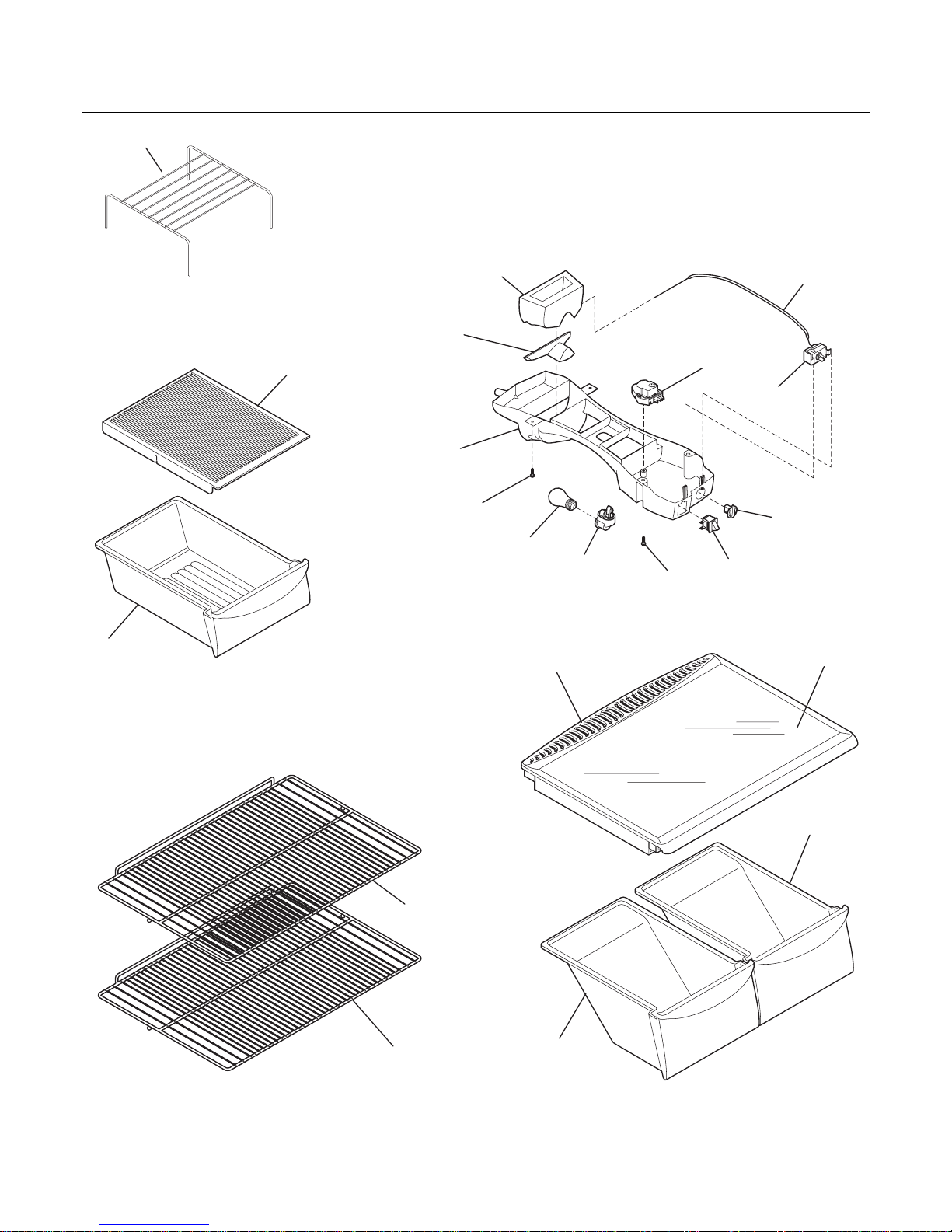

SHELVES

25 47

N05SADDDA1

22A

FRT18HB5J Publication No: 5995530184

# Functional Parts 7 12/08

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18HB5J (FRT18HB5JW5)

BFRT18HB5J (FRT18HB5JZ5)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B Shelf-freezer, "table type"

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240352702 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5304455649 A B Screw, pan hd, 6-20 x 0.438

24 240360905 A B Shelf, sliding, wire

25 240364701 A B Cover-crisper pan, w/ beam, less insert

26 240337101 A B Pan-crisper, white, (2), no graphics

30 240361801 A B Cover, meat pan hanger, drop through

31 240530801 A B Pan-meat, w/o graphics, white

47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 241868069 A B Energy Guide

Publication No: 5995530184 FRT18HB5J

12/08 8

SYSTEM

17 21

N05CAABAD4

24 25

59B

59A

59A 58

FRT18HB5J Publication No: 5995530184

# Functional Parts 9 12/08

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18HB5J (FRT18HB5JW5)

BFRT18HB5J (FRT18HB5JZ5)

POS. NO PART NO. DESCRIPTION

1 # 241785402 A B Condenser, dynamic

4 218944002 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

14 # 240356221 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801301 A B Trough-drain

20 241551902 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665606 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

24 241812301 A B Washer-compr mtg

25 216056401 A B Clip-compressor mtg

26 241683601 A B Pan-defrost

29 # 5303918415 A B Compressor Kit

30 # 241707720 A B Starter-PTC

32 216649200 A B Clip, controller

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240433204 A B Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B Clamp-wiring harness, strain relief, galv steel

45 241500304 A B Screw, hex washer head, 8-18AB x 0.625

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 240569201 A B Screw, 8-18 x 0.500

59 240315505 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

59A 240346501 A B Bracket-support, cond mtr, (3)

59B 240346601 A B Grommet-bracket, (3)

60 241584301 A B Motor-condenser fan

61 241639501 A B Blade-condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 241844601 A B Tube-connector, suction

86 240409302 A B Spacer-cond tube, black

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918263 A B Heat Exchanger Kit, suction line

* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995530184 FRT18HB5J

12/08 10

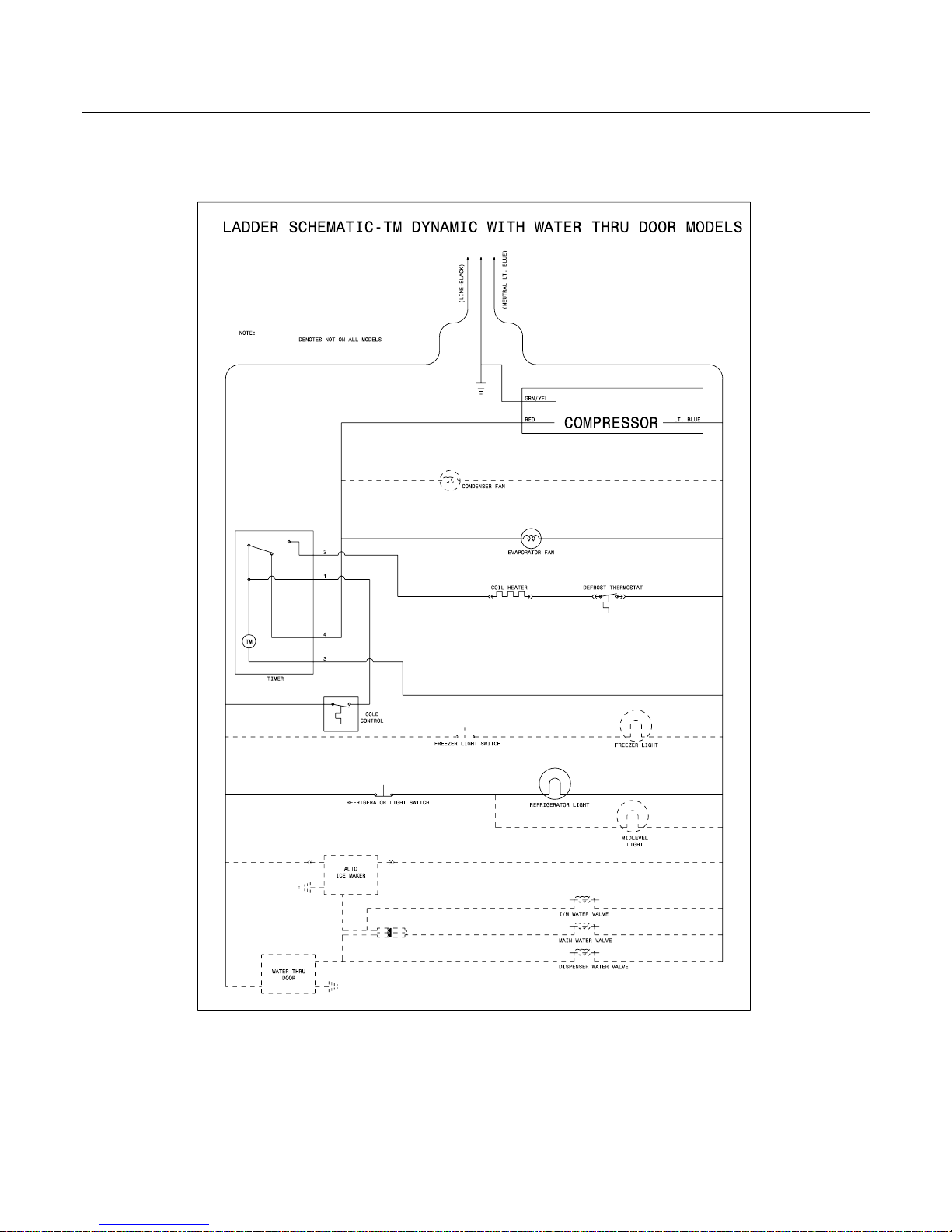

WIRING SCHEMATIC
