Frigidaire FRT21IL5D Manuale utente

N05L00003.eps N05DCDBCA1.eps N05BBAAAD7.eps N05SACAFH16.eps

N05CAAAAA22.eps 115-1.eps 240398801.eps 240398601.eps

Product No. FRT21IL5DMF

Series R134a

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 241796800

Market North America

Energy Guide 240598683

Service Data Sheet 240379018

Installation Instructions 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995491742

07/05/30

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21IL5D

Publication No: 5995491742 FRT21IL5DMF

05/07 2

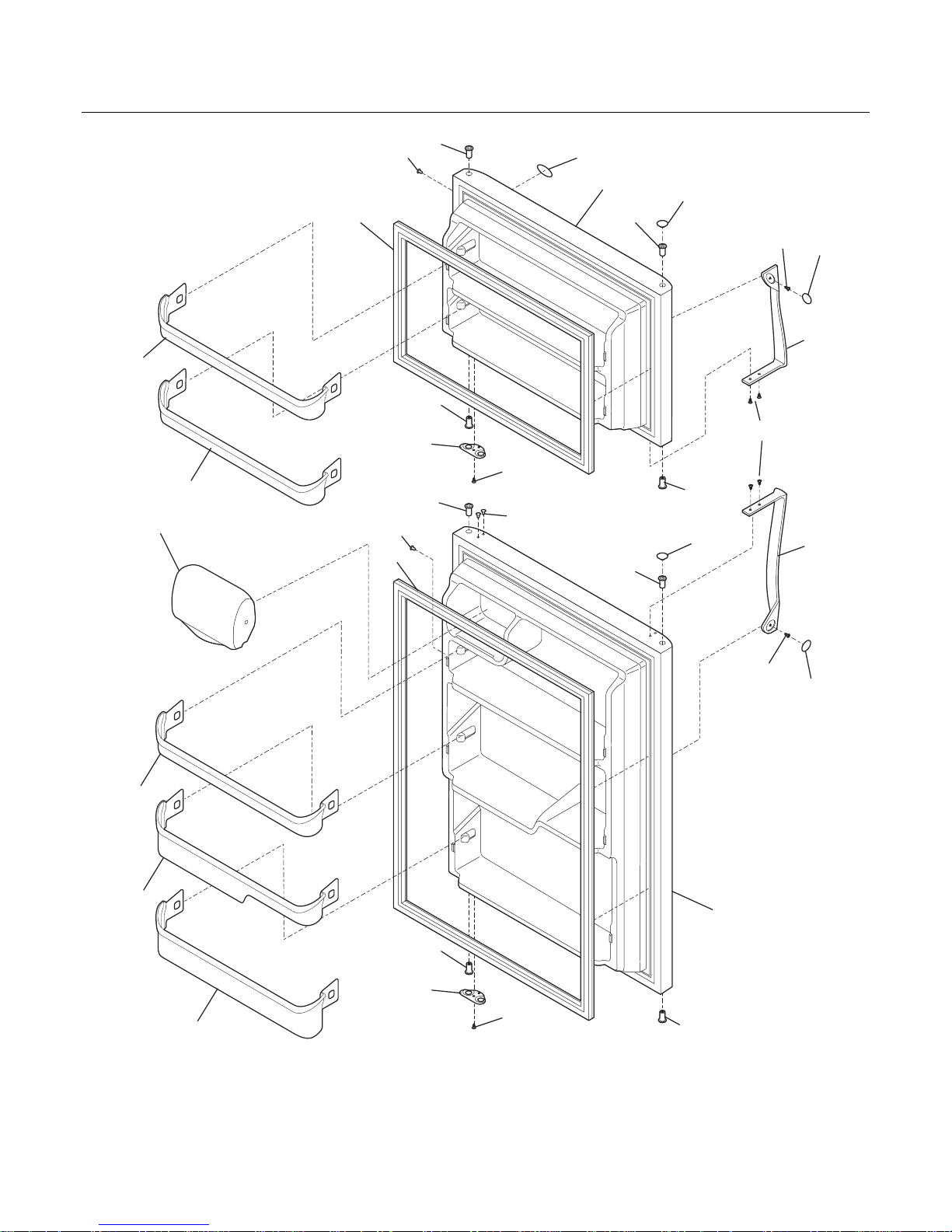

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21IL5DMF Publication No: 5995491742

# Functional Parts 3 05/07

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 240514611 Gasket, seal, black, frzr door, magnetic

2 # 240514612 Gasket, seal, black, refr door, magnetic

7 240337703 Door-dairy, w/o graphics, clear

10 240381306 Plug-button, silver mist, hinge brg hole

11 241798428 Door-frzr, silver mist, complete assy

12 241808601 Label-nameplate

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14 240494006 Plug-button, silver mist

14B 240383603 Plug-button, black, door handle

15 241798534 Door-refr, silver mist, complete assy

18 240339203 Handle-door, black, refr-LH/frzr-RH

18A 240339208 Handle-door, black, refr-RH/frzr-LH

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995491742 FRT21IL5DMF

05/07 4

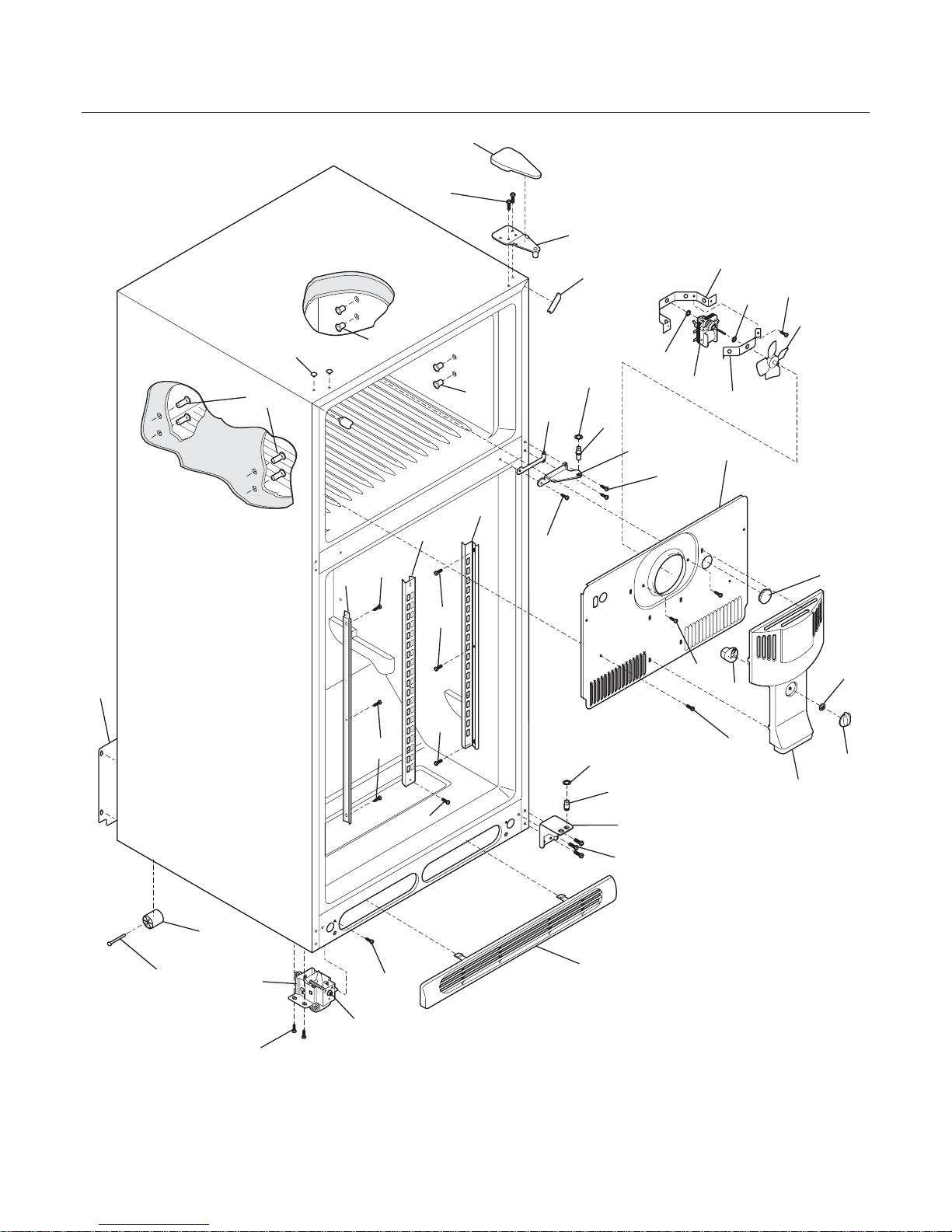

CABINET

35A 36

N05BBAAAD7

21C

FRT21IL5DMF Publication No: 5995491742

# Functional Parts 5 05/07

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303212803 Nut

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313612 Cover-evap coil, w/o light

10* 240568606 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

13 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

14 5303292397 Bracket-motor mtg, rear

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336803 Spacer-hinge, center, black

36 240516402 Pin-center hinge

37 240337610 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 Roller Assy, adjustable, front, (2)

47 218233301 Channel-shelf mtg, side, (2)

48 5303292395 Channel-shelf mtg, center

49 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516502 Pin-lower hinge

58 240433204 Screw, hex washer head, 8-18 x 5/16

59 240442707 Screw-#10-32 X 3/4, black

72 240368207 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 Cover-access, with label

89* 241500303 Screw, hex washer head, 8-18AB x 0.500

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5303321321 Paint, touch-up, black

Publication No: 5995491742 FRT21IL5DMF

05/07 6

SHELVES

25 25B

25C

N05SACAFH16

123

24B

22A

FRT21IL5DMF Publication No: 5995491742

# Functional Parts 7 05/07

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358006 Shelf, freezer, full-width, wire

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240368101 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21# 5304445058 Control-temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 Shelf-"Spill-Safe", cantilever, fixed

24B 240408903 Shelf-"Spill-Safe", cantilever fixe

25 240364718 Cover-crisper pan

25B 241613501 Control-humidity, RH

25C 241613502 Control-humidity, LH

26 240343803 Pan, crisper, (2)

31 240530803 Pan-meat, w/o graphics, clear

34 240385201 Container, ice bin

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350654 Insert-pan cover, glass

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

* 240379018 Service Data Sheet

* 240598683 Label-energy

Publication No: 5995491742 FRT21IL5DMF

05/07 8

SYSTEM

17 21

N05CAAAAA22

FRT21IL5DMF Publication No: 5995491742

# Functional Parts 9 05/07

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241682903 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 240356217 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602010 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 Screw, hex head, 10-32 x 0.500

23 241659701 Grommet, compressor

25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 Pan-defrost

29 # 5303918352 Compressor Kit

30 241707705 Starter-PTC

32 216954300 Clip, controller

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555002 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 218897004 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359403 Screw-fan shroud, (2)

60 # 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241665801 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918330 Heat Exchanger Kit, suction line, service

* # 5304421289 Hot Tube Repair Kit, service

Publication No: 5995491742 FRT21IL5DMF

05/07 10

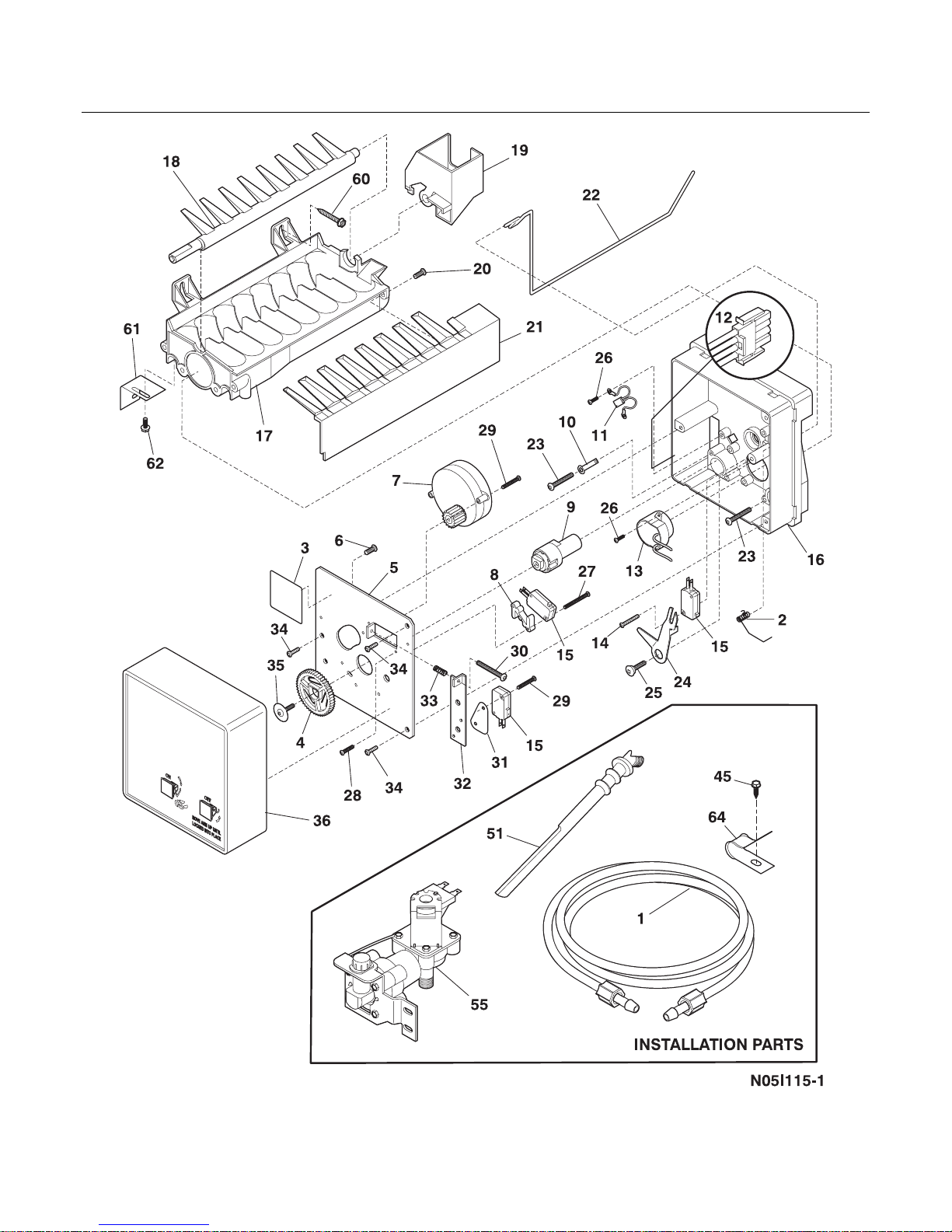

ICE MAKER
