Frigidaire FRT21IS6B Manuale utente

Product No. FRT21IS6BB5 FRT21IS6BQ5 FRT21IS6BW5

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 240400111 240400111 240400111

Market North America North America North America

Energy Guide 218791400 218791400 218791400

Service Data Sheet 240379014 240379014 240379014

Installation Instructions 240568300 240568300 240568300

N05L00002.eps N05DCDBCA1.eps N05BBAAAA1.eps N05SACAFI13.eps

N05CABBAB6.eps 115-1.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413514

04/07/21

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21IS6B

Publication No: 5995413514 FRT21IS6B

07/04 2

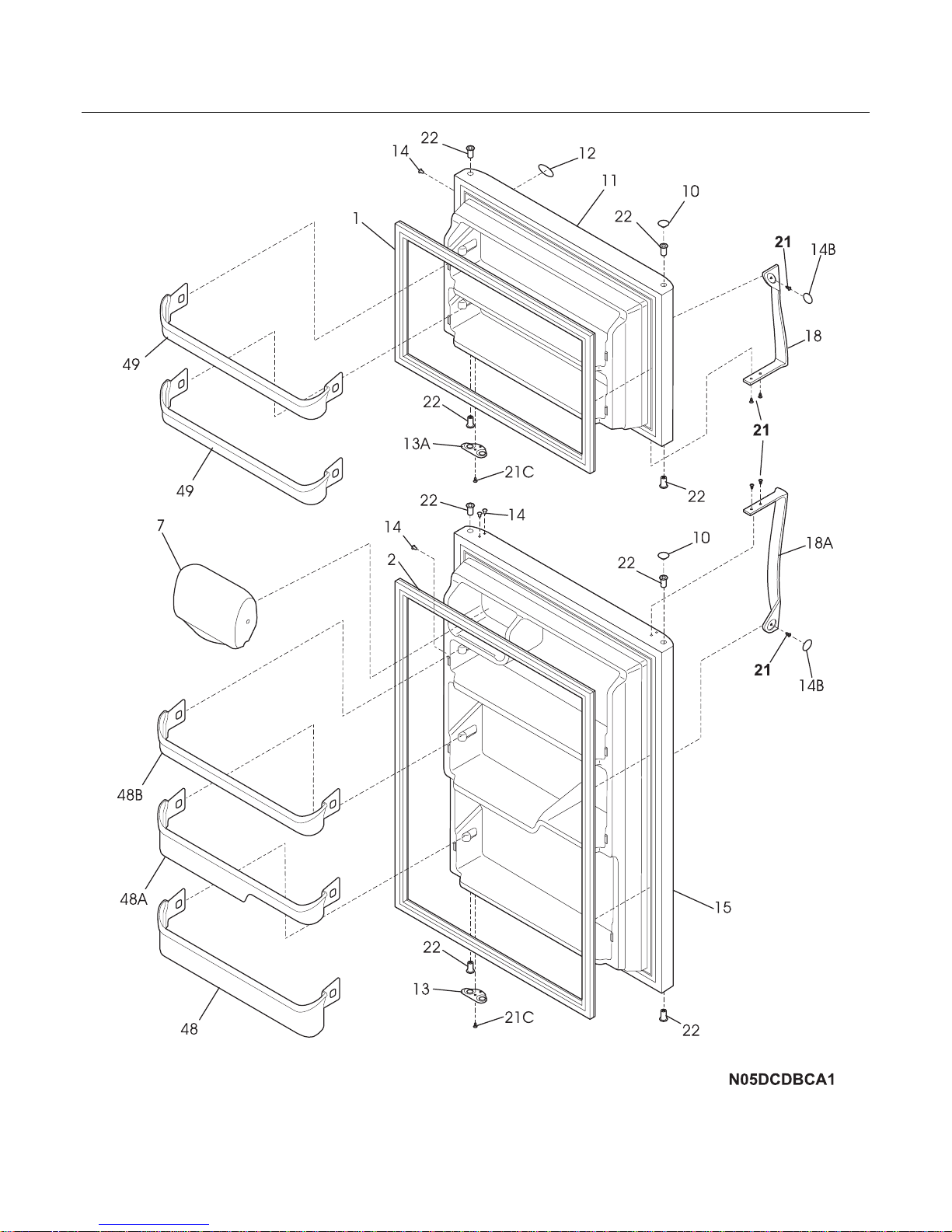

DOOR

FRT21IS6B Publication No: 5995413514

# Functional Parts 3 07/04

* Non-Illustrated Parts

DOOR

Model Index: AFRT21IS6B (FRT21IS6BB5)

BFRT21IS6B (FRT21IS6BQ5)

CFRT21IS6B (FRT21IS6BW5)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic

2 # 240514612 A - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - B C Gasket, seal, white, refr door, magnetic

7 240337703 A B C Door-dairy, w/o graphics, clear

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 240450312 A - - Door, frzr, black

11 240450306 - B - Door, frzr, bisque

11 240450302 - - C Door, frzr, white

12 240416304 A - - Nameplate, black

12 240416303 - B - Label-nameplate, bisque

12 240416301 - - C Label-nameplate, white

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

14B 240383603 A - - Plug-button, black, door handle

14B 240383602 - B - Plug-button, bisque, door handle

14B 240383601 - - C Plug-button, white, door handle

15 240450412 A - - Door, refr, black

15 240450406 - B - Door, refr, bisque

15 240450402 - - C Door, refr, white

18 240339203 A - - Handle-door, black

18 240339204 - B - Handle-door, bisque

18 240339201 - - C Handle-door, white

18A 240339208 A - - Handle-door, black

18A 240339209 - B - Handle-door, bisque

18A 240339206 - - C Handle-door, white

21 240383401 A B C Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

48 240338101 A B C Bin-door, pseudo, bottom

48A 240337901 A B C Bin-door, refr

48B 240338001 A B C Bin-door, pseudo, gallon, refr

49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995413514 FRT21IS6B

07/04 4

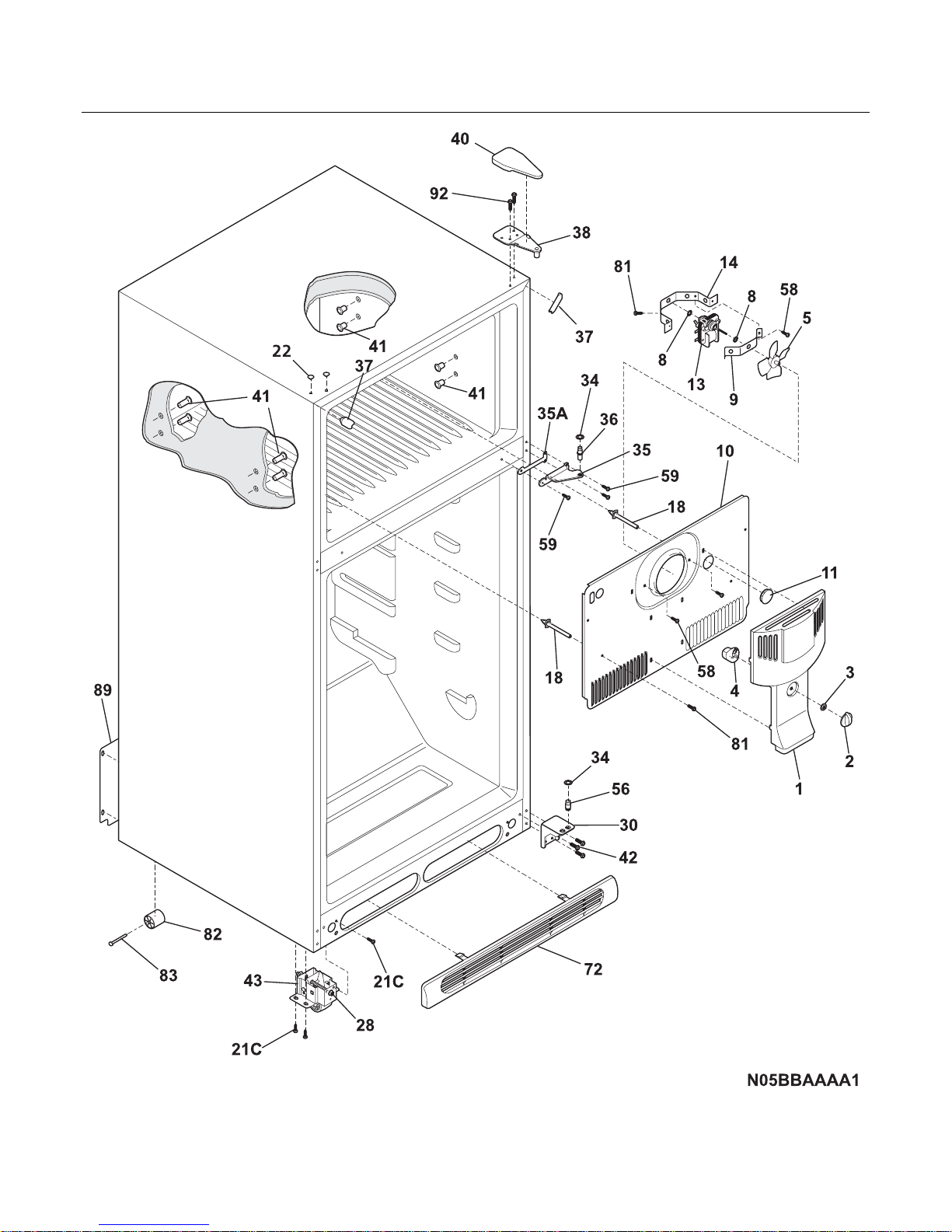

CABINET

FRT21IS6B Publication No: 5995413514

# Functional Parts 5 07/04

* Non-Illustrated Parts

CABINET

Model Index: AFRT21IS6B (FRT21IS6BB5)

BFRT21IS6B (FRT21IS6BQ5)

CFRT21IS6B (FRT21IS6BW5)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 241523701 A B C Damper-fan cover

5 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240313610 A B C Cover-evap coil, w/o light

10* 240568606 A B C Seal-coil cover

10*# 240524701 A B C Wiring Harness, freezer section

11 5303208309 A B C Plug-hole, factory test

13 240369702 A B C Motor-evap fan

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375

18 240411901 A B C Support-evap cover, (2)

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A - - Bracket-lower hinge, black

30 240314004 - B - Bracket-lower hinge, bisque

30 240314002 - - C Bracket-lower hinge, white

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313804 - B - Bracket-ctr hinge, bisque

35 240313802 - - C Bracket-ctr hinge, white

35A 240336802 A B C Spacer-hinge, center

36 240516401 A B C Pin-center hinge

37 240337603 A - - Trim-cabinet corner, black, (2)

37 240337604 - B - Trim-cabinet corner, bisque, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 240313701 A B C Bracket-upper hinge

40 240354404 A - - Cover-upper hinge, black

40 240354403 - B - Cover-upper hinge, bisque

40 240354401 - - C Cover-upper hinge, white

41 5303001609 A B C Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B C Grommet, shelf mtg, 1.25", LH

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, front, (2)

56 240516501 A B C Pin-lower hinge

58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500

59 240442703 A - - Screw-#10-32 X 3/4, black

59 240442704 - B - Screw-#10-32 X 3/4, bisque

59 240442702 - - C Screw-#10-32 X 3/4, white

72 240368207 A - - Grille/Kickplate, black

72 240368206 - B - Grille/Kickplate, bisque

Publication No: 5995413514 FRT21IS6B

07/04 6

CABINET

FRT21IS6B Publication No: 5995413514

# Functional Parts 7 07/04

* Non-Illustrated Parts

CABINET

Model Index: AFRT21IS6B (FRT21IS6BB5)

BFRT21IS6B (FRT21IS6BQ5)

CFRT21IS6B (FRT21IS6BW5)

POS. NO PART NO. DESCRIPTION

72 240368205 - - C Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B C Cover-access, w/label

89* 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

Publication No: 5995413514 FRT21IS6B

07/04 8

SHELVES

FRT21IS6B Publication No: 5995413514

# Functional Parts 9 07/04

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21IS6B (FRT21IS6BB5)

BFRT21IS6B (FRT21IS6BQ5)

CFRT21IS6B (FRT21IS6BW5)

POS. NO PART NO. DESCRIPTION

11 240358003 A B C Shelf, freezer, full-width, wire

11* 5303299664 A B C Spacer, shelf

12 240545901 A B C Diffuser-air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 240436702 A B C Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241500701 A B C Socket-light/lamp

17 240368101 A B C Control Box

18 240360801 A B C Knob, temp control

21 # 5304421256 A B C Control, temperature

22A 5303916855 A B C Tube, sensor sleeve, plastic, clear

23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358909 A B C Shelf-"Spill-Safe", sliding

24A 240358910 A B C Shelf-"Spill-Safe", sliding, meat pan track

25 240364718 A B C Cover-crisper pan

25B 240361201 A B C Control-humidity

25C 240361301 A B C Damper, humidity cont.

26 240343803 A B C Pan, crisper, (2)

31 240530903 A B C Pan-meat, w/o graphics, clear

34 240385201 A B C Container, ice bin

47 240350654 A B C Insert-pan cover, glass

58 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995413514 FRT21IS6B

07/04 10

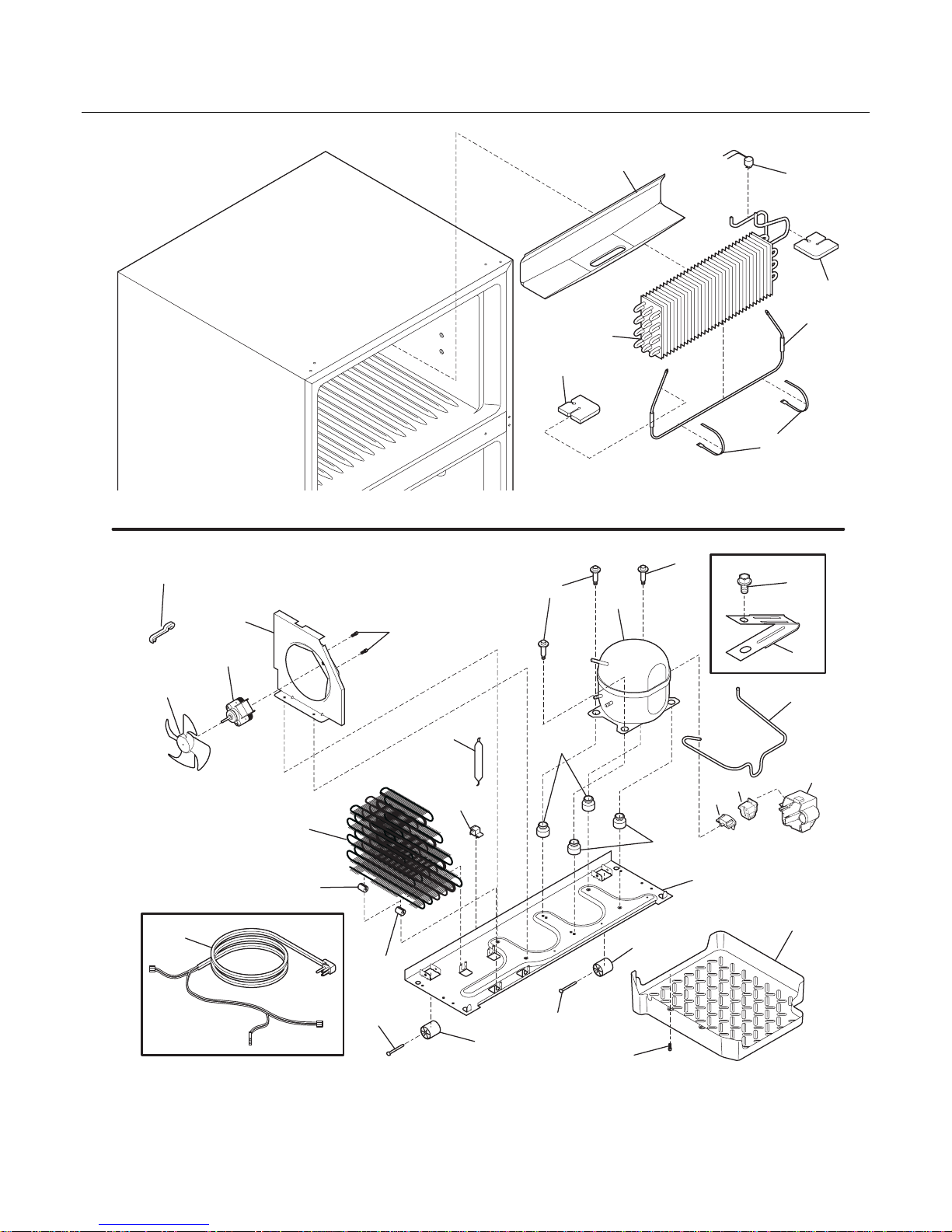

SYSTEM

N05CABBAB6
