Frigidaire FRT21S6A Manuale utente

N05L00003.eps N05DCDBCA1.eps N05BBAABA17.eps N05SABAFI1E.eps

N05CAAAAA22.eps W240469201.eps S240469201.eps

Product No. FRT21S6AWE

Series R134a

Color white

Volts 115

Wiring Diagram 241526901

Owner's Guide 241694400

Market North America

Service Data Sheet 240389618

Installation Instructions 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995529988

08/12/04

(EN/SERVICE/DCS)

137

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21S6A

Publication No: 5995529988 FRT21S6AWE

12/08 2

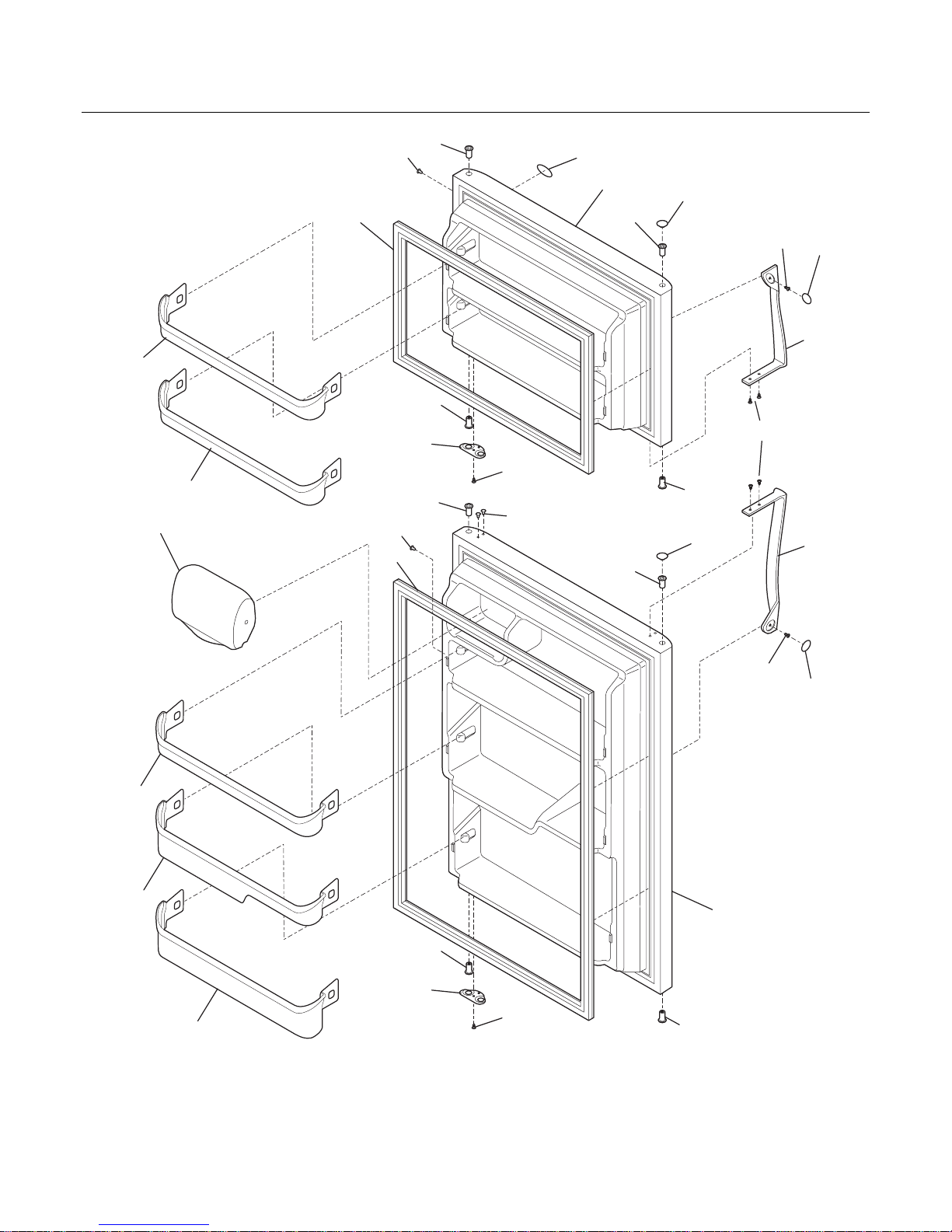

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21S6AWE Publication No: 5995529988

# Functional Parts 3 12/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514607 Gasket, seal, white, frzr door, magnetic

2 # 240514608 Gasket, seal, white, refr door, magnetic

7 240337703 Door-dairy, w/o graphics, clear

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240450302 Door, frzr, white

12 240416301 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

14B 240383601 Plug-button, white, door handle

15 240450402 Door, refr, white

18 240339201 Handle-door, white, refr-LH/frzr-RH

18A 240339206 Handle-door, white, refr-RH/frzr-LH

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995529988 FRT21S6AWE

12/08 4

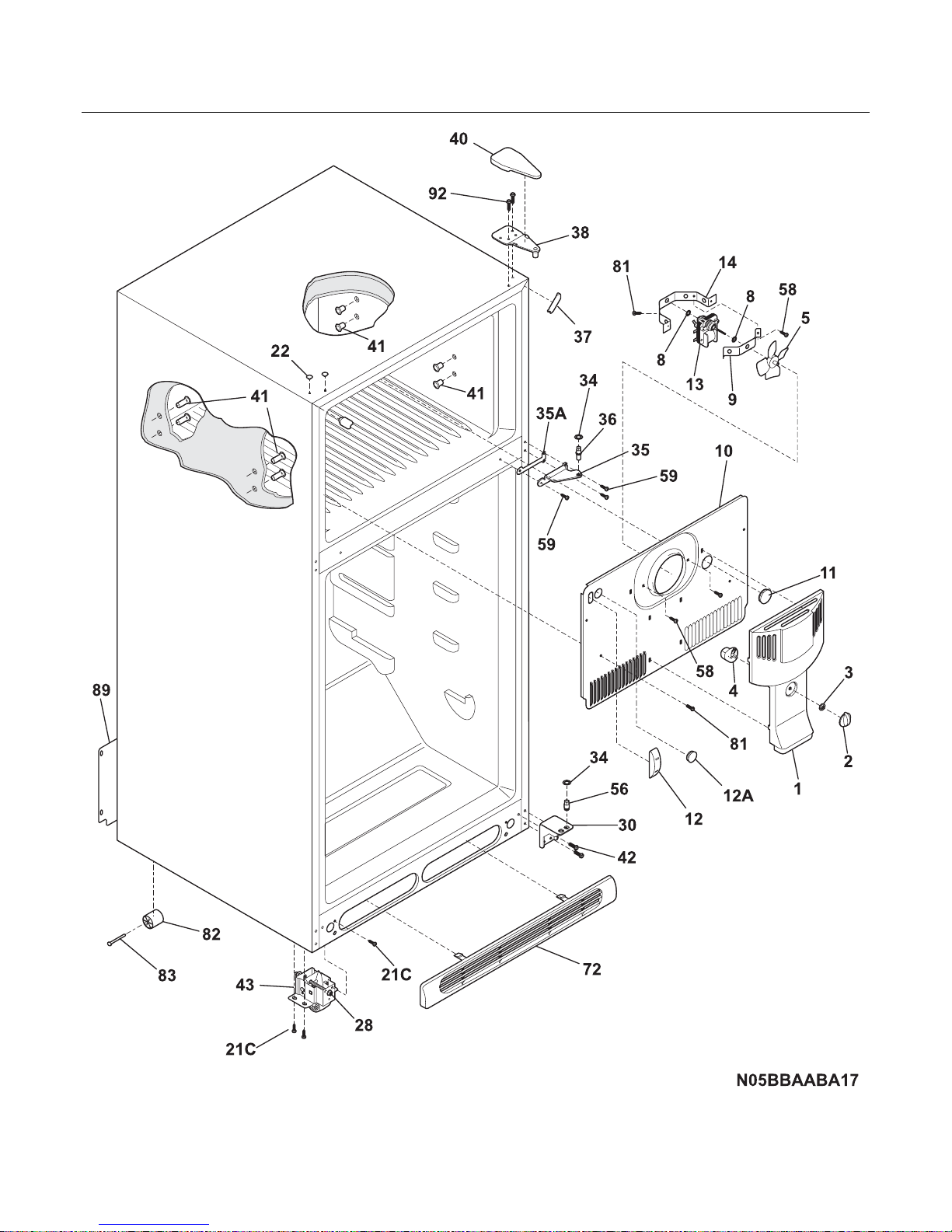

CABINET

FRT21S6AWE Publication No: 5995529988

# Functional Parts 5 12/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303212803 Nut

4 241523701 Damper-fan cover

5 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313612 Cover-evap coil, w/o light

10* 240568606 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13# 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314011 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313806 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516402 Pin-center hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335005 Roller Assy, adjustable, front, (2)

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442706 Screw-#10-32 X 3/4, zinc

72 240368205 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 Cover-access, with label

89* 241500303 Screw, hex washer head, 8-18AB x 0.500

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995529988 FRT21S6AWE

12/08 6

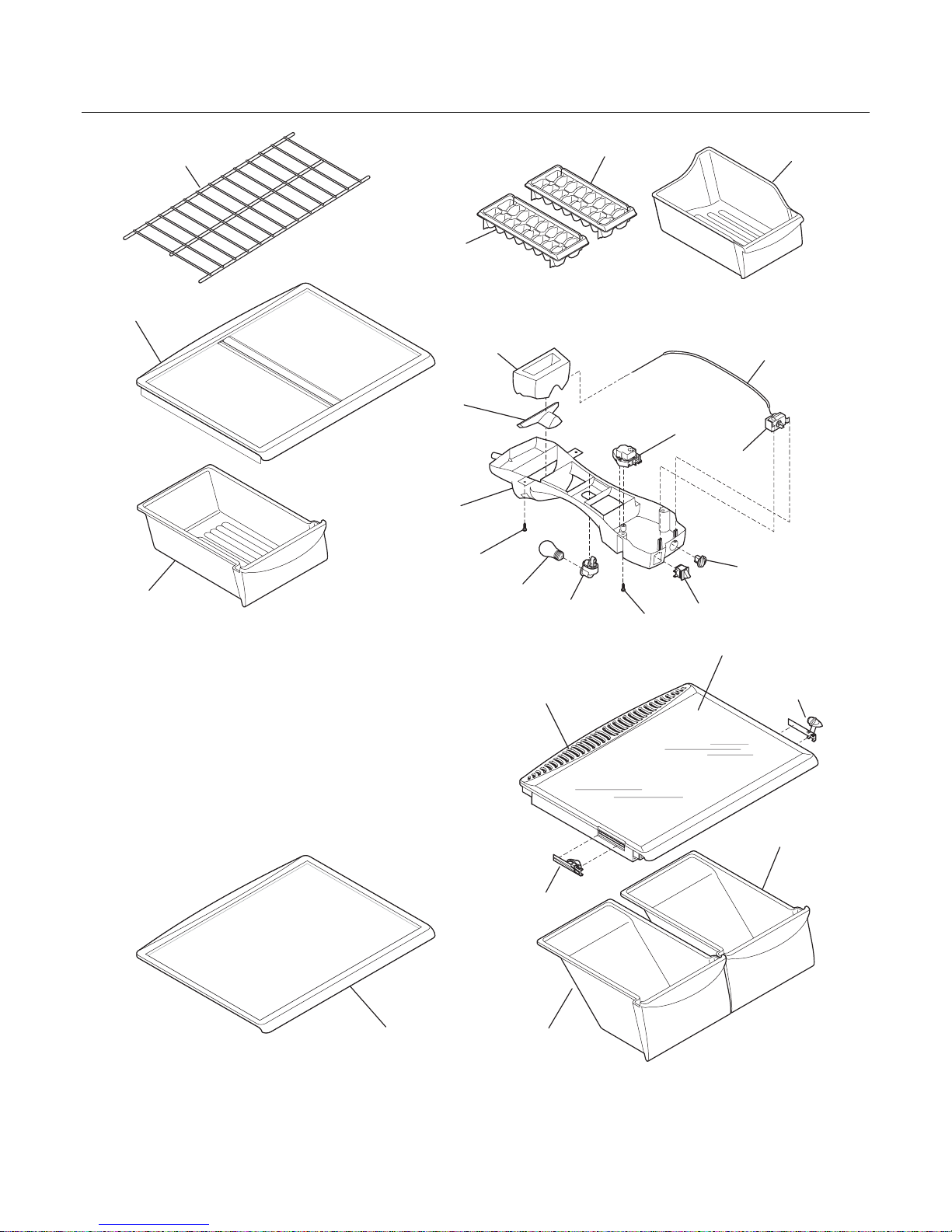

SHELVES

11 10

24A

22A

25B

25C

N05SABAFI1E

FRT21S6AWE Publication No: 5995529988

# Functional Parts 7 12/08

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358006 Shelf, freezer, full-width, wire

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 # 241559801 Socket-light

17 240368102 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304445058 Control-temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 Screw, pan hd, 6-20 x 0.438

24 240358909 Shelf-"Spill-Safe", sliding

24A 240358910 Shelf-"Spill-Safe", sliding, meat pan track

25 240364718 Cover-crisper pan

25B 241613501 Control-humidity, RH

25C 241613502 Control-humidity, LH

26 240343803 Pan, crisper, (2)

31 240530803 Pan-meat, w/o graphics, clear

34 240385201 Container, ice bin

47 240350654 Insert-pan cover, glass

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995529988 FRT21S6AWE

12/08 8

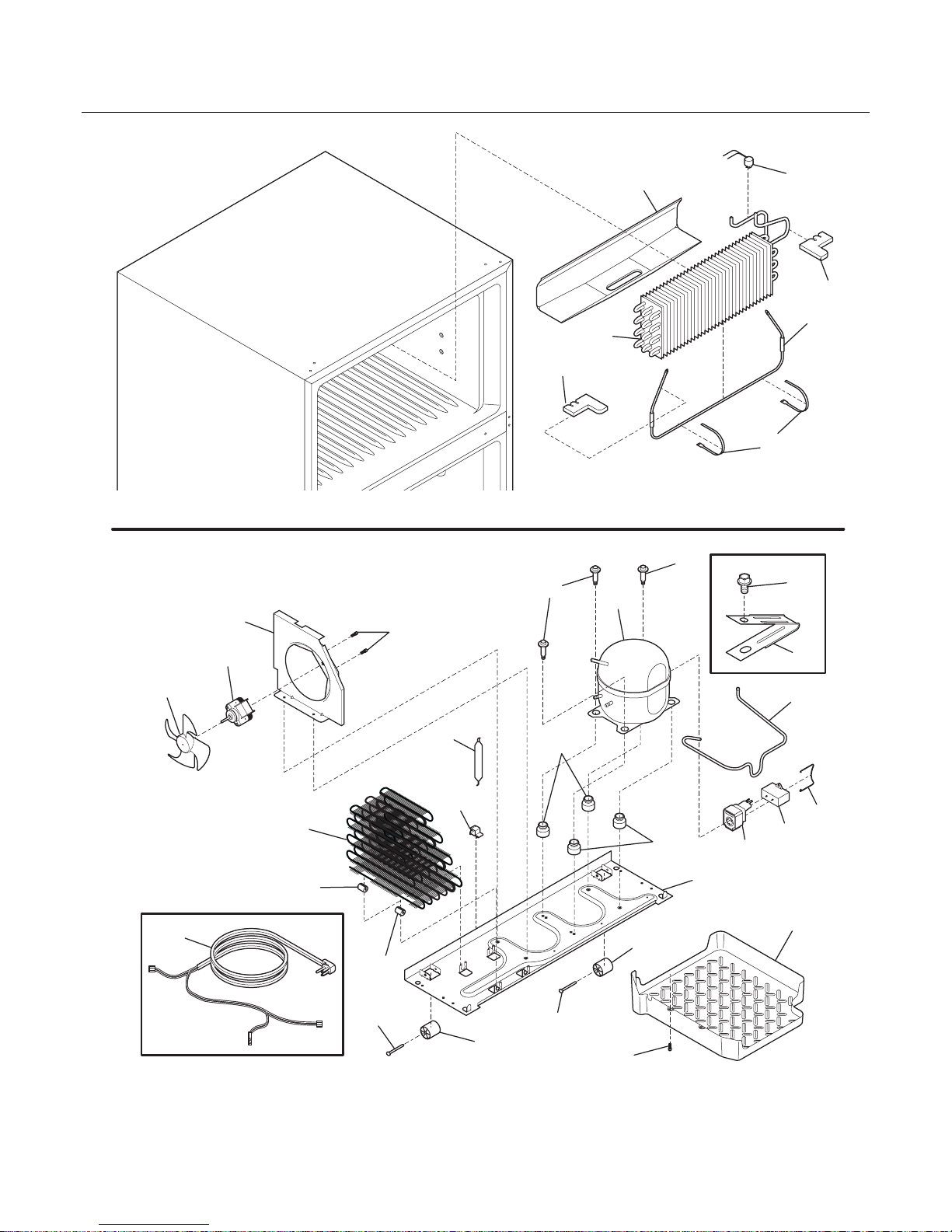

SYSTEM

17 21

N05CAAAAA22

FRT21S6AWE Publication No: 5995529988

# Functional Parts 9 12/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 240356217 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602010 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 Screw, hex head, 10-32 x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 Pan-defrost

29 # 5303918333 Compressor Kit

30 # 241527806 Starter

32 241544101 Clamp, elec cont mtg, compressor, bale wire

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555002 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 218897004 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359403 Screw-fan shroud, (2)

60 # 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241719501 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918330 Heat Exchanger Kit, suction line, service

* # 5304421289 Hot Tube Repair Kit, service

Publication No: 5995529988 FRT21S6AWE

12/08 10

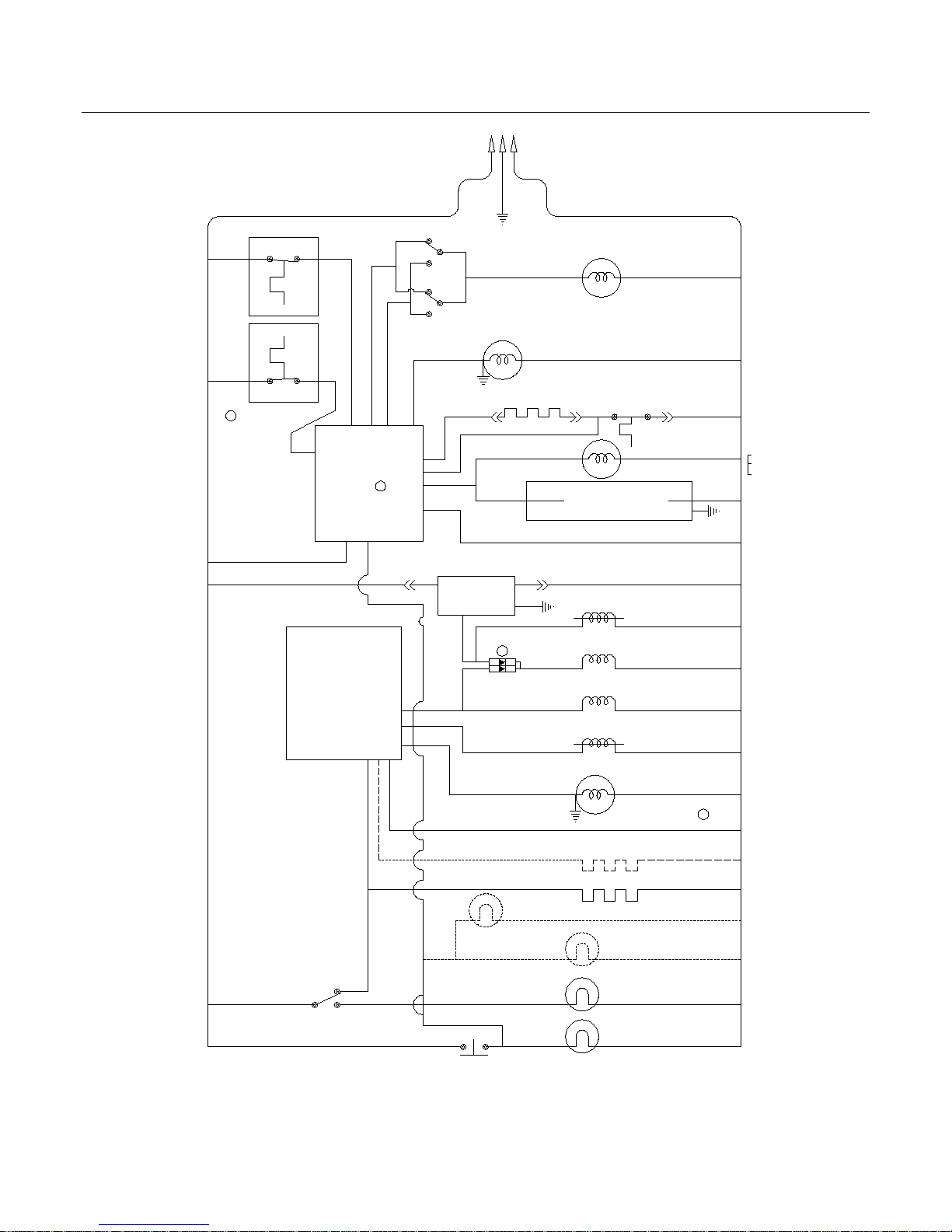

WIRING SCHEMATIC

EVAP. FAN

DAMPER MOTOR

(NEUTRAL)

(LINE)

REFRIG. LIGHT

FRZR. LIGHT

CRISPER LIGHT

REFRIG. LIGHT SWITCH

MOTOR,AUGER

FREEZER LIGHT /

SAFETY SWITCH

MAIN WATER VALVE

DISPENSER WATER VALVE

ACTUATOR,ICE DOOR

I/M WATER VALVE

AUTO

ICEMAKER

THERM.

COIL HEATER DEFROST

RED GREEN

COND. FAN

SEE

COMPRESSOR

WIRING

J12

HEATER,ICE DOOR

SEE

DISPENSER ASS’Y

WIRING

ADAPTIVE

DEFROST

J10

MID LEVEL LIGHT

FREEZER CONTROL

FRESH FOOD

CONTROL

J4 J3 J8 J11

FAST ICE

NEUTRAL WIRE
