Frigidaire FSC23F7DS Manuale utente

E23CS75DSS0.eps N58FFDCFA0.eps N58RFDCIA0.eps N58BABAAD3.eps

N58SEHLBC11.eps N58TBAAAB2.eps N58CAAAAC1.eps N58XEAAAA0.eps

N58YDAAAC0.eps N58I115T.eps W241516401A.eps S241516401A.eps

Product No. FSC23F7DSBN

Series counter depth

Color stain/blk

Volts 115

Wiring Diagram 241516401A

Owner's Guide 241540601

Market North America

Energy Guide 241585916

Service Data Sheet 241532603

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995441424

05/07/12

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FSC23F7DS

Publication No: 5995441424 FSC23F7DSBN

07/05 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDCFA0

79 80

FSC23F7DSBN Publication No: 5995441424

# Functional Parts 3 07/05

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241510204 Gasket-frzr door, black, magnetic

4B 241511602 Bin-door

5 241545001 Bin-tilt out, tilt-out

11 240554279 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995441424 FSC23F7DSBN

07/05 4

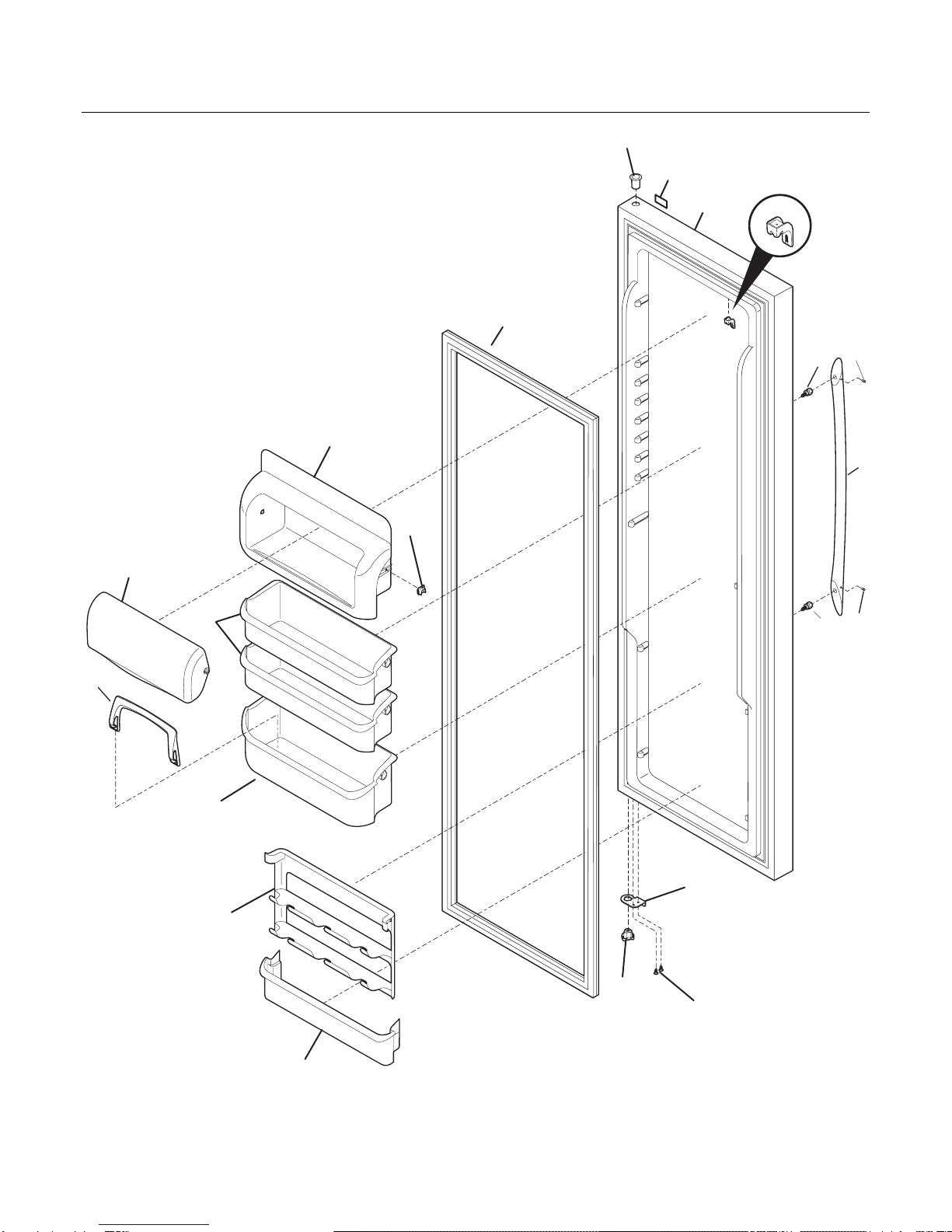

REFRIGERATOR DOOR

N58RFDCIA0

49A

22B

21A

27A

FSC23F7DSBN Publication No: 5995441424

# Functional Parts 5 07/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510203 Gasket-refr door, black, magnetic

5 241516102 Rack-can

6 241515901 Lug-dairy compartment

7 241515601 Door-dairy

12 240449710 Nameplate

13 240581905 Door Stop, black, ref

15 241534509 Door-refr, stainless, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

48 241511701 Bin-door, ref

49 241505301 Bin-door, 2-liter

49A 241505501 Bin-door, gallon

50 241508401 Cover-magnet

70 241515801 Compartment-dairy, removable

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995441424 FSC23F7DSBN

07/05 6

CABINET

100

30A

21C

10A

N58BABAAD3

14A

FSC23F7DSBN Publication No: 5995441424

# Functional Parts 7 07/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 241509802 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 241513001 Channel-shelf mtg, side, (2)

50 241511101 Board-main power

50* 241524801 Seal-Mother Board Housing

50* 241532501 Clip-harness

54 241532401 Channel

58 218781100 Screw, pan head, 8-18 x 0.625

66 241513601 Damper Assy

72 241521610 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240479601 Plug, button, cab liner holes, (2)

* 241591701 Louver

* 5303305345 Paint, touch-up, black

Publication No: 5995441424 FSC23F7DSBN

07/05 8

SHELVES

49B

N58SEHLBC11

24B

140

25B

47B

47A

25A

26A

101

100

109 15A

15A 16A

126

120

24B

52A

11A

51A

122

121

136

FSC23F7DSBN Publication No: 5995441424

# Functional Parts 9 07/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510605 Trim-basket

11 240443357 Shelf-freezer, glass, lower

11A 240443358 Shelf-freezer, glass, upper

15A 241552801 Light Bulb

16A 241622802 Socket-light

16A* 241523201 Harness-wiring

24 240355240 Shelf-"Spill-Safe", fixed, (3)

24B 240350129 Shelf-"Spill-Safe", cantilever, sliding

25 240599301 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

25B 240599801 Cover-meat pan

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351205 Pan-crisper, lower

39 240367603 Trim-shelf, 11.65", front

41 241571201 Trim-shelf, rear

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

47B 240443360 Insert-pan cover, glass

49 241515001 Basket-sliding

49B 241514901 Basket-sliding, upper, full

51 241514501 Hanger-basket, RH

51A 241514701 Hanger-shelf glass, RH

52 241514601 Hanger-basket, LH

52A 241514801 Hanger-shelf glass, LH

62 240599701 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 Water Tank

100 241549901 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 241513202 Base-crisper light socket

120 241504501 Shelf-ice cream

121 241504701 Rail-ice cream shelf, LH

122 241504702 Rail-ice cream shelf, RH

126 241630701 Channel, auger mtg, LH

126 241630702 Channel, auger mtg, RH

136 240424502 Dispenser-can, clear

140 240430504 Channel, wtr tube cover

Publication No: 5995441424 FSC23F7DSBN

07/05 10

CONTROLS

201

199

198

151

149

139

138

137

116

115

N58TBAAAB2
