Frigidaire FSC23R5D Manuale di istruzioni

E23CS75DSS0.eps N58FCCBBB3.eps N58RCFCHA1.eps N58BABAAD3.eps

N58SACKBB1.eps N58TAAAAD2.eps N58CAAAAC1.eps N58XDAAAA1.eps

N58YDAAAC0.eps N58I115T.eps W241516401A.eps S241516401A.eps

Product No. FSC23R5DB6 FSC23R5DW6 FSC23R5DSB6

Series counter depth counter depth counter depth

Color black white stain/blk

Volts 115 115 115

Wiring Diagram 241516401A 241516401A 241516401A

Owner's Guide 241695100 241695100 241695100

Market North America North America North America

Energy Guide 240598644 240598644 241585940

Service Data Sheet 241532603 241532603 241532603

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995457974

06/01/10

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FSC23R5D

Publication No: 5995457974 FSC23R5D

01/06 2

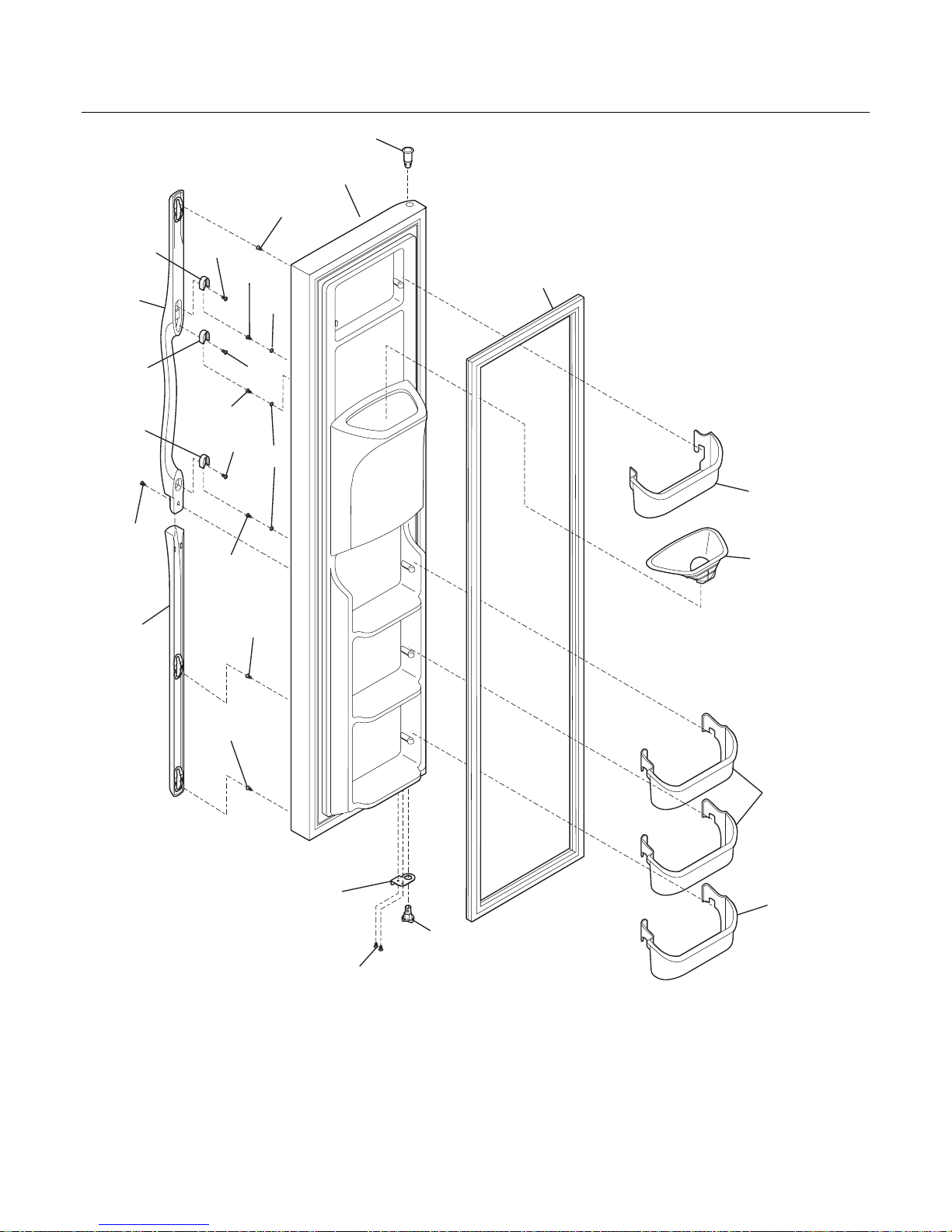

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB3

FSC23R5D Publication No: 5995457974

# Functional Parts 3 01/06

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFSC23R5D (FSC23R5DB6)

BFSC23R5D (FSC23R5DW6)

CFSC23R5D (FSC23R5DSB6)

POS. NO PART NO. DESCRIPTION

1 # 241510204 A - C Gasket-frzr door, black, magnetic

1 # 241510202 - B - Gasket-frzr door, white, magnetic

4B 241511601 A B C Bin-door

11 241668173 A - - Door-frzr, black, complete assy

11 241668124 - B - Door-frzr, white, complete assy

11 241526736 - - C Door-frzr, stainless, complete assy

13A 240581906 A - C Door Stop, black, frzr

13A 240581902 - B - Door Stop, white, frzr

18 240359108 A - C Handle-door, black, LH

18 240359106 - B - Handle-door, white

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22A 240328204 A - C Bearing-hinge(frz), black, closer

22A 240328202 - B - Bearing-hinge(frz), closer

22C 240328404 A - C Bearing-hinge, black, upper

22C 240328402 - B - Bearing-hinge, natural, upper

37 240359203 A - C Trim-handle, 30.13", black, lower

37 240359201 - B - Trim-handle, 30.13", white, lower

68 241525101 A B C Chute-ice

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 218490901 - - C Cleaner, stainless steel

* 240352102 A B C Connector-water, straight

* 240552101 A B C Harness-wiring, door

* 5303918256 A B C Dispenser heater kit

Publication No: 5995457974 FSC23R5D

01/06 4

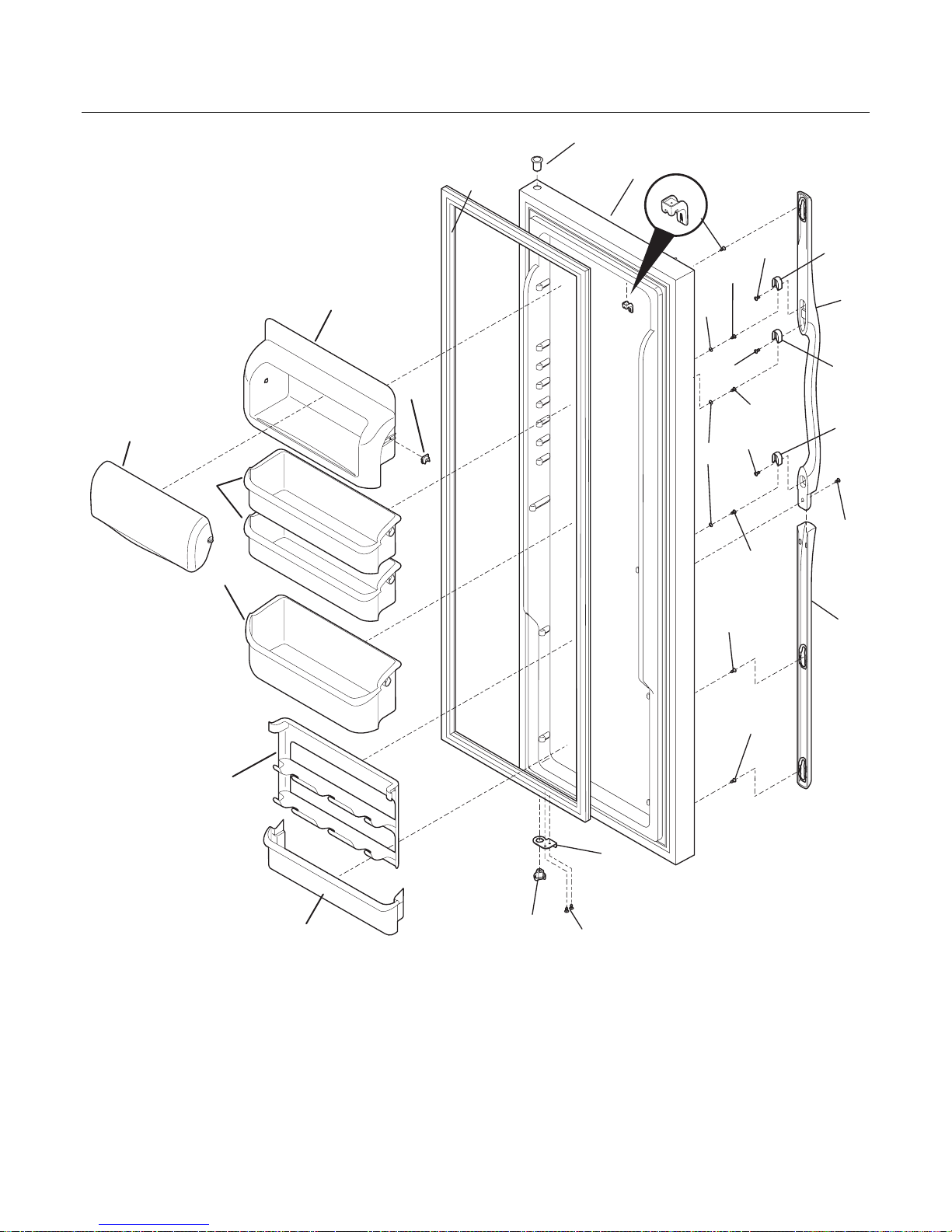

REFRIGERATOR DOOR

49A

21A

22B

N58RCFCHA1

21C

FSC23R5D Publication No: 5995457974

# Functional Parts 5 01/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFSC23R5D (FSC23R5DB6)

BFSC23R5D (FSC23R5DW6)

CFSC23R5D (FSC23R5DSB6)

POS. NO PART NO. DESCRIPTION

2 # 241510203 A - C Gasket-refr door, black, magnetic

2 # 241510201 - B - Gasket-refr door, white, magnetic

5 241516101 A B C Rack-can

6 241515901 A B C Lug-dairy compartment

7 241515601 A B C Door-dairy

13 240581905 A - C Door Stop, black, ref

13 240581901 - B - Door Stop, white, refr

15 241534507 A - - Door-refr, black, complete assy

15 241534506 - B - Door-refr, white, complete assy

15 241534525 - - C Door-refr, stainless, complete assy

18 240359103 A - C Handle-door, black, RH

18 240359101 - B - Handle-door, white

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22 240328203 A - C Bearing-hinge, black, closer

22 240328201 - B - Bearing-hinge(ref), closer

22B 240328404 A - C Bearing-hinge, black, upper

22B 240328402 - B - Bearing-hinge, natural, upper

37 240359203 A - C Trim-handle, 30.13", black, lower

37 240359201 - B - Trim-handle, 30.13", white, lower

48 241511706 A B C Bin-door, ref

49 241505306 A B C Bin-door, 2-liter

49A 241505506 A B C Bin-door

50 241508401 A B C Cover-magnet

70 241515801 A B C Compartment-dairy, removable

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 218490901 - - C Cleaner, stainless steel

Publication No: 5995457974 FSC23R5D

01/06 6

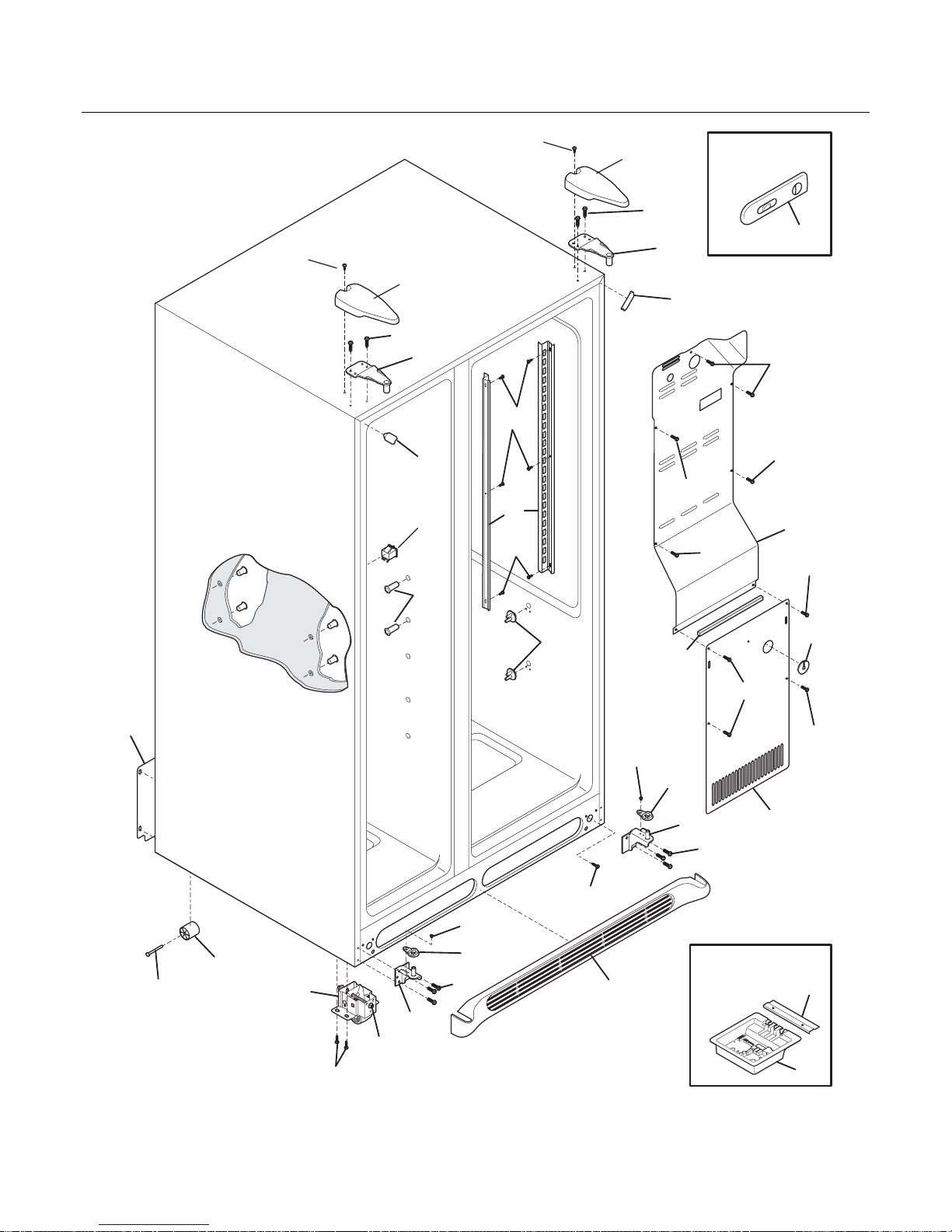

CABINET

100

30A

21C

10A

N58BABAAD3

14A

FSC23R5D Publication No: 5995457974

# Functional Parts 7 01/06

* Non-Illustrated Parts

CABINET

Model Index: AFSC23R5D (FSC23R5DB6)

BFSC23R5D (FSC23R5DW6)

CFSC23R5D (FSC23R5DSB6)

POS. NO PART NO. DESCRIPTION

10 241509802 A B C Cover-air duct

10A 240475907 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14A 241547901 A B C Switch-light/lamp, frzr door

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - C Plate-door closer

22 240457701 - B - Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B C Bracket-lower hinge, ref

30A 241603702 A B C Bracket-lower hinge

37 240337603 A - C Trim-cabinet corner, black, (2)

37 240337601 - B - Trim-cabinet corner, white, (2)

38 240327201 A B C Bracket-upper hinge

40 240327007 A - C Cover-upper hinge, black

40 240327005 - B - Cover-upper hinge, white

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, adjustable, front, (2)

45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

47 241513001 A B C Channel-shelf mtg, side, (2)

50 241511101 A B C Board-main power

50* 241524801 A B C Seal-Mother Board Housing

50* 241532501 A B C Clip-harness

54 241532401 A B C Channel

58 218781100 A B C Screw, pan head, 8-18 x 0.625

66 241513601 A B C Damper Assy

72 241521610 A - C Grille/Kickplate, black

72 241521608 - B - Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B C Cover access

90 218249808 A B C Seal-coil cover

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

* 240479601 A B C Plug, button, cab liner holes, (2)

* 241591701 A B C Louver

* 5303321321 A - C Paint, touch-up, black

* 5303305324 - B - Paint, touch-up, white

Publication No: 5995457974 FSC23R5D

01/06 8

SHELVES

140

126

122

121

120

109

101

100

47B

47A

26A

25B

25A

N58SACKBB1

11B

11A

39A

101

FSC23R5D Publication No: 5995457974

# Functional Parts 9 01/06

* Non-Illustrated Parts

SHELVES

Model Index: AFSC23R5D (FSC23R5DB6)

BFSC23R5D (FSC23R5DW6)

CFSC23R5D (FSC23R5DSB6)

POS. NO PART NO. DESCRIPTION

2 241510605 A B C Trim-basket

11 241657605 A B C Shelf-freezer, flip-up

11A 241657505 A B C Shelf-freezer, fixed wire

11B 241657506 A B C Shelf-freezer, fixed wire

15 241552801 A B C Light Bulb

16 241622802 A B C Socket-light

16* 241523201 A B C Harness-wiring

21 5303001001 A B C Screw, hx wshr hd sems, 8-15A x 0.625

24 240355240 A B C Shelf-"Spill-Safe", fixed, (3)

25 240599301 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240350902 A B C Cover-crisper pan, lower

25B 240599801 A B C Cover-meat pan

26 240351005 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240362201 A B C Control-humidity

27 240351206 A B C Pan-crisper, lower

39 240430709 A B C Trim-shelf, 11.60", front

39A 240430710 A B C Trim-shelf, 12.86", front

47 240350633 A B C Insert-pan cover, glass

47A 240350603 A B C Insert-pan cover, glass

47B 240443360 A B C Insert-pan cover, glass

49 241515001 A B C Basket-sliding

51 241514501 A B C Hanger-basket, RH

52 241514601 A B C Hanger-basket, LH

62 240599701 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 241532003 A B C Water Tank

100 241549901 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 241513202 A B C Base-crisper light socket

120 241504501 A B C Shelf-ice cream

121 241504701 A B C Rail-ice cream shelf, LH

122 241504702 A B C Rail-ice cream shelf, RH

126 241674401 A B C Channel, auger mtg, LH

126 241674402 A B C Channel, auger mtg, RH

140 240430504 A B C Channel, wtr tube cover

Publication No: 5995457974 FSC23R5D

01/06 10

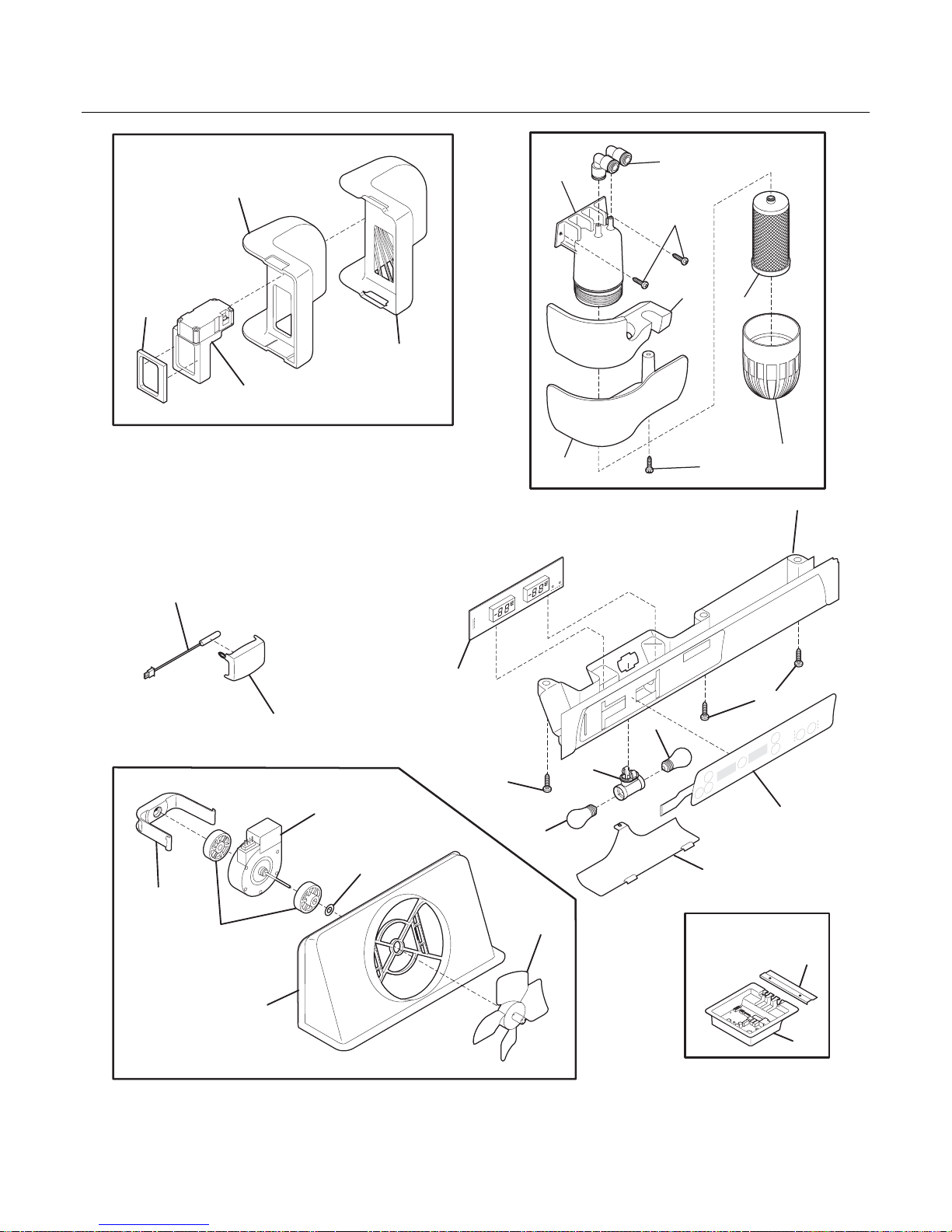

CONTROLS

140

139

138

137

151

150

201

149

116

115

N58TAAAAD2
