Frigidaire PHS69EJSS - 26.0 cu. Ft. Refrigerator Guida utente

Product No. PHS69EJSS0

Series Professional

Color stain/blk

Volts 115

Wiring Diagram 241725001

Owner's Guide 241856000

Market North America

Energy Guide 241868008

Service Data Sheet 241636604

N58L00001.eps N58FFDEEA2.eps N58RFCBBC12.eps N58BAAAAB5.eps

N58SLDJEE1.eps N58TCAAAB4.eps N58CAAAAC8.eps N58XEAAAA1.eps

N58YDAAAC6.eps N58I115TServo.eps W241725001.eps S241725001.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995506127

08/01/31

(EN/SERVICE/RLF)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PHS69EJS

Publication No: 5995506127 PHS69EJSS0

01/08 2

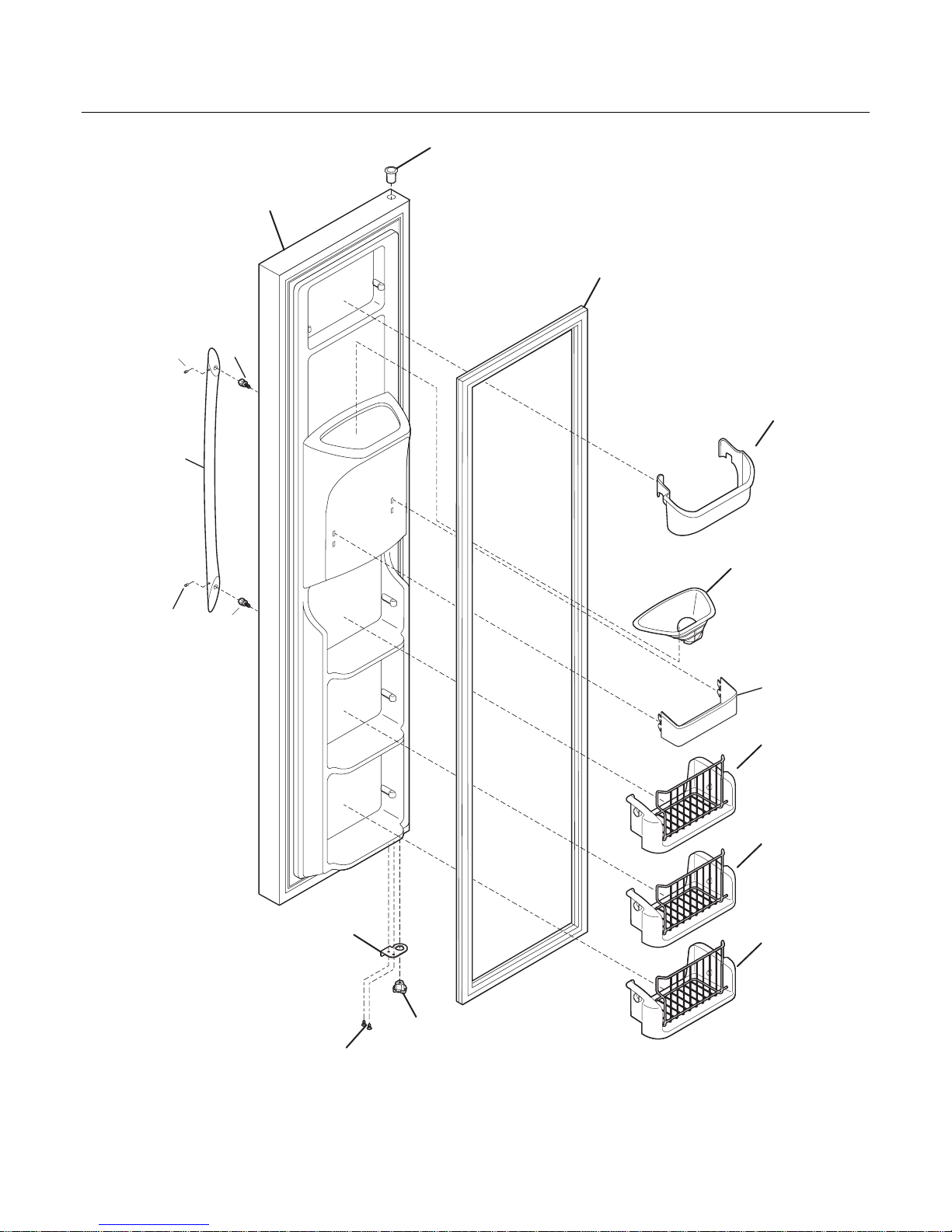

FREEZER DOOR

22C

22A

21A

13A

N58FFDEEA2

79 80

PHS69EJSS0 Publication No: 5995506127

# Functional Parts 3 01/08

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 241786002 Gasket-frzr door, white, magnetic

4B 240334202 Bin-door, frzr-upper

4C 240351702 Bin-door, frzr-dispenser

5 241545005 Bin-tilt out, tilt-out

11 241837110 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536818 Handle-door, stainless steel, with insert, & set screw

21A 240598402 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552102 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995506127 PHS69EJSS0

01/08 4

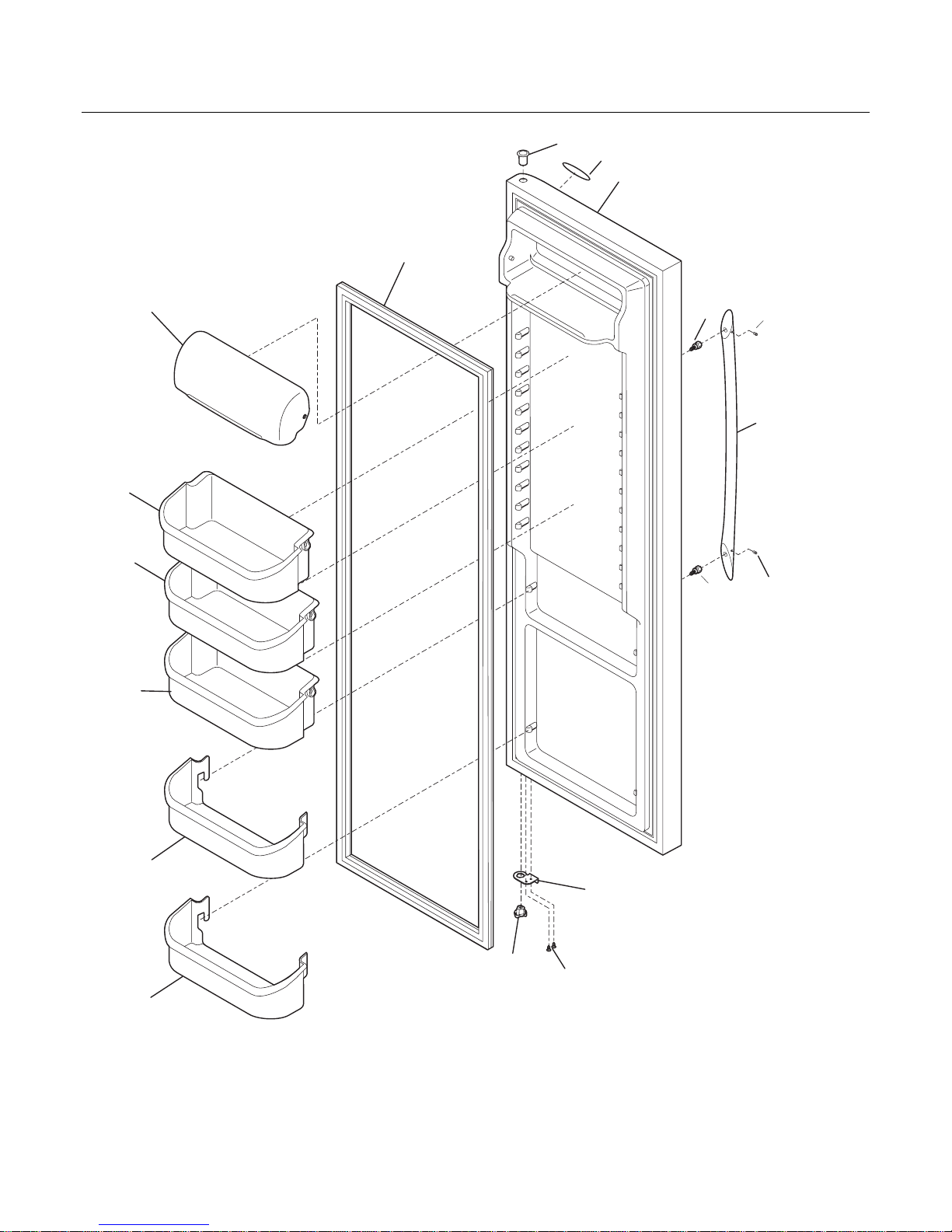

REFRIGERATOR DOOR

21A

22B

N58RFCBBC12

PHS69EJSS0 Publication No: 5995506127

# Functional Parts 5 01/08

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 241786001 Gasket-refr door, white, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 241808801 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534541 Door-refr, stainless steel, complete assy

18 240536818 Handle-door, stainless steel, with insert, & set screw

21A 240598402 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

49 241808206 Bin-door, gallon

49* 241780401 Liner, bin

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995506127 PHS69EJSS0

01/08 6

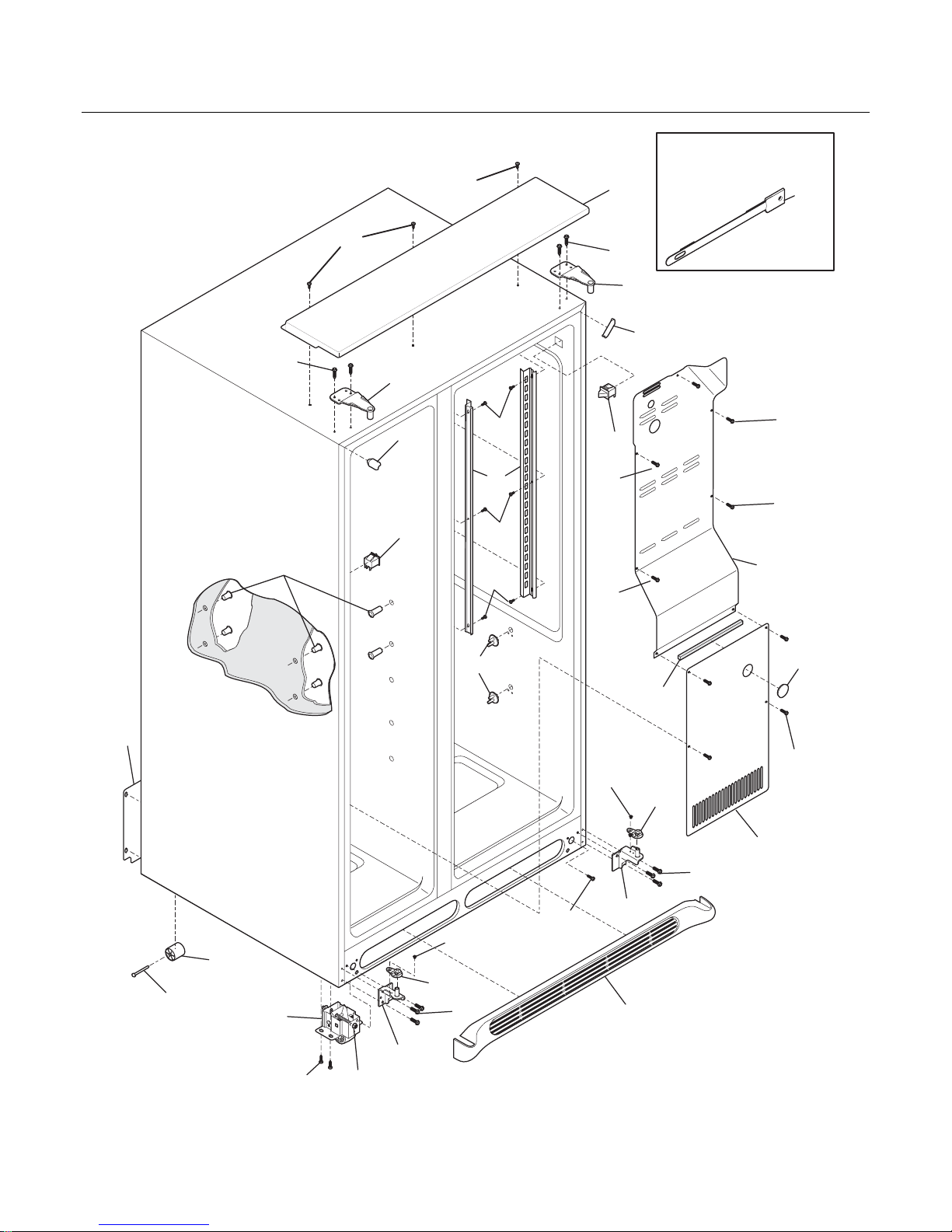

CABINET

14A

100

21C

30A

10A

N58BAAAAB5

PHS69EJSS0 Publication No: 5995506127

# Functional Parts 7 01/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435914 Cover-air duct

10A 241719711 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337612 Trim-cabinet corner, nickeloid, (2)

38 240327207 Bracket-upper hinge

40 241555105 Cover-upper hinge, light gray

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 241882901 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 241595402 Screw-#10-32 X 3/4

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324414 Grille/Kickplate, metallic gray

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733905 Cover-access, w/label

90 218249808 Seal-coil cover

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

Publication No: 5995506127 PHS69EJSS0

01/08 8

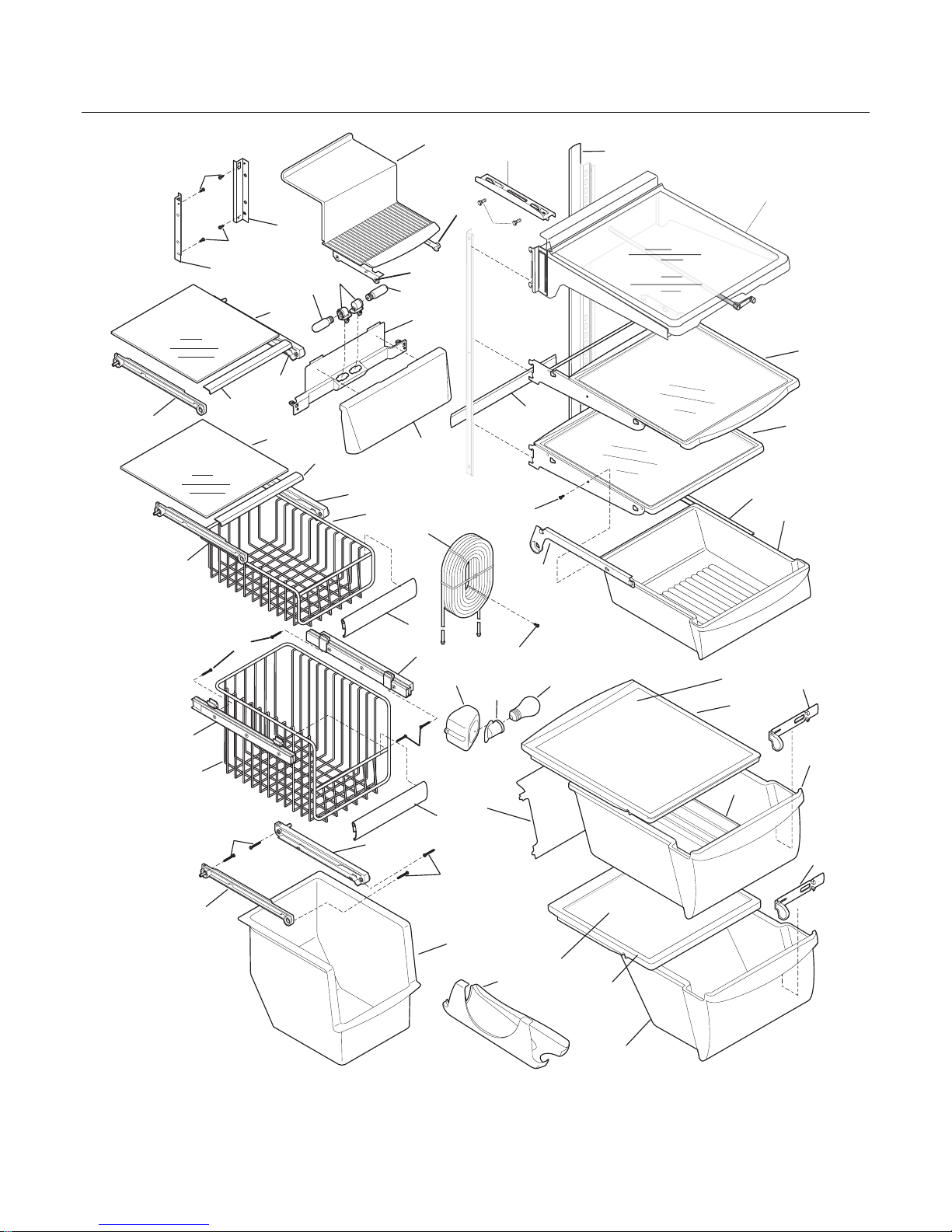

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJEE1

100

25A

47A

15A

16A

143

26A

27A

42A

123

24A

140

11C

24B

136

PHS69EJSS0 Publication No: 5995506127

# Functional Parts 9 01/08

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240350668 Shelf-freezer, glass, lower

11A 240350667 Shelf-freezer, glass, upper

11C 240324101 Shelf-pizza

15 241552801 Light Bulb

15A 241555401 Light Bulb

16 240590401 Socket-light

16* 241537504 Harness-wiring

16A 241513901 Socket-light

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240355203 Shelf-"Spill-Safe", fixed

24A 240350106 Shelf-"Spill-Safe", cantilever, sliding

24B 240424609 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350703 Cover-crisper pan

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351042 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 241595202 Clip-slide, pan-crisper

26A 241638201 Control-humidity

26A* 241638101 Frame-humidity control

27 240351219 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367602 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

42A* 240356702 Seal-meat pan

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

49A 240530502 Basket-sliding, upper, half

49B 240530504 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

51B 240579801 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

52B 240579802 Hanger-basket, LH

60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240342818 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545307 Water Tank

100 240326304 Cover-water tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 241691901 Shelf-ice cream

121 241561001 Rail-ice cream shelf, LH

122 241692001 Rail-ice cream shelf, LH

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

Publication No: 5995506127 PHS69EJSS0

01/08 10

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJEE1

100

25A

47A

15A

16A

143

26A

27A

42A

123

24A

140

11C

24B

136
