Frigidaire PLHS269ZC Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

PLHS269ZCB0 PLRS267ZA R134a Professio stainless/black 115

MARKET

North America

Publication No.

5995389953

030502

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

PLHS269ZC

ENERGY GUIDE - 240592243

OWNER’S GUIDE - # 240389311

SERVICE DATA SHEET - #240389610

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

05/03 2

Publication No. PLHS269ZCB0

5995389953

FREEZER DOOR

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

PLHS269ZCB0 Publication No.

5995389953

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390606 Gasket-frzr door, black, magnetic

4A 240334202 Bin-door, frzr-upper

4B 240351602 Bin-door

4C 240351702 Bin-door, frzr-dispenser

11 240554227 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black ,frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328202 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

68 240467701 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240545101 Connector-water,straight

* 240552102 Harness-wiring,door

* 218490900 Cleaner,stainless steel

* 240470401 Connector-amp

* 5303918256 Dispenser heater kit

05/03 4

Publication No. PLHS269ZCB0

5995389953

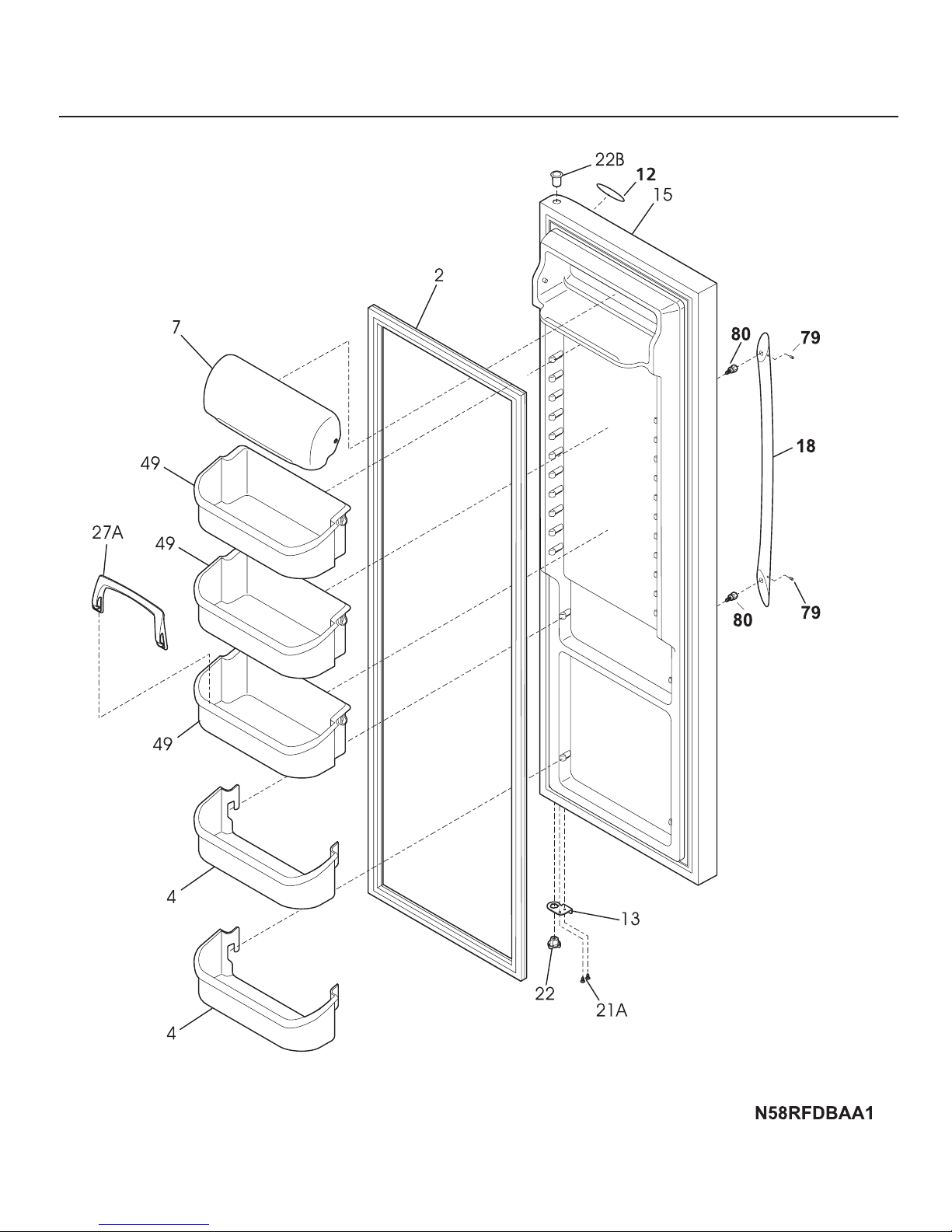

REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

PLHS269ZCB0 Publication No.

5995389953

POS. NO PART NO DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 240558801 Nameplate, aluminum

13 240581905 Door Stop, black, ref

15 240451981 Door-refr, stainless steel, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328201 Bearing-hinge, closer

22B 240328403 Bearing-hinge, upper

27A 240396102 Retainer, tall bottle

49 240430312 Bin-door,gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

05/03 6

Publication No. PLHS269ZCB0

5995389953

CABINET

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

PLHS269ZCB0 Publication No.

5995389953

POS. NO PART NO DESCRIPTION

10 240435902 Cover-air duct

10A 240475902 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj., hex wshr hd, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 240349402 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66 240504901 Cover-damper

66* 240518802 Pin-push, push-in, plastic

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326111 Cover,access ,system compt ,with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw,hex wshr hd, 1/4 x 7/8, hinge mtg

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

05/03 8

Publication No. PLHS269ZCB0

5995389953

SHELVES

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

PLHS269ZCB0 Publication No.

5995389953

POS. NO PART NO DESCRIPTION

2 240434604 Trim-basket

11 240350668 Shelf-freezer,glass ,lower

11A 240350667 Shelf-freezer,glass ,upper

11C 240324101 Shelf-pizza

15 240588001 Light Bulb

15A 240436702 Light Bulb, A-15, clear, 40 W, 120 V, miniature

16 240590401 Socket-light

16* 240587702 Harness-wiring

16A 218906801 Socket-light/lamp

24 240355203 Shelf-"Spill-Safe", fixed

24A 240350106 Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240350902 Cover-crisper pan,lower

26 240351022 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

26* 240423101 Channel-divider

26* 240423201 Retainer

26A 240422901 Control-humidity

26A* 240423001 Frame-humidity control,upper

27 240351219 Pan-crisper,lower

39 240367602 Trim-shelf,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

47 240350602 Insert-pan cover,glass

47A 240350603 Insert-pan cover,glass

49 240564401 Basket-sliding

49A 240530502 Basket-sliding,upper ,half

49B 240530504 Basket-sliding,upper ,full

51 240343002 Hanger-basket,RH

51A 240395502 Hanger-basket,RH

51B 240579801 Hanger-basket,RH

52 240343102 Hanger-basket,LH

52A 240395602 Hanger-basket,LH

52B 240579802 Hanger-basket,LH

62 240342818 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342902 Shelf-ice cream

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 Channel,auger mtg ,LH

126 218867406 Channel,auger mtg ,RH

136 240424502 Dispenser-can,clear

140 240430501 Channel,wtr tube cover

140A 240430503 Channel,wtr tube cover

141 240585404 Bracket-light socket

142 240582701 Shield-light,deli pan

SHELVES

05/03 10

Publication No. PLHS269ZCB0

5995389953

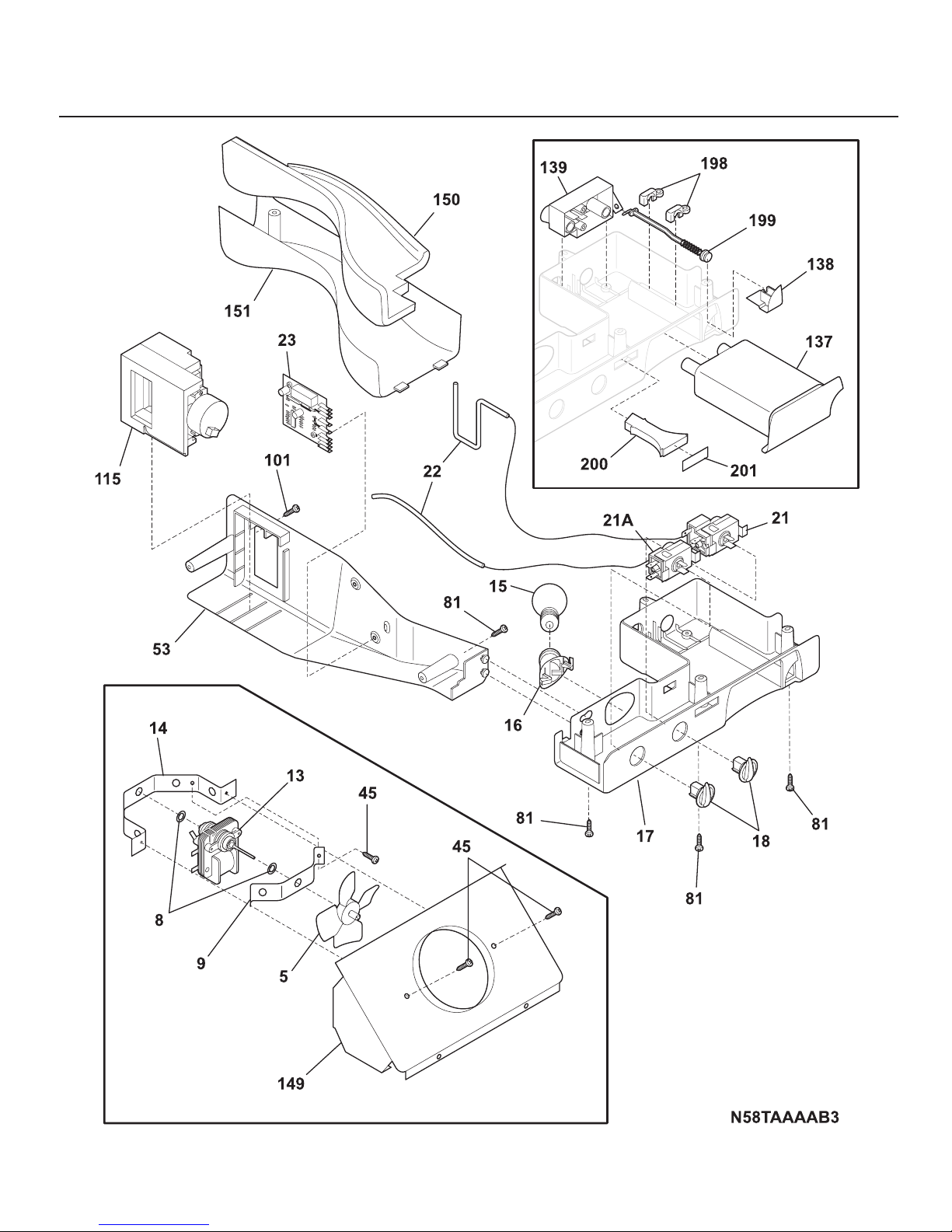

CONTROLS
