Frigidaire FEB30XPFC Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB30XPFCA 31257300770S1 STAINLESS STEEL U.S.A.

WARMER DRAWER

Model No.

FEB30XPFC

Inc.

FACTORY PARTS CATALOG

STAND ALONE WARMER DRAWER

WIRING DIAGRAM # - 318049900

OWNER’S GUIDE # - 318153000

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995314266

981026

-EN/SERVICE

377

Publication No. FEB30XPF

5995314266

10/98 2

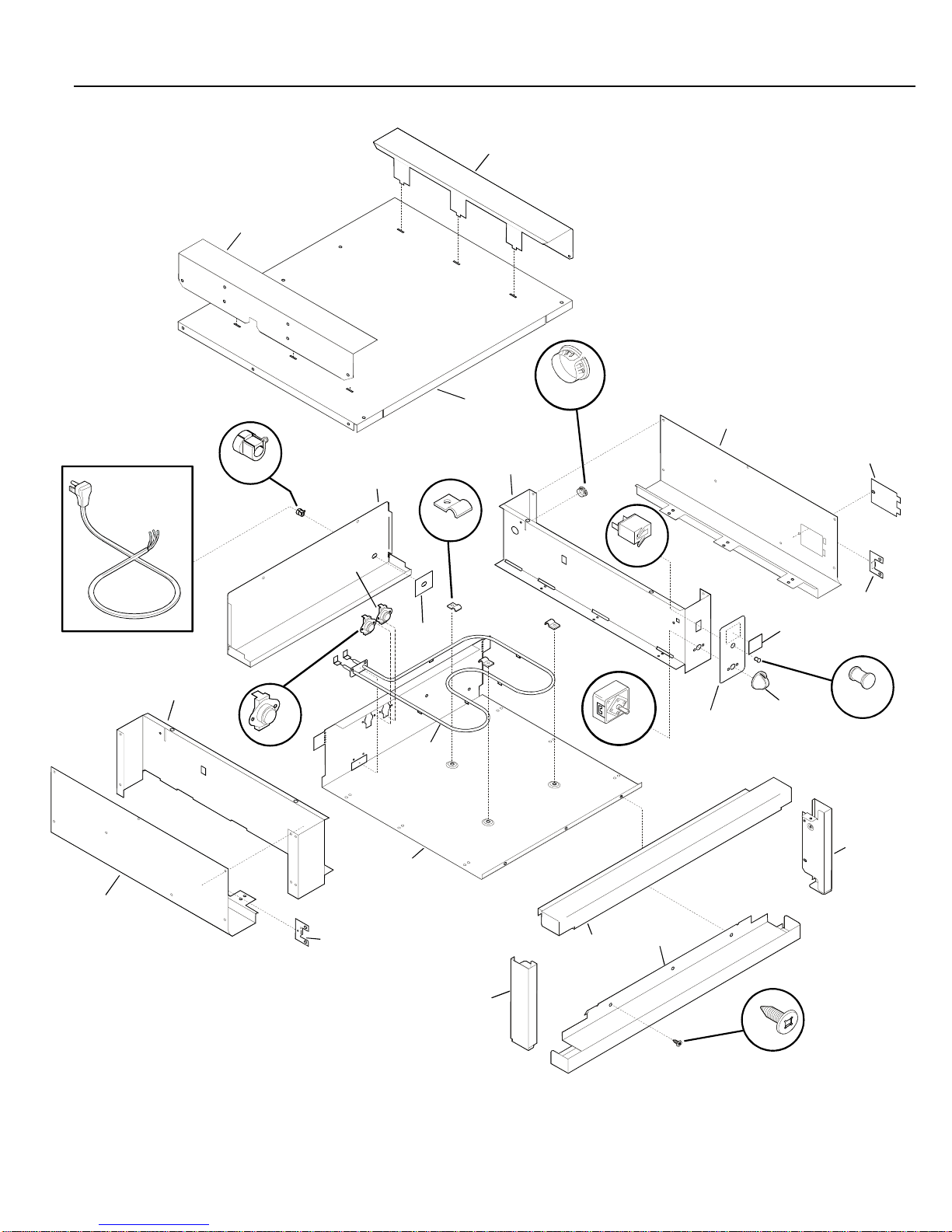

BODY

200

201

209

196

203

205

205A

207

204

194

202

209

36A

203A

198

197

84A

195

206

54B

200

LA23CW002-1

NOTE: Item # 200 installed

with wall oven only.

215A

214 214A

215

FEB30XPF Publication No.

5995314266

# = Functional Part 310/98

* = Non-Illustrated Part

BODY

A=FEB30XPF (FEB30XPFCA)

POS. NO PART NO DESCRIPTION

14 5303051533 APilot light

36A 318017600 AKnob-warmer, black

46 5308006417 ALens-light

51 316082300 AInsert name plate

54B 316095500 ASwitch-warmer

81 # 316093100 AElement warmer drawer

84# 318005103 AThermostat

84A# 318005104 AThermostat-safety

86 316095800 AClip-hold down, warmer

194 5303300265 AScrew, 8-18 X ½/ Vis

195 318078701 APlate service cord

196 318100101 ACover access

197 318144000 AService cord

198 08008009 ABushing

200 318091201 ABracket (installed with wall oven only)

201 318145101 AWrapper upper

202 318121601 AWrapper lower

203 318025711 ABracket side panel

203A 318025701 ABracket side panel

204 318021900 ADecorative plate

205 318123711 ASide panel RH

205A 318123701 ASide panel LH

206 5304407910 AStrain relief

207 318143601 APanel wires

209 318162401 ABracket wall

214 318118400 ATop trim stainless steel

214A 318118600 ABottom trim stainless steel

215 318125600 ASide trim RH stainless steel

215A 318125601 ASide trim LH stainless steel

* 5303211311 AScrew #8 X ½

* 5303323140 AScrew ground 10-32 X 3/8

*5303311333 AScrew, 8-32 X 3/8/ Vis

*5303323134 AScrew, 8-32 X 3/16/ Vis

FEB30XPF Publication No.

5995314266

10/98 4

DRAWER

125

13A

124A

124

193

122 39

121

LA23CW002-2

FEB30XPF Publication No.

5995314266

510/98

DRAWER

A=FEB30XPF (FEB30XPFCA)

POS. NO PART NO DESCRIPTION

1 318142500 ADrawer-warmer

10 5304400794 AScrew 10-32 X 1 1/8

13 316094900 ARail-drawer RH outer

13A 316094901 ARail-drawer RH outer

39 318039801 AHandle-door stainless steel

80 318052700 ASeal-door, warmer drawer

85 316093600 ARack, warmer drawer

121 318107901 AFront panel drawer stainless steel

122 318135201 AInterior-panel

124 316096500 AChannel-drawer RH

124A 316096501 AChannel-drawer LH

125 3201909 AWasher

193 5304400796 APlug

*08016432 AScrew, 8-18 X 3/8/ Vis

*5303300265 AScrew, 8-18 X ½/ Vis

Publication No. FEB30XPF

5995314266

10/98 6

WIRING DIAGRAM
