Frigoboat MS SERIES Manuale utente
Fridges & Freezers Boxes
www.frigoboat.it
STAINLESS STEEL
FRIDGES & FREEZERS BOXES
MS SERIES
INSTALLATION, DIRECTIONS & MAINTENANCE MANUAL
S.p.A.
COMPANY
WITH QUALITY SYSTEM
CERTIFIED BY DNV
ISO 9001/2000
Via Cantore, 6 - 20034 Giussano (MI) ITALY
Tel. +39 0362.35321 - fax +39 0362.852995
[email protected]E-mail:
09/06/06
MARINE REFRIGERATION
SAINLESS STEEL
Series
Page 1
INDEX
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
Page
1INTRODUCTION 1
1.1 1.1 Safety 2
2COMPONENTS TABLE
2.1 Components description (with hidden evaporator) 3
2.2 Components description (with evaporator compartment) 4
2.3 Components description (accessories for one-unit fridges/freezers) 5
2.4 Components description (accessories for multiple units) 6
3INSTALLATION
3.1 Doors/hinges 7
3.2 Doors/handles 8
3.3 Measures 9-10
3.4 Condensation outlet 11
3.5 Multiple measures 12-13
3.6 Connection to the system / compatibility 14
3.7 Fridge/freezer - compressor connection 15-16
3.8 Fastening 17
3.9 Fastening with frame kit 18
3.10 Optional external thermostat 19
3.11 Door with panel 20
4GOOD FUNCTIONING CHECK
4.1 Check 21
5USE INSTRUCTIONS
5.1 Switching on 22
5.2 Switching off (no use) 22
5.3 Temperature regulation 22
5.4 Condensation tray emptying 22
5.5 Shelves regulation 23
5.6 Internal thermostat 23
5.7 Cleaning 23
6PERIODICAL MAINTENANCE
6.1 Defrosting 24
6.2 Outlet check 24
6.3 Electrical system 24
6.4 Seals check 24
6.5 Handle check 25
6.6 Hinges check 25
7FOODS PRESERVATION AND PLACING
7.1 Foods preservation and placing 26
8TROUBLESHOOTING
8.1 Troubleshooting 27
Page 2
1. INTRODUCTION
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
1.1 Safety
Before installing the fridge it is necessary to read with great attention these instructions.
When the fridge is operating, it is better to avoid touching the freezer compartment internal
surfaces, above all with wet hands: the skin could adhere to the frozen surfaces.
Switch off the fridge to clean it or to change the light bulb or the thermostat.
Never put full glass containers in the freezer: they could break because of the expansion due
to the foods freezing.
Use precautions for children:
Don’t let children play with fridges/freezers, since the fridges/freezers doors don’t open from
inside.
Once thawed, the food must be eaten as soon as possible.
Preserve the deep-frozen packaged foods according to the producer’s
instructions.
Don’t speed up the defrosting through heating electrical fittings or
through chemical substances.
If you want to scrap the fridge/freezer, cut off the supply cables and dis-
mount the door so that children can’t remained trapped inside.
For your safety and for the good preservation of the food inside, keep
the precautionary measures in this manual, since the producer is not
responsible for damages due to their non-observance.

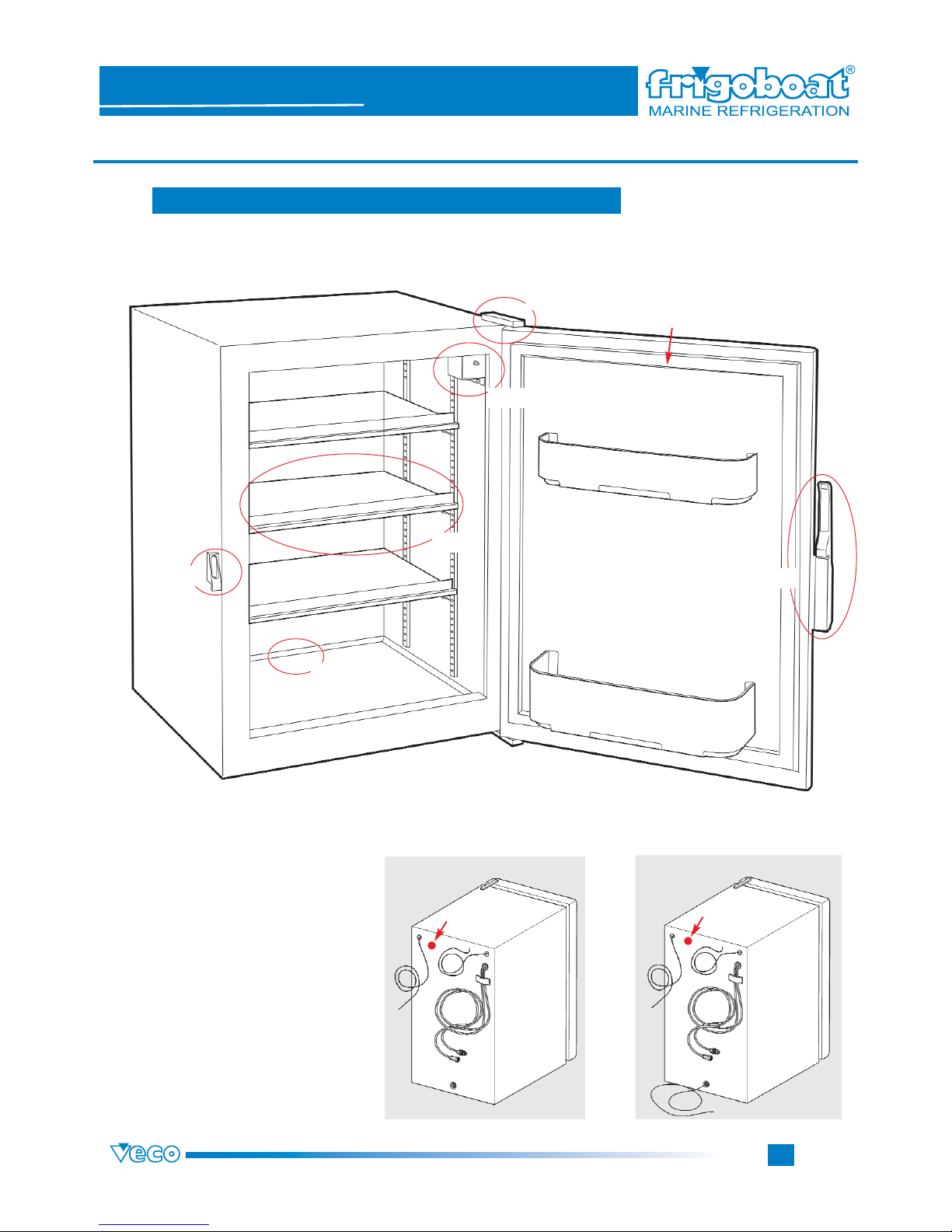

Page 3
2. COMPONENTS TABLE
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
2.1 Components description (with hidden evaporator)
3.1
3.4
3.2
6.4
3.2
5.6
5.5
FRIDGE FREEZER
A= RAPID HOOK-UPS
B= THERMOSTAT
C= LIGHT
D= RECHAUFFAGE PORTE
(FILO CALOR)
E = CONDENSATION OUTLET
G= VOLTAGE WARNING LIGHT B
CC
B
G
A
EA
D
G

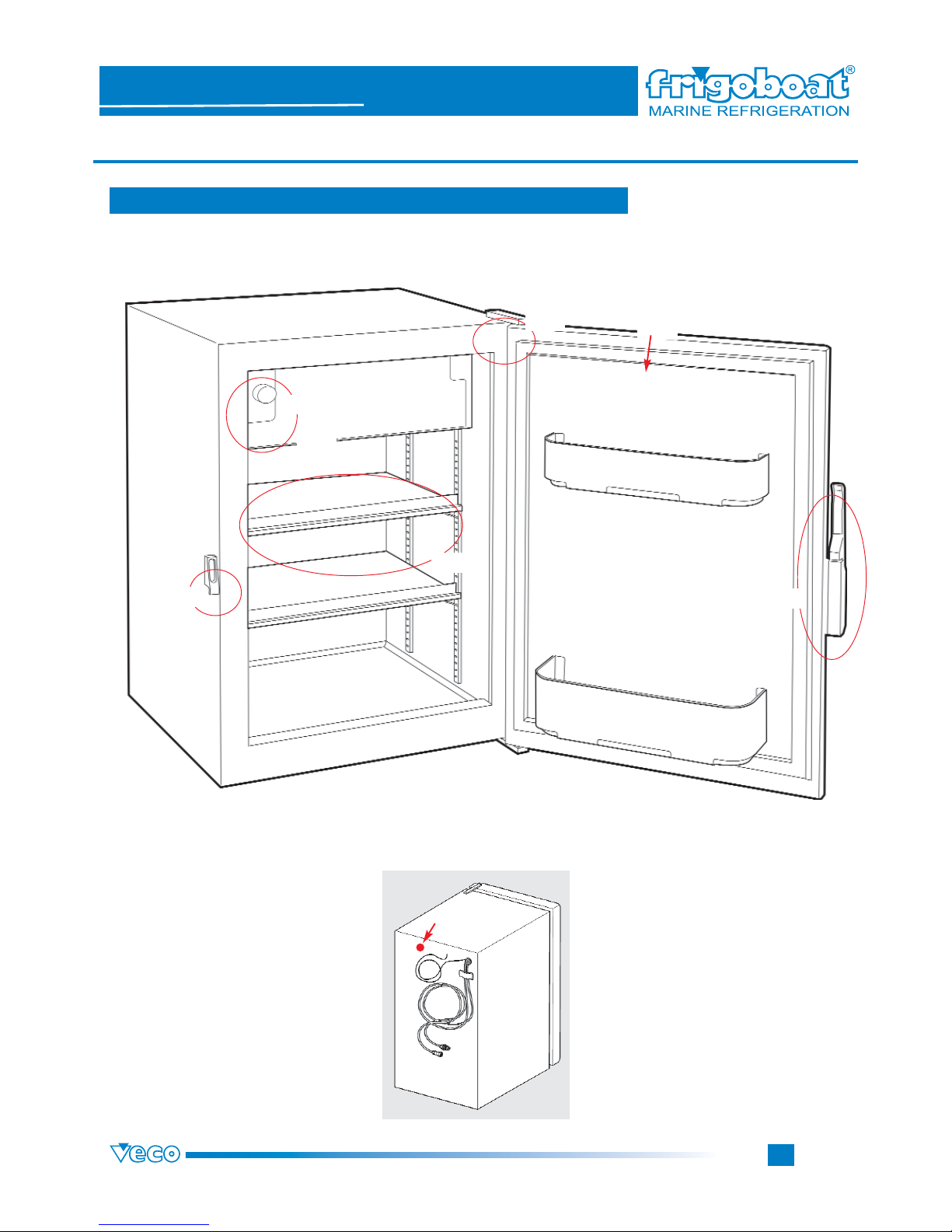

Page 4
2. COMPONENTS TABLE
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
2.2 Components description (with evaporator compartment)
3.1
3.2
6.4
3.2
5.7
5.5
FRIDGE
A= RAPIP HOOK-UPS
B= THERMOSTAT
C= LIGHT
G=VOLTAGE WARNING LIGHT
C
B
G
A
5.6

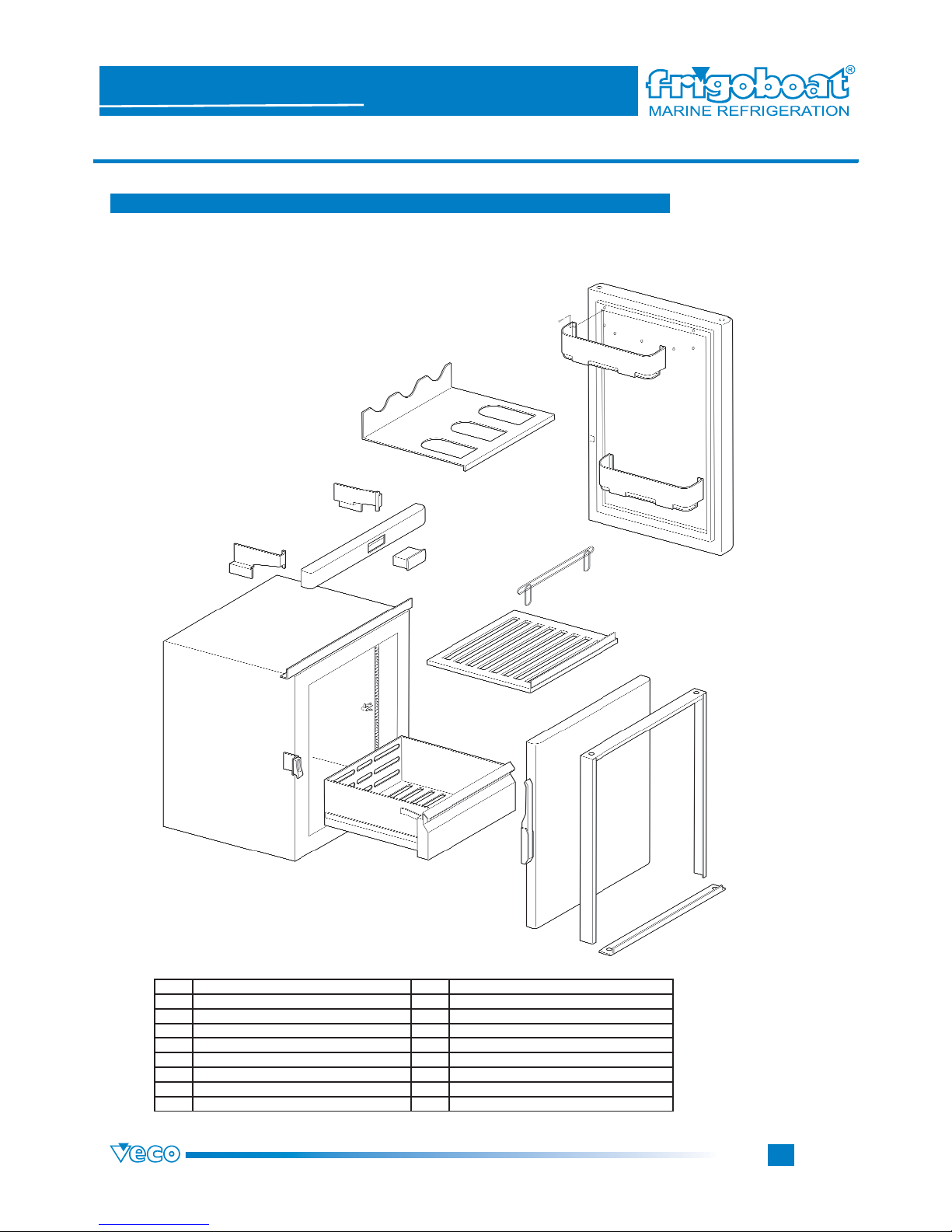

Page 5
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
2. COMPONENTS TABLE
2.3 Components table (accessories for one-unit fridges/freezers)
n° Description
1SHELVES GRILLS 9SPACERS
2REMOVABLE EDGE 10 RISERS
3BOTTLES RACK SHELVES 11 THERMOSTAT HOLDERS RISERS
4DRAWERS 12 EXTERNAL DIGITAL THERMOSTATS
5INDEXING RACK 13 HANDLE HOOK-UP WITH SUPPORT
6SHELVES SUPPORTS 14 HANDLE HOOK-UP WITH SUPPORT
7DOOR BOTTLES RACK 15 DOOR PANELLING KIT
8RISERS SUPPORTS 16 FRAME KIT

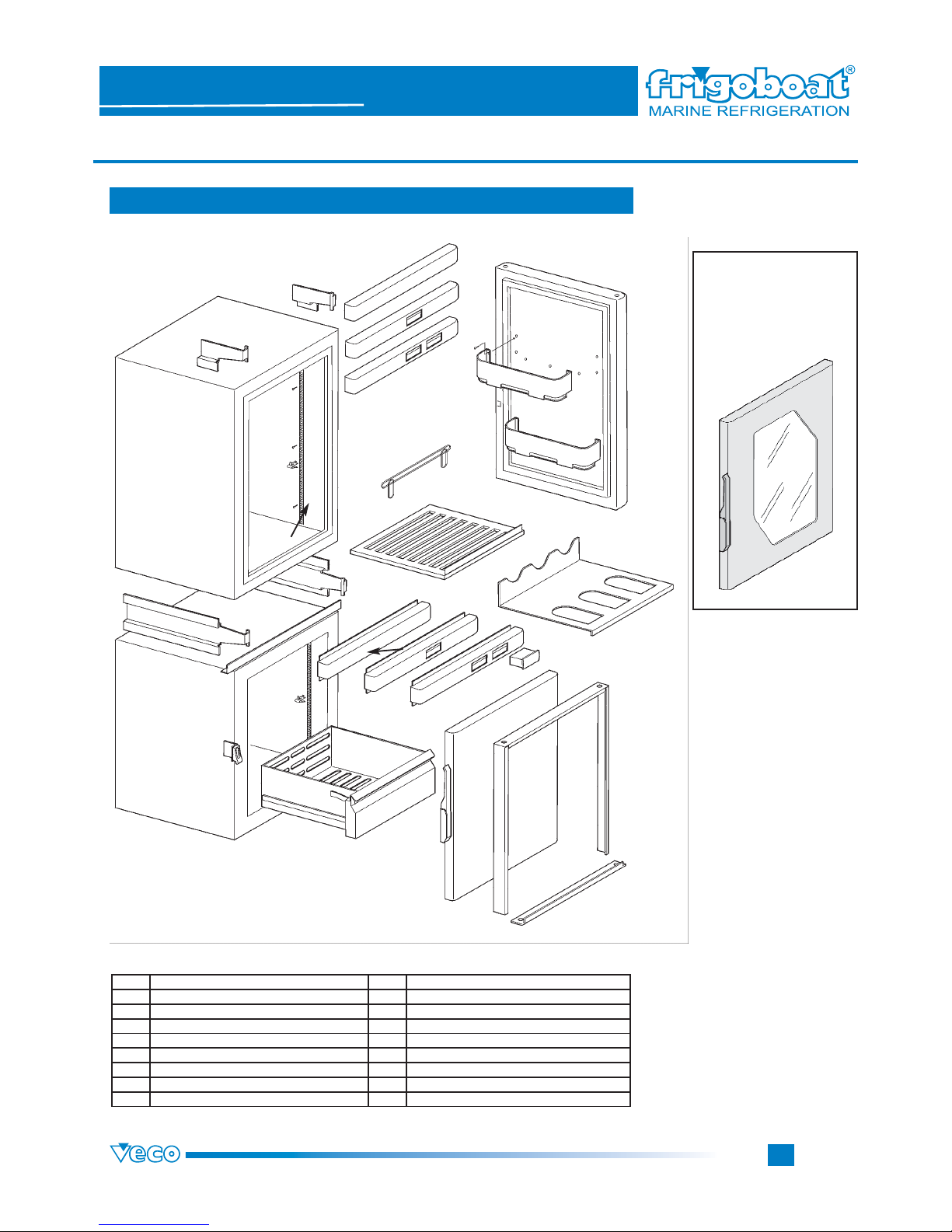

Page 6
2. COMPONENTS TABLE
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
2.3 Components description (accessories for multiple units)
Special glazed
door, particularly
suitable for wine
coolers.
15
16
11 11
12
2
1
4
8
8
11
11
10
10
13
14
9
9
7
5
6
3
n° Description
1SHELVES GRILLS 9SPACERS
2REMOVABLE EDGE 10 RISERS
3BOTTLES RACK SHELVES 11 THERMOSTAT HOLDERS RISERS
4DRAWERS 12 EXTERNAL DIGITAL THERMOSTATS
5INDEXING RACK 13 HANDLE HOOK-UP WITH SUPPORT
6SHELVES SUPPORTS 14 HANDLE HOOK-UP WITH SUPPORT
7DOOR BOTTLES RACK 15 DOOR PANELLING KIT
8RISERS SUPPORTS 16 FRAME KIT
Page 7
3. INSTALLATION
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series

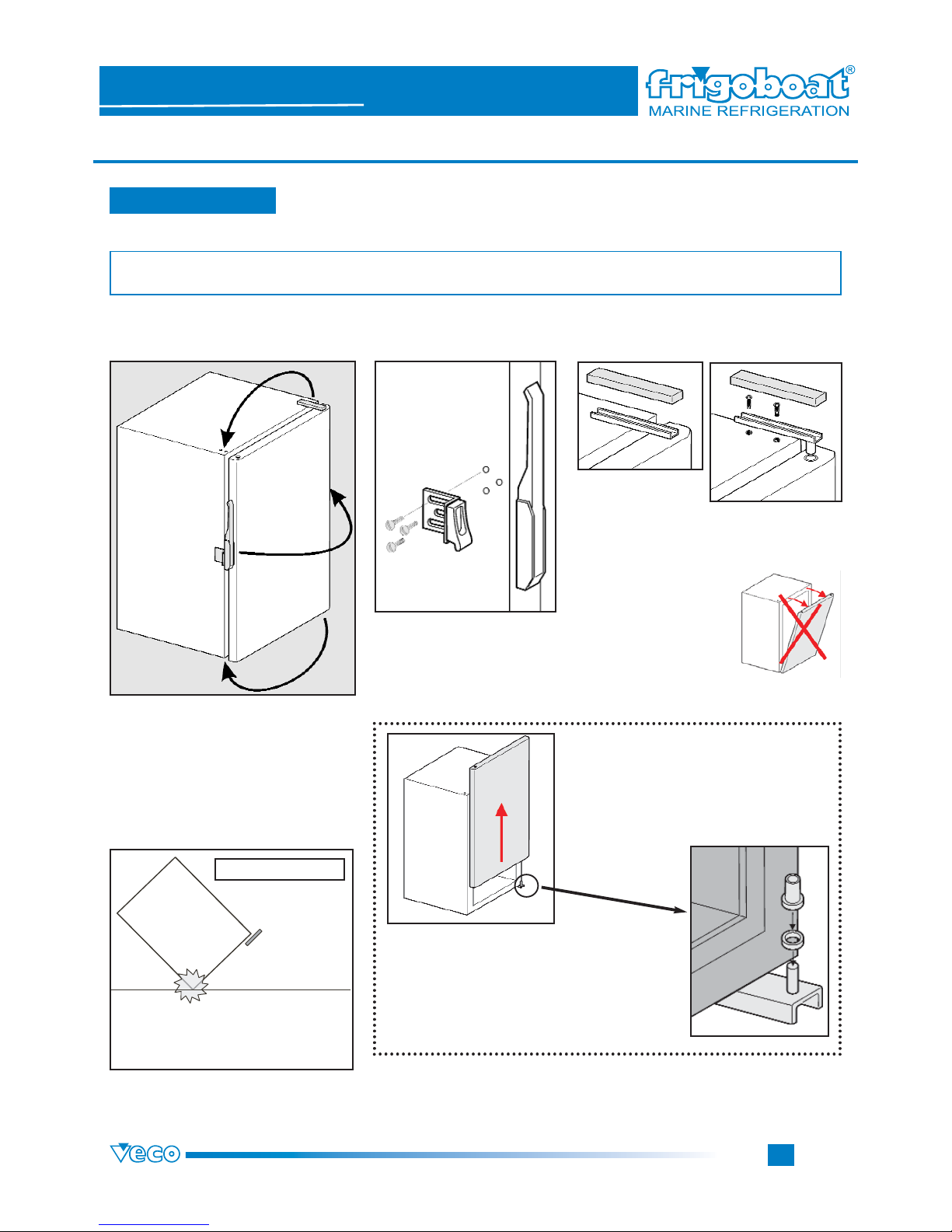

3.1 Doors/hinges
IF IT IS NECESSARY FOR INSTALLATION EXIGENCIES TO CHANGE THE OPENING, READ WITH
GREAT ATTENTION THE FOLLOWING INSTRUCTIONS.
HINGE AND HANDLE REVERSAL
Release the hinge
plastic cover.
Unscrew the hinge screws on the cabinet
top. Removing the hinge, pay attention to the
door flection. Keep it clo-
sed until the hinge pin has
been unhooked. DON’T
FLEX BACK THE DOOR.
After having unscrewed the door, screw the hin-
ges on the opposite side (following the inverted
dismounting instructions). First of all, fasten the
inferior hinge, then hook the door and finally
fasten the superior hinge. Hook the handle to the
fridge/freezer,
Follow the instructions on page 7.
DURING THE DISMOUNTING, PAY
ATTENTION NOT TO LOSE THE RIN-
GLETS ON THE INFERIOR HINGE.
HOOK THE DOOR PUTTING THE RIN-
GLETS AS WE CAN SEE IN THE PICTU-
RE.
After having hooked the handle, adjust the door. Make sure that all
screws are tightened and then screw the plastic cover.
First of all, unscrew the handle
from the door and from its sup-
port. Then unscrew the corre-
sponding handle hook-up on
the box door side.
IMPORTANT: There are hin-
ges both at the top and at the
bottom.
ATTENTION
Unscrewing the hinges, pay attention
not to incline the fridge/freezer to
avoid ruining its corners.
12
4
3

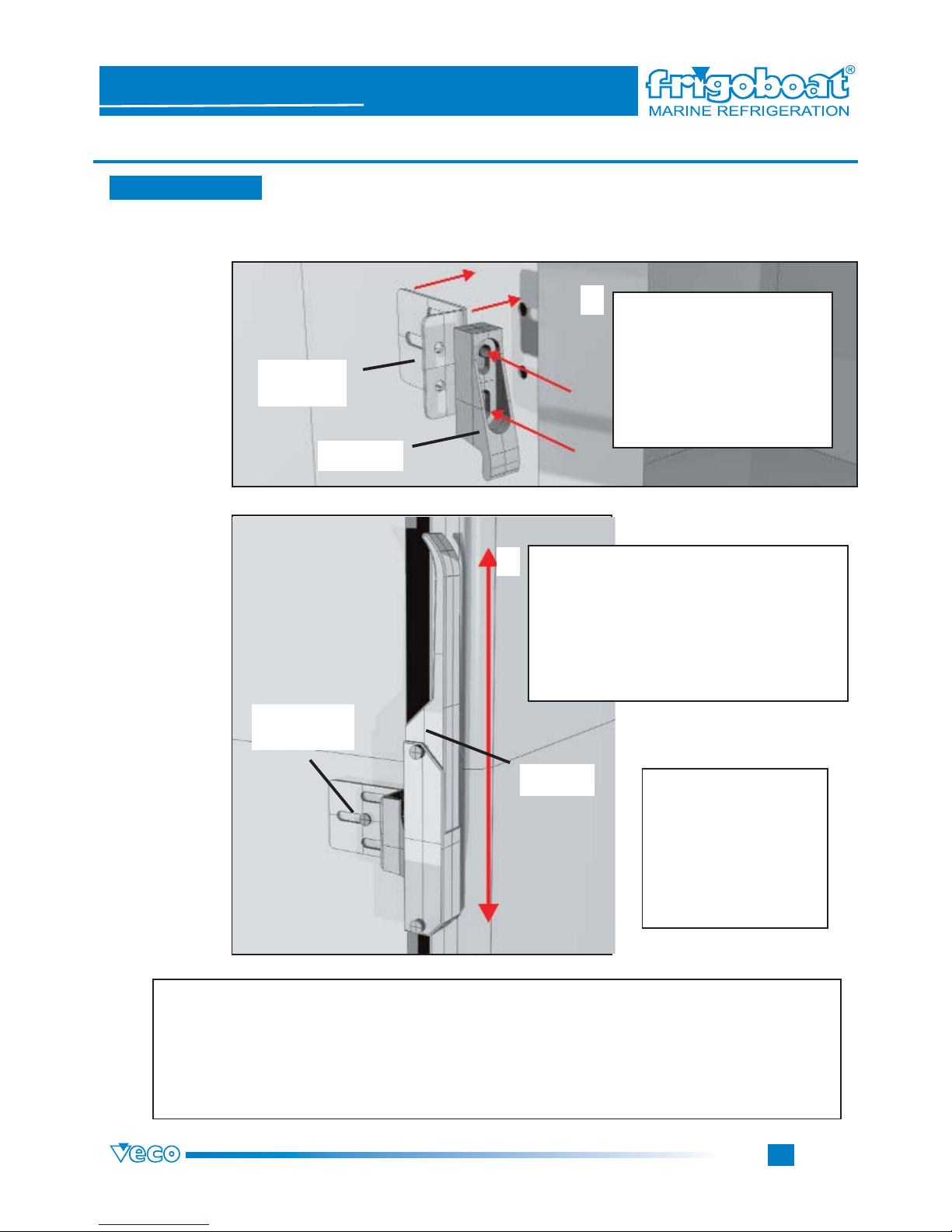

Page 8
3. INSTALLATION
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
HANDLE HOOK-UP AND SETTING
Don’t tighten the screws
before having set the
handle and the hook-up,
so that they are exactly
one upon the other. Then
it is possible to tighten all
the screws.
It is very important that the handle is exactly upon its hook-up: on the contrary the
good functioning of the fastening could be impaired and some components could
break.
Handle setting
3.2 Doors/handles
IMPORTANT
Fridges/freezers have got sui-
table holes for the handle and
the hook-up. If you change the
opening mode, it is necessary
to dismount the hook-up from
its support and fasten it upsi-
de-down, so that the handle is
upwards.
HOOK-UP
SUPPORT
HOOK-UP
SUPPORT
HOOK-UP
HANDLE
As the hook-up, the handle too is fastened to
the fridge/freezer by means of a steel clamp. If
you change the opening mode, it is necessary
to unfasten the handle from the clamp and
fasten it again after having tipped over the
clamp. On the door there are some holes to
hook the handle support clamp and to open the
door both on the right and on the left.
2
1

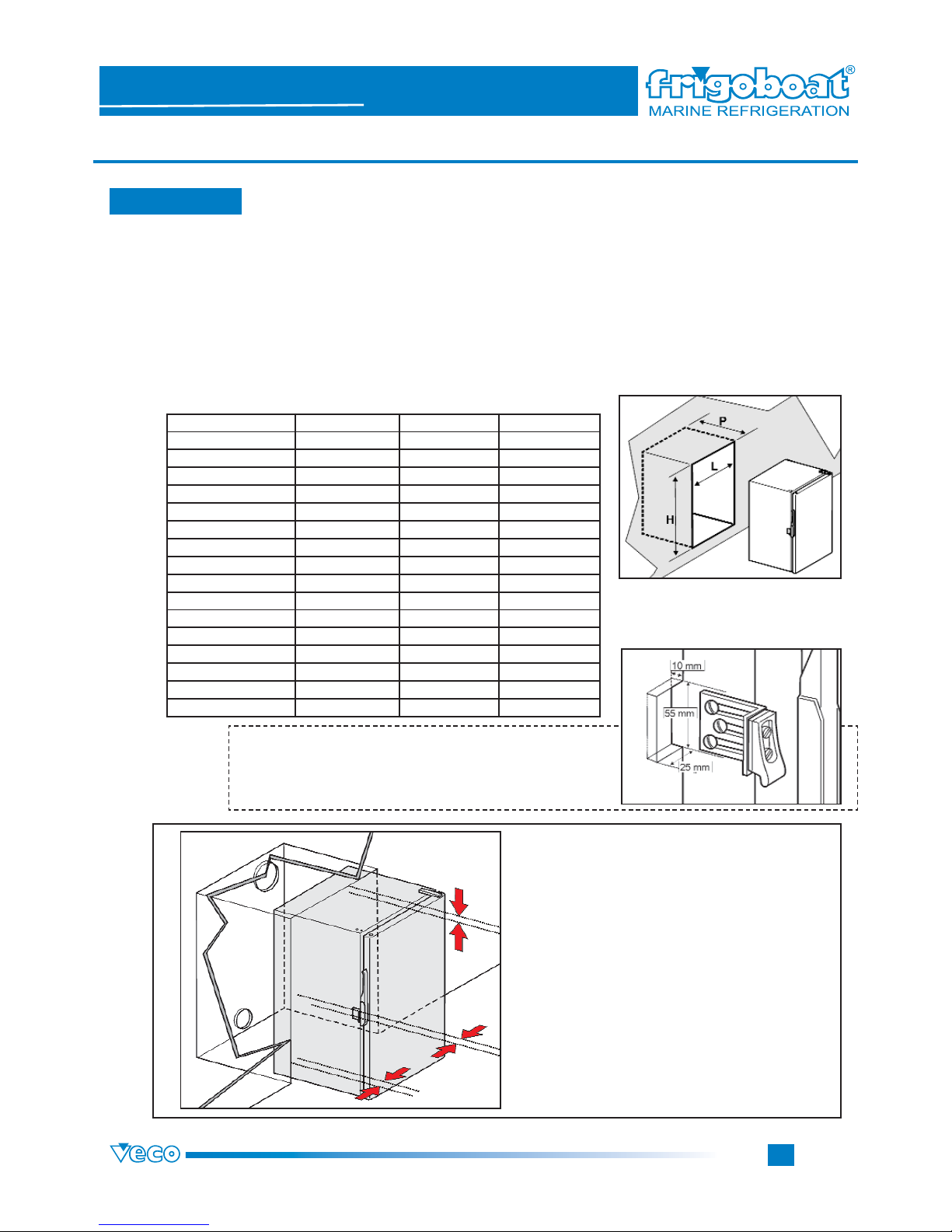

Page 9
Fridges & Freezers Boxes
SERIE MS STAINLESS STEEL
Series
Bulk measures have been calculated counting in also eventual bulges due to the following objects:
feet: 25 mm
handle hook-up: 5 mm
hinge: 10 mm
screws bulges: 3 mm
Bulk measures
To locate the fridge/freezer, consider the following bulk measures for the different models.
3. INSTALLATION
3.3 Measures
Because of the difference in temperature bet-
ween inside and outside the cabinet it is neces-
sary to let some space (for all sides) between
the fridge/freezer walls and the walls of the sur-
rounding pieces of furniture, it must be located
between. (Don’t remove feet!)*
The space lack for the air circulation can cause
condensation, that in the worst case can get rot
the eventual wood or cause mould on fibreglass
surfaces.
*If you must remove feet because of installation exi-
gencies, it is necessary to create some space for the
air circulation between the cabinet and the bearing
plane.
To locate the fridge/frrezer you must consider that the
handle hook-up must be fastened in a niche as in the pic-
ture on the right.
1
2
model/litres
FRIDGE L=lenght / mm P=depth / mm A=height / mm
42 400 342 545
80 490 415 635
115 500 465 875
130 500 510 780
160 565 530 875
180 500 465 1035
FREEZER
60 500 515 875
80 550 560 780
90 565 580 740
110 565 580 875
WINE COOLERS
115 500 515 875
130 550 560 780
160 565 580 875
