Front Runner BPTH007 Manuale utente

toyota hilux REVO (2016 -CURRENT)

Rock SlideRs

BPTH007

ENG

45 min

IMPORTANT WARNING!

Thank you for purchasing Front Runner Rock Sliders.

Before you start, take a moment to familiarize yourself with this Fitting Intruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

BPTH007_REV_A00

TOOLS NEEDED

17MM 17MM

12MM

1 1 X Rock Sliders (1LH & 1RH)

2 3 X M10x130 Hex Bolt

3 2 X M10x150 Hex Bolt

4 11 X M10x30x3 Flat Washer

5 5 X Bolt Plate (Not Welded)

6 6 X M10 Spring Washer

7 5 X M10 Nyloc

8 1 X Bolt Plate (Welded)

9 1 X M10x120 Hex Bolt

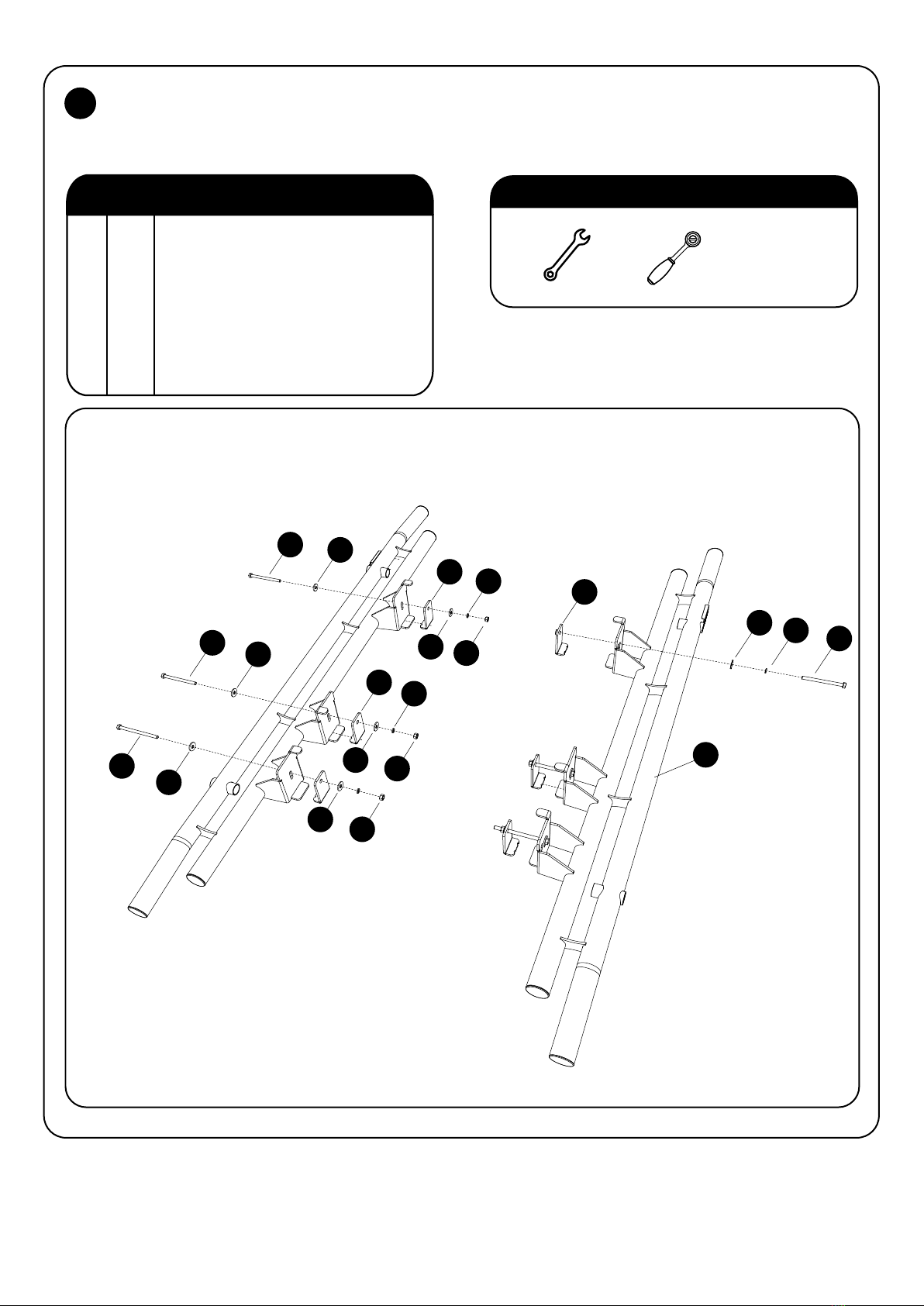

IN THE BOX

FIGURE 1.1

REAR OF VEHICLE

FRONT OF VEHICLE

GET ORGANIZED

Here is what you are looking at for BPTH007

FRONT

REAR

FIT AND SECURE

You will secure the rock sliders by bolting

through the existing holes in the chassis.

See diagram 1.1 for placement of the

fasteners.

For the left hand rock slider you will need

to use the welded bolt plate (item 8) to

secure the rock slider at the rear mounting

piont between the chassis and the tank.

See diagram 1.1 for placement of the

fasteners

Loosen the cable bracket before ﬁtting

the left rock sliders. Reﬁt the cable bracket

after the rock slider has been secured.

Remove the side steps on both sides

of the vehile.

2.1

2.2

2.3

17MM

12MM

17MM

Lift the rock sliders into position as

shown using the vehicles jack.

COMPLETION

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

3.1

Congratulations. You did it. Take a step back and admire your work!
