FujiFilm CX 3240 Manuale utente

CREATIVE DUPLEX PRINTER

CX3240

PRINTER DRIVER SOFTWARE (WINDOWS)

Ref. No. CP2-B21820J1-1

INSTRUCTION MANUAL

First Edition

–1–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

CONTENTS

I. System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2. Download or Insert CD for Launcher . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3. Print Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4. Paper/Media Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

–2–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

1. System Requirements

2. Download or Insert CD for Launcher

2.1 Insert CD and browse to it, or the unzipped folder of the downloaded files.

2.2 Double click Launcher.

NOTE: If you get a Window permission prompt select Allow.

1.1 This Printer Driver Software supports Windows 7 (32-bit or 64-bit); Windows 8 (32-bit or 64-bit); or

Windows 10 (32-bit or 64-bit) operating systems.

1.2 Technical Notation: Always attempt to batch orders to 50 pages or less, due to memory

constraints within the printer. If Hard Drive Full error occurs, reduce batch size, or adjust file(s) size

down.

1.3 Printer Connection: Connect the power cable, Ethernet or USB cable and complete the printer

initial setup prior to installing the driver.

– 3–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

3. Printer Driver Installation

3.1. Select Start Installation.

3.2. End User License Agreement. Check the box

“I accept the terms of the license agreement”

and select Next button.

3.3. Select Wireless or Ethernet Connector

radio button. Select Next.

3.4. Wait as the print driver automatically finds the

printer. Once found, you will see the printer listed

on this screen.

3.5. Check the box with the printer that matches

the default IP Address or IP Address that you have

set your printer to, for example 192.168.1.200.

3.6. If desired check the box: Set the printer

as default.

– 4–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

3. Printer Driver Installation

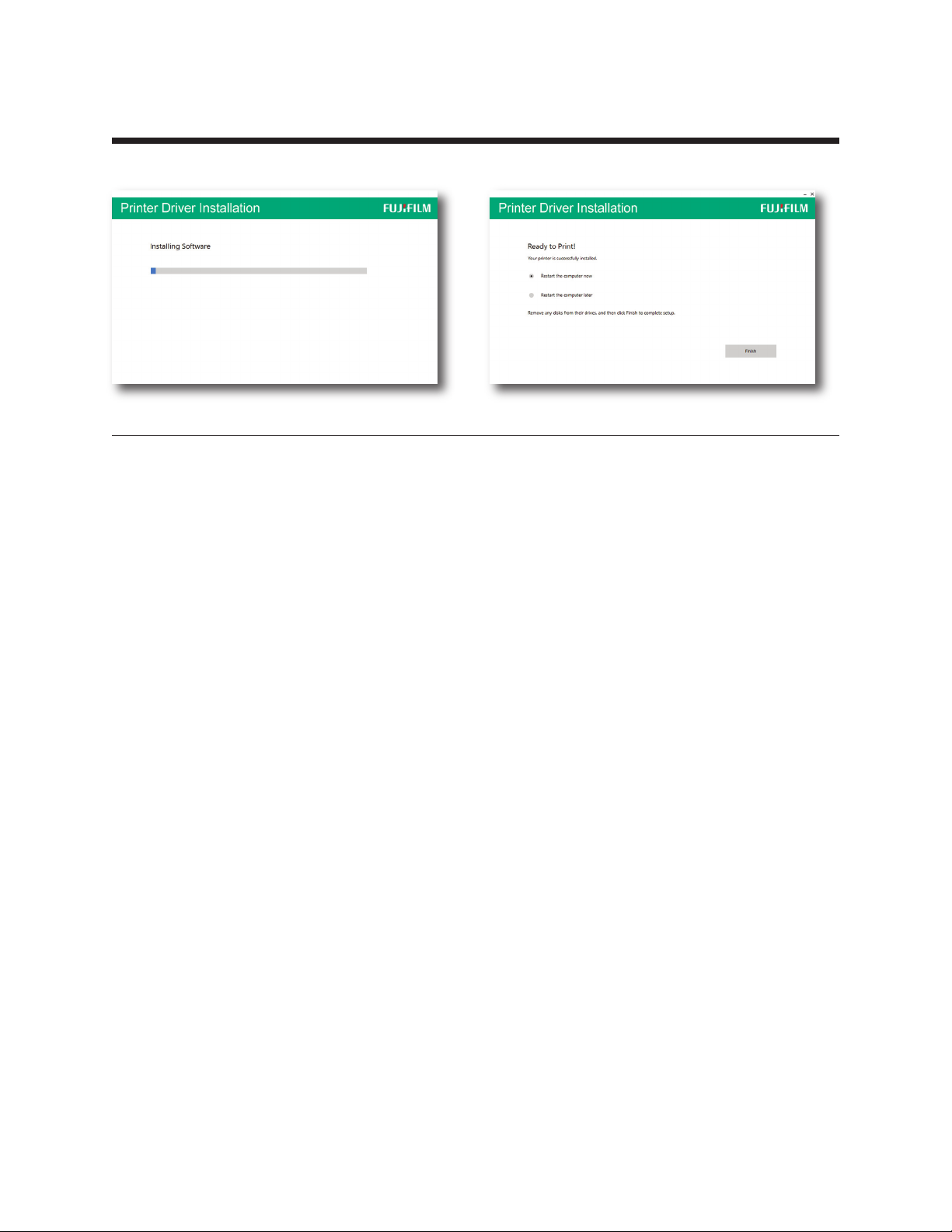

3.7. Wait for the installation of the driver to finish.

3.8. Restart computer.

– 5–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

4. Paper/Media Settings

4.1. Proceed to Control Panel/All Control Panel

Items/Devices and Printers and CX3240 for set

up of the CX3240 Windows Driver.

Highlight FUJIFILM CX3240 and

Right Click: Select Printer Properties.

4.2. From the Printer Properties General tab

select Preferences.

To set for a new paper size the following process

must be repeated for each size.

Steps 4.3-4.31

4.3. In Paper drop down, change to new print size

8.5x11.

– 6–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

4. Paper/Media Settings

4.4. In Paper drop down, change Color to White.

4.5. In Paper drop down, change Type to

Lightweight Cardstock to match 8.5x11.

4.6. In Paper drop down, change Select by Tray

to Tray 4, corresponding to 8.5x11.

4.7. Select Image Options tab, under Margins

be sure to set the radio button to None.

– 7–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

4. Paper/Media Settings

4.8. Select Color Options tab, set Image Quality

to your preference to either Standard

or High Quality.

4.9. Select Advanced tab.

4.10. Scroll down to Print Margins, highlight and

click Setup.

4.11. In the Print Margins dialog box, check

Enable User Defined Pages and For Each

Paper Size.

– 8–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

4. Paper/Media Settings

4.12. Select Left Margin, set to 0.00”

Select Right Margin, set to 0.00”

4.13. Select Top Margin, set to 0.00”

Select Bottom Margin, set to 0.00”

4.14. Select OK.Then Apply on CX3240

Printing Preferences.

4.15. Select OK on CX3240 Properties dialog box

Advanced tab.

– 9–

CX3240 Creative Duplex Printer | Printer Driver Software Manual

4. Paper/Media Settings

4.16. Select Printing Defaults.

4.17. In Paper drop down, repeat process of

selecting Size 8.5x11.

4.18. In Paper drop down, repeat process of

selecting Color to White.

4.19. In Paper drop down, repeat process of

selecting Type to Lightweight Cardstock.
