AMILO Notebook Xa 3530

The art of entertainment

Pages 6

Experience impressive entertainment, exciting new technologies, inspiring innovations and features unified in the

AMILO Notebook X series.

Key Features

Processor technology

AMD next-generation mobile processor technology

Operating System

Windows Vista® Home Premium

Innovation

ATI Hybrid Graphics technology features multi-GPU performance capabilities,

automatic power state adjustment for power-savings, and multi-display functionality

with the ATI Mobility Radeon™ HD 3650 graphic card with 512 MB dedicated VRAM

ATI PowerXpress™ technology that dynamically switches between discrete and

onboard graphics. Experience great graphics performance while plugged in or switch

over to energy efficient integrated graphics when on-the-go for extended battery life

Reliability

Spill-proof keyboard to protect your notebook against accidentally spilt liquids

- Enough time to shut down the notebook

- Have the liquid removed from the notebook

- Protects your investment and your data

Engineered in Germany means the test center in Germany tests conformity to

international standards and customer-specific requirements

A+ grade LCD panels for better picture quality

Ease of use

The silent mode function that causes a noticeable reduction in fan noise

Multimedia LightTouch™ bar and integrated Vista remote control let you easily play,

stop or pause your DVDs or music CDs

Multimedia and Entertainment

17-inch LCD WXGA+ display with BrilliantView technology for vivid colors, amazing

sharpness and impressive contrast

The integrated AMILOcam (1.3 mega pixels) with low-light technology for great video

quality even in low-light conditions and the built-in digital array microphone are perfect

for Internet telephony (VoIP) and video chats

Enjoy your favorite Hollywood blockbuster on an external display via HDMI (with

HDCP support)

Options

Integrated Blu-ray Disc™ drive and integrated hybrid TV tuner for the ultimate

entertainment experience

Dual hard disk drive with Raid 0/1 function

Raid 0 function: implements data striping to provide the best possible performance

Raid 1 function: defines disk mirroring for simultaneous writing of data on two disks

If one drive becomes defect, all data can be accessed on the second drive

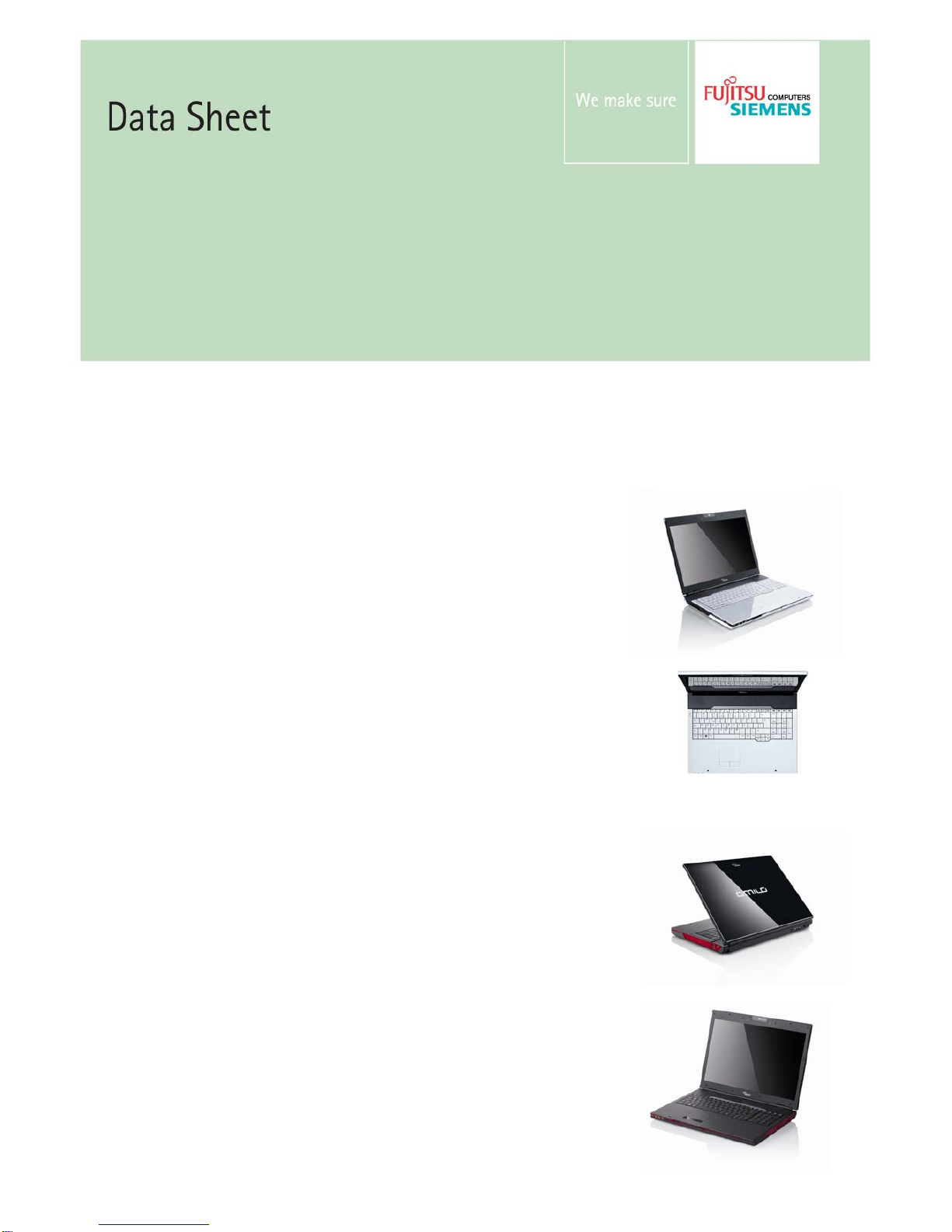

Model: Reveal white

Model: Eclipse black

Data Sheet ⏐Issue: October 2008⏐AMILO Notebook Xa 3530 Page 2 / 6

Fujitsu Siemens Computers recommends Windows Vista® Home Premium

Operating system1 and Recovery

Operating system Genuine Windows Vista® Home Premium (32-bit version)

Fujitsu Siemens Computers Recovery Program Backup and restore the original status of the hard disk and create system

restore disks

or individual recovery media on CD or DVD are included

Product Design

Color Reveal white or eclipse black

Architecture

System architecture AMD mobile processor technology

Chipset AMD 780G + AMD SB700

Processors1

AMD Turion™ X2 Ultra processor

AMD Turion™ X2 Dual-Core processor

AMD Athlon™ X2 Dual-Core processor

ZM-80 (2.1 GHz, 2 MB L2 cache)

ZM-82 (2.2 GHz, 2 MB L2 cache)

ZM-84 (2.3 GHz, 2 MB L2 cache)

ZM-86 (2.4 GHz, 2 MB L2 cache)

RM-70 (2.0 GHz, 1 MB L2 cache)

RM-72 (2.1 GHz, 1 MB L2 cache)

QL-60 (1.9 GHz, 1 MB L2 cache)

QL-62 (2.0 GHz, 1 MB L2 cache)

Memory 2 SO-DIMM memory slots (no memory on board)

Memory speed 800 MHz

Memory type DDR 2 RAM

Memory modules 1024 or 2048 MB

Max. memory size1, 24096 MB

Drives

Hard disk drive

HDD type SATA

HDD size 2.5-inch

HDD speed 5400 rpm

HDD cache 8 MB

HDD capacity1250, 320 or 5003GB with single HDD;

500 (2x 250), 640 (2x 320) or 10003(2x 500) GB with dual HDD

Raid function (optional, if two HDDs are installed)

Raid 0: stripe set for performance

Raid 1: mirroring for security

Raid off: two physical HDDs

Optical disc drive1 (built-in)

ODD type SATA

ODD technology SuperMulti-format DVD burner with double layer (DL) support

ODD read speed CD-ROM 24x, DVD-ROM 8x

ODD write speed CD-R 24x, CD-RW 16x, DVD+R 8x, DVD-R 8x, DVD+RW 8x,

DVD-RW 6x, DVD+R DL (8.5 GB) 4x, DVD-R DL (8.5 GB) 4x,

DVD-RAM 5x

Blu-ray Disc™ (optional)1

ODD technology Built-in Blu-ray Disc™ drive incl. SuperMulti-format DVD burner with

double layer (DL) support

ODD read speed BD 1.6x, CD-ROM 24x, DVD-ROM 8x

ODD write speed CD-R 8x, CD-RW 8x, DVD+R 8x, DVD+RW 4x, DVD-R 8x, DVD-RW 4x,

DVD+R DL (8.5 GB) 2.4x, DVD-R DL (8.5 GB) 2x, DVD RAM 5x

Display

Display type BrilliantView LCD

Display size 17-inch

Display resolution (intern) 1440 x 900 pixels

Display resolution (extern) 1920 x 1200

Resolution type WXGA+

Reaction time 16 ms

Brightness (typ.) 200 NIT

Contrast (typ.) 400 :1

Compliance with standards ISO 13406-2 class II

Data Sheet ⏐Issue: October 2008⏐AMILO Notebook Xa 3530 Page 3 / 6

Fujitsu Siemens Computers recommends Windows Vista® Home Premium

Graphics

Dedicated graphics (full name) ATI Mobility Radeon™ HD 3650 with Hybrid Graphics

Dedicated video memory 512 MB GDDR3

Onboard graphics chip ATI Radeon™ HD 3200

Shared video memory4Up to 1860 MB depending on installed main memory

3D Benchmark 2006 3600

Graphic features ATI PowerExpress™ technology (hybrid graphic technology)

DirectX® 10 support

Interfaces

Video 1x HDMI (1.3a) (incl. HDCP and S/PDIF out), 1x VGA

Audio Front: 1x line in, 1x microphone in, 1x line out /headphone out,

Side: 1x line out / S/PDIF out

Network 1x LAN (RJ-45)

Data 1x eSATA combined with USB 2.0, 3x USB 2.0,

1x IEEE1394 (FireWire™), 1x CIR

1x ExpressCard slot (54 / 34 mm),

1x 15-in-1 card reader5

SD, miniSD, MicroSD, SDHC,

MS, MS-Duo,

MMC, RS-MMC, MMC-Micro,

MSPRO, MS-PRO Duo, MS-Pro HG, MS-Pro HG Duo, M2,

xD picture card

TV tuner (option)11x DVB-T / analog antenna in, 1x AV in

Power supply 1x DC-in

Communication

Integrated Bluetooth® 2.1

LAN (Local Area Network) Gigabit Ethernet LAN (10 / 100 / 1000 Mbps)

Built-in WLAN (Wireless Local Area Network) Yes

WLAN type draft-n 802.11a/b/g/n

WLAN max. data rate up to 300 Mbps

WLAN encryption WEP, WPA and WPA2

For use in BE, CH, DK, DE, EE, FI, FR, EL, IE, IS, IT, LI, LV, LT, LU, MT, NL, NO,

PL, AT, PT, SE, SK, ES, CZ, HU, UK, CY

Multimedia

Audio Support of high-definition audio for S/PDIF output with up to 7.1 channels

Audio chip Realtek ALC888

Speakers 2x built-in speakers (2 W each)

Microphone Built-in digital array microphone

Subwoofer 1x built-in subwoofer (3 W)

Input device Sound volume control via function key or via LightTouch™ bar

AMILOcam

Image sensor 1.3 mega pixels webcam

Frames per second 306

Features Powered by Logitech®

Auto focus

Automatic brightness adjustment with status LED (blue: on, red:

streaming / application on)

Low-light technology for great video-quality even in dark

surrounding

Hybrid TV tuner (optional1)

Standard Built-in DVB-T / analog hybrid TV tuner

Data Sheet ⏐Issue: October 2008⏐AMILO Notebook Xa 3530 Page 4 / 6

Fujitsu Siemens Computers recommends Windows Vista® Home Premium

Input devices / Control buttons

Power button Located left of the keyboard

Keyboard Spill-proof keyboard with 85 keys, 21 key number block

Touchpad Hidden touchpad, with left and right mouse button,

touchpad disable function via function key combination (Fn+F6)

Multimedia keys Multimedia LightTouch™ bar located on top of the keyboard to launch the

following applications:

Silent mode (reduce noise level / fan speed, by reducing the CPU

performance, office applications, Internet and DVD playback are not

affected)

Hybrid graphics to switch between onboard graphics for extended

battery runtime and external graphics for better performance

DVD playback

Skip rewind

Play / pause

Skip forward

Volume control

Remote Control 26-key Vista remote control, shipped in ExpressCard slot

Hot keys The following hot keys or key combinations are available

Fn+F1 WLAN / BT on / off

Fn+F2 TV-tuner on / off

Fn+F3 Mute on / off

Fn+F4 Volume down

Fn+F5 Volume up

Fn+F6 Touchpad on / off

Fn+F7 AMILOcam on / off

Fn+F8 Brightness down

Fn+F9 Brightness up

Fn+F10 Display switch

Fn+F11 Silent mode

Fn+F12 Suspend

Number block

4 individually configurable quick-start application buttons (A1, A2, A3, A4)

Status indicators The notebook has 3 status LEDs:

Power status (& suspend)

Blue (always on): on; Blue blinking: stand by; None: off

Battery charge

Blue (always on): full; Blue blinking: charging;

Red blinking: < 10 % capacity

WLAN / Bluetooth

Blue: on; None: off

Security

Supervisor and user password Yes

Kensington lock Yes

Lid switch (hidden) Yes

ACPI functions ACPI 3.0 compliant for Vista requirement

Power on stand by (S1 LCD off)

Stand by / energy saving mode (S3 save to RAM)

Hibernate mode (S4 save to disk)

Off mode (S5 soft off)

Data Sheet ⏐Issue: October 2008⏐AMILO Notebook Xa 3530 Page 5 / 6

Fujitsu Siemens Computers recommends Windows Vista® Home Premium

Power System

Battery7

Battery type1Lithium-Ion battery

8 cells, 14.8 V / 2400 mAh (cell) / 4800 mAh (pack)

Battery runtime (idle mode)8Up to 3:20 hours (with onboard graphics);

up to 2:20 hours (with external graphics)

Battery runtime (DVD playback)9Up to 2:25 hours (with onboard graphics);

up to 2:05 hours (with external graphics)

Battery charging time (idle mode)10 Up to 1:15 hours (with onboard graphics);

up to 1:25 hours (with external graphics)

Battery charging time (maximum active mode)11 Up to 1:30 hours (with onboard graphics);

up to 1:25 hours (with external graphics)

Battery charging time (normal use)12 Up to 1:30 hours (with onboard graphics);

up to 1:25 hours (with external graphics)

Battery charging time (off mode) Up to 1:40 hours (with onboard graphics);

up to 1:45 hours (with external graphics)

AC Adapter Dynamic charge supported, ACPI 3.0 supported

Wide Range AC adapter 110 - 240 V AC, 50 - 60 Hz

Output 120 W with 20 V DC, 6 A

Energy consumption

S0 (idle mode) 18.6 W (with onboard graphics); 23.3 W (with external graphics)

S0 (max. active mode)13 52 W (with onboard graphics; 67.6 W (with external graphics)

S3 (stand by / energy saving mode) 0.5 W (with onboard and external graphics)

S4 (hibernate) 0.03 W (with onboard and external graphics)

S5 (off mode) 0.03 W (with onboard and external graphics)

Noise emission

Idle mode14 24.5 dBA (Silent Mode off); 19.7 dBA (Silent Mode on)

Maximum active mode15 28.5 dBA (Silent Mode off); 26.3 dBA (Silent Mode on)

Operating conditions

Operational 5 °C to 35 °C (ambient temperature)

10 % to 90 % relative humidity, non-condensing

Dimensions and weight

W x D x H 398 x 295 x 37.0 (front) / 44.0 (back) mm

Weight 3.6 kg16

Certifications GOST (WLAN)

CE Marking

R&TTE (WLAN, Bluetooth®)

Warranty Country specific terms

Application Software

Home office Microsoft® Works

Microsoft® Office Home and Student Trial

Adobe Reader

Windows Mail (within Vista operating system)

Windows Calendar (within Vista operating system)

Multimedia Nero Essentials S (CD / DVD write software)

Vista DVD Playback Pack (DVD playback software)

Windows Media Player (within Vista operating system)

Windows Media Center (within Windows Vista® Home Premium

operating system)

Logitech® QuickCam® application software

Optional1

CyberLink Power DVD (playback software for Blu-ray Disc™, only with

Blu-ray Disc™ drive)

Internet Microsoft® Internet Explorer

Country specific Internet provider

Security Norman security software solution

Data Sheet ⏐Issue: October 2008⏐AMILO Notebook Xa 3530 Page 6 / 6

Fujitsu Siemens Computers recommends Windows Vista® Home Premium

delivery subject to availability. Any liability that the data and illustrations are complete, actual or

correct is excluded.

Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which

by third parties for their own purposes may infringe the rights of such owner.

For further information see http://www.fujitsu-siemens.com/terms_of_use.html

Published by

FSC CD PMKT

Christiane Geis

Fujitsu Siemens Computers

http://www.fujitsu-siemens.com/

Company stamp

Accessories

Included AC adapter 120 W

First Battery 8 cells

Integrated remote control

Optional Find out more: www.fujitsu-siemens.com/accessories

Manuals Manual (on hard disk), quick start guide, safety guide, warranty guide,

recovery guide

Drivers Updates downloadable at http://www.fujitsu-siemens.com

Awards

e-media - Austria - Issue 13/2008

"Value for money: 5 of 5 / excellent"

1Depending on exact configuration. Please check at your local retailer

2DISCLAIMER: Up to 1 GB may not be available with 32-bit operating systems due to system resource requirements if system is preinstalled

with 4096 MB RAM.

3Available from January 2009

4Shared video memory size may vary depending on configuration. Used video memory size depends on Microsoft® Windows Vista®

memory management.

- 1024 MB system memory enables up to 638 MB static and shared memory

- 2048 MB system memory enables up to 1150 MB static and shared memory.

- 3072 MB system memory enables up to 1390 MB static and shared memory.

- 4096 MB system memory enables up to 1860 MB static and shared memory.

5An adapter is needed for the following card formats: RS-MMC, MMC-Micro, miniSD, MicroSD, SDHC, MS-Duo, MS-PRO Duo, MS-Pro HG,

MS-Pro HG Duo, M2

6AMILOcam frame rate can vary significantly depending on the used software application.

7DISCLAIMER: Battery life may vary depending on product model, configuration, applications, power management settings and features

utilized. Recharge time varies depending on usage. The recharge capacity may decrease after some months so that the battery lifetime as well

as operating time can not be assured for the whole lifetime of the notebook.

8Tested with Battery Mark 4.0.1 (“power saver mode”)

9DVD playback tested with Vista DVD playback

10 Tested with Battery Mark 4.0.1

11 Tested with 3DMark 2006

12 DVD playback tested with Vista DVD playback

13 Tested with 3DMark 2006

14 Tested according to ISO 7779 and ISO 9296

15 Tested with QAFE 8.01 / 2. sieve.exe (CPU stress test) / Diskload.exe according to ISO 7779 and ISO 9296

16 Weight may vary depending on actual configuration.

The configuration described in this document is generic only and non-binding. For the exact

configuration of your AMILO, please contact your licensed dealer.

Altri manuali per AMILO Xa 3530

Indice

Altri manuali Fujitsu Siemens Computers Computer portatile

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Li 3710 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pa 2510 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers 4AMILO Pi 2540 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook S6410 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook C Series Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK T Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pro V2030 Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pro V2035 Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK S Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO La 1703 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Amilo Si 2654 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK P Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pi 3525 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pi 153 SERIES Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Si 2636 Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK S Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook C Series Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Li Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK P Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Si 1848 Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Li 3910 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers CELSIUS Mobile H210 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers CELSIUS H Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers ESPRIMO Mobile V5545 Manuale utente

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
