Fujitsu Siemens Computers AMILO Xa 3530 Manuale utente

Quick Start Guide

Published by

Fujitsu Siemens Computers GmbH

Mies-van-der-Rohe-Straße 8

80807 München, Germany

Contact

www.fujitsu-siemens.com/support

Technical data subject to modi cations and delivery subject

to availability. Any liability that the data and illustrations are

complete, actual or correct is excluded. Designations may be

trademarks and/or copyrights of the respective manufacturer,

the use of which by third parties for their own purposes may

infringe the rights of such owner. For further information see

http://www.fujitsu-siemens.com/terms_of_use.html

AMILO Notebook Xa 3530

Getting started





SAP: 10600945218

FSP: 440N00626

English

Lietuviškas

Latviski

Pycckuй

440N00624.indd 1 12.06.2008 15:03:41

440N00624.indd 2 12.06.2008 15:03:43

AMILO Notebook

Xa 3530

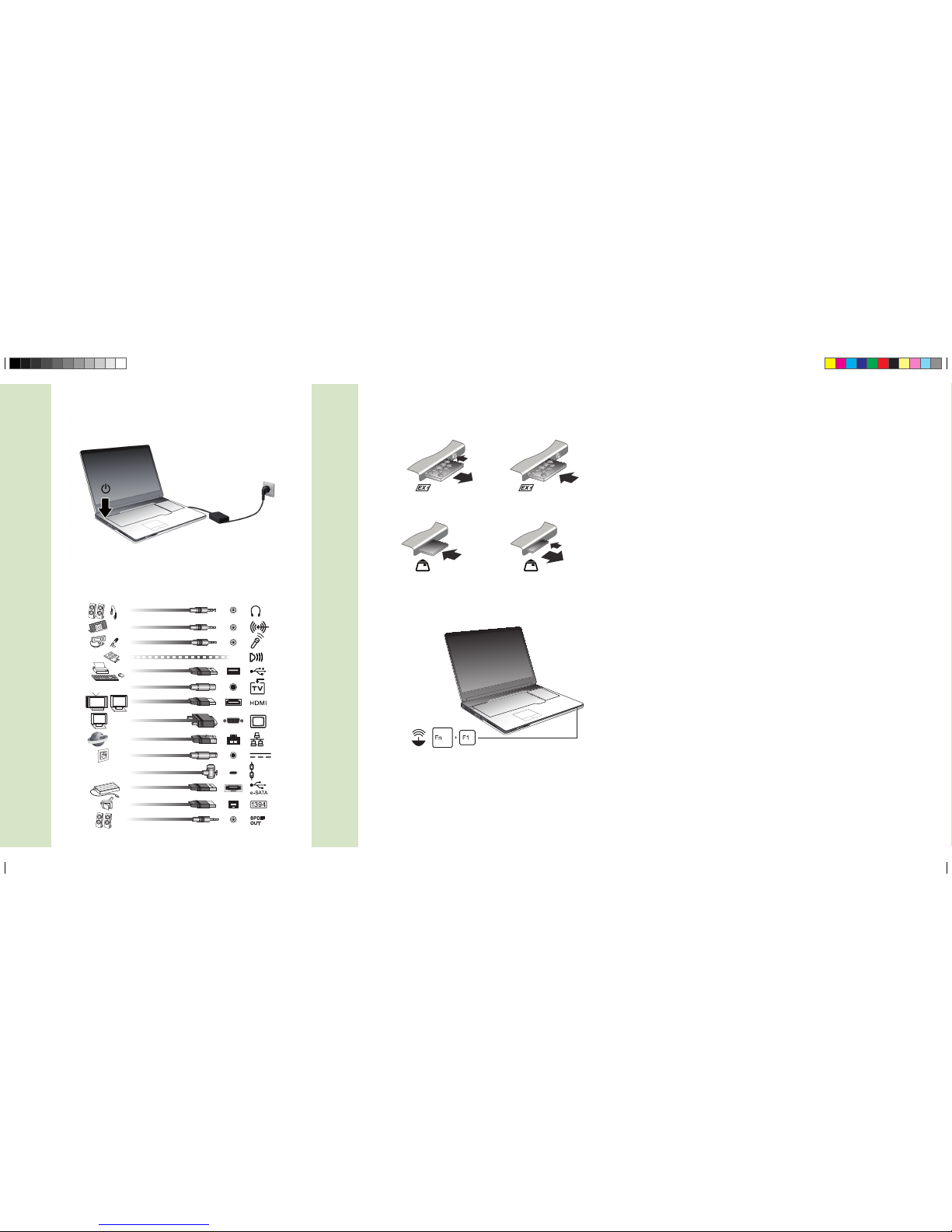

First-time setup

English

Lietuviškas

Latviski

Pycckuй

Microsoft, MS Windows and Windows Vista are registered trademarks of the Microsoft Corporation.

Adobe Reader is a trademark of Adobe Systems Incorporated.

MultiMediaCard is a registered trademark of Inﬁneon Technologies AG

Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.

All other trademarks referenced are trademarks or registered trademarks of their

respective owners, whose protected rights are acknowledged.

or similar methods, either in part or in whole.

Non-compliance is subject to compensation for damages.

Subject to availability and technical modiﬁcations.

Contents

English

Contents

Innovativetechnology ................................................................. 1

Hybridgraphics ......................................................................... 2

SecondharddriveinRAIDgroup ........................................................ 2

StarttheAMDRAIDXpertprogramandcalluptheHelpfunction ........................ 3

Furtherinformation ...................................................................... 3

"AMILO Notebook" Operating Manual . . . . . ............................................ 3

Portsandcontrols ..................................................................... 4

Importantnotes ........................................................................ 5

Preparing your notebookforuse ....................................................... 6

Unpacking and checking your notebook ................................................... 6

Selectingthelocation ................................................................... 7

Connecting the mains adapter ........................................................... 7

Switching the notebook on for the ﬁrsttime ................................................ 8

Technical data ......................................................................... 9

Notebook . . . . . .......................................................................... 9

Mains adapter .......................................................................... 9

10600945218, edition 1 English

Contents

English 10600945218, edition 1

Innovative technology

... and ergonomic design make your AMILO Xa 3530 Notebook a reliable and convenient notebook.

If you have purchased a notebook with a Microsoft Windows operating system, this is pre-installed and

optimally conﬁgured for you. The notebook is ready to use immediately the ﬁrst time you switch it on.

Your notebook features the very latest technology so that you get the best

performance from your computing experience.

• a drive for reading and writing CDs/DVDs and, depending on your particular

model, for reading Blu-ray discs

• three USB ports, providing simple expansion options for game pads, printers and more

• a combined eSATA/USB connection for connecting an external SATA

hard disk or another USB device

• Depending on the device, there may be a second hard drive so you can operate

your notebook with two hard drives in a RAID group.

• LAN and wireless LAN for Internet and network access

• a FireWire port for fast data exchange with multimedia devices

• an HDMI port for all-digital transfer of audio and video data

• an integrated webcam and digital microphones for a wide variety of multimedia applications

• a multi-format card reader for quick transfer of digital photos, music and

video clips onto your notebook

• an integrated audio controller and stereo speakers for true listening pleasure

• additional inputs and outputs for high quality audio accessories

• depending on the equipment level, a TV tuner for receiving terrestrial television channels

• a keyboard with separate numeric keypad

• an on-screen display for visual control over the key settings of your notebook

• hybrid graphics for full performance and battery-saving working mode

for less demanding applications

The user-friendly "BIOS Setup Utility" offers powerful password protection functions which can be

used to control your notebook’s hardware and protect your system better against unauthorised use.

This Operating Manual tells you how to get your AMILO notebook up and

running and how to operate it in daily use.

10600945218, edition 1 English - 1

Innovative technology

Hybrid graphics

Your notebook is equipped with a hybrid graphics system.

The graphics unit integrated in the chip set is used for applications which are

less graphics-intensive, such as video playback, e-mail and Internet surﬁng.

This reduces heat generation, noise levels and power consumption. As a

result, battery life is increased (battery saver mode).

However, if more graphics power is needed - such as for games - then the additional

graphics card is used. Both graphics cards are used simultaneously (performance mode).

►You can choose between battery saver mode and performance mode (depending

on the status of the AC adapter) either via the Quick Start button (hybrid key) or

via the hardware driver (ATI Catalyst Control Center).

Second hard drive in RAID group

Redundant ArrayofIndepe ndentDisksRAID

Removal and installation of the second hard disk must only be performed by

authorised service agents of Fujitsu Siemens Computers GmbH. Unauthorised

removal and installation will invalidate your warranty.

For further information and addresses of our service partners, please

see "http://www.fujitsu-siemens.com/support".

RAID (Redundant Array of Independent Disks, also: Disk Array) is a procedure for

combining two hard disks to create a logical unit.

A so-called disk array can be used advantageously to improve performance or

alternatively to improve error tolerance (data protection).

Error tolerance is facilitated by means of data redundancy. If one drive malfunctions,

a different drive contains an exact copy of the data. This can prevent an operating

system from malfunctioning or data from being lost.

The operating system detects all hard disks in a disk array as a single physical

hard disk. The individual disk drives in a disk array are called "members". Member

conﬁguration information is recorded in the reserved sector of the hard disk. With this

information the hard disk can be identiﬁed as a member.

There are usually a few methods by which hard disks can be combined. These methods

are referred to as different RAID levels. The different RAID levels represent different

performance and security levels as well as implementation costs.

Depending on the size of the hard disk, the process for combining two

hard drives to create a RAID group can take several hours. During this

time period, your screen will turn black.

2 - English 10600945218, edition 1

Innovative technology

Start the AMD RAIDXpert program and call up the Help function

►Call up the AMD RAIDXpert program by choosing Start - All Programs - AMD - RAID - RAIDXpert.

►Conﬁrm the conﬁrmation prompt by clicking Continue.

►Enter "admin" for both the login ID and the password.

►Press the "Enter" key.

The AMD RAIDXpert program starts.

►Click the Help button at the top right-hand corner of your screen.

The Help function for the AMD RAIDXpert program is called up.

Further information

General information about your AMILO Notebook can be found in the

"AMILO Notebook" operating manual.

The Windows Vista drivers for your AMILO notebook are available to download

from our website. This computer is not designed to support any other operating

systems. Fujitsu Siemens Computers accepts no liability for consequences

arising from the use of other operating systems.

Software-related portions of this manual relate to Microsoft products if

they are included with your AMILO Notebook.

Please refer to the relevant manufacturer’s operating instructions when

installing other software products.

"AMILO Notebook" Operating Manual

The "AMILO Notebook" Operating Manual can be found in the Windows Start menu

or on the Internet at "www.fujitsu-siemens.com/support".

10600945218, edition 1 English - 3

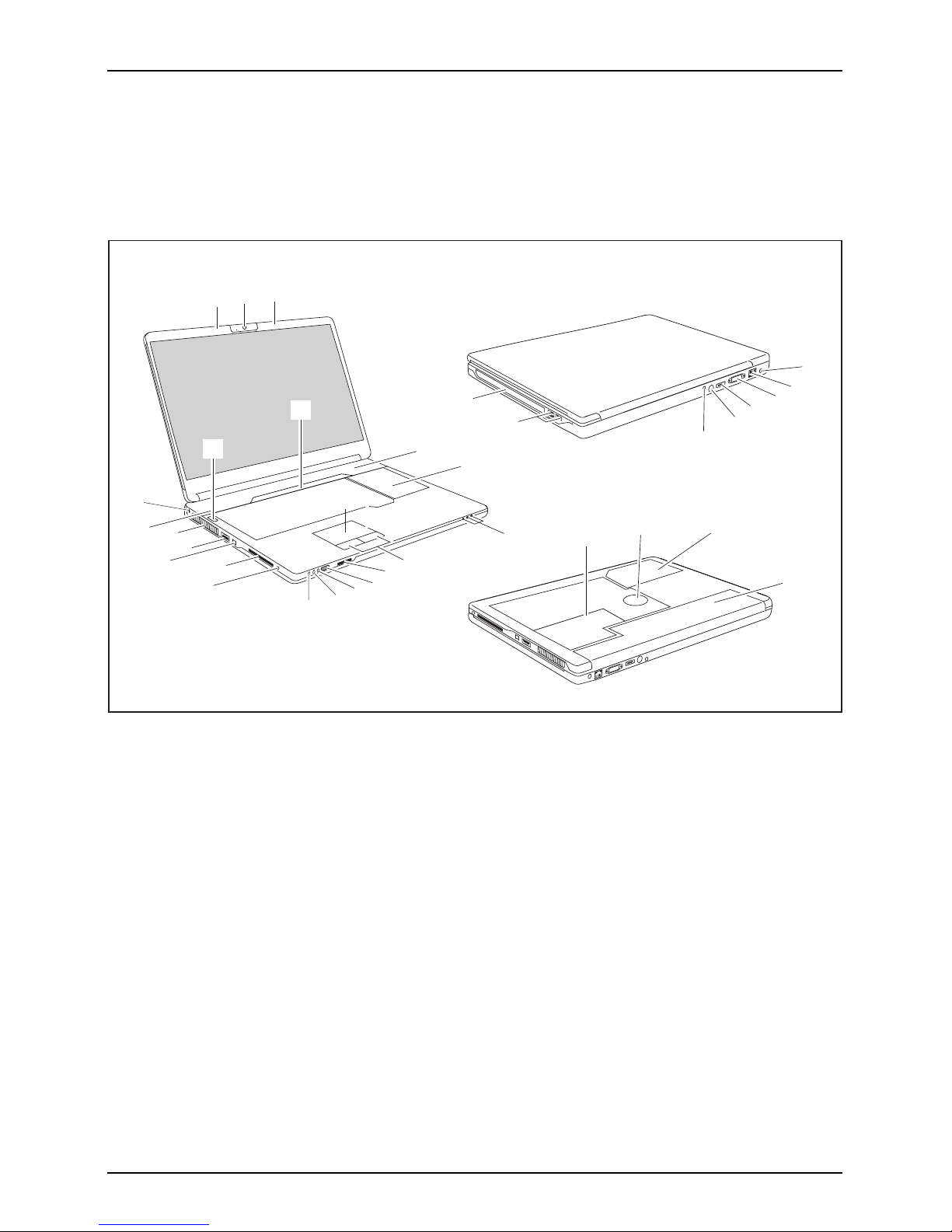

Ports and controls

This chapter presents the individual hardware components of your notebook. It gives an

overview of the displays and connections on the notebook. Please familiarise yourself

with these components before you start using your notebook.

WebcamMultimediaboardTouchpadSeparatenumerickeypadKeyboardStatus indicatorsTouchpadbuttons5-in-1ca rdreaderInfraredinterfaceforremotecontrolLineInportMicrophone portHe adphonesportSP DIF/LineOutportExpressCard slotMultimediaremotecontrolFireWireportCombinedeSATA/USBportSpeakersON/OFFswitchUSBportsAntennac ableportHDMIportVGAmonitorportNetworkportDCinp utconnector(DCIN)MemoryservicecompartmentHarddiskservicecompartmentBatterySubwoofer

29 31

1 = Webcam

2 = Multimedia board

3 = Touchpad

4 = Keyboard with separate number block

5 = Status indicators

6 = Touchpad buttons

7 = 5-in-1 card reader

8 = Infrared interface for remote control

9 = Line In port

10 = Microphone port

11 = Headphone port

12 = SPDIF/Line Out port

13 = ExpressCard slot with multimedia

remote control

14 = FireWire port

15 = Combined eSATA/USB port

16 = Ventilation slots

17 = Loudspeaker

18 = Kensington Lock

19 = ON/OFF switch

20 = Microphone

21 = CD/DVD drive

22 = USB ports

23 = Combined audio/video port

24 = Antenna cable port (device-dependent)

25 = HDMI port

26 = Monitor port (VGA)

27 = Network port

28 = DC input connector (DC IN)

29 = Service compartment for memory

and hard disk 1

30 = Subwoofer

31 = Service compartment for hard disk 2

32 = Battery

4 - English 10600945218, edition 1

Altri manuali per AMILO Xa 3530

Indice

Lingue:

Altri manuali Fujitsu Siemens Computers Computer portatile

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Xa 3530 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers ESPRIMO Mobile V5545 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers ESPRIMO Mobile V Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers V3525 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook C Series Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Professional Notebook Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO M1424 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook B2154 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pa 3553 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO L 6810 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Amilo L1310G Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pi 3540 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK S Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK BLUETOOTH with Plugfree Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pro V2030 Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers Lifebook C Series Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers LIFEBOOK P Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers CELSIUS H Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Pi 3625 Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers CELSIUS Mobile A Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers Mobile Workstation Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO M Series Manuale utente

Fujitsu Siemens Computers

Fujitsu Siemens Computers AMILO Li Series Scheda informativa del prodotto

Fujitsu Siemens Computers

Fujitsu Siemens Computers Amilo Xi Manuale utente

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
