Fujitsu T5010 - LifeBook Tablet PC Manuale utente

Port Replicator

User’s Guide

Fujitsu Computer Systems Corporation

The port replicator extends the functionality

of your LifeBook® T Series Tablet PC by

providing ports to connect an external

monitor, a LAN (RJ-45) cable, four USB 2.0

devices, a DVI device, an HDMI device,

speaker/headphones, and DC power.

The port replicator connects to the bottom/

rear of your LifeBook Tablet PC.

INSTRUCTIONS

Port Rep_Seneca.fm Page 1 Wednesday, May 14, 2008 4:54 PM

Figure 1. Port replicator back panel

DC Power Jack

Port

Replicator

Release Latch

(on side)

External

Monitor

Port

LAN

Jack

USB 2.0

Ports

Line

(RJ-45)

External

DVI Port

(x 4)

HDMI

Port

Out

Jack

Security Lock Slot

Port Rep_Seneca.fm Page 2 Wednesday, May 14, 2008 4:54 PM

BACK PANEL COMPONENTS

The following is a brief description of the

port replicator’s back panel components.

(Figure 1)

USB 2.0 Ports

The four USB 2.0 ports allow you to connect

USB devices such as game pads, pointing

devices, and keyboards. USB 2.0 is down-

ward-compatible with USB 1.1 devices, so

older USB devices will work with these ports.

USB 2.0 is a much faster design, running 40

times faster than USB 1.1.

External DVI Port

The external Digital Video Interface (DVI)

port allows you to connect an external digital

flat-panel monitor or projector. This

provides a pure digital video signal for digital

monitors.

HDMI Port

The HDMI port is used to connect compat-

ible digital devices with your computer (such

as a high-definition television or AV

receiver).

External Monitor Port

The external monitor port allows you to

connect an external monitor. Note that if a

Port Rep_Seneca.fm Page 3 Wednesday, May 14, 2008 4:54 PM

port replicator is attached, you must use the

external monitor port on the port replicator.

LAN (RJ-45) Jack

The LAN jack allows you to connect a LAN to

the port replicator. Note that when the system

is attached to the port replicator, the LAN

Jack on the port replicator should be used,

not the one on the system.

Line Out Jack

The line out jack is used for connecting an

external speaker or headphones. Note that

line out does not provide power, so the

speaker must be externally powered.

DC Power Jack

The DC power jack allows you to plug in the

AC adapter to power the tablet and charge the

internal Lithium ion battery.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach

an optional physical lock down device.

FRONT PANEL COMPONENTS

Following is a description of the port repli-

cator’s front panel components. (Figure 2)

Docking Port

The docking port connects the port replicator

to your Tablet PC.

Port Rep_Seneca.fm Page 4 Wednesday, May 14, 2008 4:54 PM

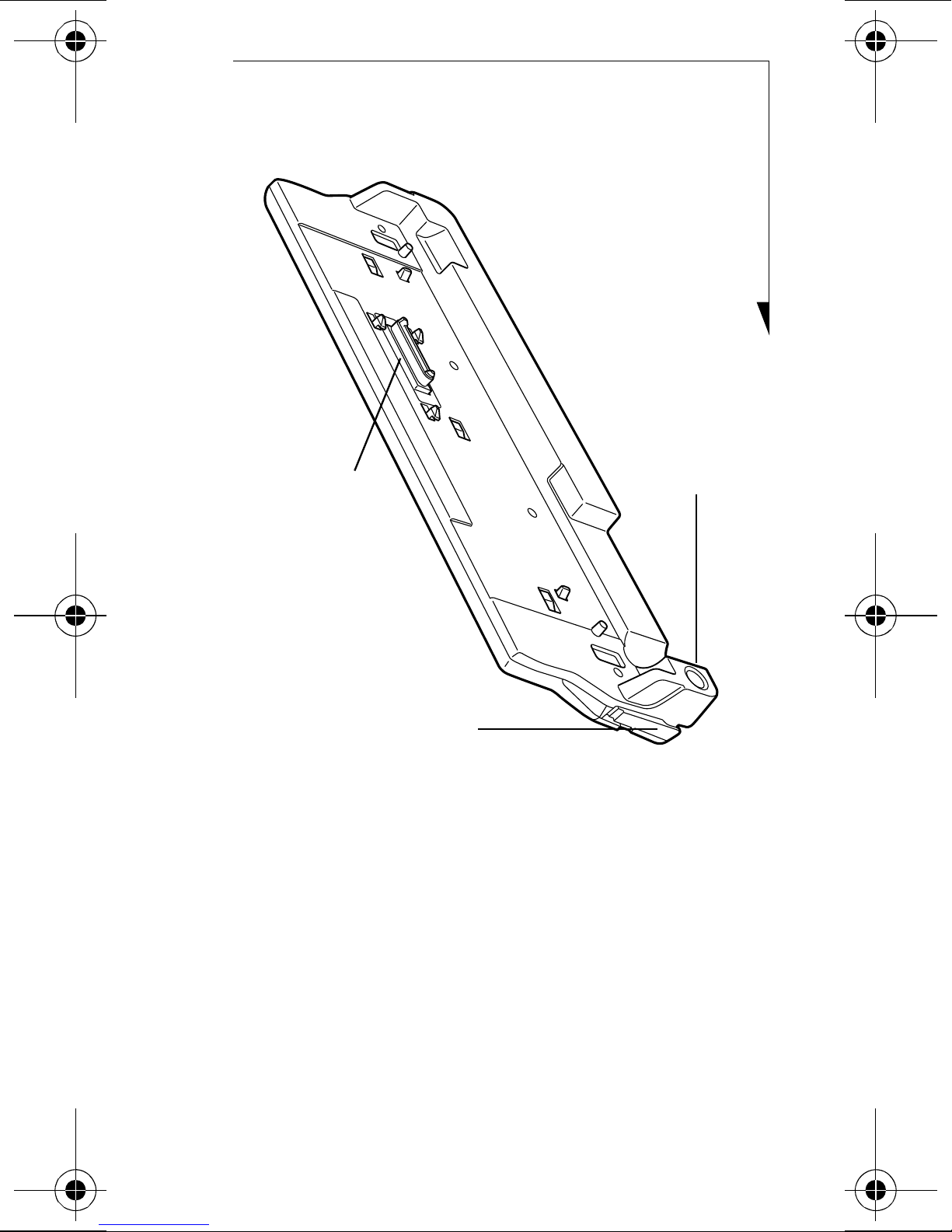

Figure 2. Port replicator front panel

Port Replicator Release Latch

Pull the Port Replicator Release Latch away

from the port replicator to remove the port

replicator from your Tablet PC.

Power On/Off Button

The Power On/Off button on the port repli-

cator performs the same functions as the

system Suspend/Resume button. The Power

Docking

Port

Replicator

Release

Latch

Power

On/Off

Button

Port Rep_Seneca.fm Page 5 Wednesday, May 14, 2008 4:54 PM

On/Off button allows you to suspend Tablet

PC activity without powering off, resume

your Tablet PC from standby mode, and

power on your system when it has been shut

down from the Windows operating system.

ATTACHING A PORT REPLICATOR

The port replicator can be attached on your

Tablet PC while the power is on, while in

suspend mode, or while the power is off. To

attach the port replicator follow these steps:

1. Align the port replicator connector on

the bottom of the Tablet PC with the

connector on top of the Port Replicator.

2. Push your Tablet PC down where shown

in Figure 3 to connect it to the port

replicator securely.

DETACHING A PORT REPLICATOR

The port replicator can be detached from

your Tablet PC while the power is on, while

in suspend mode, or while the power is off.

Do not hold the system by

the port replicator. The port

replicator and/or the system

could be damaged if the port

replicator is used as a handle.

Port Rep_Seneca.fm Page 6 Wednesday, May 14, 2008 4:54 PM

To detach the port replicator:

1. Pull the port replicator release latch

away from the port replicator to release

the lock.

2. Lift up your Tablet PC to detach it from

the port replicator.

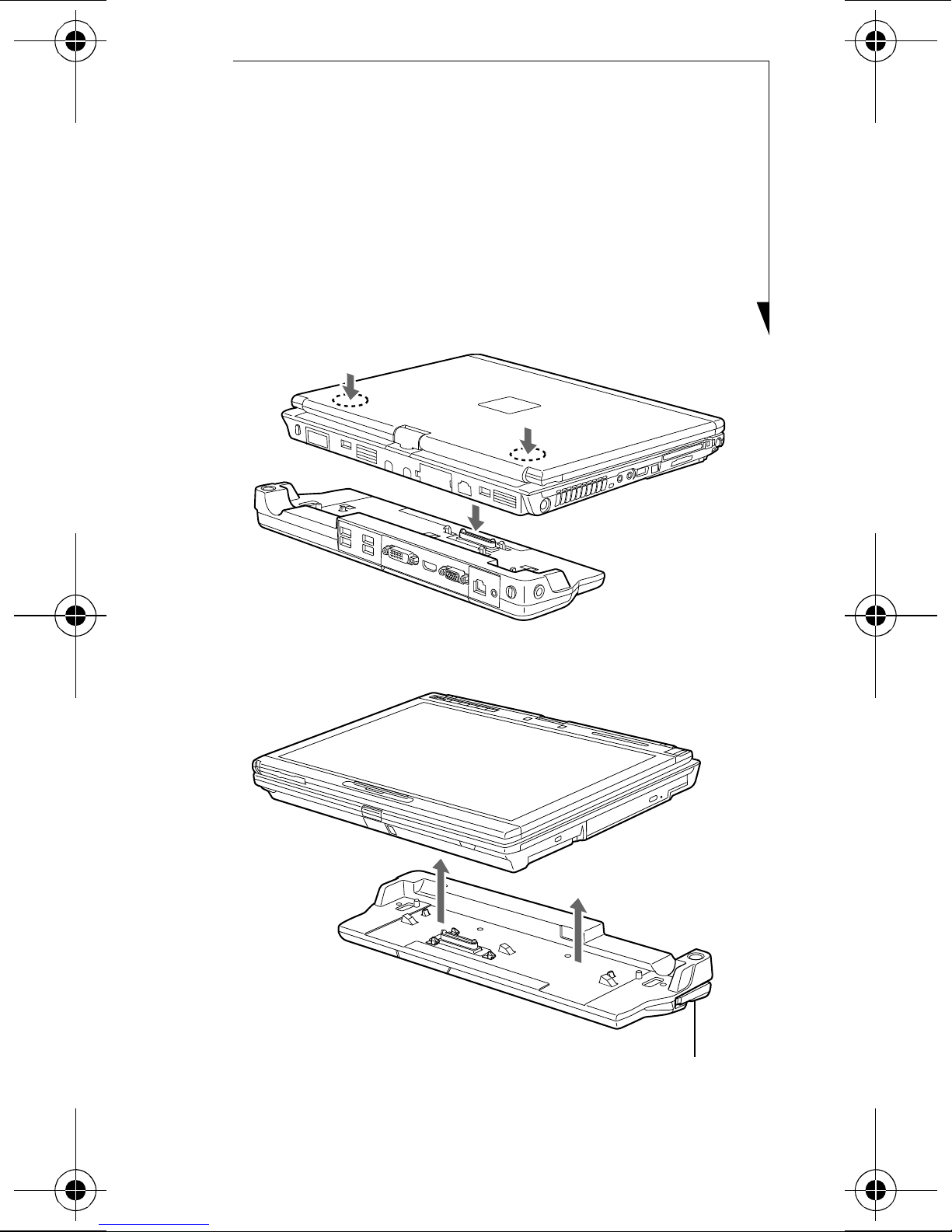

Figure 3. Attaching the port replicator

Figure 4. Detaching the port replicator

Port replicator release latch

Port Rep_Seneca.fm Page 7 Wednesday, May 14, 2008 4:54 PM

Fujitsu Computer

Systems Corporation

1250 E. Arques Avenue

M/S 122

Sunnyvale, CA 94085

For more information, call 1-877-372-3473

or visit our Web site at:

http://us.fujitsu.com/computers

For technical support call:1-800-8fujitsu

(1-800-838-5487) or e-mail us at:

8fujitsu@us.fujitsu.com

Fujitsu, the Fujitsu logo, and LifeBook are regis-

tered trademarks of Fujitsu, Ltd. All other trade-

marks mentioned herein are the property of their

respective owners. Fujitsu Computer Systems

Corporation has made every effort to ensure the

accuracy and completeness of this document. As

ongoing development efforts continually improve

the capabilities of our products, we cannot guar-

antee the accuracy of the contents of this document.

We disclaim liability for errors, omissions, or future

changes.

B5FY-8811-01EN-00
