DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 1 / 6 http://ts.fujitsu.com/mobile

DATASHEET

FUJITSU LIFEBOOK AH550 NOTEBOOK

THE STYLISH ALL-ROUNDER

LIFEBOOK AH550

The LIFEBOOK AH550 notebook is the stylish all-rounder with a high denition 39.6 cm (15.6-inch)

glossy LCD in 16:9 widescreen format. With the optionally integrated Blu-ray Disc™ drive you can also

enjoy media on the big screen of your TV set via HDMI. Integrated WLAN and optional Bluetooth® and 3G/

UMTS provide you with highest connectivity. Feel special thanks to the high-gloss black nish and brilliant

chrome parts.

HIGH PERFORMANCE

Experience the smart family of Intel® Core™ processors that deliver performance that adapts to your

needs, making laptops faster and more responsive.

New Intel® Core™ processors and latest Intel® mobile platform

APPEALING DESIGN

High-gloss black nish and brilliant chrome parts give the notebook a distinctive character.

High-gloss black covers and brilliant chrome highlights 

MULTIMEDIA AND ENTERTAINMENT

Enjoy high-denition home entertainment - with razer sharp picture quality, 16:9 format to watch DVDs in

their native resolution and optionally an integrated Blu-ray Disc™ drive.

BrilliantView display technology, 16:9 widescreen format, HDMI interface, optional Blu-ray Disc™ drive

HIGH CONNECTIVITY

Anytime, anywhere with highest connectivity for work and private.

Integrated WLAN and optional integrated Bluetooth® and 3G/UMTS, 1.3 megapixel webcam, integrated

digital microphone

HIGH RELIABLILITY AND SECURITY

Protect your most valuable data like pictures, videos and more.

Spill-resistant keyboard, Computrace® enabled BIOS, Advanced Theft Protection (ATP), kensington lock

DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 2 / 6 http://ts.fujitsu.com/mobile

COMPONENTS

PROCESSOR Intel® Core™ i7 processor i7-620M (2.66 GHz, 4 MB)

Intel® Core™ i5 processor i5-540M (2.53 GHz, 3 MB)

Intel® Core™ i5 processor i5-520M (2.4 GHz, 3 MB)

Intel® Core™ i5 processor i5-430M (2.26 GHz, 3 MB) *

Intel® Core™ i3 processor i3-350M (2.26 GHz, 3 MB) *

Intel® Core™ i3 processor i3-330M (2.13 GHz, 3 MB) *

Intel®Celeron® processor P4500 (1.86 GHz, 2 MB)

PROCESSOR NOTES *Processor only for retail, SMB, education and government

MEMORY MODULES 1 GB (1 module(s) 1 GB) DDR3, 1066 MHz, PC3-8500, DIMM

2 GB ( module(s) 2 GB) DDR3, 1066 MHz, PC3-8500, DIMM

4 GB ( module(s) 4 GB) DDR3, 1066 MHz, PC3-8500, DIMM

Supported capacity RAM (max.) 8 GB

Memory slots total 2

Memory slot type SO DIMM (DDR3, 1066 MHz)

HARD DISK DRIVES (INTERNAL) SATA, 5400 rpm, 500 GB, 2.5-inch

SATA, 5400 rpm, 320 GB, 2.5-inch

SATA, 5400 rpm, 250 GB, 2.5-inch

Hard disk notes Accessible capacity may vary, also depending on used software

One Gigabyte equals one billion bytes, when referring to hard disk drive capacity.

WLAN (OPTIONAL) WLAN Atheros 802.11b\g\n 1x1 (WW)

WLAN Atheros 802.11b\g\n 2x2 (WW)

WIRELESS TECHNOLOGIES

Bluetooth V2.1 (optional)

WLAN notes Hardware on/off switch for WLAN is available.#Import and usage according to country-specic regulations.

UMTS notes Optional integrated Gobi 2000 (HSDPA/HSUPA downlink 7.2 MBit/s, uplink 5.76 MBit/s)

3G/UMTS (OPTIONAL) (downlink 7.2 Mbit/s, uplink 5.76 Mbit/s)

DISPLAY 39.6 cm (15.6-inch), TFT, (HD), LED backlight, glossy, 1366 x 768 pixel

BLUETOOTH (OPTIONAL) Bluetooth 2.1

OPTICAL DRIVE OPTIONS Blu-ray Disc™ Combo Drive

Blu-ray Disc™ Triple Writer

DVD Super Multi

Base unit LIFEBOOK AH550

GENERAL SYSTEM INFORMATION

Chipset Intel® HM55

BIOS features BIOS based on Phoenix SecureCore

DISPLAY

Display 39.6 cm (15.6-inch), TFT, (HD), LED backlight, glossy, 1366 x 768 pixel

Aspect ratio 16:9

GRAPHICS

Max. resolution external display 1920 x 1200 pixel

Graphics brand name Intel® HD Graphics

Graphics features DirectX® 10 support

Shared video memory up to 1695 MB

DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 3 / 6 http://ts.fujitsu.com/mobile

INTERFACES

Memory card slots 1 x 4in1 Card Reader (SD /SDHC / MS / MS Pro)

ExpressCard slots 1 (34/54 mm)

eSATA 1

USB 2.0 total 4

FireWire (IEEE1394) 1

VGA 1

HDMI 1

Ethernet (RJ-45) 1

DC-in 1

Audio: line-in / microphone 1

Audio: line-out / headphone 1

Internal microphones 1 (digital)

Kensington Lock support 1

WIRED COMMUNICATION

LAN 10/100/1000 MBit/s Broadcom BCM57780

KEYBOARD AND POINTING DEVICES

Spill-resistant keyboard with number block

Number of keyboard keys: 103, Keyboard pitch: 18,4 mm, Keyboard stroke: 3 mm

Touchpad

Status LED

MULTIMEDIA

Audio type On board

Audio codec Realtek ALC269

Audio features Support of high-denition audio, 2x built-in speakers (stereo), Built-in digital microphone, Sound volume control via function

key (down: Fn+F8; up: Fn+F9)

Camera Built-in webcam, 1.3 megapixel

POWER SUPPLY

AC adapter 19 V / 80 W (4.22 A)

Rated voltage range 100 - 240 V (AC Input)

Rated frequency range 50 - 60 Hz

1st battery Li-Ion battery 6-cell, 4000 mAh, 43 Wh

Li-Ion battery 8-cell, 5200 mAh, 75 Wh

Runtime 1st battery Up to 3:30 h / 5:30 h

Battery notes Battery life may vary depending on product model, conguration, applications, power management settings and features

utilized. Battery recharge time depends on usage.

DIMENSIONS / WEIGHT / ENVIRONMENTAL

Dimensions (W x D x H) 372 x 262 x 41-44 mm

Weight Approx. 2.75 kg

Weight notes Weight may vary depending on actual conguration (including battery pack)

Operating relative humidity 20 - 85 %

OPERATING SYSTEM

Operating system optional preinstalled Microsoft® Windows® 7 Professional

Microsoft® Windows® 7 Home Premium

Microsoft® Windows® 7 Home Basic

Microsoft® Windows® 7 Starter (EM) 32-bit

Operating system compatible Microsoft® Windows® XP Professional

Operating system notes All Windows® 7 versions are Ofce 2007 ready.

Driver support for Microsoft® Windows® XP

DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 4 / 6 http://ts.fujitsu.com/mobile

ADDITIONAL SOFTWARE

Additional software (preinstalled) Adobe Acrobat Reader

CyberLink YouCam

EasyGuide online user documentation

Nero Essentials S (burning software)

Norton Internet Security (incl. Firewall) 90 days version

Additional software (included as a CD/

DVD)

Drivers & Utilities DVD (DUDVD)

SECURITY

Physical security Kensington Lock support

System security Computrace®enabled BIOS

User security Smart HDD

COMPLIANCE

Europe CE Marking

R&TTE (WLAN, Bluetooth®)

Global ENERGY STAR® 5.0

RoHS (Restriction of hazardous substances)

WiFi certied

EPEAT® Silver

Russia GOST

Compliance link https://sp.ts.fujitsu.com/sites/certicates/default.aspx

WARRANTY

Standard Warranty 1 year / 2 years (depending on country)

Service level Collect & Return Service / Bring-in Service (depending on county specic requirements) (depending on country)

MAINTENANCE AND SUPPORT SERVICES - THE PERFECT EXTENSION

Recommended Service 3 years, Collect & Return Service

Spare Parts availability 3 years

Service Weblink http://ts.fujitsu.com/Supportservice

RECOMMENDED ACCESSORIES

Laser Mouse CL3500 The Laser Mouse CL3500 with USB connection is equipped with all the

essential features a user values in home and business applications.

The laser sensor ensures the highest accuracy. Tilt-Wheel-Technology means

high comfort for navigation in documents: up / down, left / right. Two resolution

switch buttons allow you to adjuse the resolution in four levels individually

for different user applications. Besides the technical features, this mouse

convinces with its elegant, trendy design in glossy piano black which is a

pleasure to touch and work with. The ergonomic shape ts both left- and

right-handed users. The advantage of the midi-size is obvious: the Laser

Mouse CL3500 is perfect for long-time usage at the desk and also as a travel

companion when on the road.

Order Code:

S26381-K423-L100

DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 5 / 6 http://ts.fujitsu.com/mobile

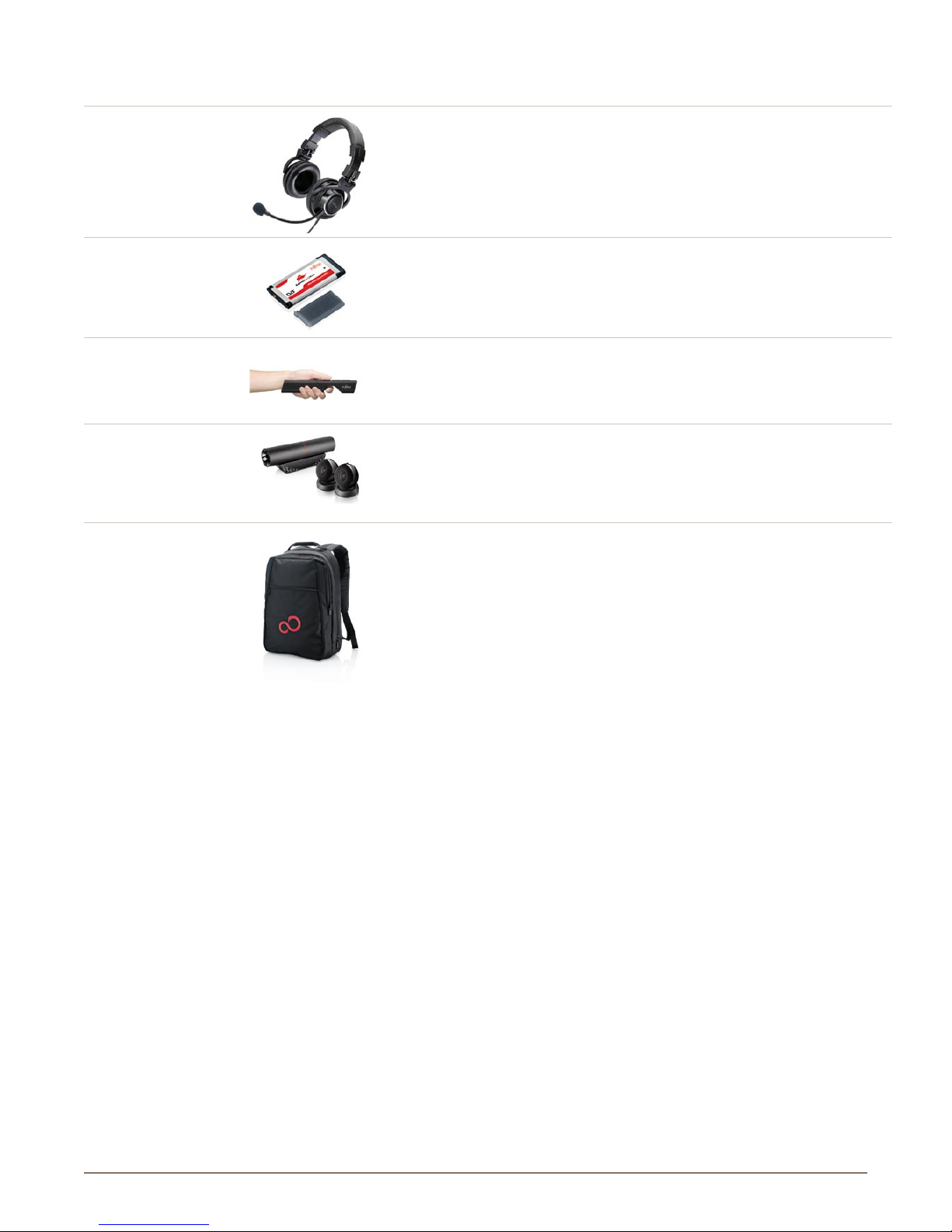

HS7100U Dolby Headphone Our outstanding Dolby Headphone HS7100U equipped with the latest Dolby

decoding & Virtual 7.1 Channel Surround Technology, enables all the gamers to

detect the enemy’s moves and dodge the bullets from all directions!

Order Code:

S26391-F7139-L1

Slim Mobile Express DVB-T Receiving digital TV wherever you want: with the new Slim Mobile Express

DVB-T. Once you plug in this unique “Plug & Forget” ExpressCard 34 mm

tuner; then, you need not to remove it from the slot again! You could also travel

up to 140 km/h without any comprise of TV signal quality.

Order Code:

S26391-F7125-L2

Air Command Plus Can’t get away from the game playing with the latest LIFEBOOK notebook or

CELSIUS Gaming Working Station? Air Command Plus is the best companion

for PC and notebook, optimized for all the sports games. The best has yet to

come: Air Command Plus also supports the latest games on the market.

Order Code:

S26391-F7111-L200

SOUNDSYSTEM DS P2100 Tube The new stylish and elegant SOUNDSYSTEM DS P2100 Tube has been added

to our multimedia portfolio. Taking inspiration from a hi- sound bar, the P2100

Tube presents you with living room design art pieces for acoustic enjoyment.

The small & robust satellite speaker is decorated with a deluxe piano nish and

the aluminum tube is adorned with a ne print of an exotic motif at its base - a

nal touch to complete this fantastic artwork.

Order Code:

S26391-F7128-L500

Backpack A16 Lightweight design; padded notebook section; adjustable and padded shoulder

straps;zipper pocket on the front with lots of accessory compartments inside;

mesh compartments; grip handle.

Order Code:

S26391-F119-L165

DATASHEET FUJITSU LIFEBOOK AH550 NOTEBOOK

Page 6 / 6 http://ts.fujitsu.com/mobile

CONTACT

FUJITSU Technology Solutions

Website: http://ts.fujitsu.com

2010-06-01 CE-EN

FUJITSU PLATFORM SOLUTIONS

In addition to Fujitsu LIFEBOOK AH550, Fujitsu

provides a range of platform solutions. They

combine reliable Fujitsu products with the best in

services, know-how and worldwide partnerships.

Dynamic Infrastructures

With the Fujitsu Dynamic Infrastructures

approach,Fujitsu offers a full portfolio of IT

products, solutions and services, ranging

from clients to datacenter solutions, Managed

Infrastructure and Infrastructureas-a-Service.

How much you benet from Fujitsu technologies

and services depends on the level of cooperation

you choose. This takes IT exibility and efciency

to the next level.

Computing Products

www.fujitsu.com/global/services/computing/

Software

www.fujitsu.com/software/

MORE INFORMATION

Learn more about Fujitsu LIFEBOOK AH550,

please contact your Fujitsu sales representative

or Fujitsu Business partner, or visit our website.

http://ts.fujitsu.com/mobile

FUJITSU GREEN POLICY INNOVATIOHN

Fujitsu Green Policy Innovation is our worldwide

project for reducing burdens on the environment.

Using our global know-how, we aim to resolve

issues of environmental energy efciency

through IT.

Please nd further information at http://www.

fujitsu.com/global/about/environment/

COPYRIGHTS

rights. Technical data subject to modications

and delivery subject to availability. Any liability

that the data and illustrations are complete,

actual or correct is excluded.

Designations may be trademarks and/or

copyrights of the respective manufacturer,

the use of which by third parties for their own

purposes may infringe the rights of such owner.

For further information see http://ts.fujitsu.com/

terms_of_use.html

DISCLAIMER

Technical data are subject to modication and

delivery subject to availability. Any liability that

the data and illustrations are complete, actual

or correct is excluded. Designations may be

trademarks and/or copyrights of the respective

manufacturer, the use of which by third parties

for their own purposes may infringe the rights of

such owner

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fujitsu Computer portatile

Fujitsu

Fujitsu Lifebook T580 Manuale utente

Fujitsu

Fujitsu LifeBook P2120 Manuale utente

Fujitsu

Fujitsu LIFEBOOK A1130 Manuale utente

Fujitsu

Fujitsu LifeBook C1410 Manuale utente

Fujitsu

Fujitsu N7010 - LifeBook - Core 2 Duo 2.26 GHz Manuale utente

Fujitsu

Fujitsu A1220 - LifeBook - Core 2 Duo 2.2 GHz Manuale

Fujitsu

Fujitsu UH-X Manuale utente

Fujitsu

Fujitsu Lifebook E-6624 Manuale

Fujitsu

Fujitsu LifeBook B2610 Manuale

Fujitsu

Fujitsu LifeBook T901 Series Manuale utente

Fujitsu

Fujitsu Lifebook P7120 Manuale utente

Fujitsu

Fujitsu N6010 - LifeBook - Mobile Pentium 4 3.2 GHz Manuale utente

Fujitsu

Fujitsu LIFEBOOK P Series Scheda informativa del prodotto

Fujitsu

Fujitsu CELSIUS Mobile H Manuale utente

Fujitsu

Fujitsu LifeBook E-6666 Manuale utente

Fujitsu

Fujitsu Lifebook E8020 Manuale

Fujitsu

Fujitsu Lifebook S710 Manuale utente

Fujitsu

Fujitsu LIFEBOOK NH532 Manuale utente

Fujitsu

Fujitsu 985Tx Manuale utente

Fujitsu

Fujitsu Lifebook LH530 Manuale utente

Fujitsu

Fujitsu V1020 - LifeBook - Core 2 Duo GHz Manuale utente

Fujitsu

Fujitsu Lifebook SH531 Manuale utente

Fujitsu

Fujitsu LIFEBOOK E734 Manuale utente

Fujitsu

Fujitsu N6110 - LifeBook - Pentium M 1.86 GHz Manuale

Manuali Computer portatile popolari di altre marche

HP ze2401xt - Pavilion Notebook PC Manuale utente

Velocity

Velocity NoteMagix M10 Manuale utente

Dell

Dell Alienware 17 R2 Manuale utente

Toshiba

Toshiba A105-S2236 Manuale utente

HP ENVY 17 Manuale

Winbook

Winbook LM Manuale utente

Dell

Dell Inspiron 1464 Manuale utente

Dell

Dell Inspiron 15R 5537 Manuale utente

HP PROBOOK 4520S Manuale

Dell

Dell Latitude ATG D620 Manuale utente

Sony

Sony VAIO PCG-FX270 Manuale utente

Dell

Dell Latitude 7310 Manuale utente

Dell

Dell Precision GU806 Manuale utente

Sony

Sony VAIO PCG-R505JLK Manuale utente

Lenovo

Lenovo THINKPAD X32 Manuale utente

HP Compaq tc4200 Guida rapida

Toshiba

Toshiba mini NB300 Manuale utente

Lenovo

Lenovo ThinkPad X201 Tablet Manuale
